Inspection Procedure

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

CHECK CD
1. Check for dirt on the CD surface
  OK: The CD is clean.
HINT:

If dirt is on the CD surface, wipe it clean with a soft cloth from the inside to the outside in a radial direction.

NOTE: Do not use a conventional record cleaner or anti-static preservative.

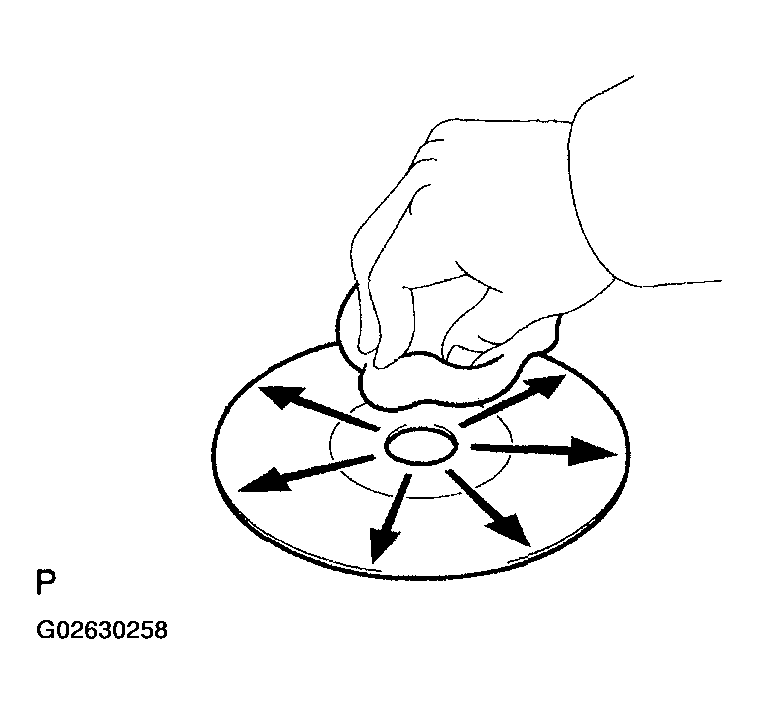

Fig 1: Cleaning CD
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: CLEAN CD
2. OK: GO TO NEXT STEP
CHECK CD
1. Check that the CD is not deformed or cracked
  OK: No deformations or cracks appear on the CD.

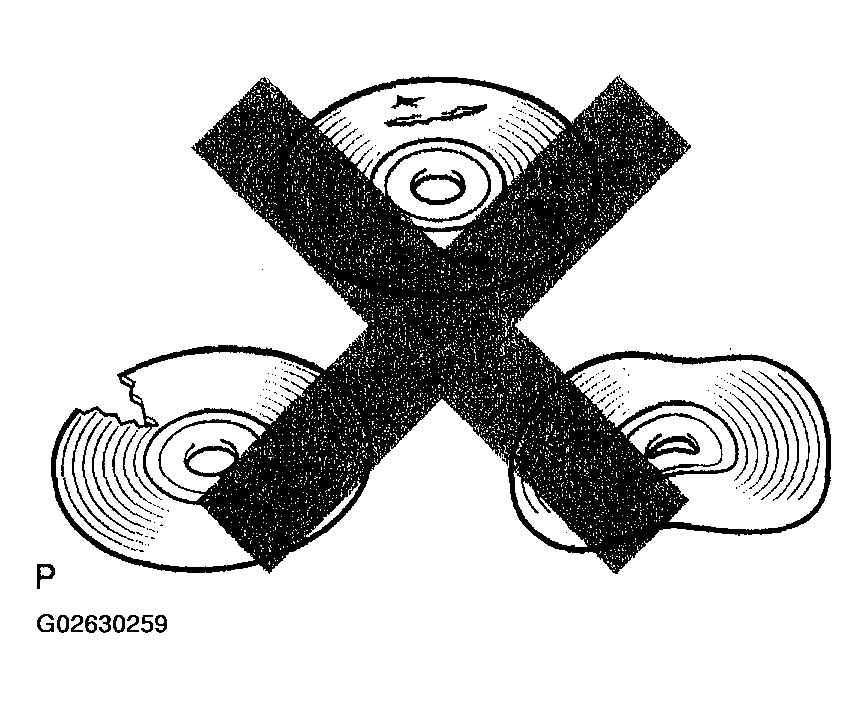

Fig 2: Identifying Cracked Or Deformed CD
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: REPLACE CD
2. OK: GO TO NEXT STEP
CHECK USING ANOTHER CD
1. Check using another CD.
  1. Check if the problem recurs using another CD.
  OK: The problem does not recur.
1. OK: REPLACE CD
2. NG: GO TO NEXT STEP
CHECK RADIO AND NAVIGATION ASSY
1. Check the radio and navigation assy installation condition.
  1. Check that the radio and navigation assy is properly installed (see RADIO RECEIVER ASSY ).
  OK: Radio and navigation assy is properly installed.
1. NG: REINSTALL RADIO AND NAVIGATION ASSY PROPERLY
2. OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN PROBLEM SYMPTOMS TABLE
