Inspection Procedure
WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
- INSPECT MULTI-DISPLAY CONTROLLER SUB-ASSY (+B1, ACC, GND, SELD)

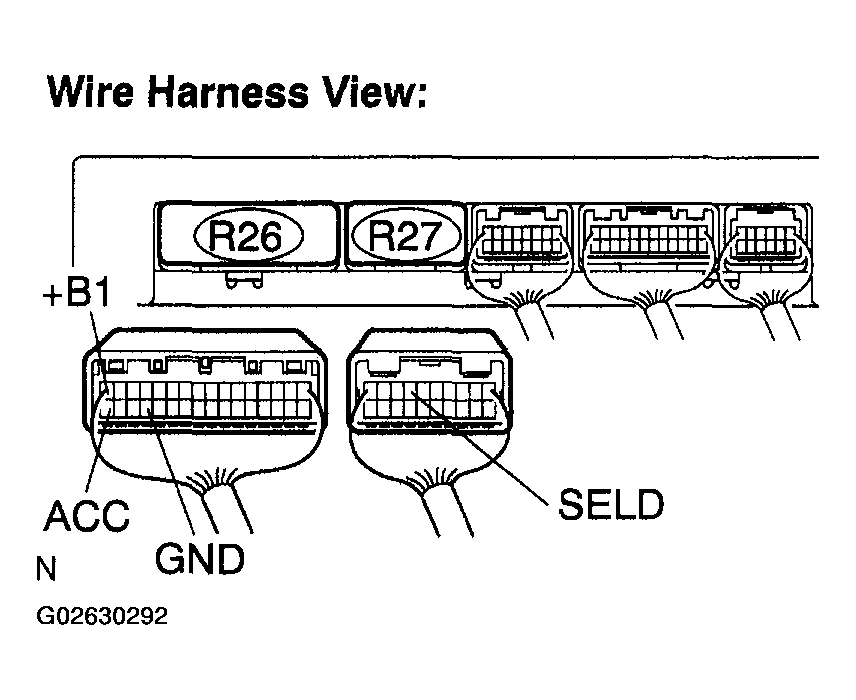

- Disconnect the multi-display controller sub-assy connectors R26 and R27.
- Measure the resistance according to the value(s) in
MULTI-DISPLAY CONTROLLER SUB-ASSY (+B1, ACC, GND, SELD) RESISTANCE
Standard:
MULTI-DISPLAY CONTROLLER SUB-ASSY (+B1, ACC, GND, SELD) RESISTANCETester connection Condition Specified condition GND - Body ground Always Below 1 Ω SELD - Body ground Always Below 1 Ω - Measure the voltage according to the value(s) in.
MULTI-DISPLAY CONTROLLER SUB-ASSY (+B1, ACC, GND, SELD) VOLTAGE
Standard:
MULTI-DISPLAY CONTROLLER SUB-ASSY (+B1, ACC, GND, SELD) VOLTAGETester connection Condition Specified condition +B1 - GND Always 10 to 14 V ACC - GND Ignition SW ACC 10 to 14 V Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
- OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN DIAGNOSTIC TROUBLE CODE TABLE )
