Back Monitor System: Pre-Check

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT TELEVISION CAMERA ASSY

Standard signal check.
1. Using the tester, measure the voltage and check the continuity between terminals.
  HINT:

  Leave the connector being connected.
2. Using the oscilloscope, check waveforms between terminals.
HINT:
- Leave the connector being connected.
- The waveform shown is merely an example.
  Noise waveform and chattering waveform are omitted.

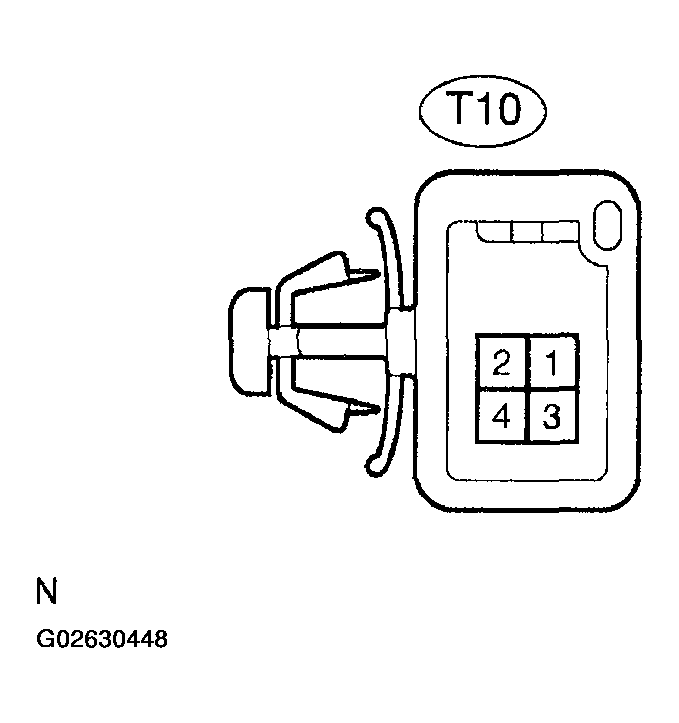

Fig 1: Inspecting Television Camera Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard:

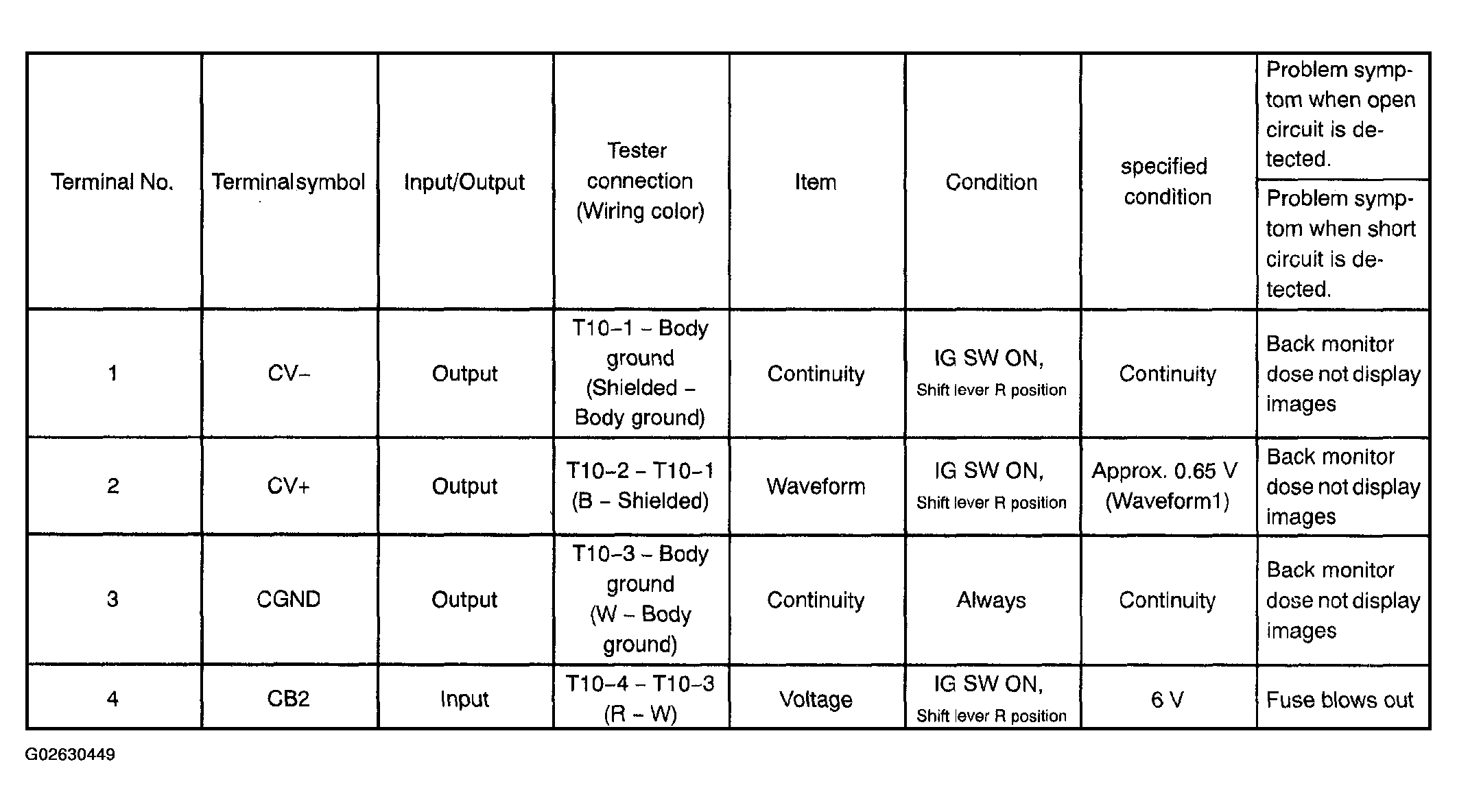

Fig 2: Television Camera Assy Table (Connector T10)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Reference

Oscilloscope waveform.

Waveform 1.

Standard:

TELEVISION CAMERA ASSY (WAVEFORM 1)

Item	Content
Terminal	CV+ - CV-
Tool setting	0.2 V/DIV, 0.2 Ωs/DIV
Condition	IG SW ON, shift lever R position

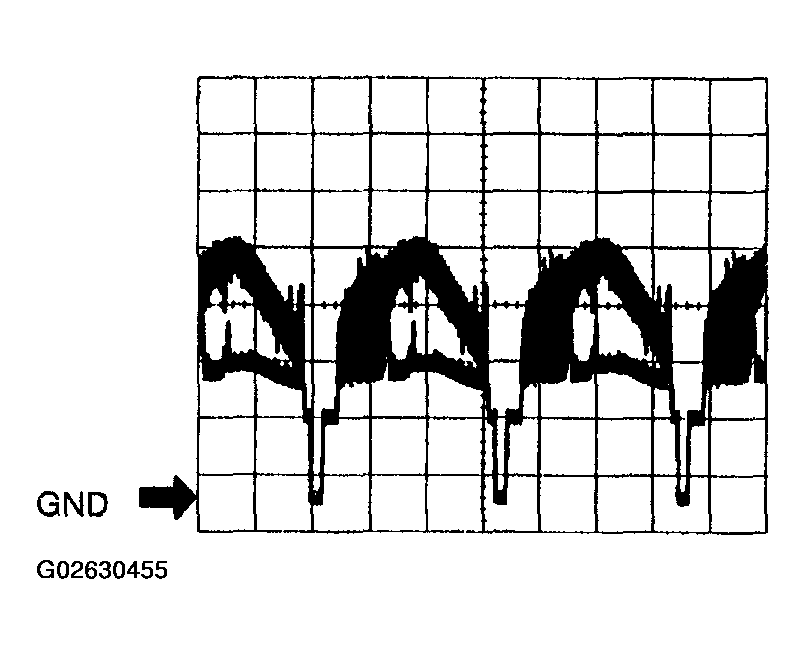

Fig 3: Oscilloscope Waveform 1 Graph

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT RADIO RECEIVER ASSY (BACK MONITOR CONTROLLER)

Standard signal check.
1. Using the tester, measure the voltage and check the continuity between terminals.
  HINT:

  Leave the connectors being connected.
Check waveforms between terminals.
HINT:
- Leave the connectors being connected.
- The waveform shown is merely an example. Noise waveform and chattering waveform are omitted.

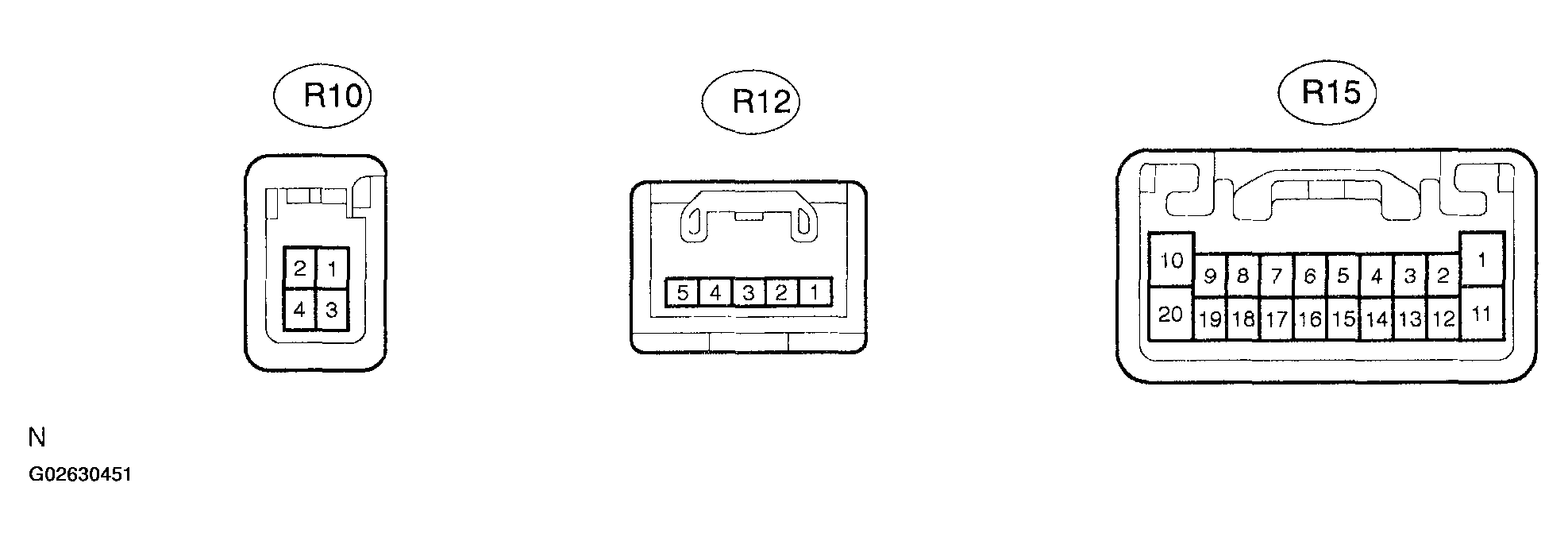

Fig 4: Inspecting Radio Receiver Assy (Back Monitor Controller) Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard:

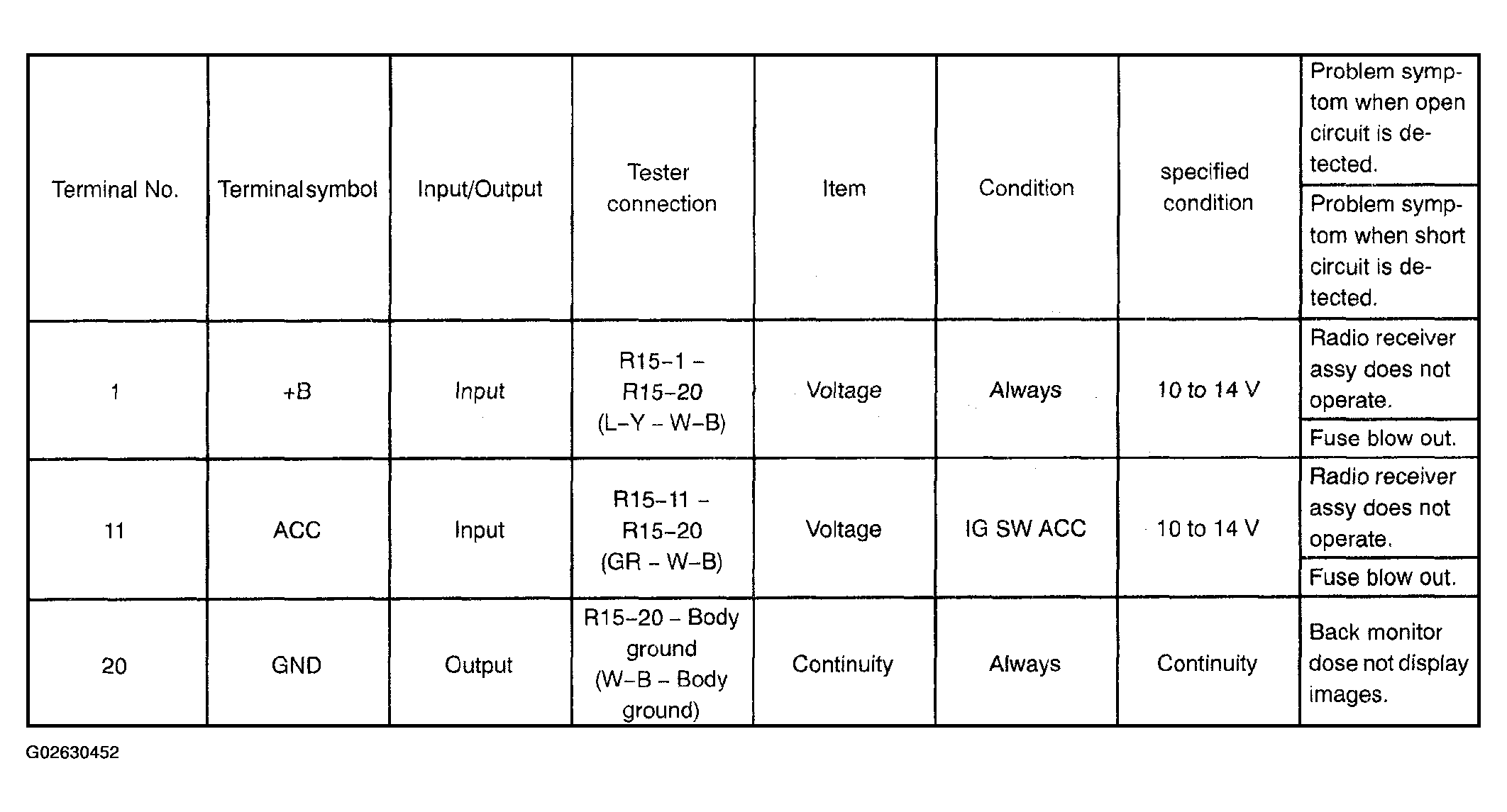

Fig 5: Radio Receiver Assy Table (Back Monitor Controller - Connector R15)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

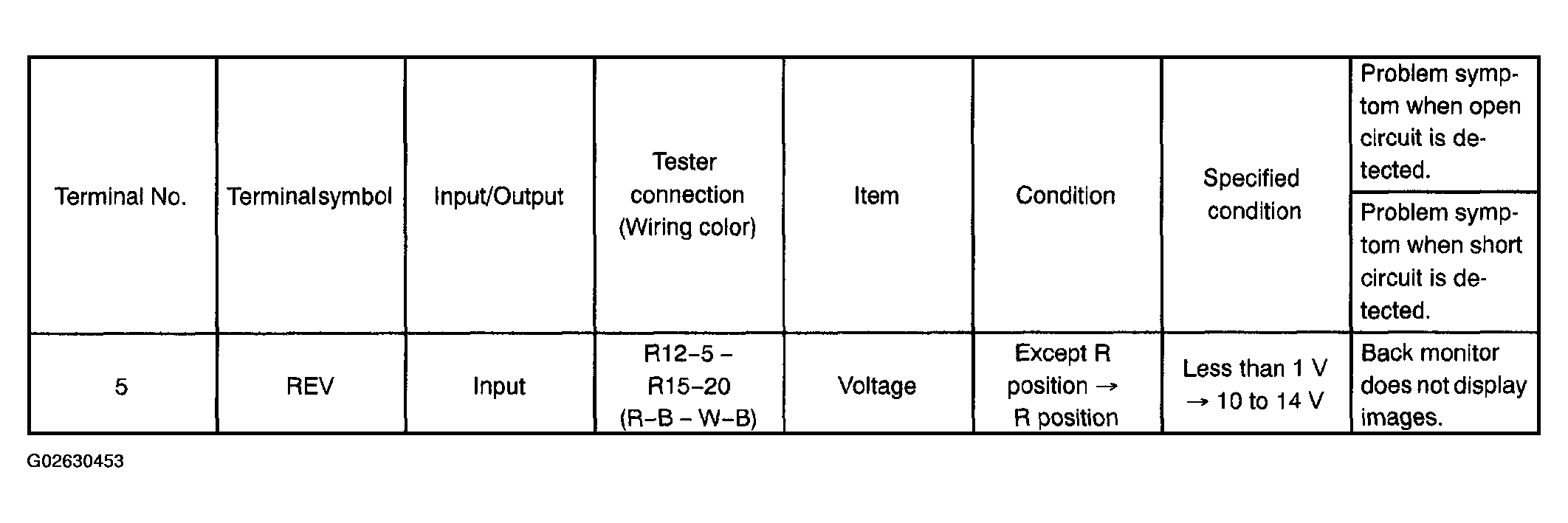

Fig 6: Radio Receiver Assy Table (Back Monitor Controller - Connector R12)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

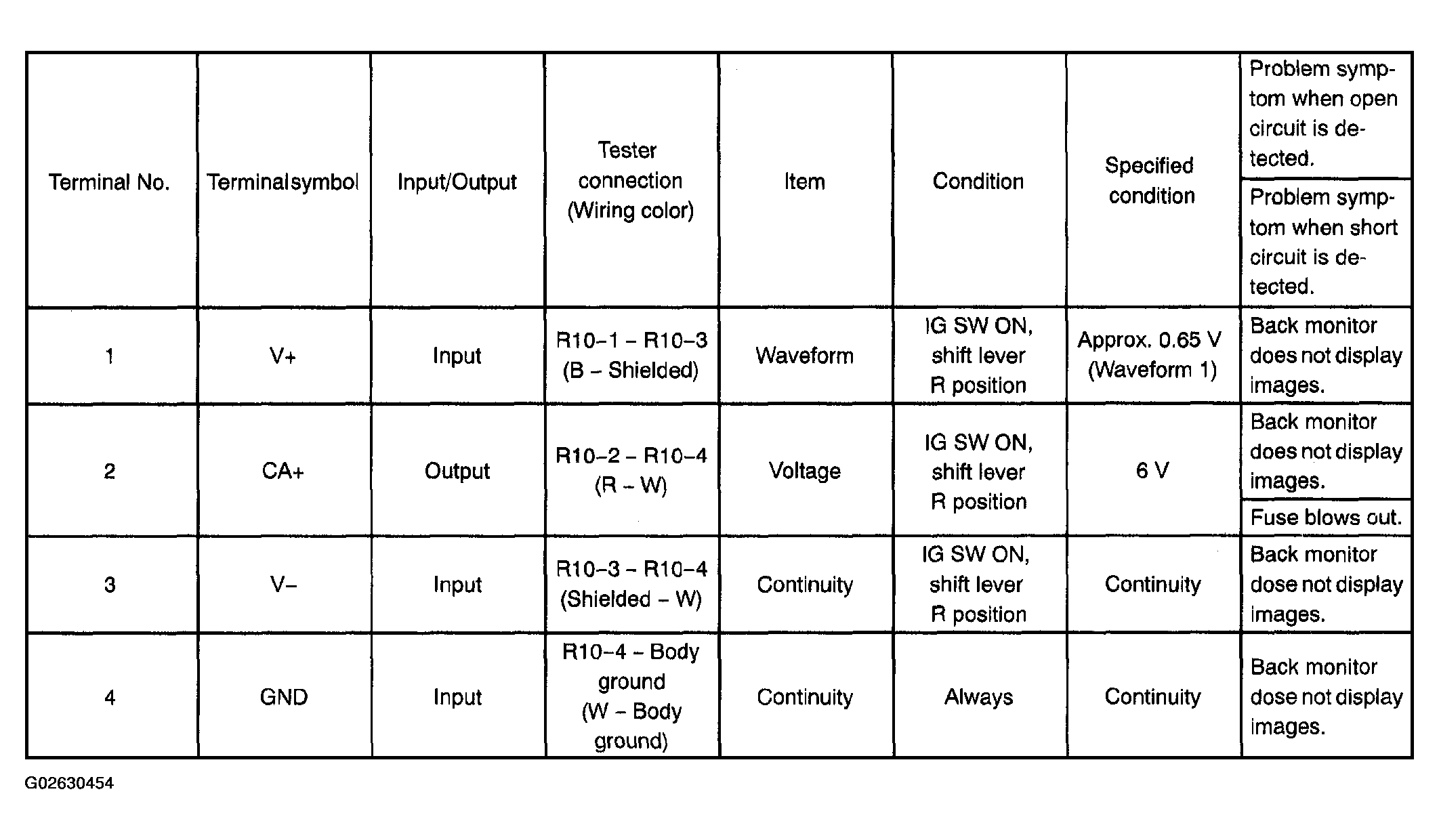

Fig 7: Radio Receiver Assy Table (Back Monitor Controller - Connector R10)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Reference
Oscilloscope waveform.
1. Waveform 1.
Standard:

RADIO RECEIVER ASSY (BACK MONITOR CONTROLLER) (WAVEFORM 1)

Item	Content
Terminal	V+ -V-
Tool setting	0.2 V / DIV, 0.2 muS / DIV
Condition	IG SW ON, shift lever R position

Fig 8: Radio Receiver Assy (Back Monitor Controller) Graph (Waveform 1)

INSPECT BACK MONITOR CAMERA WIRE

Continuity check.
1. Using the tester, check the continuity between terminals.
Standard:

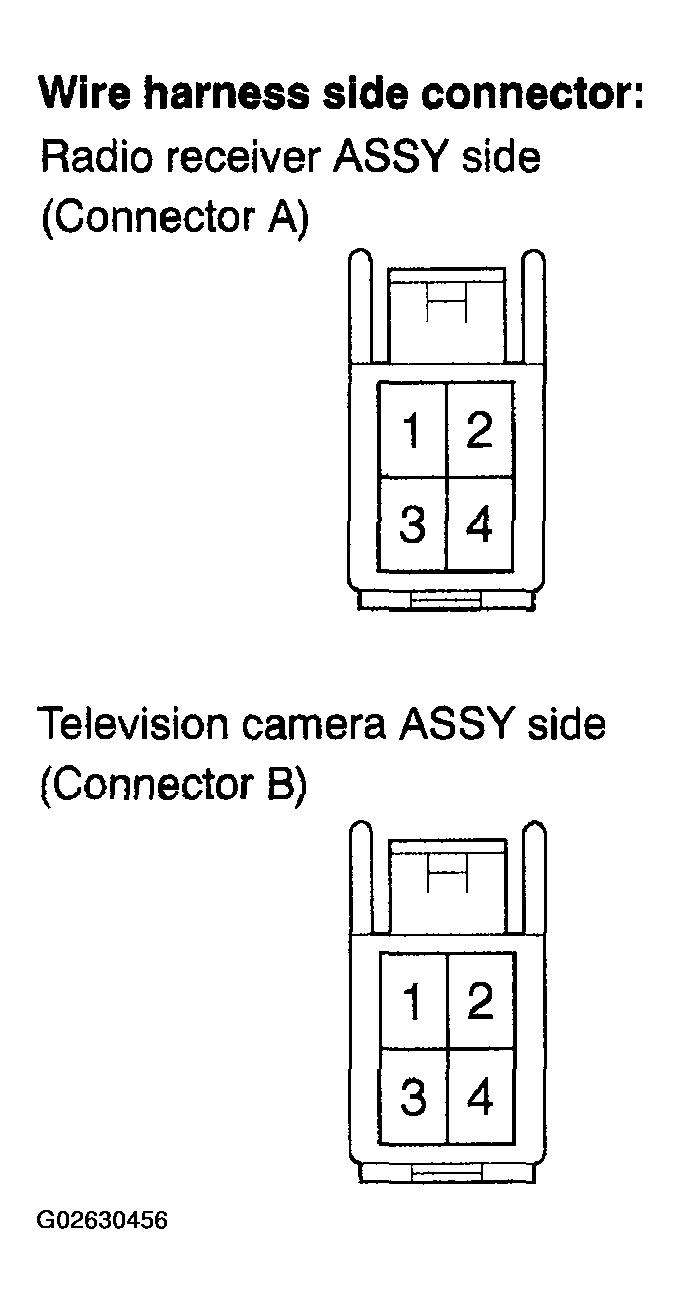

Fig 9: Inspecting Back Monitor Camera Wire

BACK MONITOR CAMERA WIRE

Tester Connection	Specified Condition
A-1 (Radio receiver ASSY side) - B-2 (Television camera ASSY side)	Continuity
A-2 (Radio receiver ASSY side) - B-4 (Television camera ASSY side)	Continuity
A-3 (Radio receiver ASSY side) - B-1 (Television camera ASSY side)	Continuity
A-4 (Radio receiver ASSY side) - B-3 (Television camera ASSY side)	Continuity
