Inspection Procedure

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

OPERATION CHECK
1. If the power slide door does not operate when trying to open it, proceed to A.
2. If the power slide door does not operate when trying to close it, proceed to B.
1. B: Go to step 3
2. A: Go to next step
CHECK SLIDE DOOR CLOSER SYSTEM
1. Check if the slide door closer system operates.
1. NG: GO TO CLOSER SYSTEM (See SLIDE DOOR CLOSER SYSTEM )
2. OK: Go to next step

READ VALUE OF HAND-HELD TESTER

Using the hand-held tester, check the DATA LIST for proper functioning of the handle operation detect switch.
Standard (Power slide door ECU LH):

DATA LIST ITEM REFERENCE

Item	Measurement Item/Display (Range)	Normal Condition	Diagnostic Note
HANDLE SW	Handle operation detect switch signal /ON or OFF	ON: Slide door inside/outside handle is pulled OFF: Slide door inside/outside handle is not pulled	-

OK: Go to step 6
NG: Go to next step

INSPECT SLIDE DOOR LOCK REMOTE CONTROL SUB-ASSY LH (HANDLE OPERATION DETECT SWITCH)

Inspect the resistance of the switch.
Standard:

HANDLE OPERATION DETECT SWITCH RESISTANCE SPECIFICATIONS

Terminal No.	Lever Position	Specified Condition
1 - 3	Unlock	10 kΩ or higher
1 - 3	Lock	Below 1 Ω

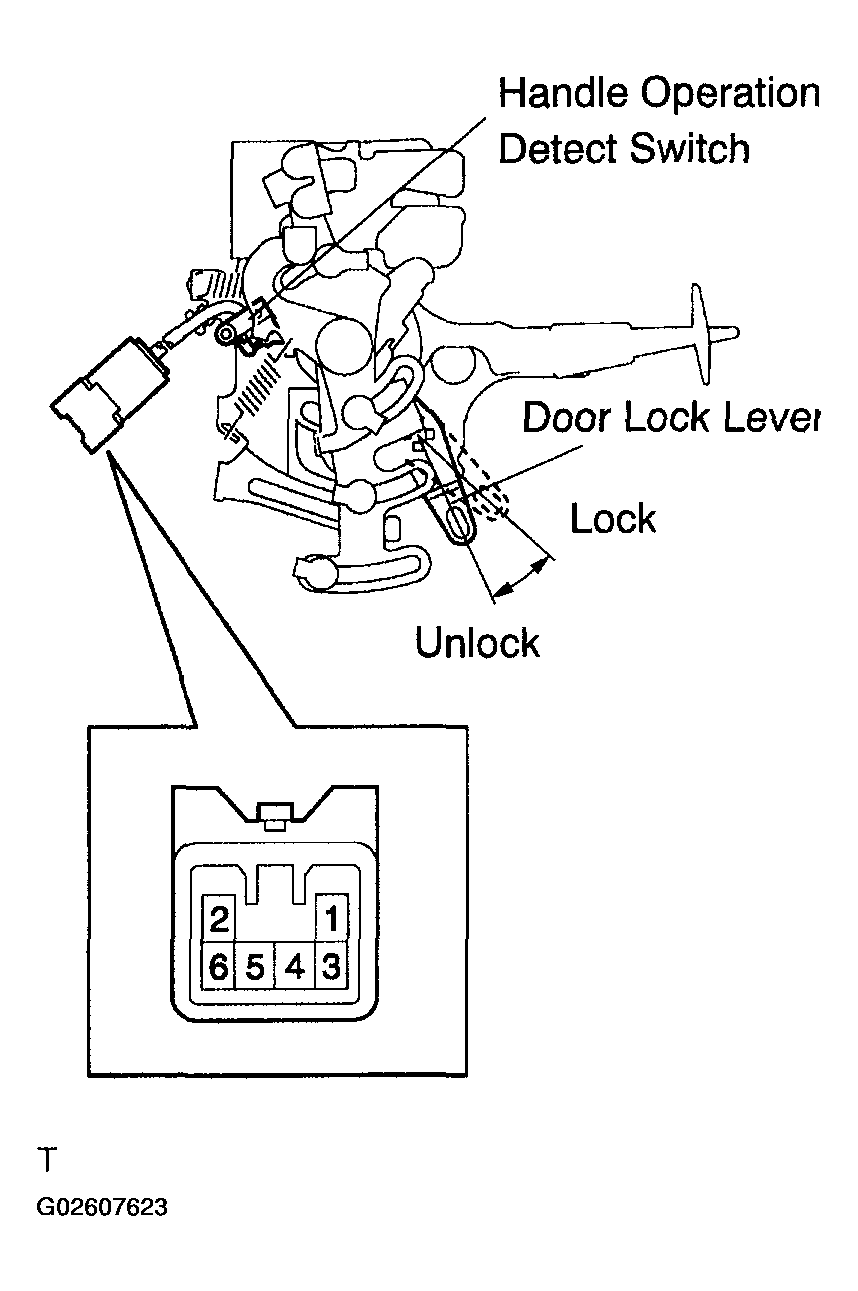

Fig 1: Inspecting Handle Operation Detect Switch

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE SLIDE DOOR LOCK REMOTE CONTROL SUB-ASSY LH
OK: Go to next step

CHECK WIRE HARNESS (SLIDE DOOR LOCK REMOTE CONTROL ASSY (HANDLE OPERATION DETECT SWITCH) - POWER SLIDE DOOR ECU LH)

Disconnect the S20 remote control and P25 ECU connectors.

Check the resistance between the wire harness side connectors.

Standard (Check for open circuit):

S20 REMOTE CONTROL AND P25 ECU CONNECTORS RESISTANCE SPECIFICATIONS

Terminal No.	Specified Condition
S20-1 - P25-3 (HSW)	Below 1 Ω

Check the resistance between the S20 remote control connector and body ground.

Standard (Check for open circuit):

S20 REMOTE CONTROL CONNECTOR AND BODY GROUND RESISTANCE SPECIFICATIONS

Terminal No.	Specified Condition
S20-3 - Body ground	Below 1 Ω

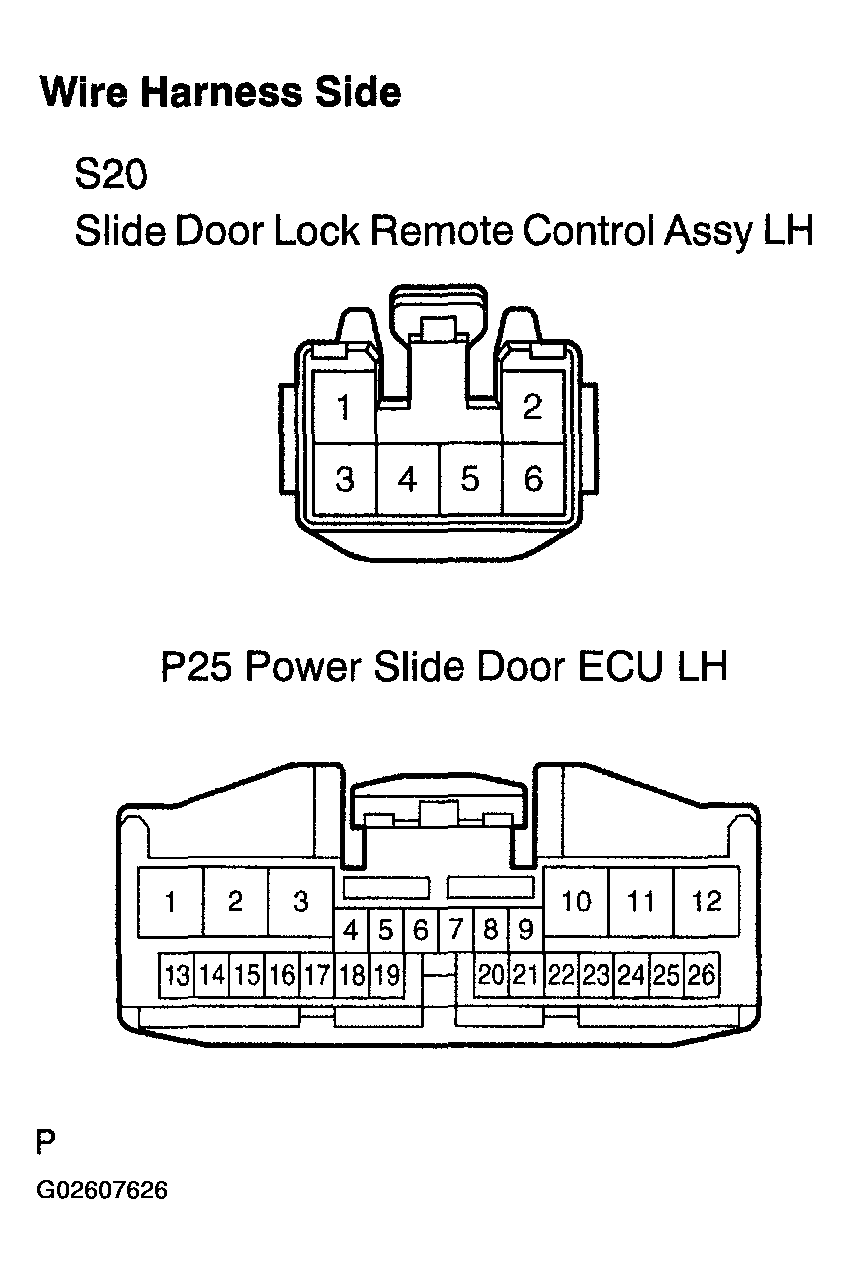

Fig 2: Identifying S20 Remote Control & P25 ECU Connectors

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
OK: REPLACE POWER SLIDE DOOR ECU LH

READ VALUE OF HAND-HELD TESTER

Using the hand-held tester, check the DATA LIST for proper functioning of the child protection detect switch.
Standard (Power slide door ECU LH):

DATA LIST ITEM REFERENCE

Item	Measurement Item/Display (Range)	Normal Condition	Diagnostic Note
CHILD LOCK SW	Child protection detect switch signal /ON or OFF	ON: Child lock lever is LOCK OFF: Child lock lever is UNLOCK	-

OK: REPLACE POWER SLIDE DOOR ECU LH
NG: Go to next step

INSPECT SLIDE DOOR LOCK REMOTE CONTROL SUB-ASSY LH (CHILD PROTECTION DETECT SWITCH)

Inspect the resistance of the switch.

Standard:

CHILD PROTECTION DETECT SWITCH RESISTANCE SPECIFICATIONS

Terminal No.	Lever Position	Specified Condition
4 - 5	Unlock	10 kΩ or higher
4 - 5	Lock	Below 1 Ω

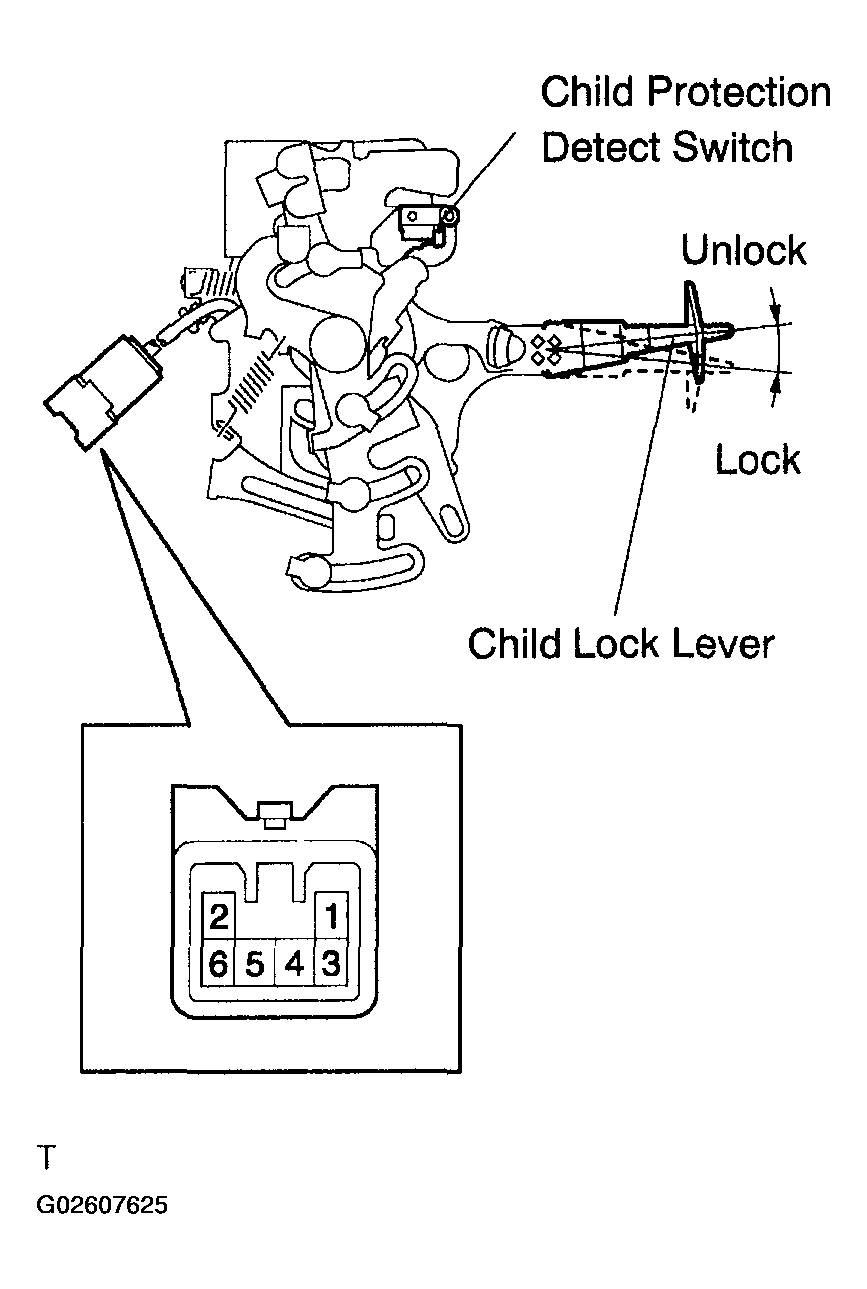

Fig 3: Inspecting Child Protection Detect Switch

NG: REPLACE SLIDE DOOR LOCK REMOTE CONTROL SUB-ASSY LH
OK: Go to next step

CHECK WIRE HARNESS (SLIDE DOOR LOCK REMOTE CONTROL ASSY LH (CHILD PROTECTION DETECT SWITCH) - POWER SLIDE DOOR ECU LH)

Disconnect the S20 switch and P25 ECU connectors.

Check the resistance between the wire harness side connectors.

Standard (Check for open circuit):

S20 SWITCH AND P25 ECU CONNECTORS RESISTANCE SPECIFICATIONS

Terminal No.	Specified Condition
S20-5 - P25-18 (CPSW)	Below 1 Ω

Check the resistance between the S20 switch connector and body ground.
Standard (Check for open circuit):

S20 SWITCH CONNECTOR AND BODY GROUND RESISTANCE SPECIFICATIONS

Terminal No.	Specified Condition
S20-4 - Body ground	Below 1 Ω

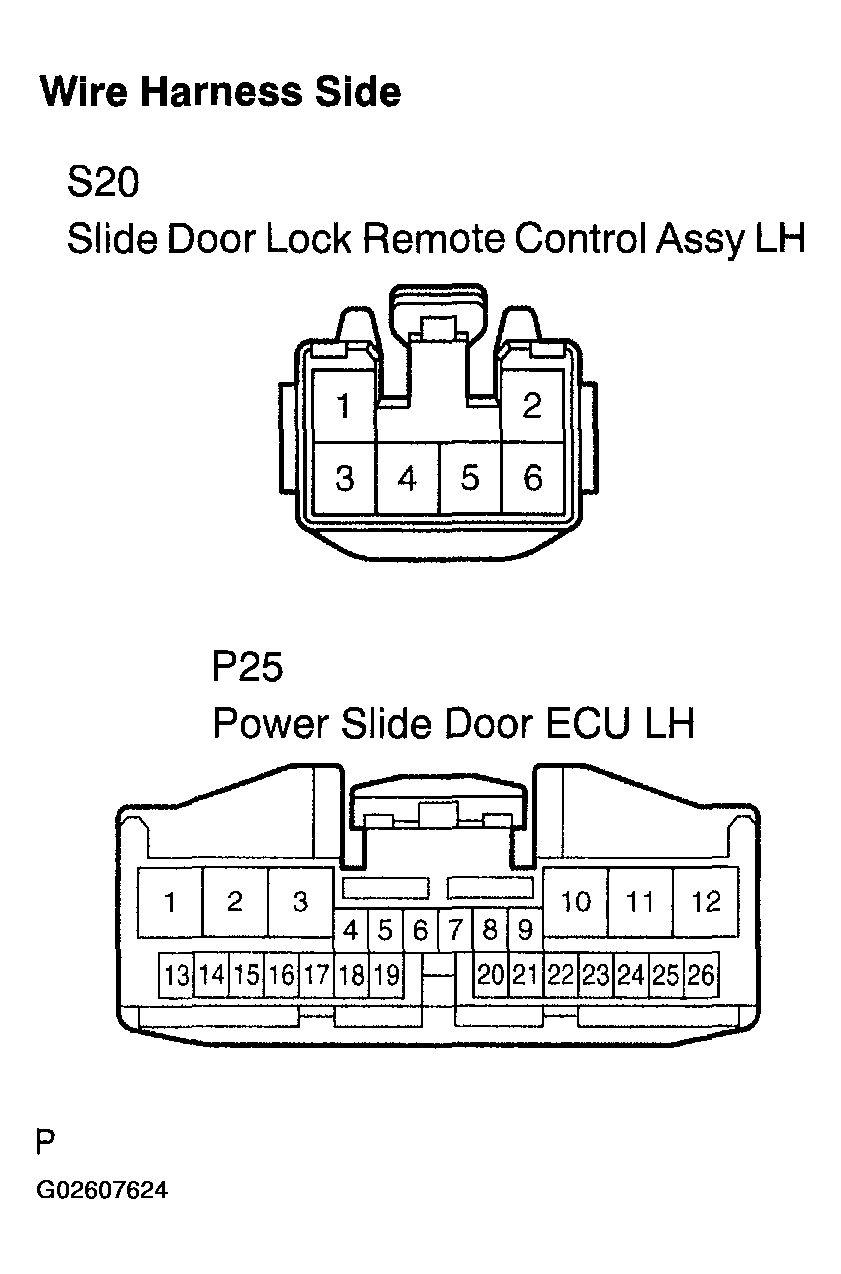

Fig 4: Identifying S20 Switch & P25 ECU Connectors

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
OK: REPLACE POWER SLIDE DOOR ECU LH
