Problem Symptoms Table
WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
HINT:

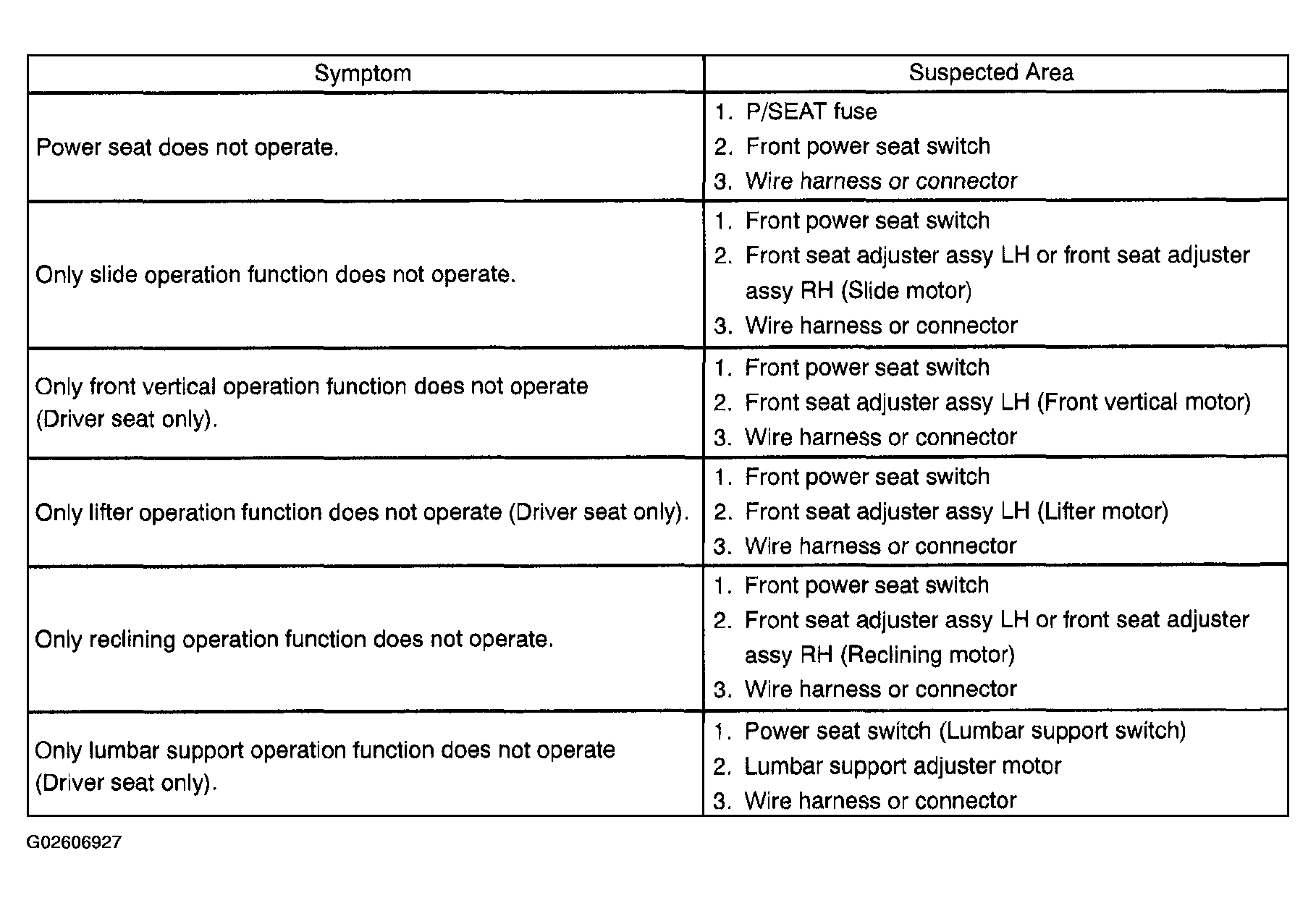

Use Fig 1 , with suspected areas listed in numerical order, to determine the cause of the problem. Inspect and repair or replace parts as necessary according to the steps on the following (DTC No.).
- FRONT POWER SEAT CONTROL SYSTEM
