Section 99 (Electrical Component Locator): Miscellaneous
WARNING: This page is about a different car, the 2004 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
MISCELLANEOUS LOCATION
| Component | Location |
|---|---|
| Airbag Squib (Front Passenger Airbag Assembly) | Behind right side of dash. See Figure. |
| Airbag Squib (Steering Wheel Pad) | Under steering wheel pad. See Figure. |

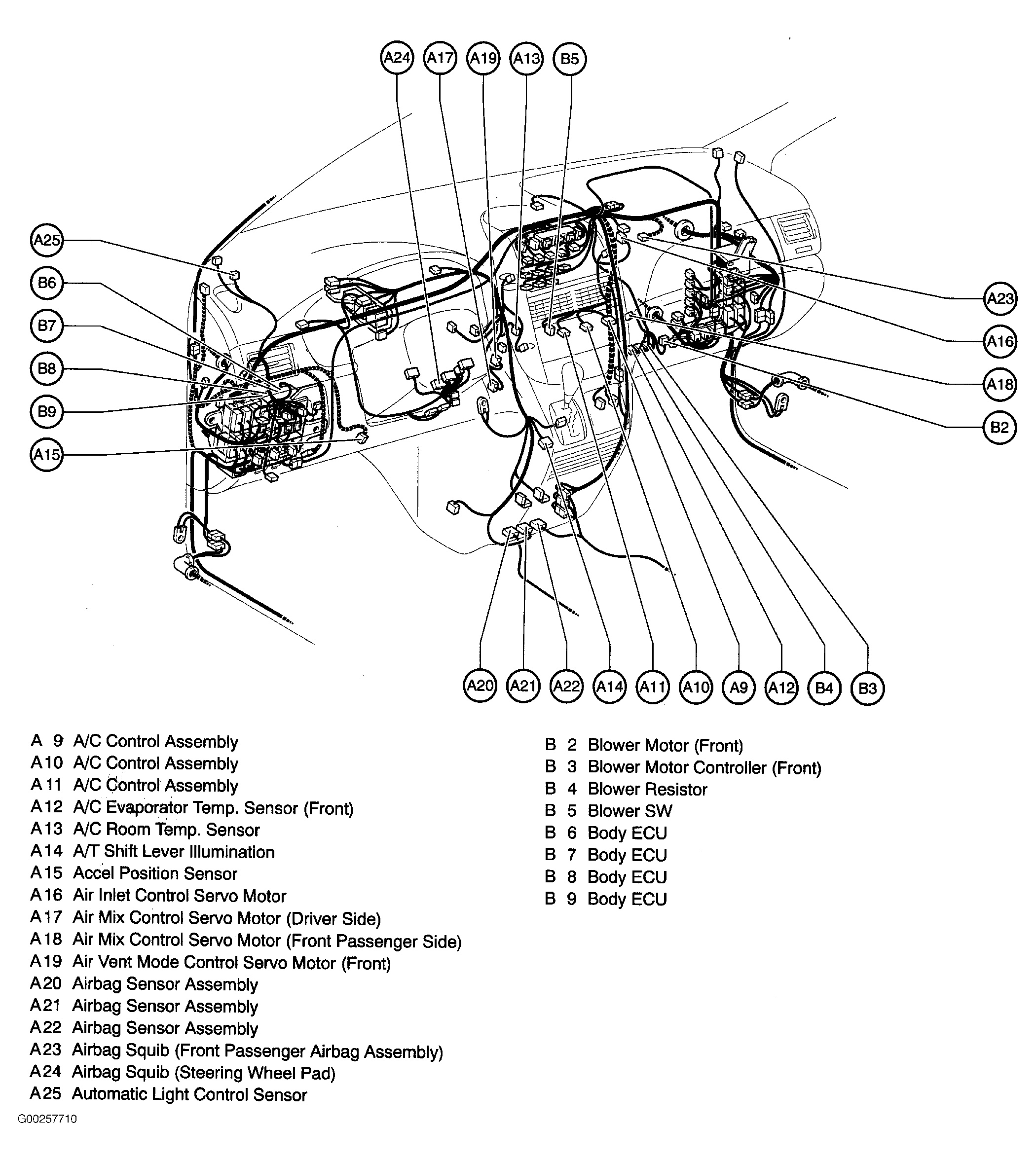

| Blower Resistor | Behind right side of dash, on blower housing. See Figure. |
| Curtain Shield Airbag Squib Front LH | At base of left "A" pillar. See Figure. |
| Curtain Shield Airbag Squib Front RH | At base of right "A" pillar. See Figure. |
| Curtain Shield Airbag Squib Rear LH | Behind left rear quarterpanel. See Figure. |
| Curtain Shield Airbag Squib Rear RH | Behind right rear quarterpanel. See Figure. |
| Data Link Connector 3 | Below left side of dash. See Figure. |
| Generator | At left front of engine. See Figure. |
| Glass Antenna Amplifier | Behind right side of dash. See Figure. |

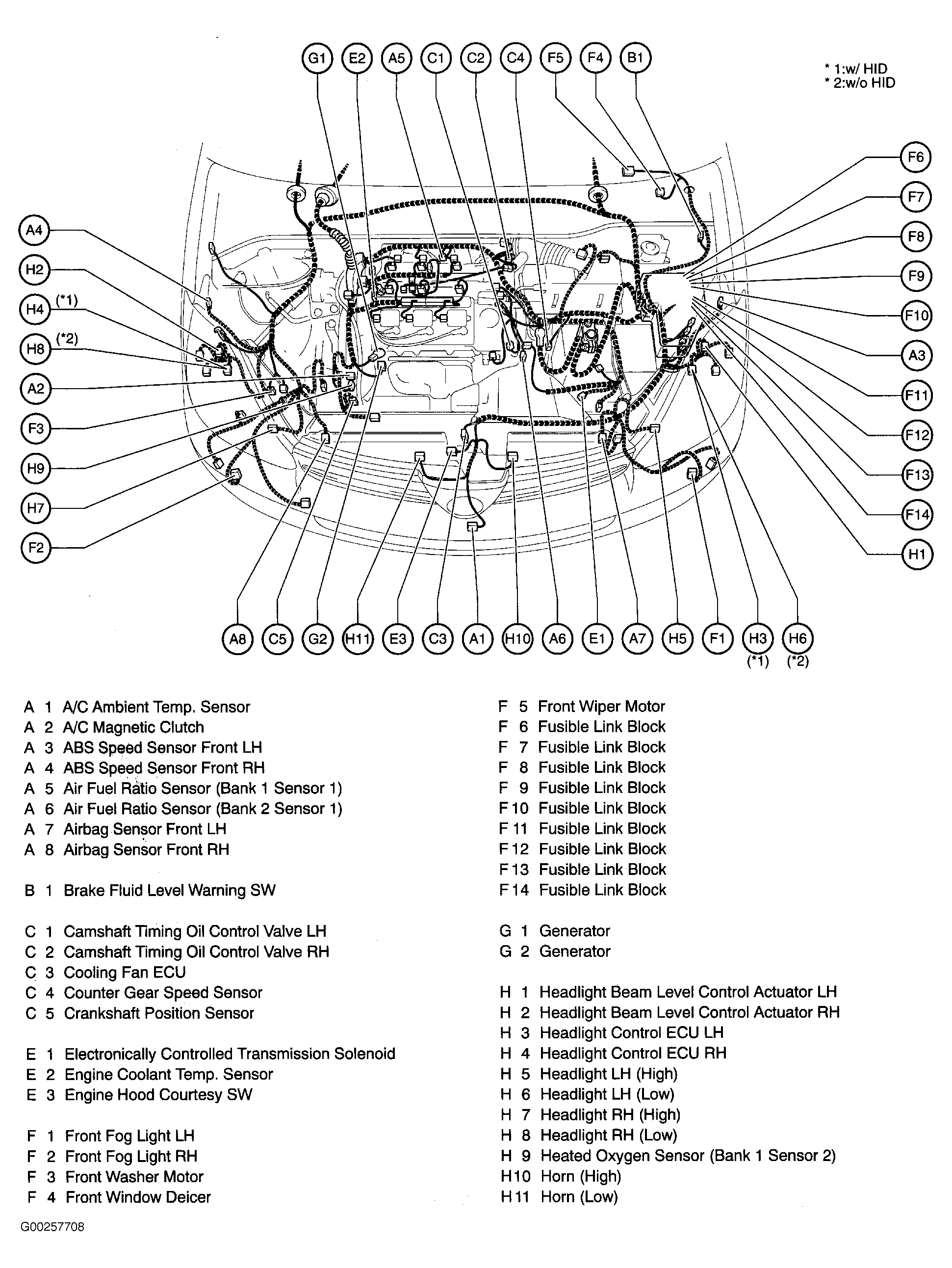

| Horn (High) | At front center of engine compartment. See Figure. |
| Horn (Low) | At front center of engine compartment. See Figure. |

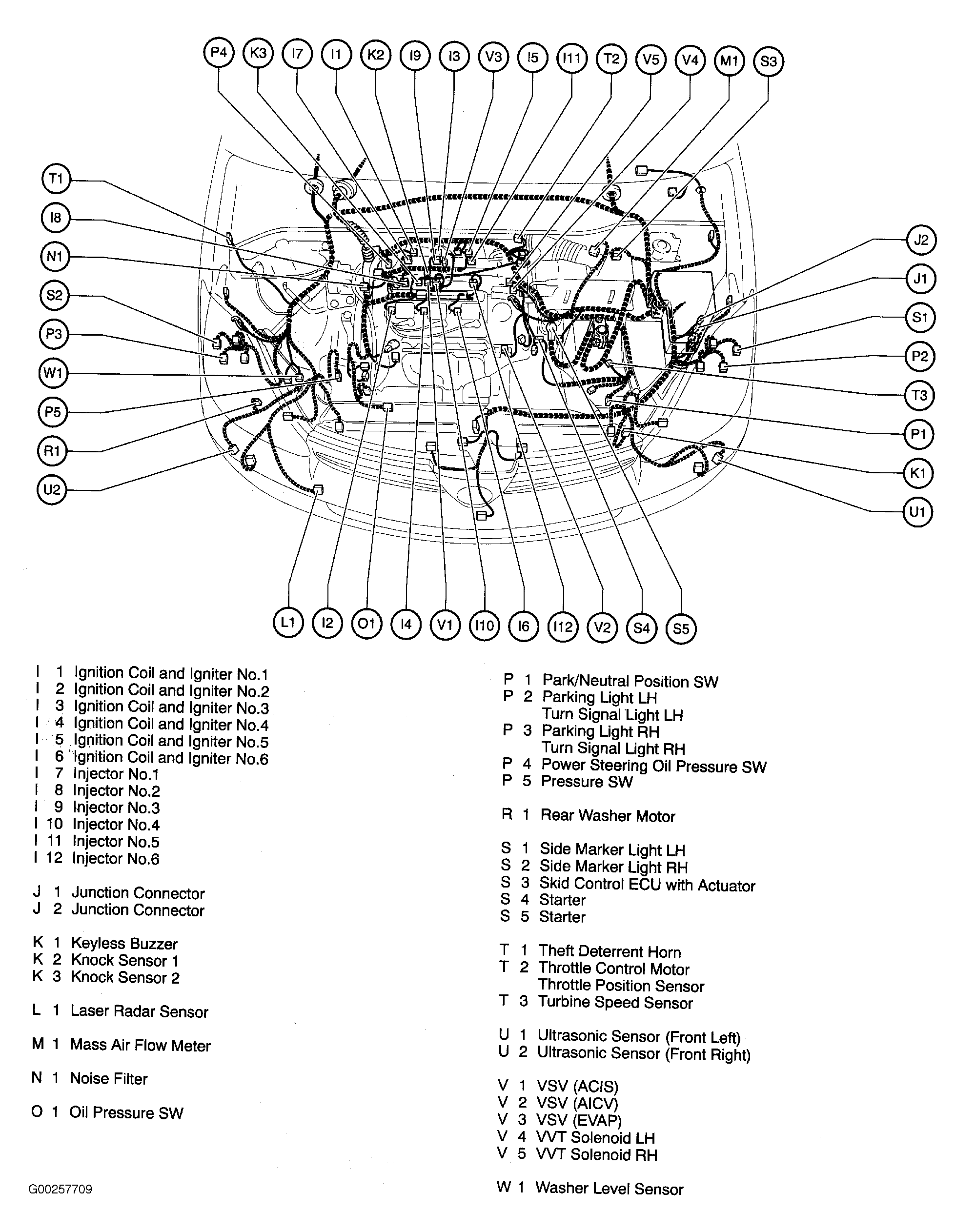

| Ignition Coil & Igniter No. 1 | At top of right cylinder bank. See Figure. |
| Ignition Coil & Igniter No. 2 | At top of left cylinder bank. See Figure. |
| Ignition Coil & Igniter No. 3 | At top of right cylinder bank. See Figure. |
| Ignition Coil & Igniter No. 4 | At top of left cylinder bank. See Figure. |
| Ignition Coil & Igniter No. 5 | At top of right cylinder bank. See Figure. |
| Ignition Coil & Igniter No. 6 | At top of left cylinder bank. See Figure. |
| Junction Connector No. 1 & 2 | At left side of engine compartment. See Figure. |
| Junction Connector No. 21 | Behind upper left center of dash. See Figure. |

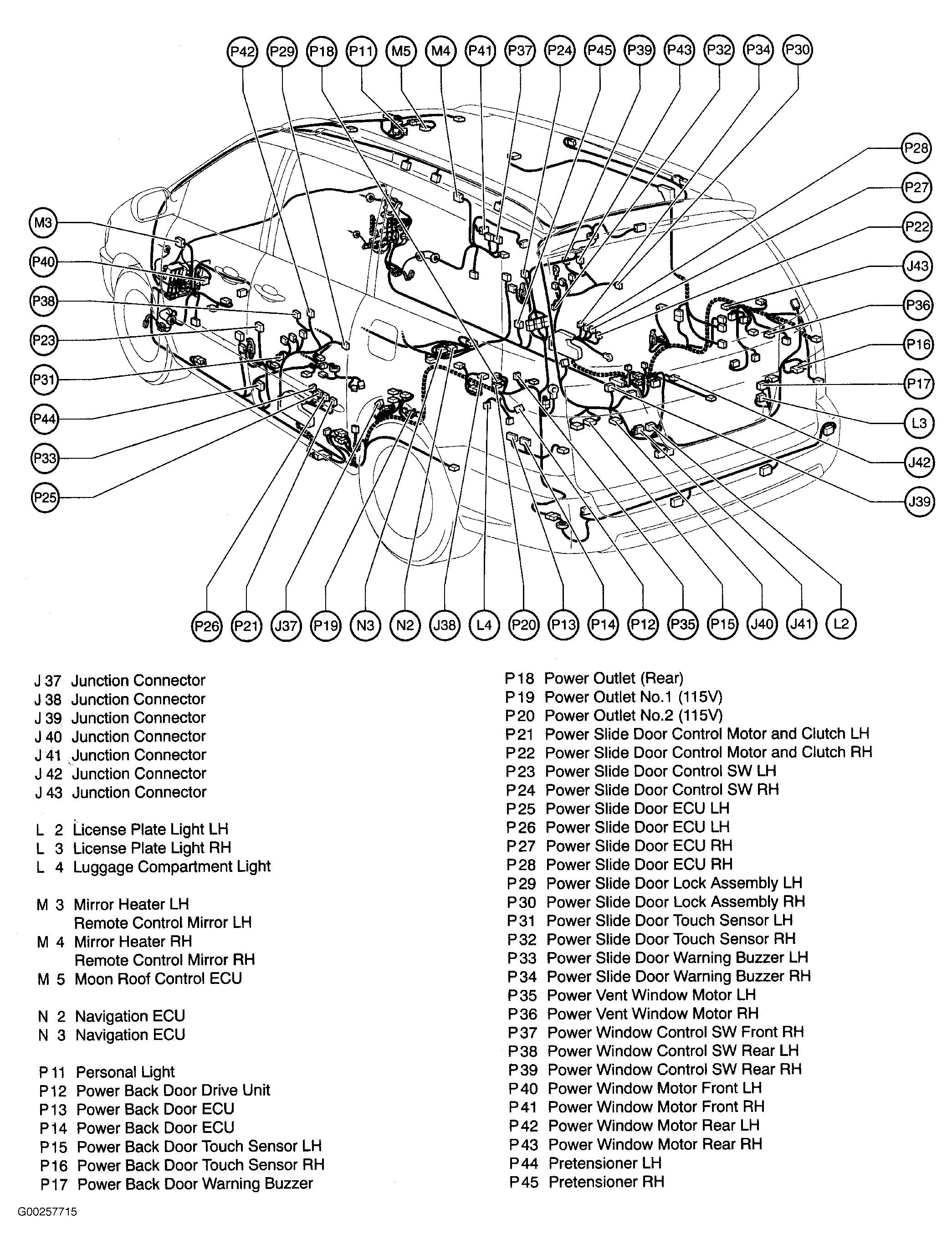

| Junction Connector No. 37 | Forward of left rear wheelwell. See Figure. |
| Junction Connector No. 38 | Behind left rear quarterpanel. See Figure. |
| Junction Connector No. 39, 40 & 41 | In back door. See Figure. |
| Junction Connector No. 42 | Forward of right wheelwell. See Figure. |
| Junction Connector No. 43 | Behind right rear quarterpanel. See Figure. |
| Junction Connector No. 44 | Under left front seat. See Figure. |

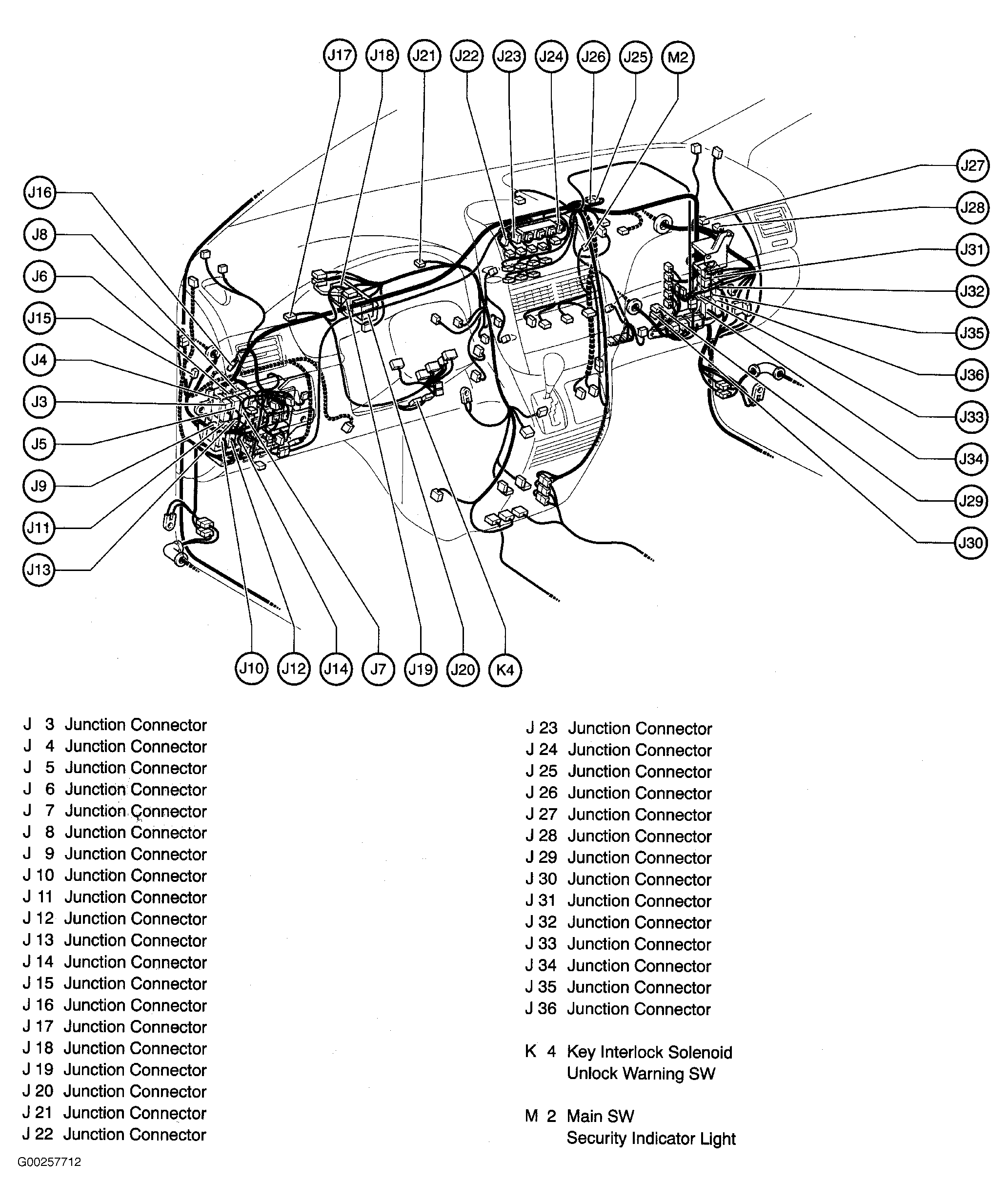

| Junction Connectors No. 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15 & 16 | Behind left end of dash. See Figure. |
| Junction Connectors No. 17, 18, 19 & 20 | Behind upper left side of dash. See Figure. |
| Junction Connectors No. 22, 23 & 24 | Behind upper center of dash. See Figure. |
| Junction Connectors No. 25 & 26 | Behind upper right side of dash. See Figure. |
| Junction Connectors No. 27, 28, 29, 30, 31, 32, 33, 34, 35 & 36 | Behind right side of dash. See Figure. |
| Mirror Heater LH | At left front door mirror. See Figure. |
| Mirror Heater RH | At right front door mirror. See Figure. |
| Noise Filter | At right front of engine. See Figure. |
| Pretensioner LH | At base of left "B" pillar. See Figure. |
| Pretensioner RH | At base of right "B" pillar. See Figure. |
| Side Airbag Squib LH | In left sliding door. See Figure. |
| Side Airbag Squib RH | In right sliding door. See Figure. |
| Stereo Component Amplifier | Behind right side of dash. See Figure. |
| Television Camera | At left side of back door. See Figure. |
| Theft Deterrent Horn | On right rear of engine compartment. See Figure. |
| Transponder Key Amplifier | Inside top of steering column. See Figure. |

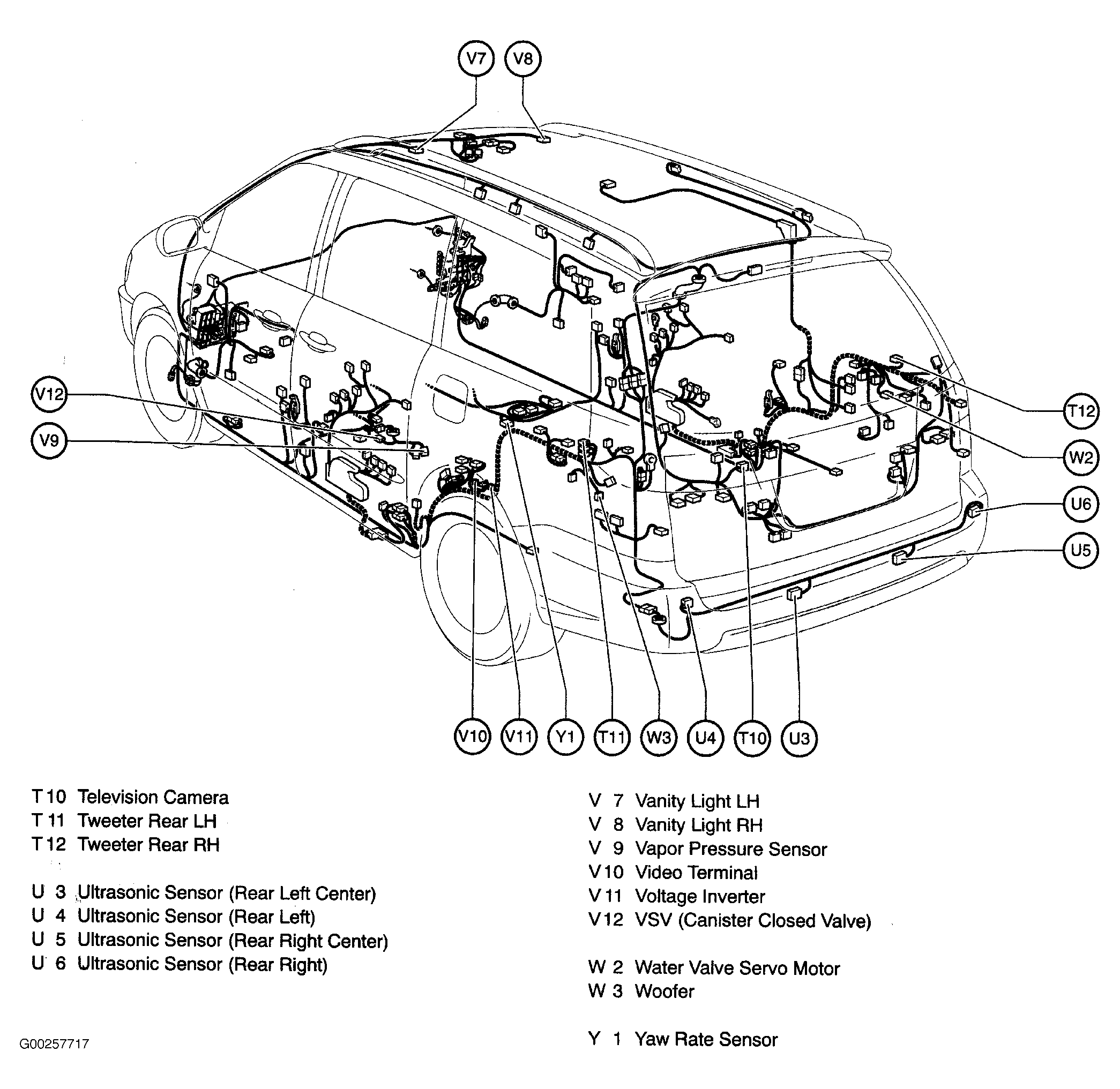

| Voltage Inverter | Above left rear wheelwell. See Figure. |
