Buzzers, Relays & Timers
BUZZERS, RELAYS & TIMERS LOCATION
| Component | Location |
|---|---|
| ACC Relay | In driver side J/B. See Figure. |
| ADJ PDL Relay | In engine room R/B. See Figure. |

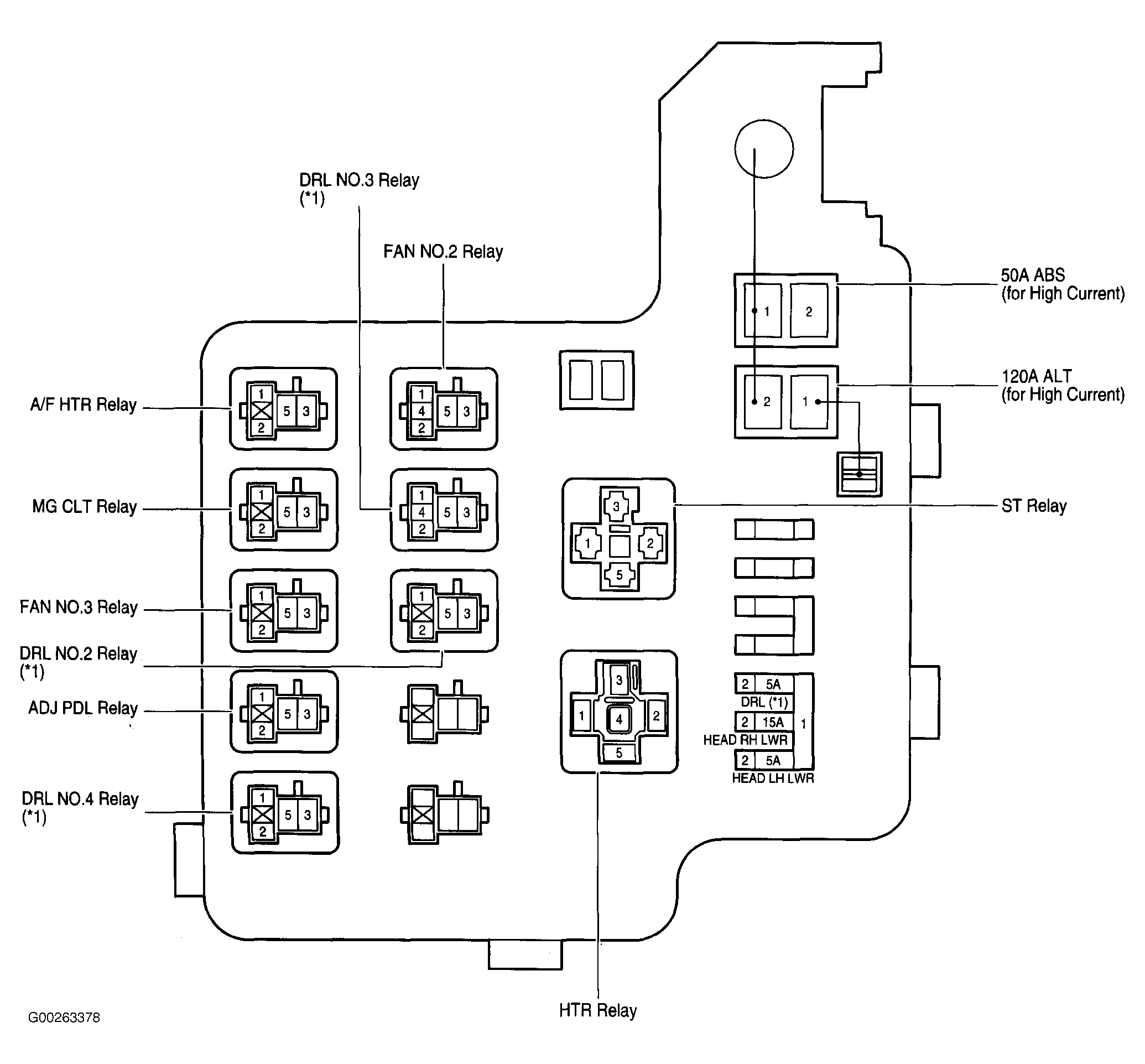

| A/F HTR Relay | In engine room R/B. See Figure. |

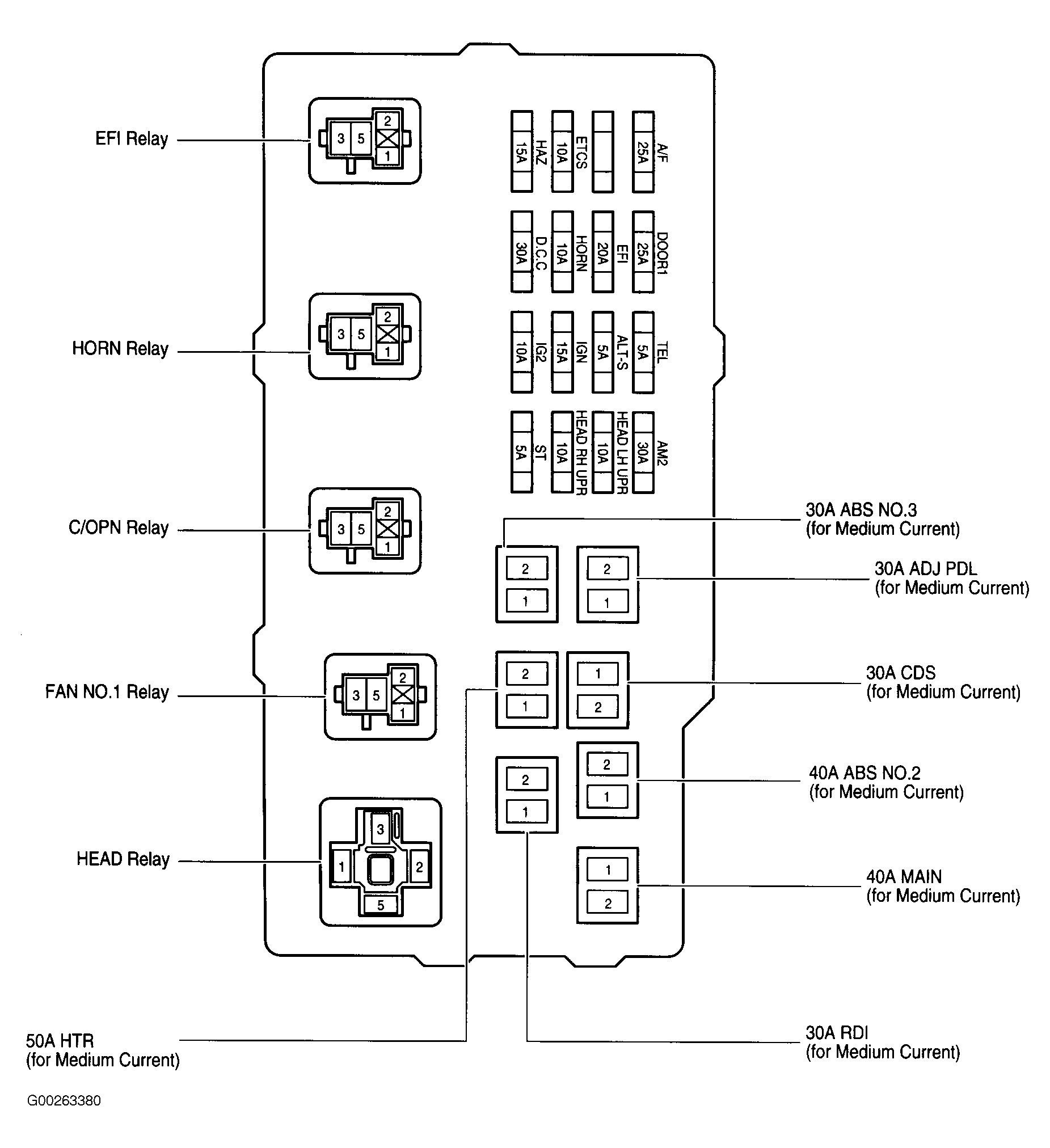

| C/OPN Relay | In engine room J/B. See Figure. |
| DEF Relay | In driver side J/B. See Figure. |
| DRL No. 2 Relay | In engine room R/B. See Figure. |
| DRL No. 3 Relay | In engine room R/B. See Figure. |
| DRL No. 4 Relay | In engine room R/B. See Figure. |
| EFI Relay | In engine room J/B. See Figure. |
| FAN No. 1 Relay | In engine room J/B. See Figure. |
| FAN No. 2 Relay | In engine room R/B. See Figure. |
| FAN No. 3 Relay | In engine room R/B. See Figure. |
| FOG Relay | In driver side J/B. See Figure. |
| HEAD Relay | In engine room J/B. See Figure. |
| HORN Relay | In engine room J/B. See Figure. |
| HTR Relay | In engine room R/B. See Figure. |

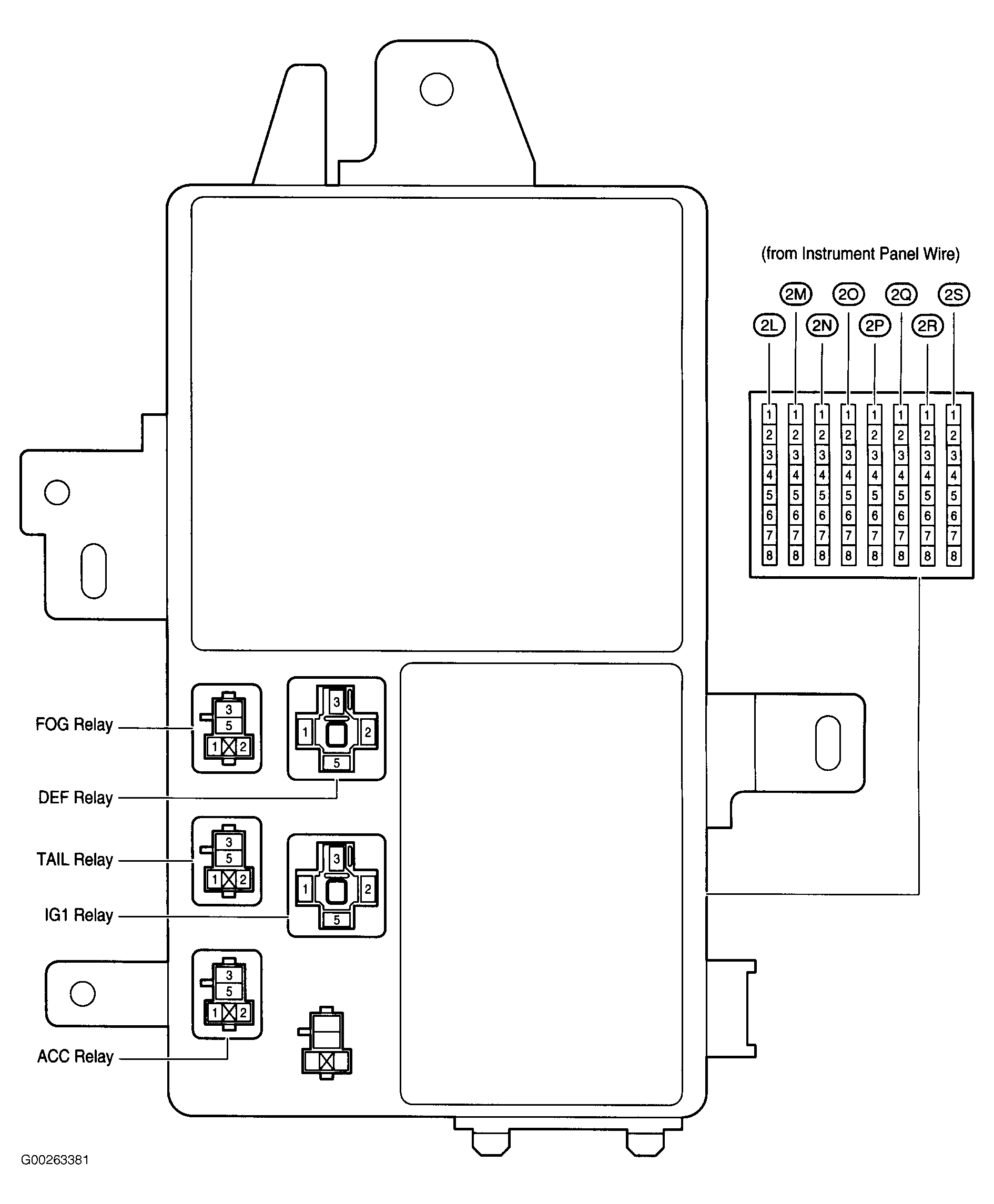

| IG1 Relay | In driver side J/B. See Figure. |
| Keyless Buzzer | At right front corner of engine compartment. See Figure. |
| MG CLT Relay | In engine room R/B. See Figure. |
| Rear Sunshade Control Relay | Near front center of luggage compartment. See Figure. |
| ST Relay | In engine room R/B. See Figure. |
| TAIL Relay | In driver side J/B. See Figure. |
| Turn Signal Flasher Relay | Behind left kick panel. See Figure. |

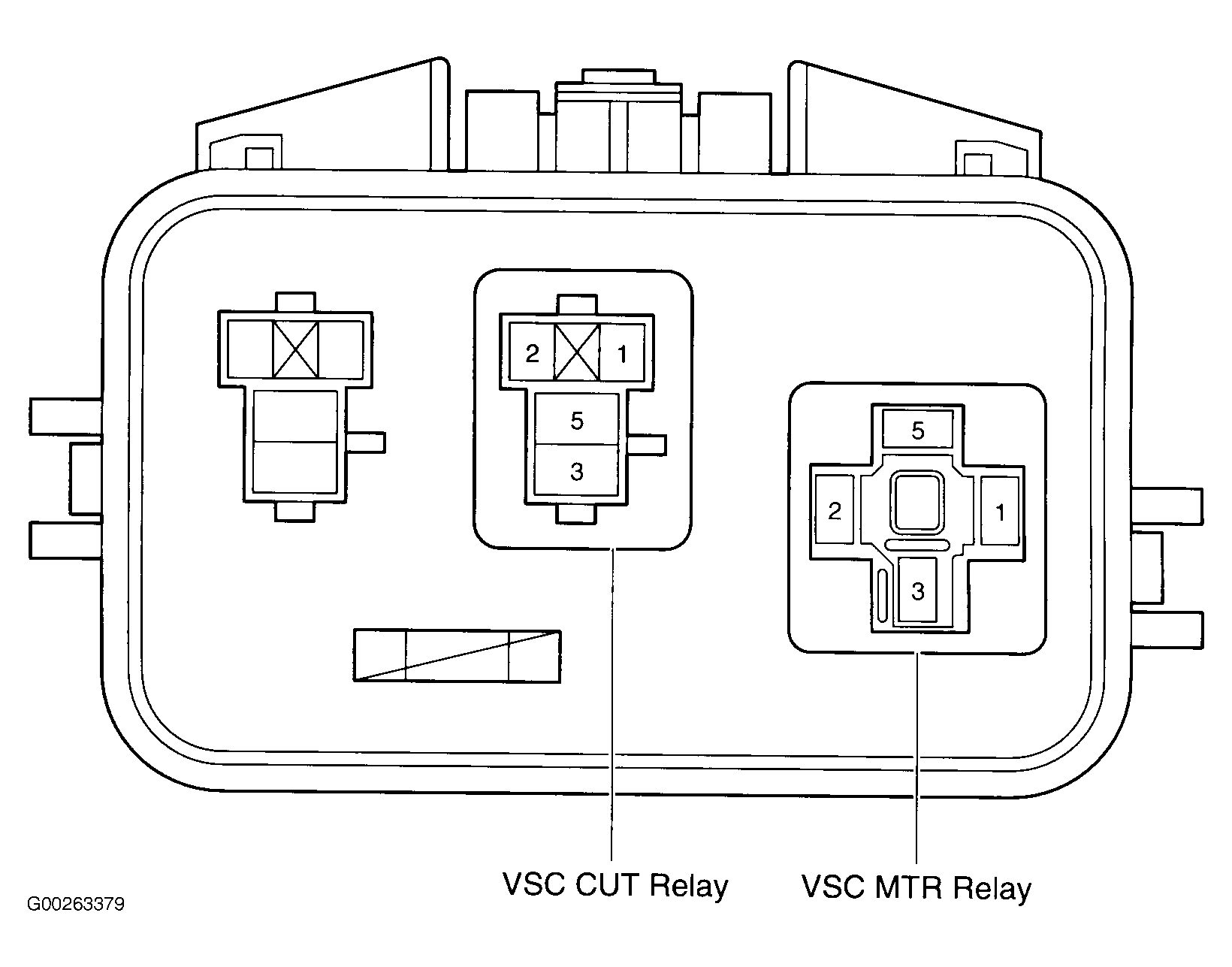

| VSC Cut Relay | In ABS R/B. See Figure. |
| VSC MTR Relay | In ABS R/B. See Figure. |
| VSC Warning Buzzer | Behind center of dash. See Figure. |
| Wiper Relay | Behind lower center of dash. See Figure. |
