Diagnostic Trouble Code Table
DTC is displayed during the DTC check, check the links listed in the DTC table.
A00208980
| DTC | Description |
|---|---|
| DTC P0705 | TRANSMISSION RANGE SENSOR CIRCUIT MALFUNCTION (PRNDL INPUT) |
| DTC P0710, P0712, P0713 | TRANSMISSION FLUID TEMPERATURE SENSOR "A" CIRCUIT |
| DTC P0711 | TRANSMISSION FLUID TEMPERATURE SENSOR "A" PERFORMANCE |
| DTC P0717 | TURBINE SPEED SENSOR CIRCUIT NO SIGNAL |
| DTC P0724 | BRAKE SWITCH "B" CIRCUIT HIGH |
| DTC P0741 | TORQUE CONVERTER CLUTCH SOLENOID PERFORMANCE (SHIFT SOLENOID VALVE DSL) |
| DTC P0746 | PRESSURE CONTROL SOLENOID "A" PERFORMANCE (SHIFT SOLENOID VALVE SL1) |
| DTC P0748 | PRESSURE CONTROL SOLENOID "A" ELECTRICAL (SHIFT SOLENOID VALVE SL1) |
| DTC P0766 | SHIFT SOLENOID "D" PERFORMANCE (SHIFT SOLENOID VALVE S4) |
| DTC P0771 | SHIFT SOLENOID "E" PERFORMANCE (SHIFT SOLENOID VALVE SR) |
| DTC P0776 | PRESSURE CONTROL SOLENOID "B" PERFORMANCE (SHIFT SOLENOID VALVE SL2) |
| DTC P0778 | PRESSURE CONTROL SOLENOID "B" ELECTRICAL (SHIFT SOLENOID VALVE SL2) |
| DTC P0793 | INTERMEDIATE SHAFT SPEED SENSOR "A" |
| DTC P0796 | PRESSURE CONTROL SOLENOID "C" PERFORMANCE (SHIFT SOLENOID VALVE SL3) |
| DTC P0798 | PRESSURE CONTROL SOLENOID "C" ELECTRICAL (SHIFT SOLENOID VALVE SL3) |
| DTC P0982, P0983 | SHIFT SOLENOID "D" CONTROL CIRCUIT LOW (SHIFT SOLENOID VALVE S4) |
| DTC P0985, P0986 | SHIFT SOLENOID "E" CONTROL CIRCUIT LOW (SHIFT SOLENOID VALVE SR) |
| DTC P2716 | PRESSURE CONTROL SOLENOID "D" ELECTRICAL (SHIFT SOLENOID SLT) |
| DTC P2769, P2770 | TORQUE CONVERTER CLUTCH SOLENOID CIRCUIT LOW (SHIFT SOLENOID VALVE DSL) |

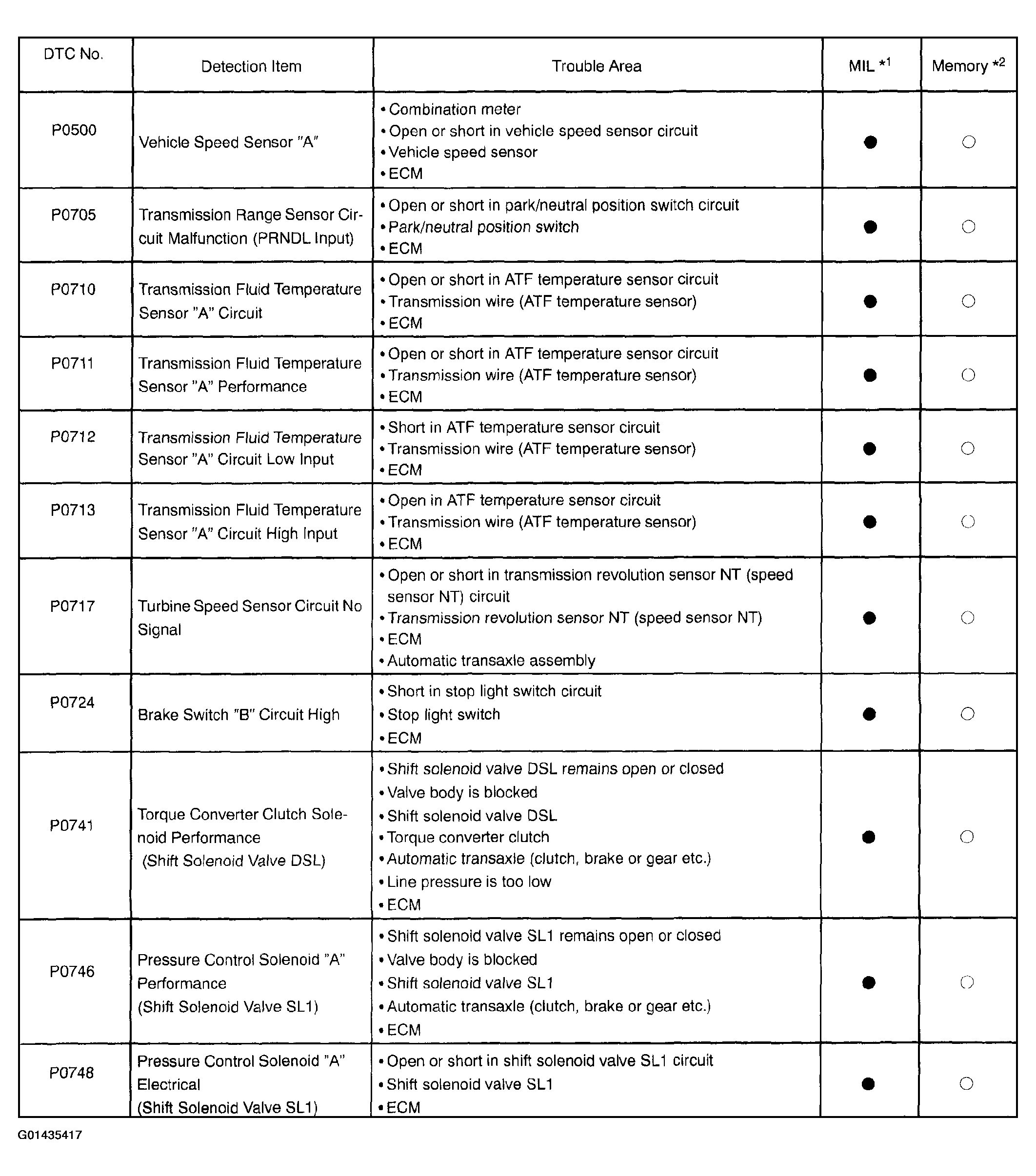

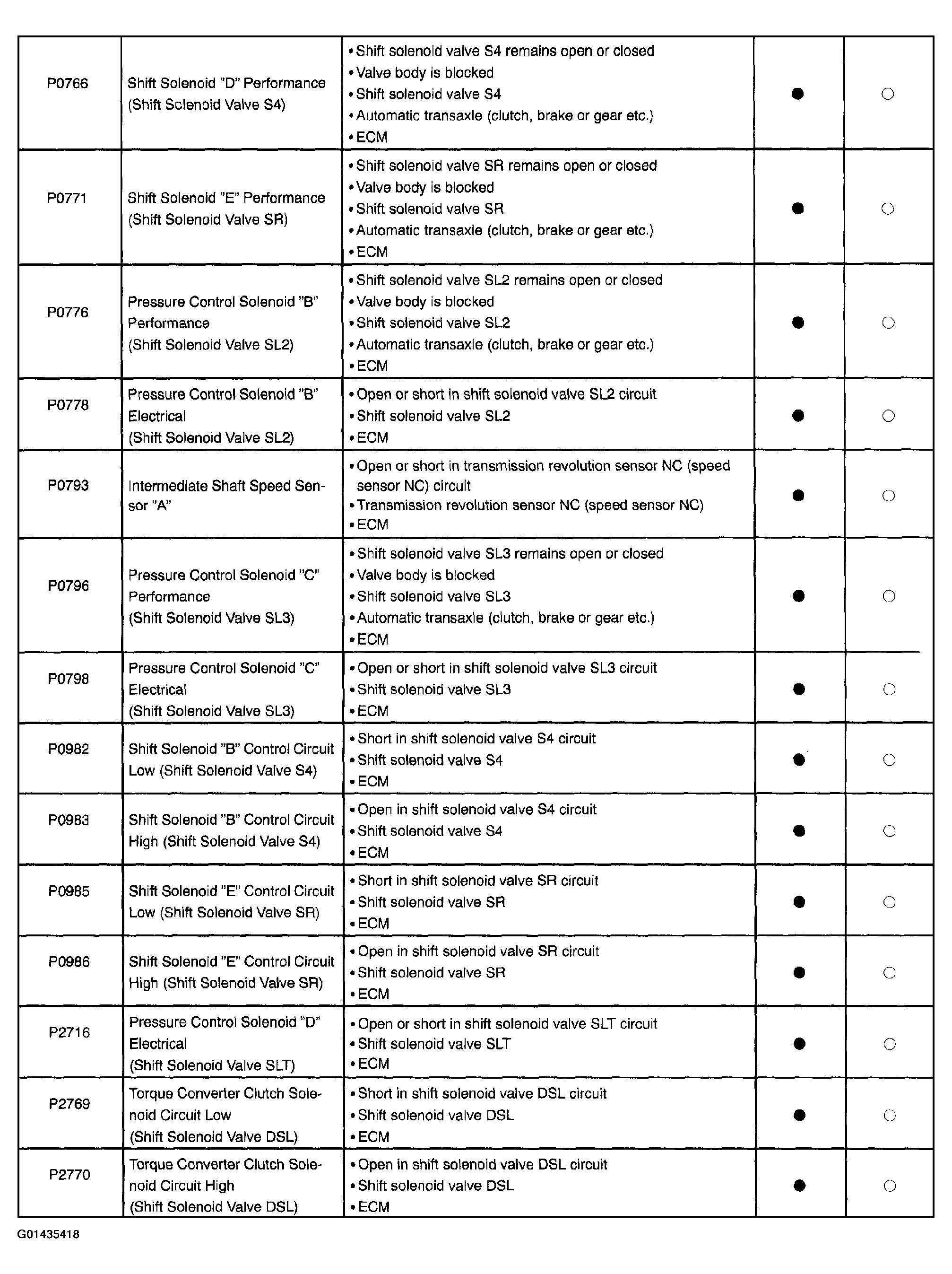

For additional information about DTCs, see Fig 1 and Fig 2.
HINT:
- *1: Black filled circle indicates MIL (Malfunction Indicator Lamp) light up
- *2: White open circle indicates ECM memorizes the malfunction code if the ECM detects the DTC detection condition.
- This DTC may be output when the clutch, brake and gear components etc. inside the automatic trans-axle are damaged.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
