Torque Specification

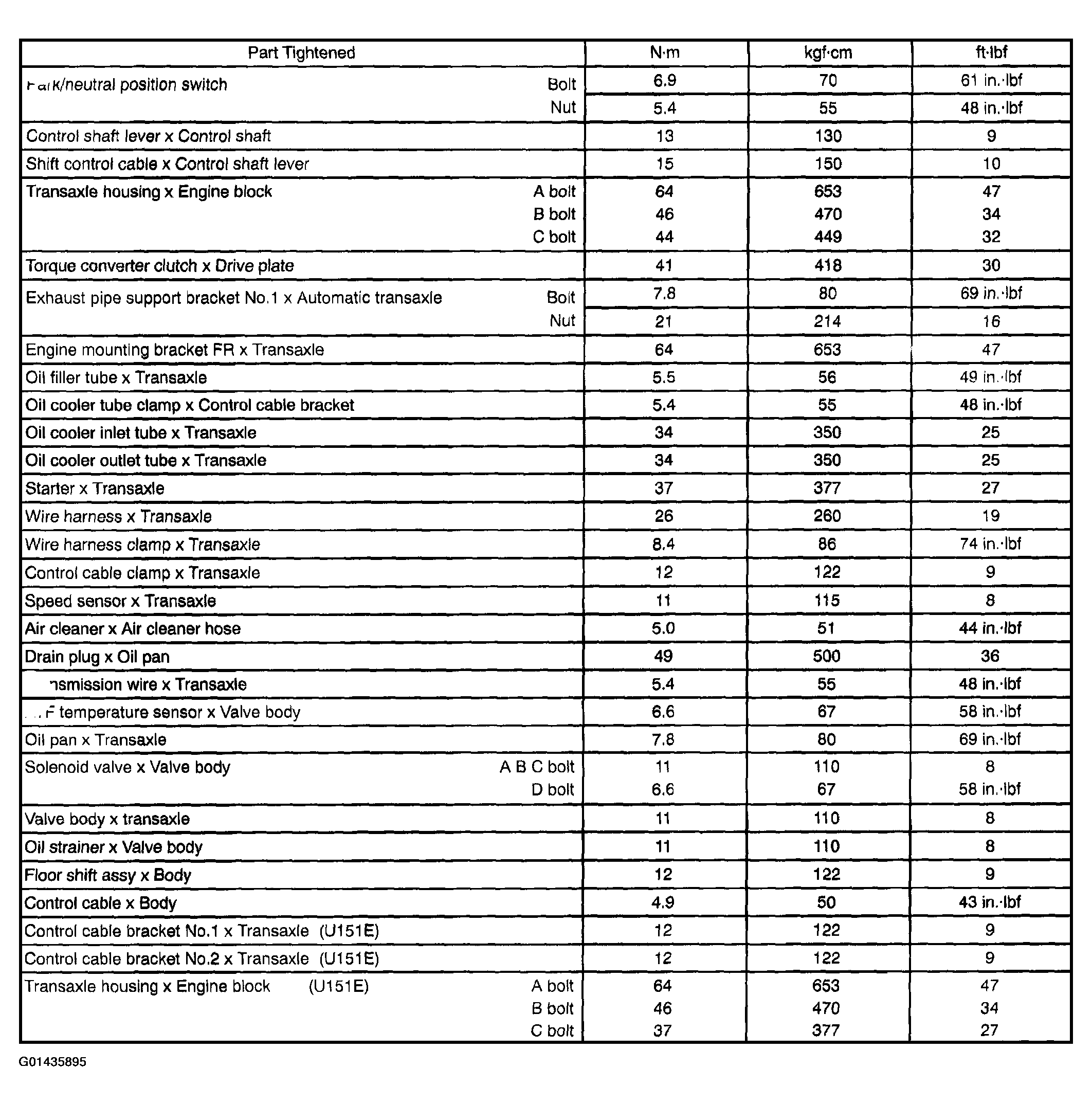

Fig 1: Automatic Transmission/Transaxle Torque Specification Chart
G01435895Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
