Combination Meter: Circuit

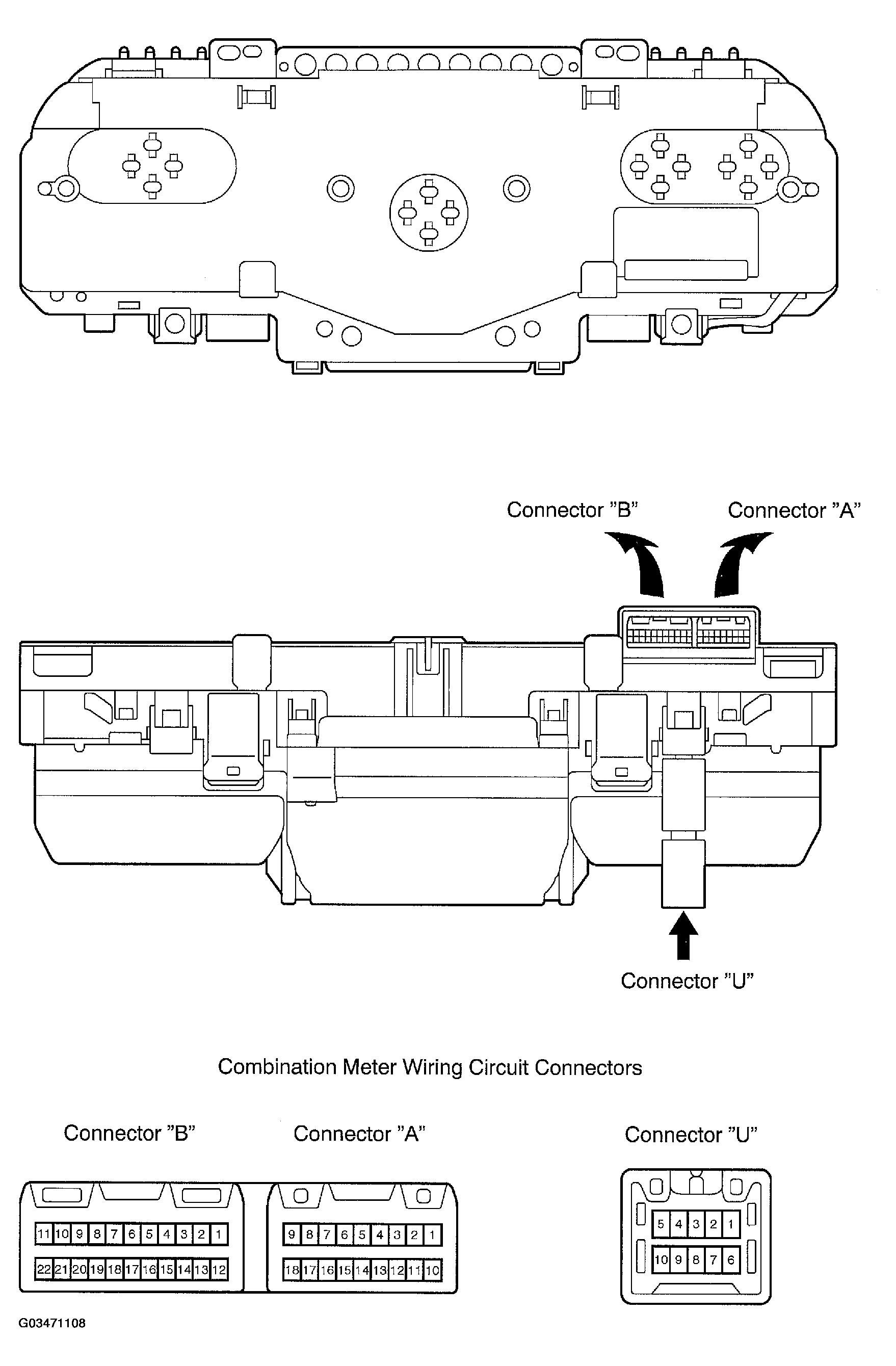

Fig 1: Identifying Combination Meter Wiring Circuit Connectors
G03471108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

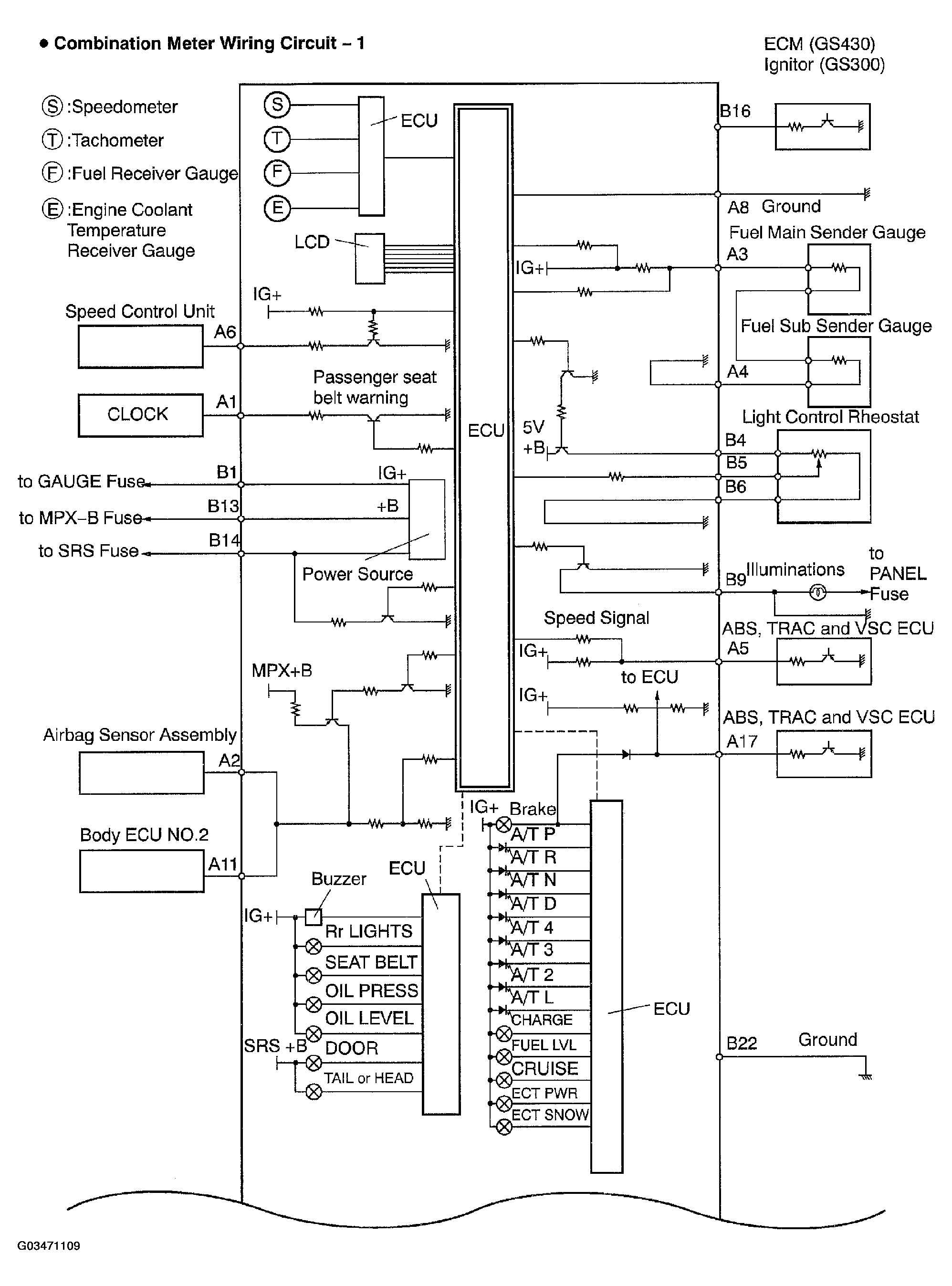

Fig 2: Combination Meter Wiring Circuit Diagram - 1
G03471109Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

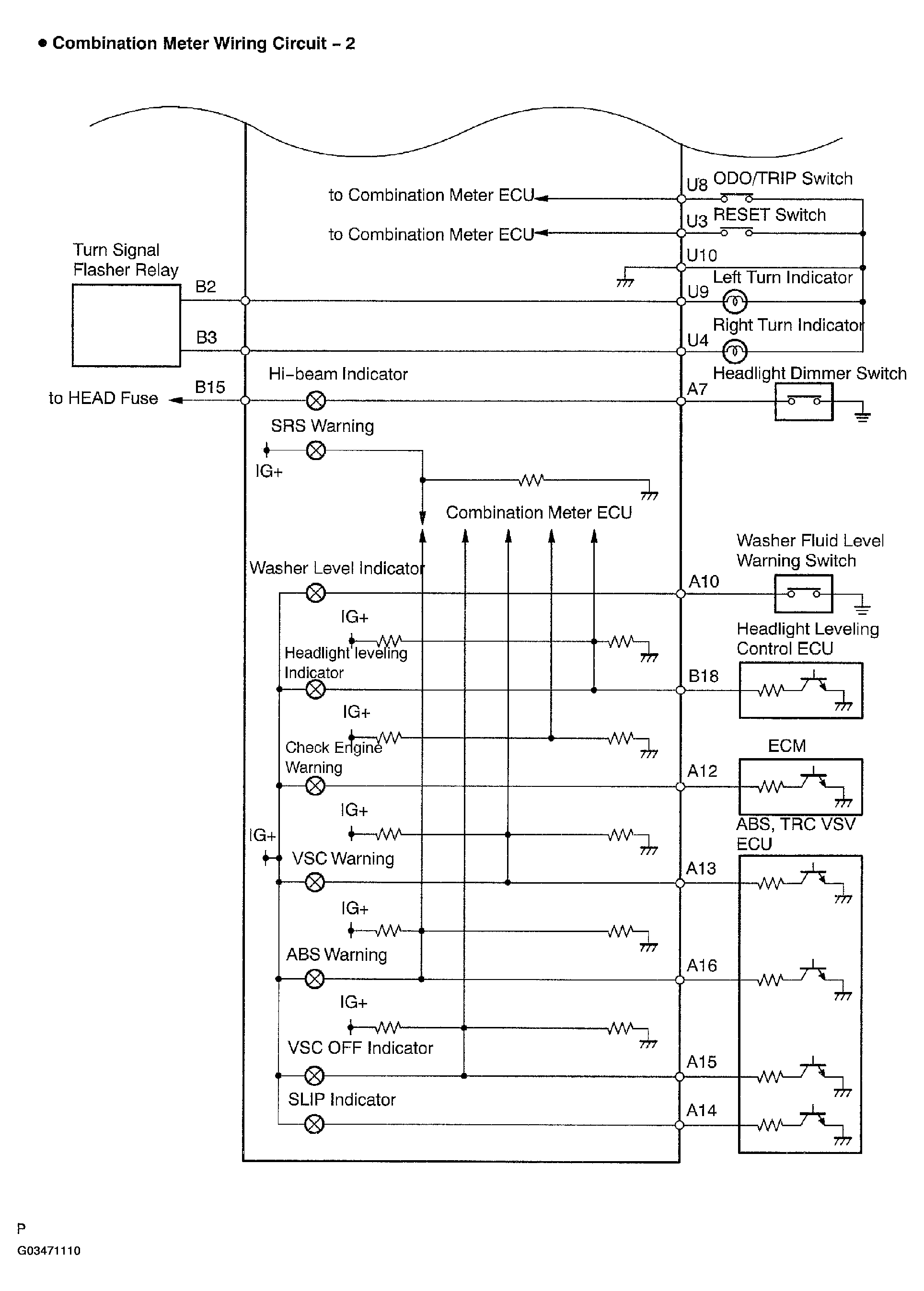

Fig 3: Combination Meter Wiring Circuit Diagram - 2 (1 Of 2)
G03471110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

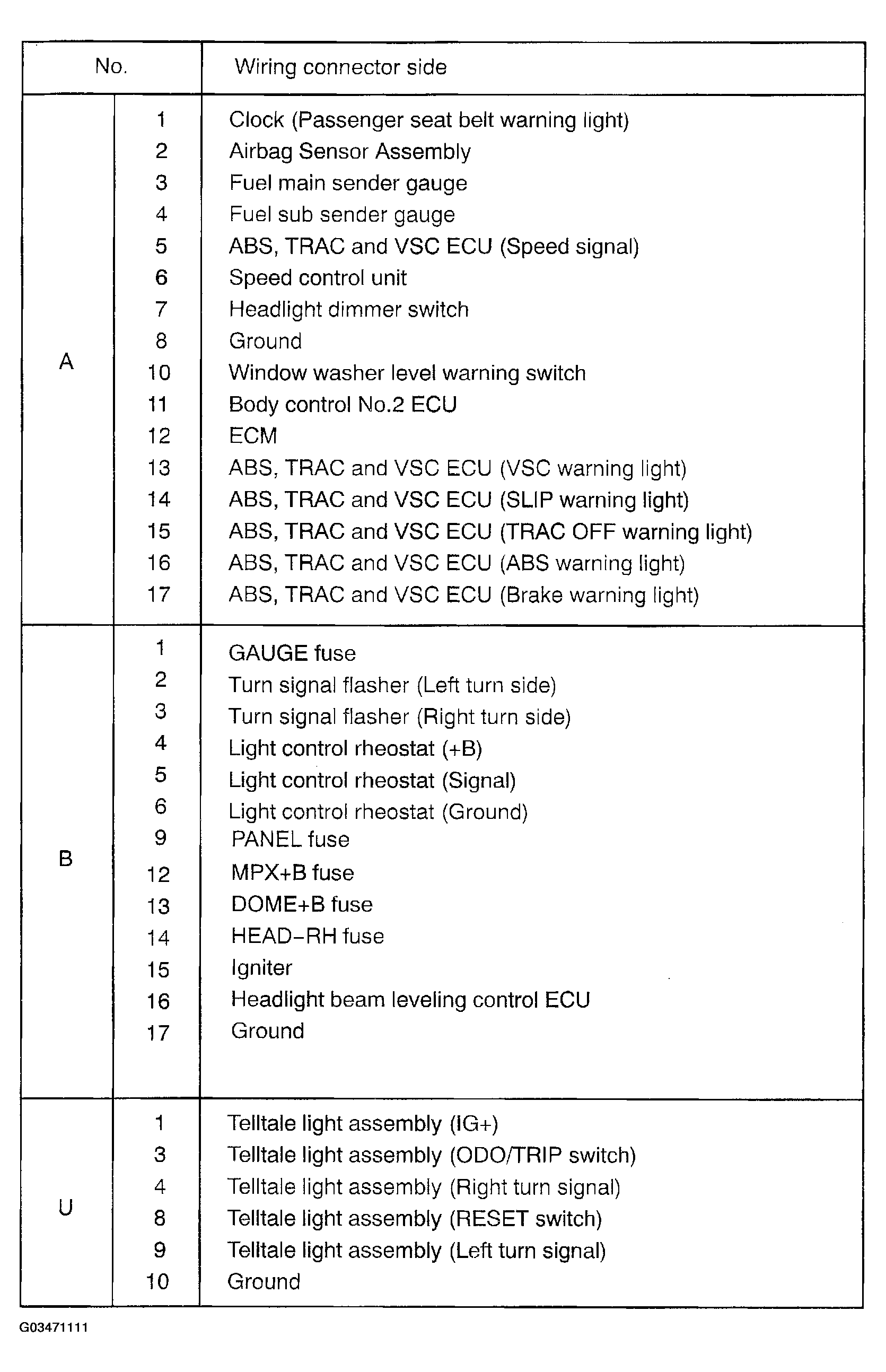

Fig 4: Combination Meter Wiring Circuit Diagram - 2 (2 Of 2)
G03471111Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

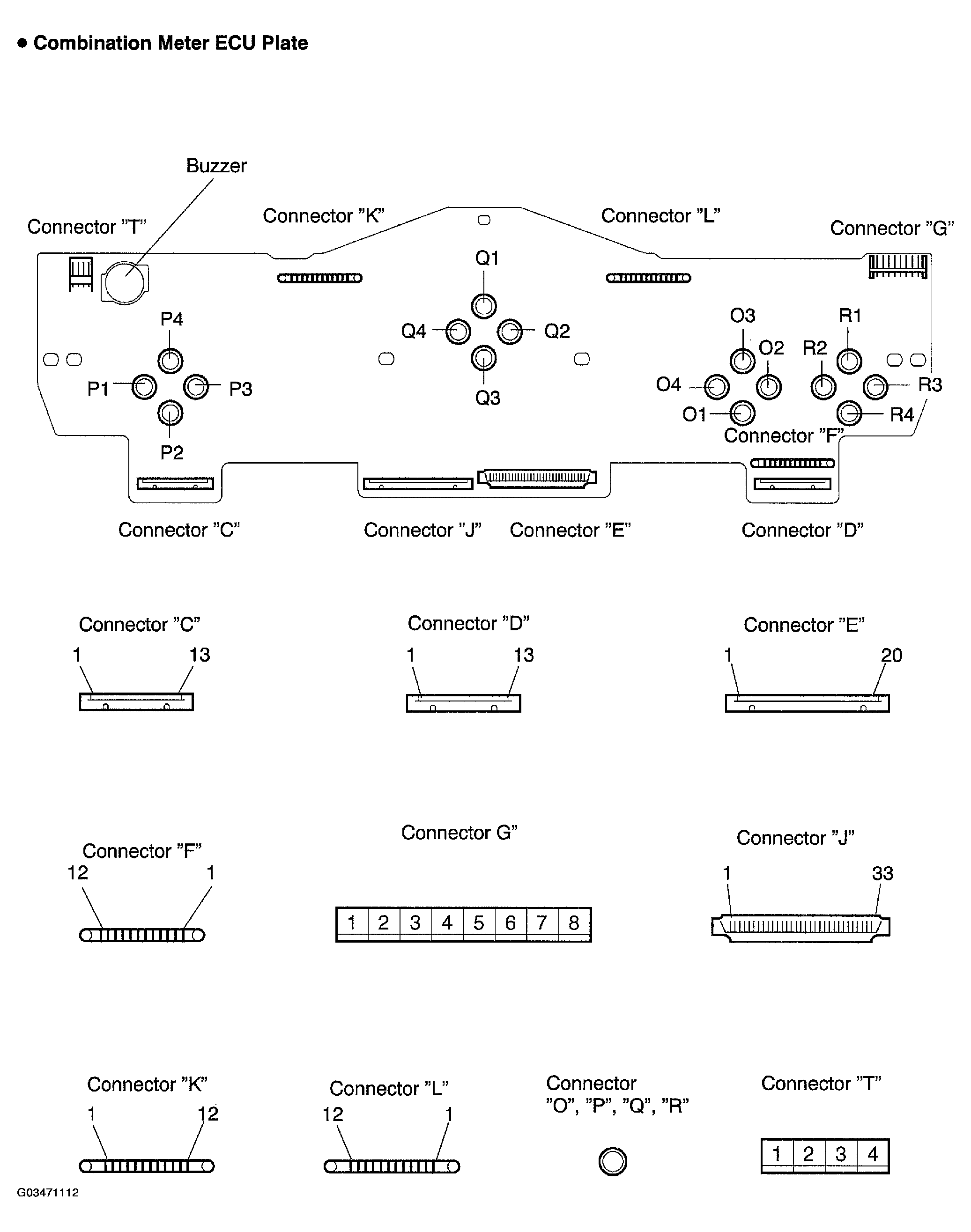

Fig 5: Identifying Combination Meter ECU Plate
G03471112Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

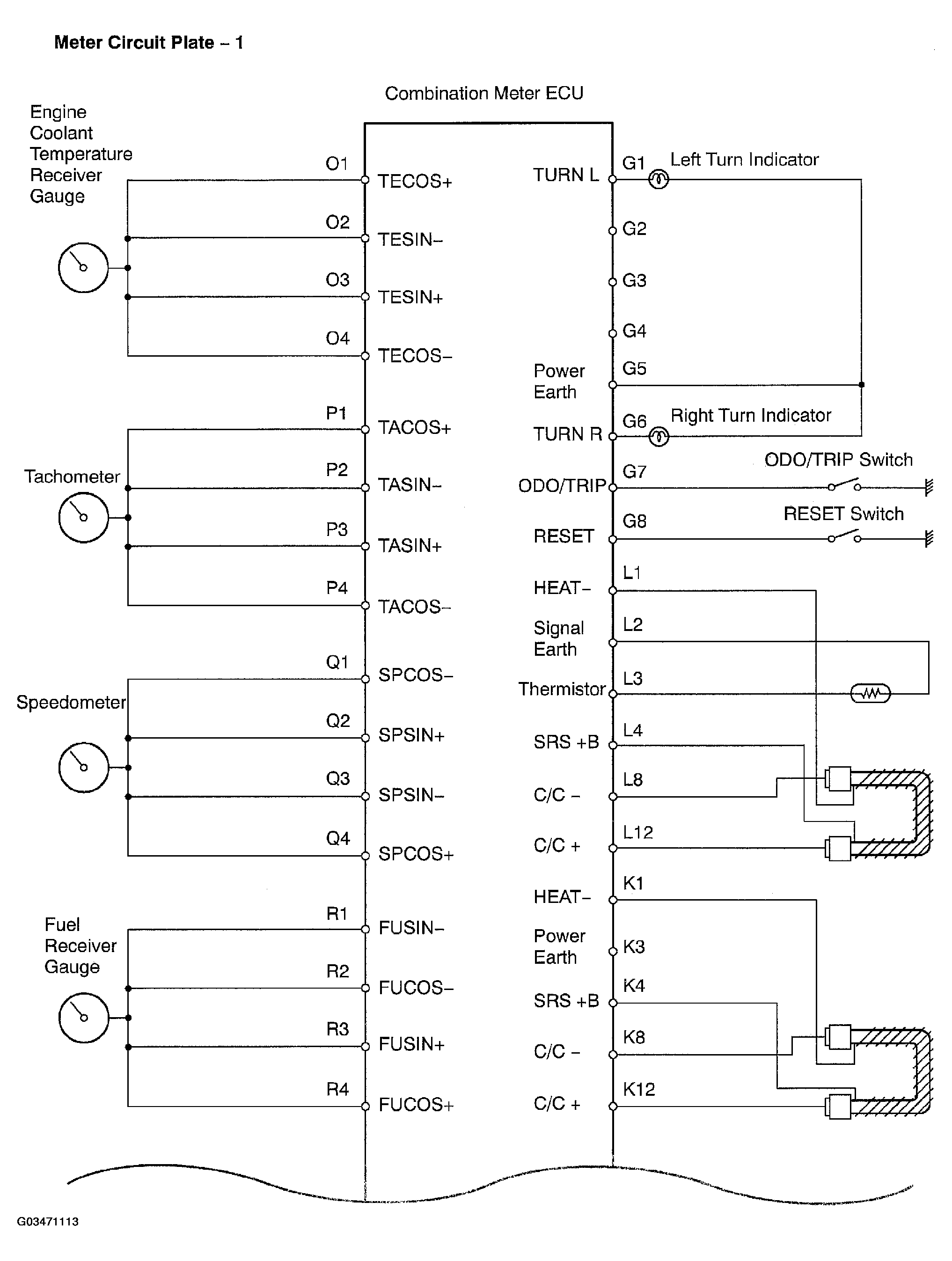

Fig 6: Identifying Meter Circuit Plate - 1
G03471113Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

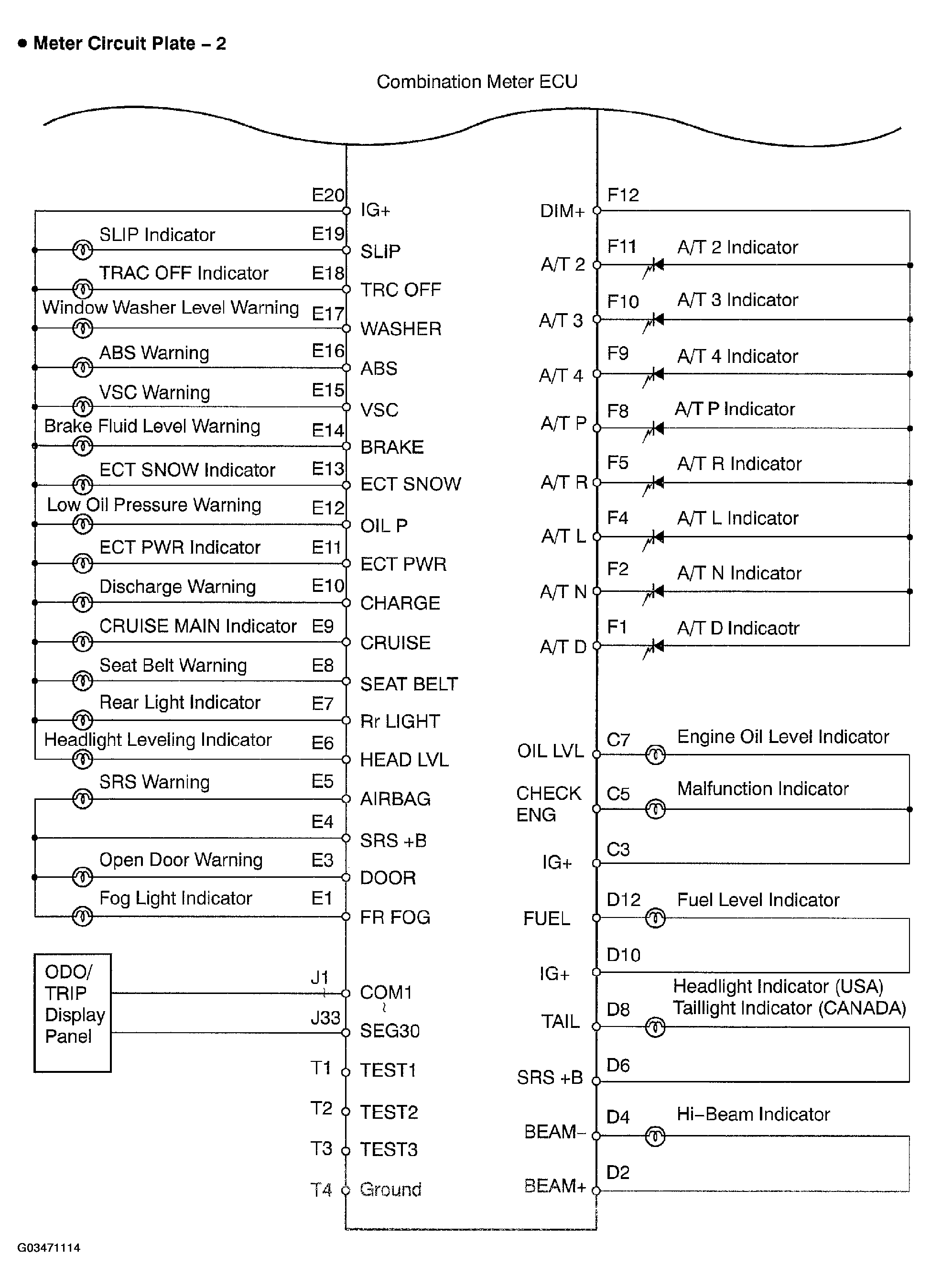

Fig 7: Identifying Meter Circuit Plate - 2
G03471114Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
