Navigation Module: Testing and Inspection

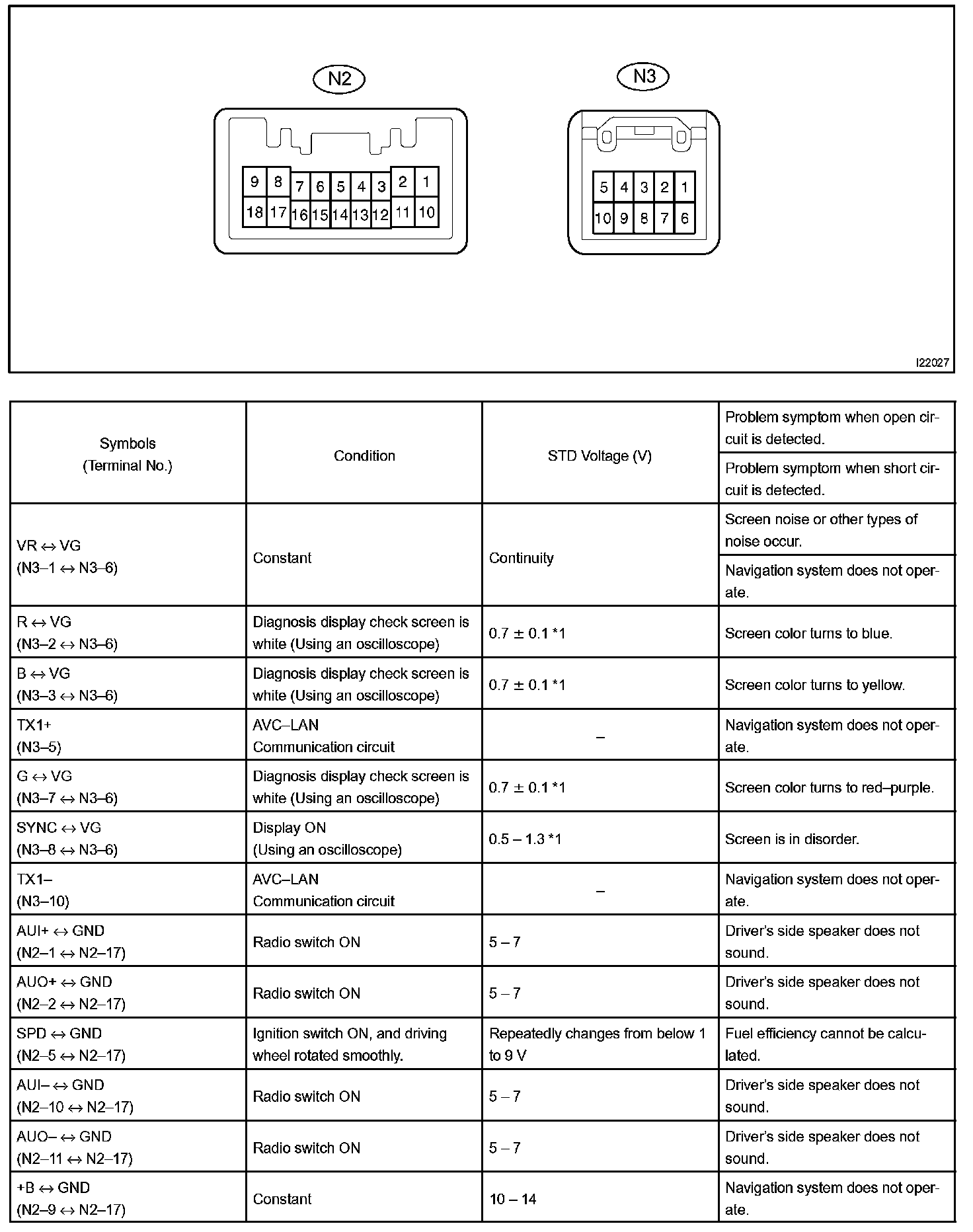

Terminals Of ECU/Pinouts Part 1:

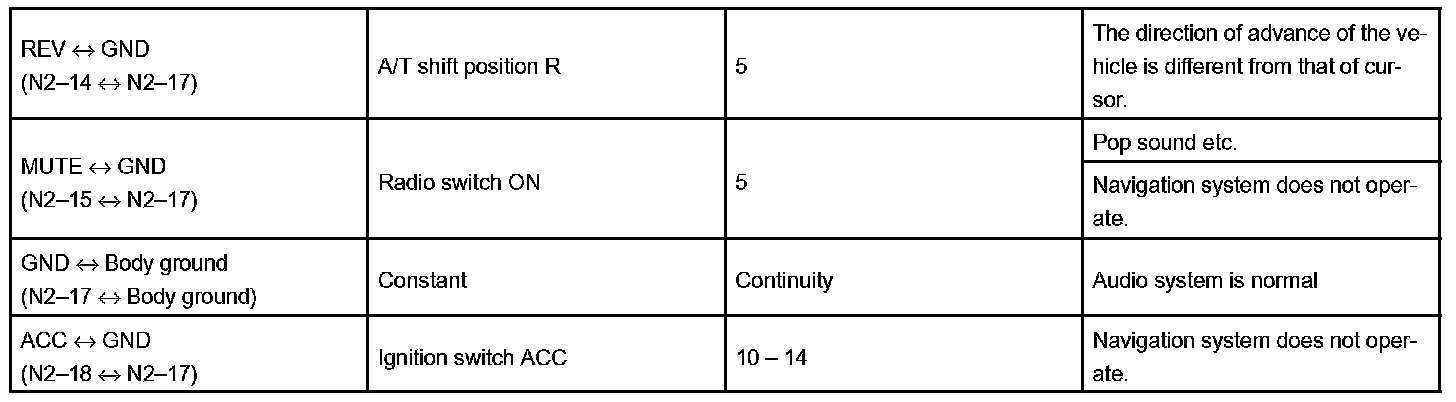

Terminals Of ECU/Pinouts Part 2:
NAVIGATION ECU
