Fuse Block

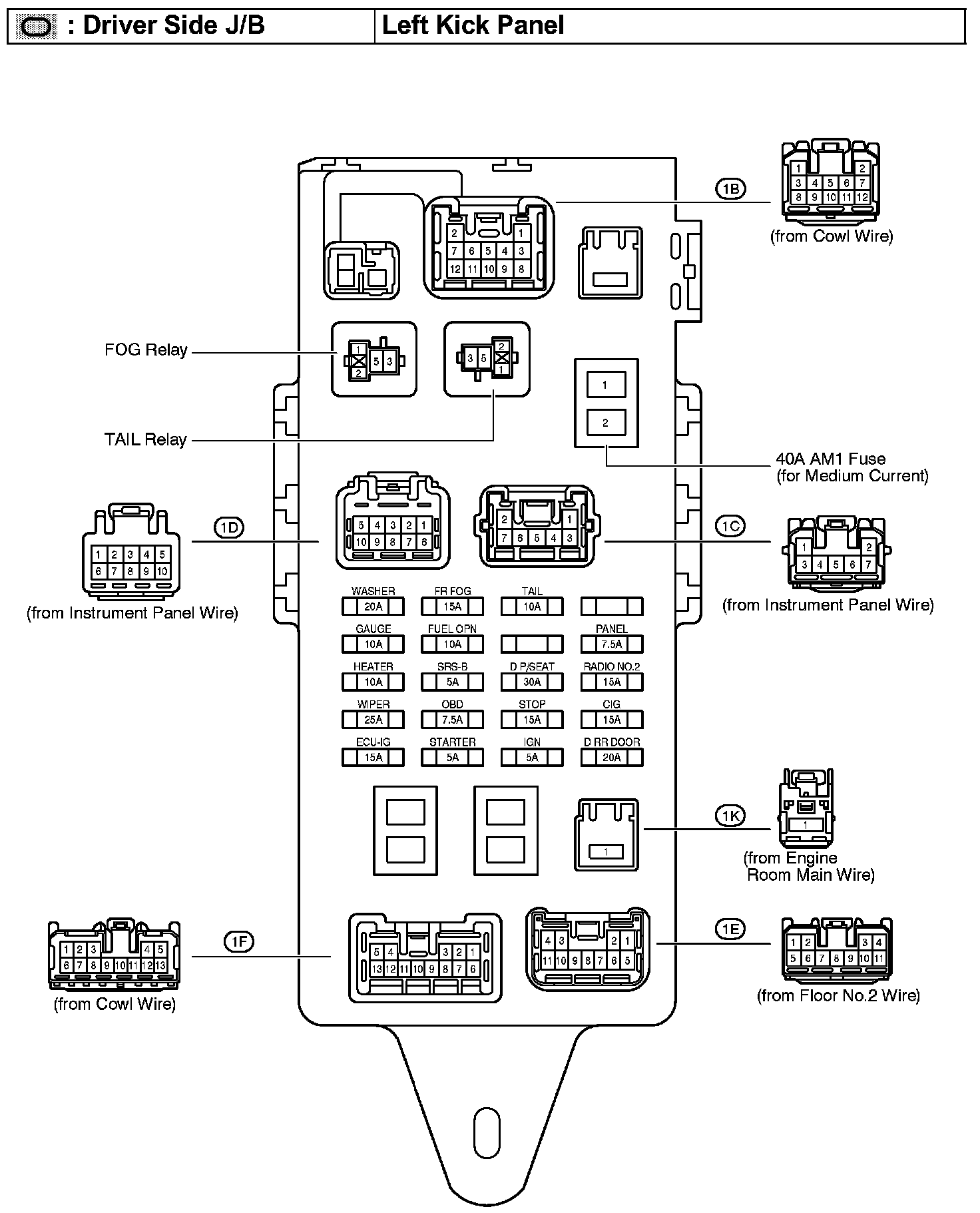

Driver Side J/B - Left Kick Panel:




Driver Side J/B - Left Kick Panel:

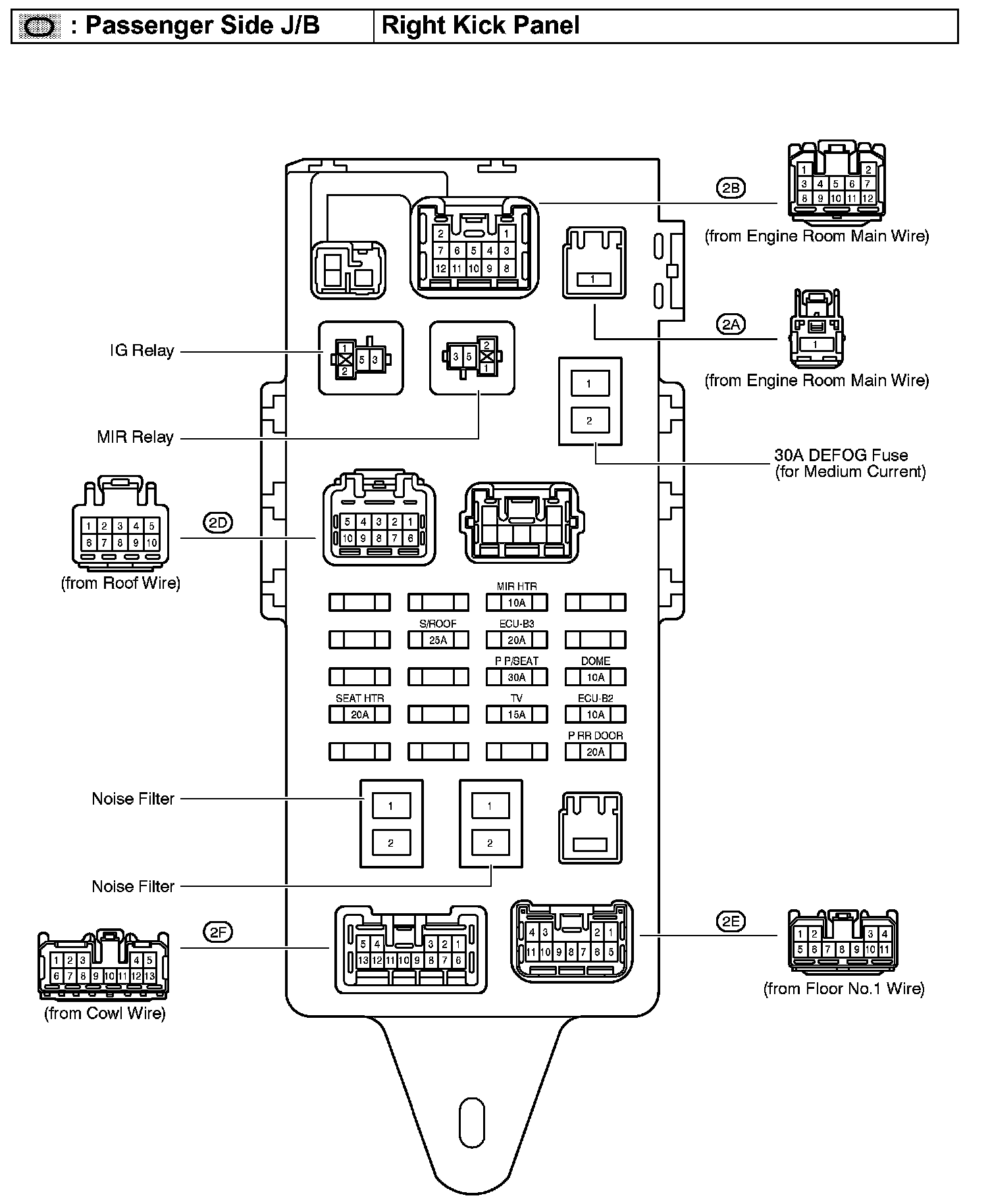

Passenger Side J/B - Right Kick Panel:




Passenger Side J/B - Right Kick Panel:




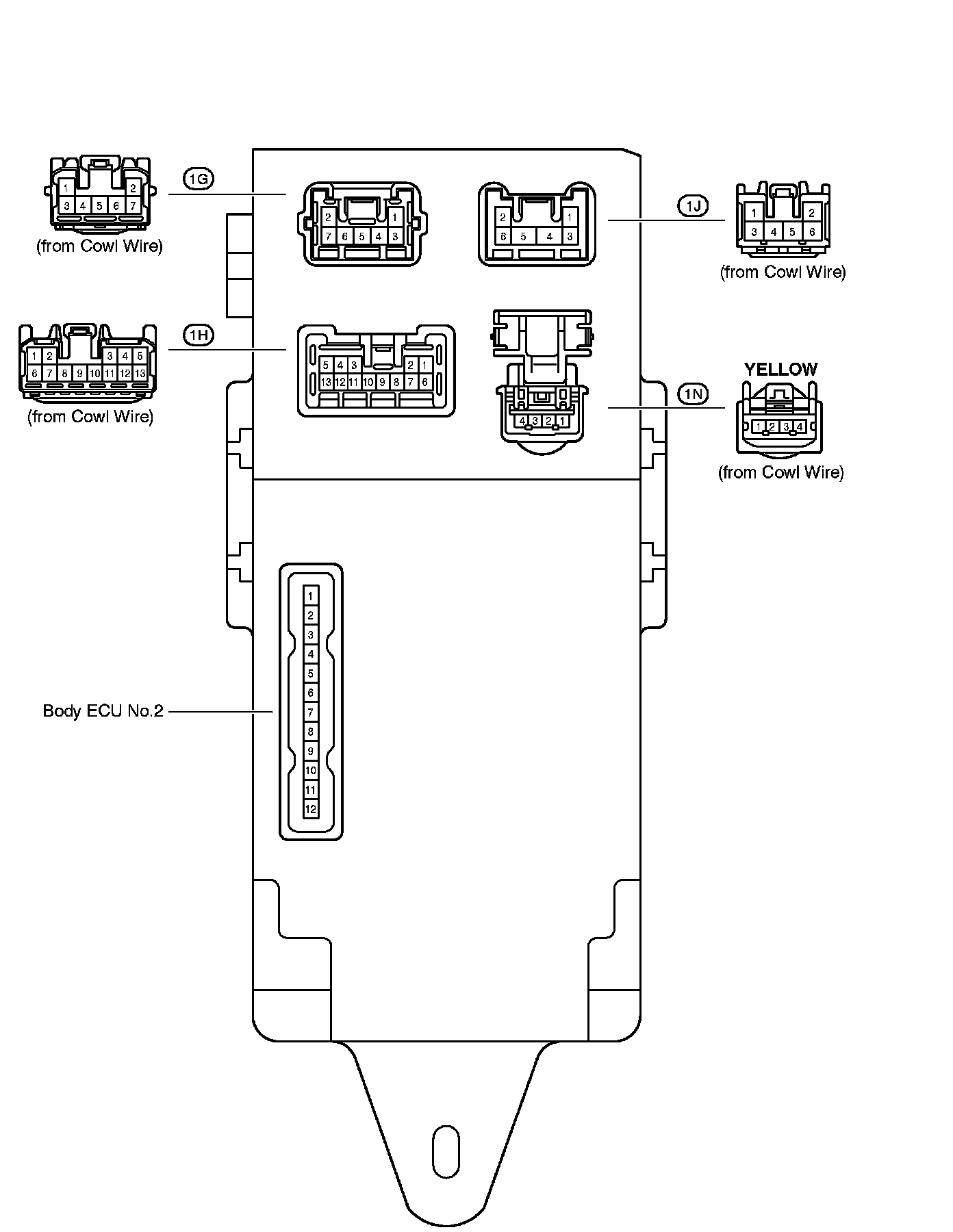

Instrument Panel J/B - Instrument Panel Reinforcement Center:




Instrument Panel J/B - Instrument Panel Reinforcement Center:
