Control Assembly: Service and Repair

AIR CONDITIONING CONTROL ASSEMBLY

REMOVAL

1. REMOVE THESE PARTS:
a. No.2 register
b. Cluster finish panel

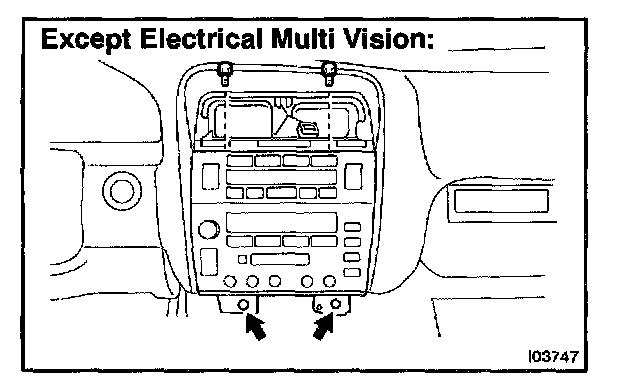

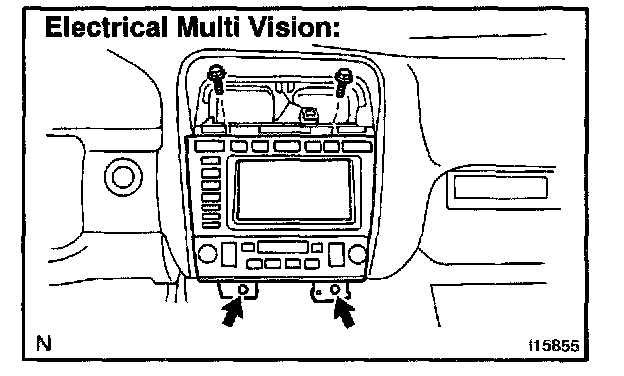

2. REMOVE A/C CONTROL ASSEMBLY WITH RADIO
Remove the 4 bolts and pull out the A/C control assembly, then disconnect the connectors.

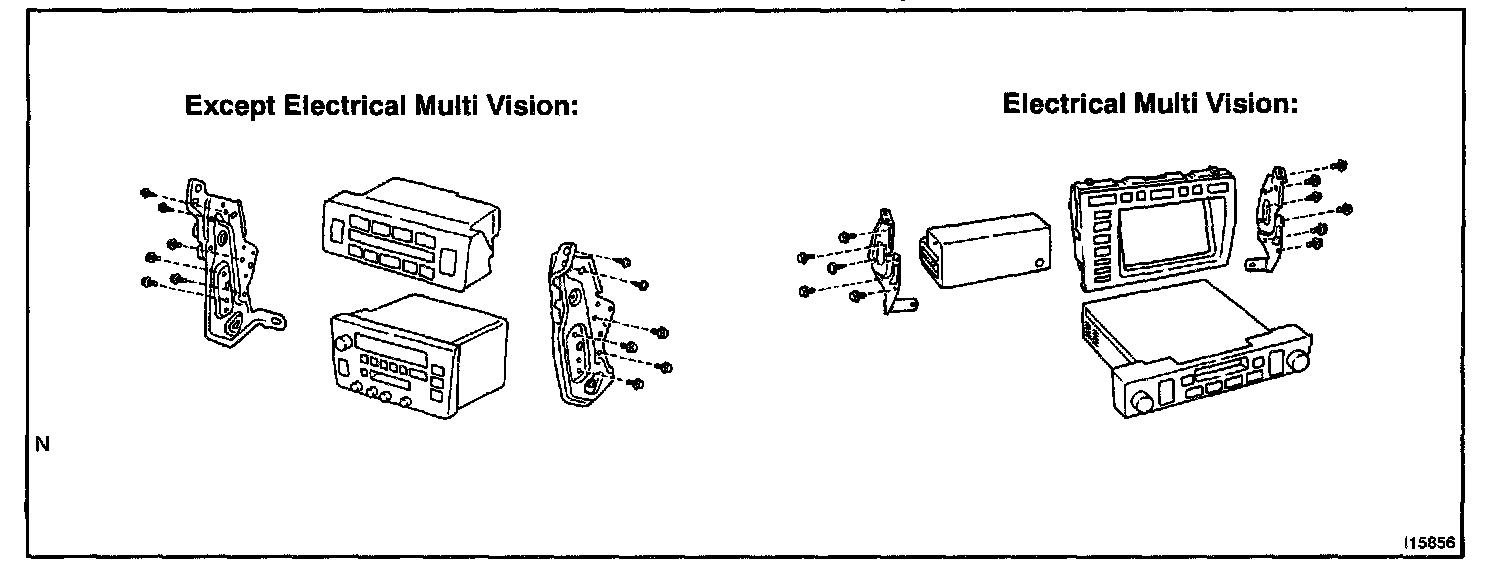

3. REMOVE A/C CONTROL ASSEMBLY FROM RADIO
Remove the 8 bolts, 2 screw and 2 brackets, then remove the A/C control assembly.

INSTALLATION
Installation is in the reverse order of removal.
