Outside Rear View Mirror: Replacement

  1. IF NECESSARY, DISCONNECT MIRROR
    1. Insert a shop rag between the mirror and the mirror body.
    2. Pull up the lower side of the shop rag to disconnect the mirror joint.

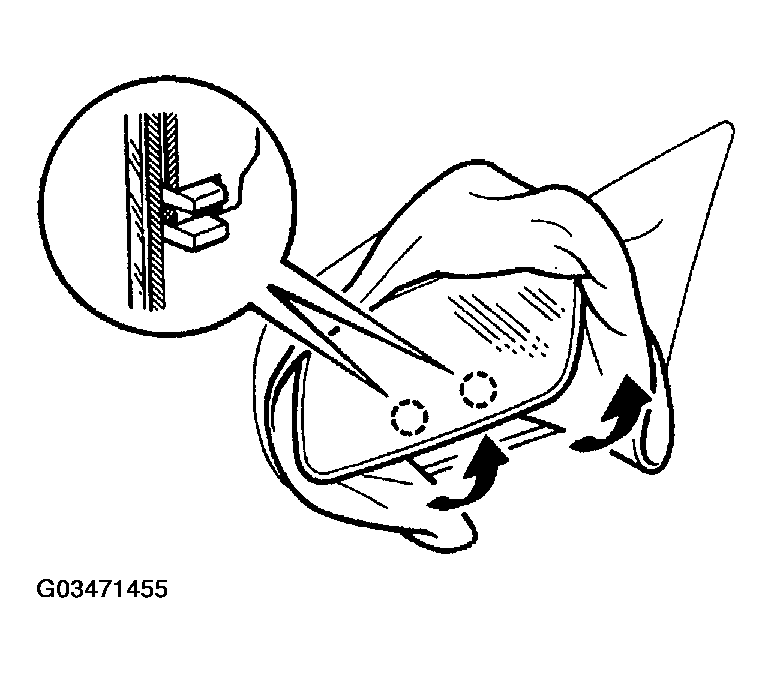

      Fig 1: Disconnecting Mirror
      G03471455Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Pull up the mirror and disconnect it.

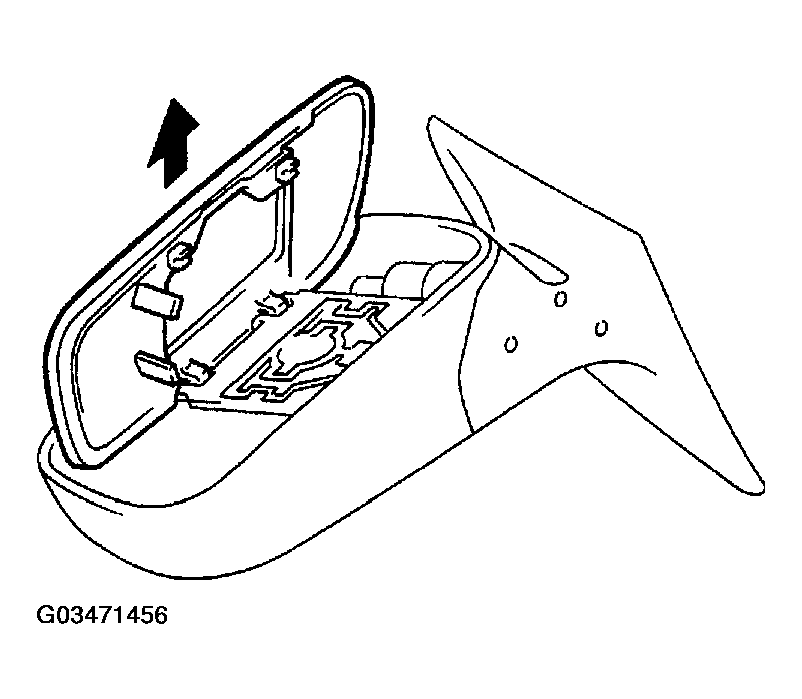

      Fig 2: Pulling Up Mirror
      G03471456Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect the connectors.

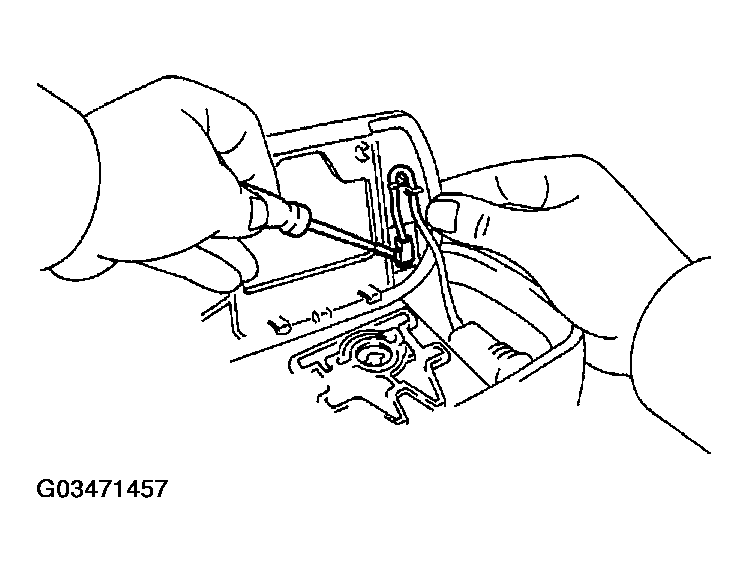

      Fig 3: Disconnecting Connectors
      G03471457Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. CONNECT MIRROR
    1. Connect the connectors.
    2. Connect the claws (A) and set the mirror to the mirror body.
    3. Push the mirror to connect the claws (B) and set it.

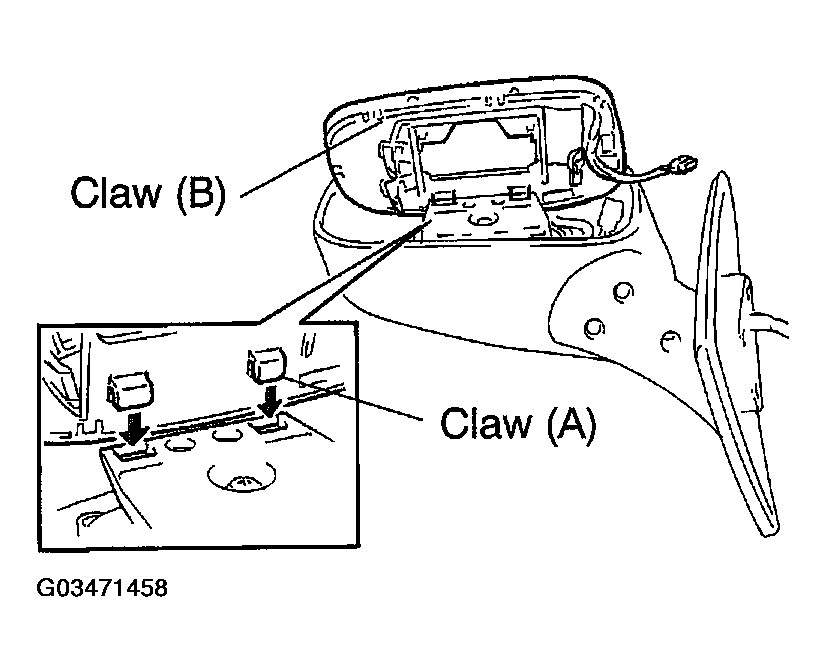

      Fig 4: Connecting Mirror
      G03471458Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
