Front Seat: Disassembly

1. Remove the wire harness from the seat cushion assembly.
2. Remove the 4 bolts and seat cushion assembly from the seat adjuster.

1. Remove the 2 bolts and hog rings.
2. Remove the seat cushion cover with pad from the seat cushion frame.
3. Remove the seat cushion cover from the seat cushion pad.

1. Remove the 2 screws and pull the seatback board downward to remove it.
2. Remove the hog rings.
3. Disconnect the connectors.
4. Remove the 4 bolts.
   NOTE: Be careful not to damage the wire harness.
5. Remove the 4 screws and seat cushion inside covers, then disconnect the wire harness from the cover.
6. Remove the covers from the outer and inner seat tracks.

1. Remove the hog rings.
2. Release the clamp.
   Fig 1: Removing Screws And Seat Cushion Covers

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

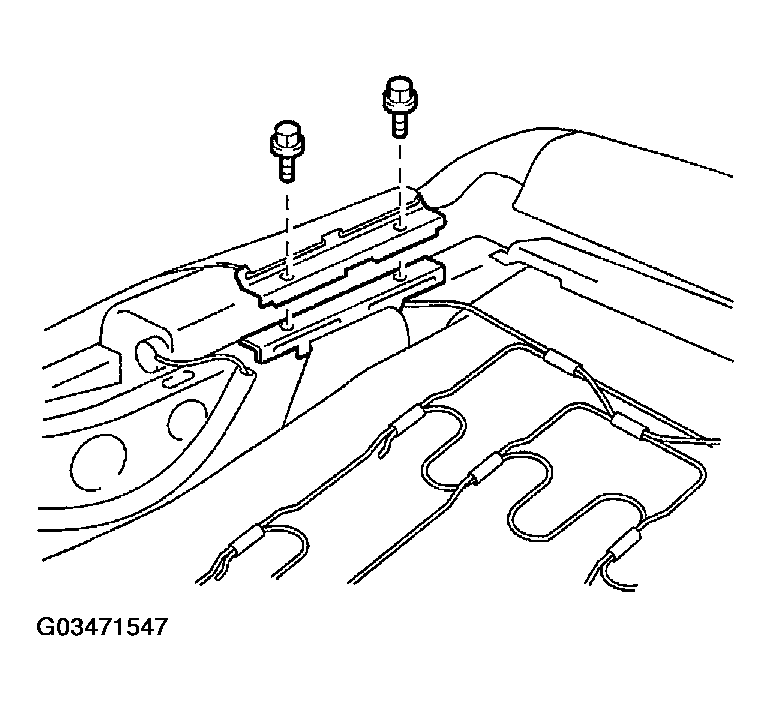

3. Remove the 2 bolts and release the seat cover hook and retainer from the seatback frame.
4. Remove the headrest supports.
5. Remove the seatback cover with pad from the seatback frame.
6. Remove the 2 bolts and lumber support assembly from the seatback frame.
7. Remove the hog rings and seatback cover from the seatback pad.

Fig 2: Removing Bolts And Release Seat Cover Hook

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the 2 screws and power seat switch.

Disconnect the connectors, then remove the wire harness.

Remove the 2 nuts and seat position control relay.

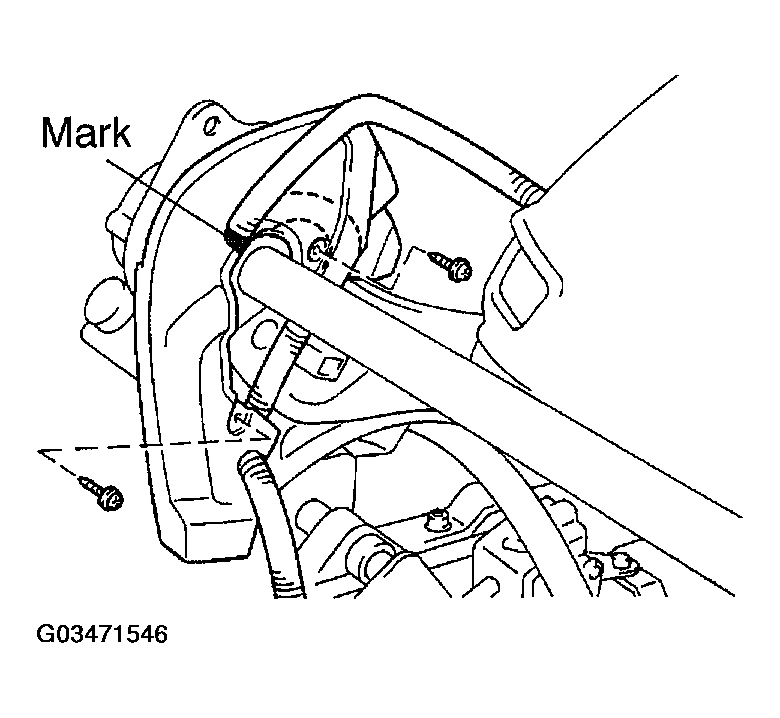

Using a screwdriver, remove the torsion bar.

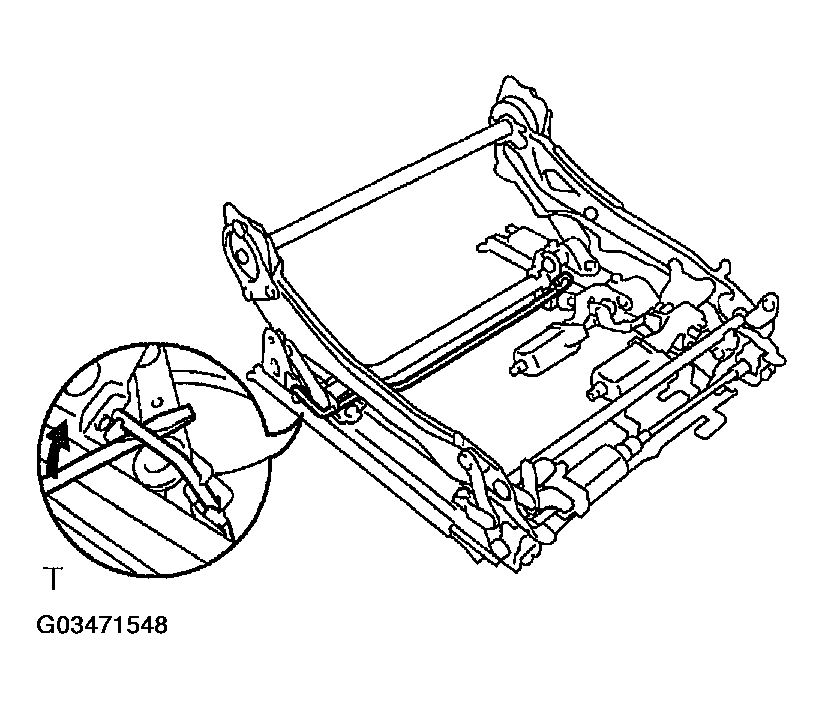

Fig 3: Removing Torsion Bar

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a screwdriver, remove the 2 seat track covers.
2. Remove the 2 nuts and belt anchor bracket.

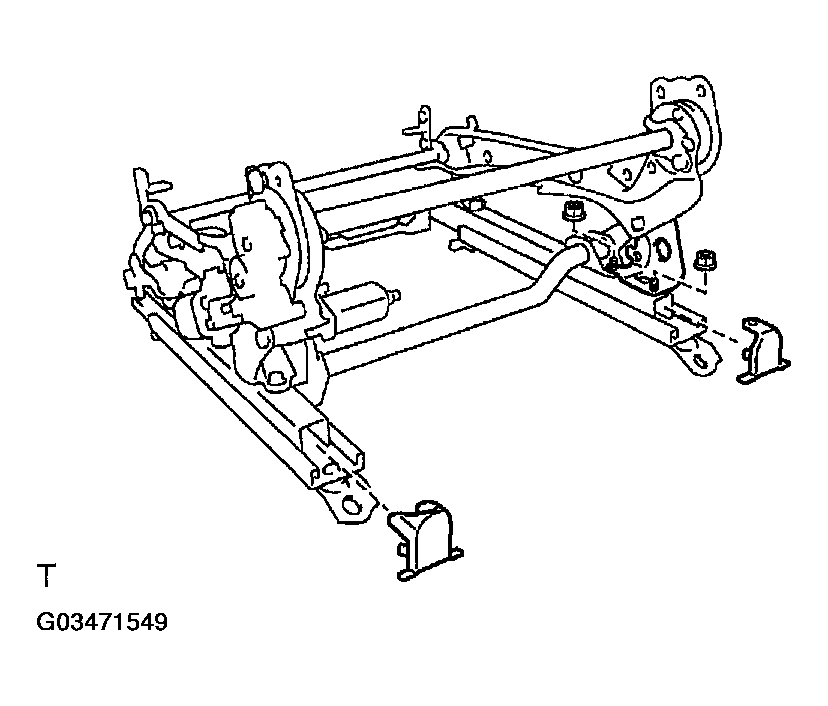

Fig 4: Removing Seat Track Covers And Belt Anchor Bracket

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

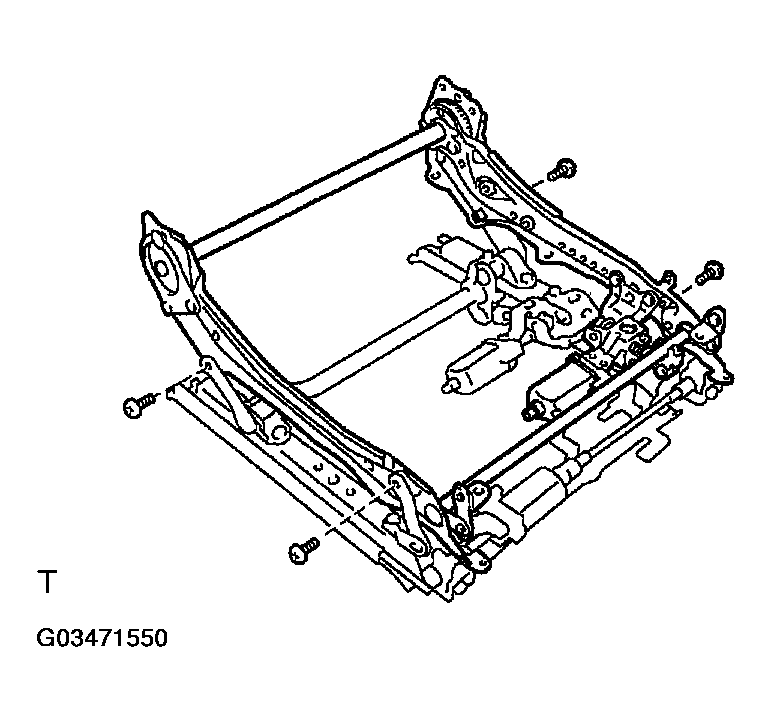

1. Using a Torx socket wrench, remove the 4 bolts and reclining seat adjuster assembly with No. 2 vertical seat link sub-assembly.
   Fig 5: Removing Reclining Seat Adjuster Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 screws.

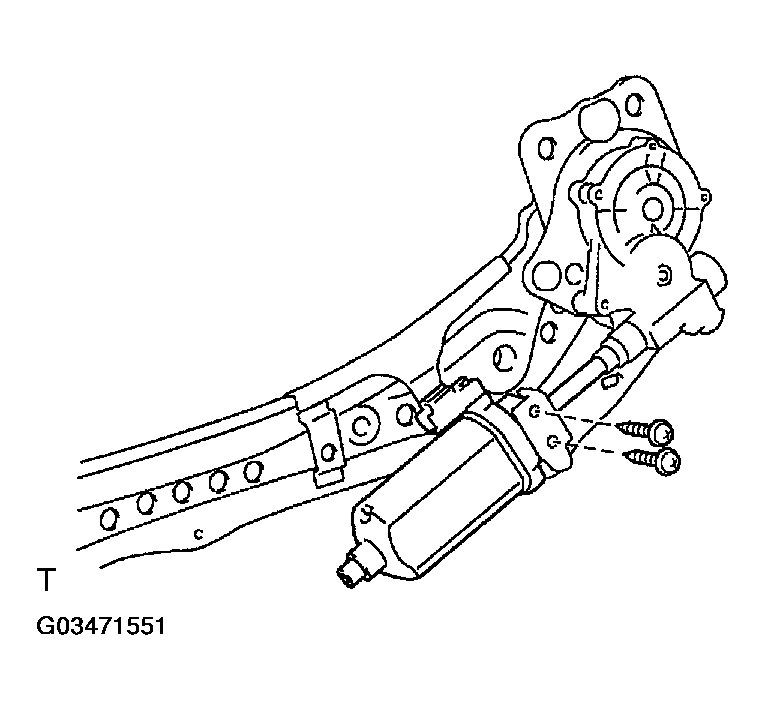

3. Disconnect the shaft, then remove the reclining motor.

Fig 6: Disconnecting Shaft Remove Reclining Motor

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a Torx socket wrench, remove the 2 bolts.
2. Remove the 2 nuts and No. 2 vertical seat link sub-assembly.
3. Remove the 2 screws and front vertical motor.

Fig 7: Removing Screws And Front Vertical Motor

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. w/ Power seat control:

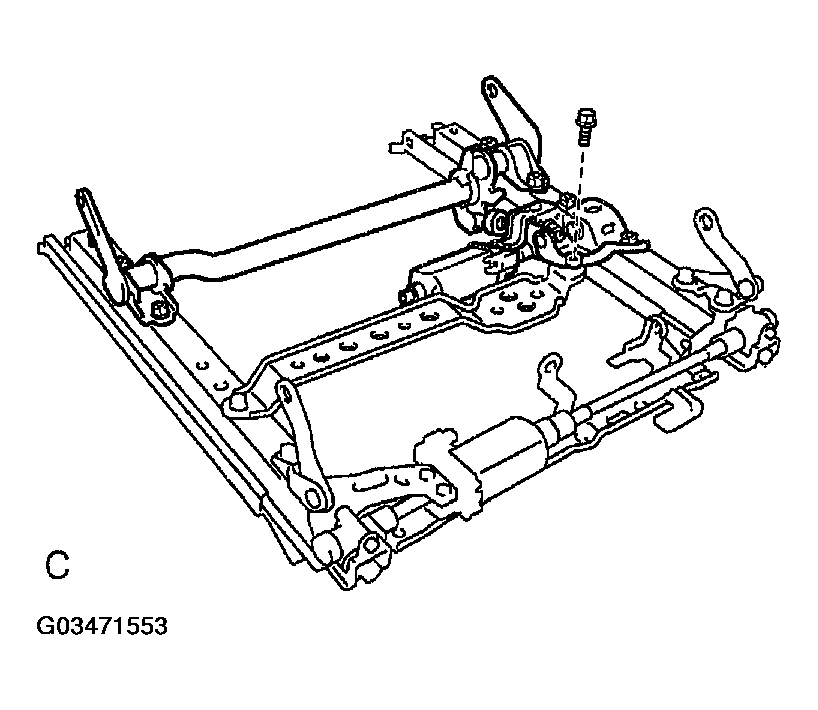

   Remove the bolt.

   Fig 8: Removing Vertical Seat Link Sub-Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

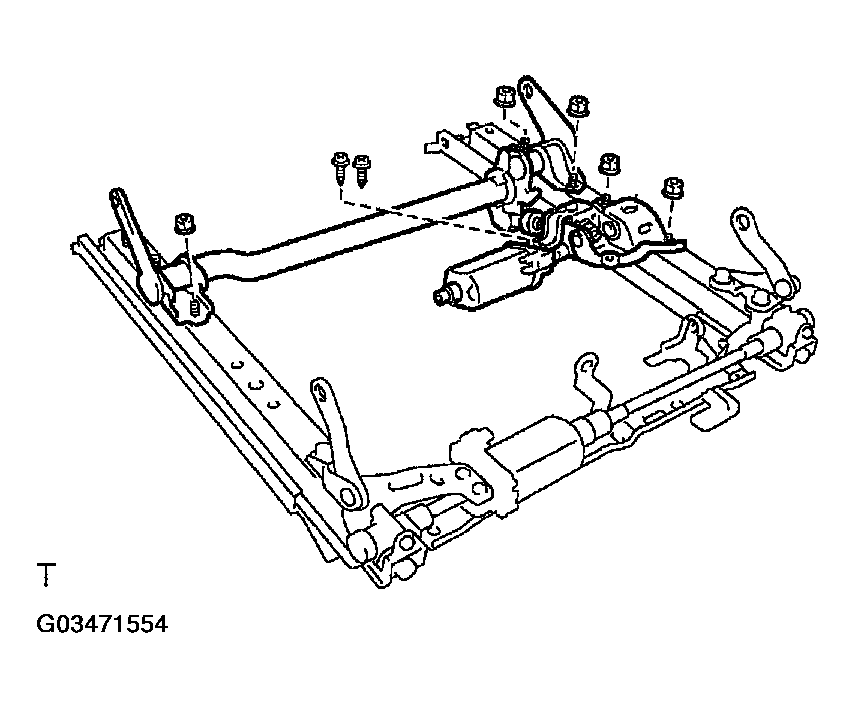

2. Remove the 5 nuts, plate and vertical seat link sub-assembly.

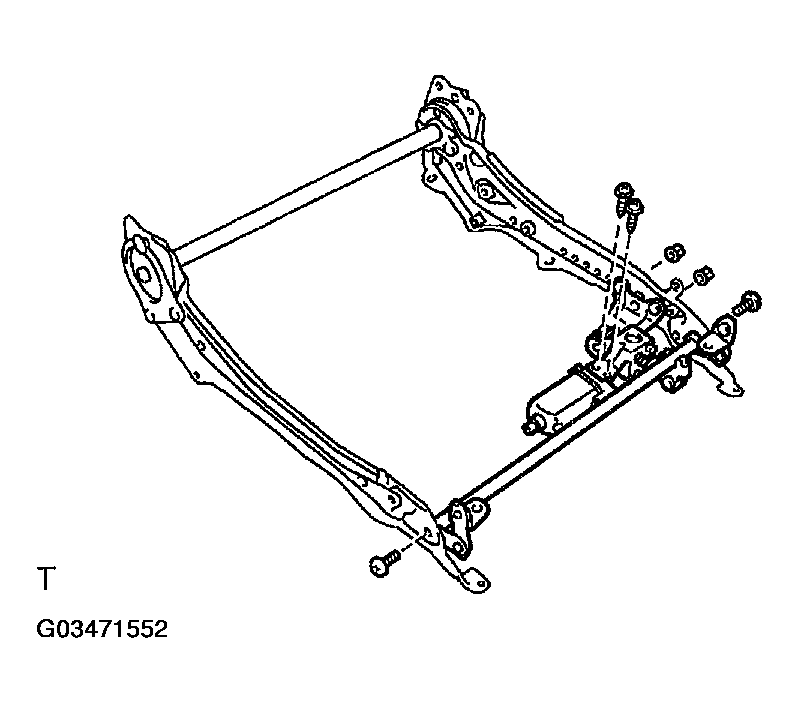

3. Remove the 2 screws and rear vertical motor.

Fig 9: Removing Screws And Rear Vertical Motor

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 2 screws.

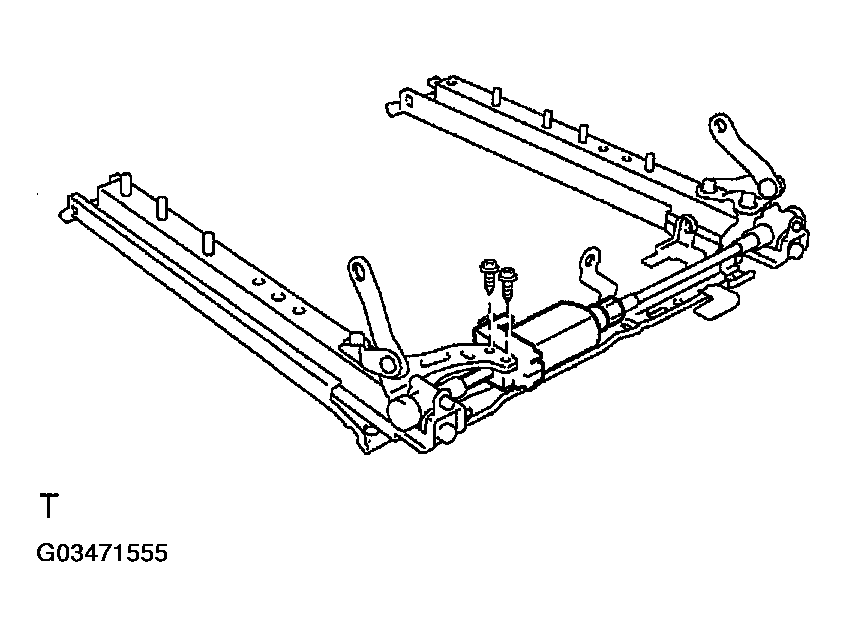

2. Disconnect the seat adjuster drive cable, then remove the slide motor.

Fig 10: Disconnecting Seat Adjuster Drive Cable

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
