Front Seat: Reassembly

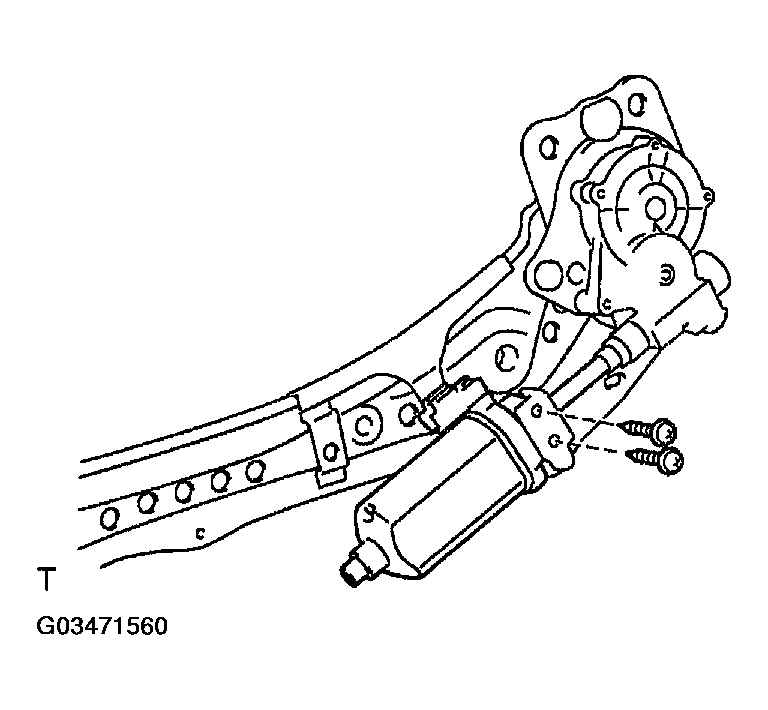

Connect the seat adjuster drive cable, then install slide motor with the 2 screws.

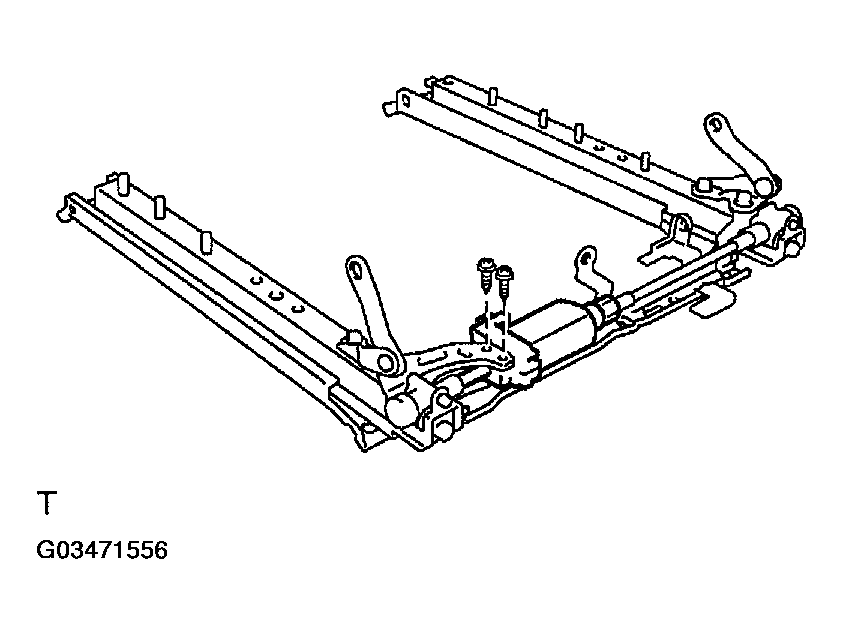

Fig 1: Connecting Seat Adjuster Drive Cable

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the rear vertical motor with the 2 screws.
2. Install the plate and vertical seat link sub-assembly with the 5 nuts.

   Torque: 26 N.m (270 kgf.cm, 20 ft.lbf)

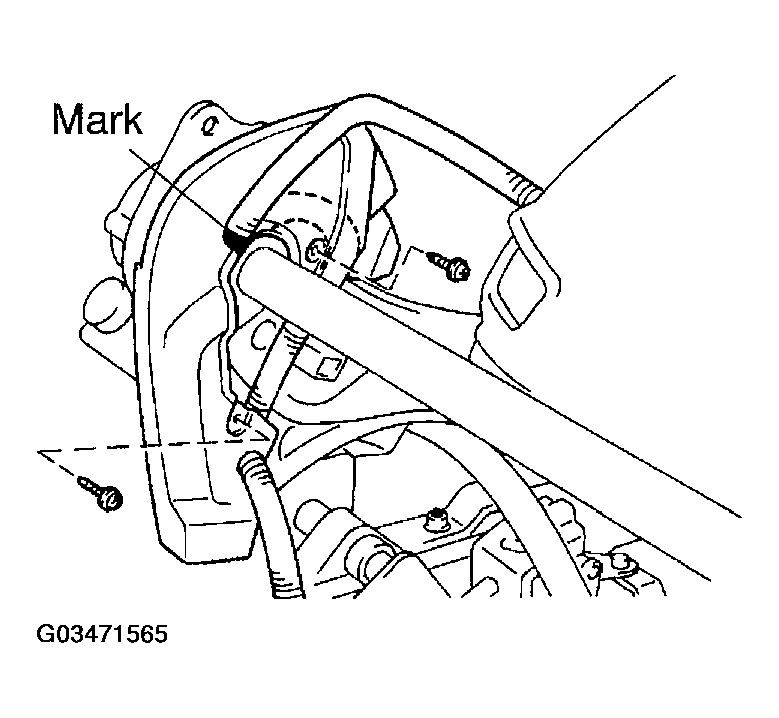

   Fig 2: Installing The Plate And Vertical Seat Link Sub-Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. w/ Power seat control:

   Install the bolt.

   Torque: 7.8 N.m (80 kgf.cm, 69 in.lbf)

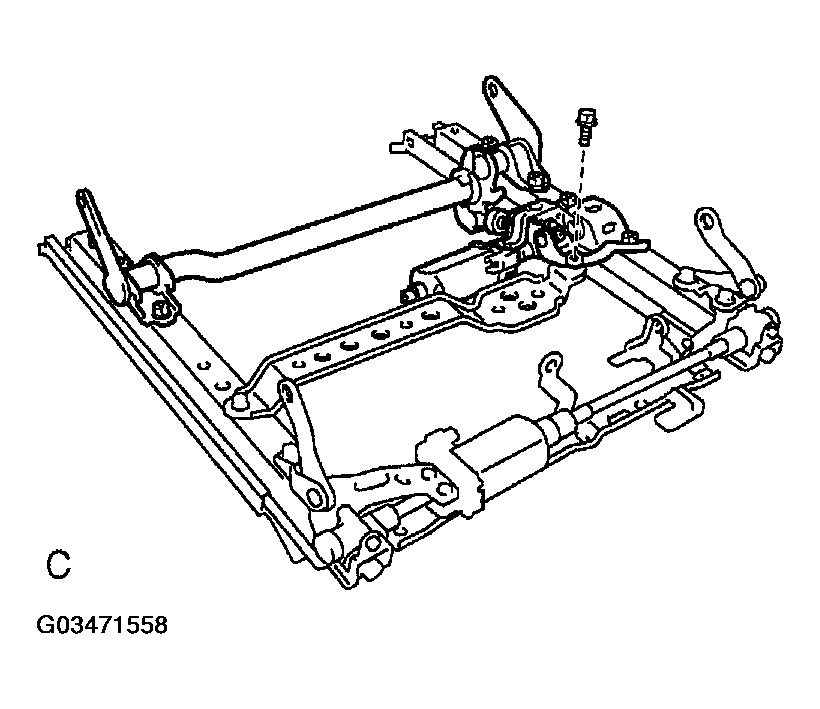

Fig 3: Install Plate And Vertical Seat Link Sub-Assembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the front vertical motor with the 2 screws.
2. Install the No. 2 vertical seat link sub-assembly with the 2 nuts.

   Torque: 20 N.m (200 kgf.cm, 14 ft.lbf)

3. Using a Torx socket wrench, install the 2 bolts.

   Torque: 29 N.m (300 kgf.cm, 22 ft.lbf)

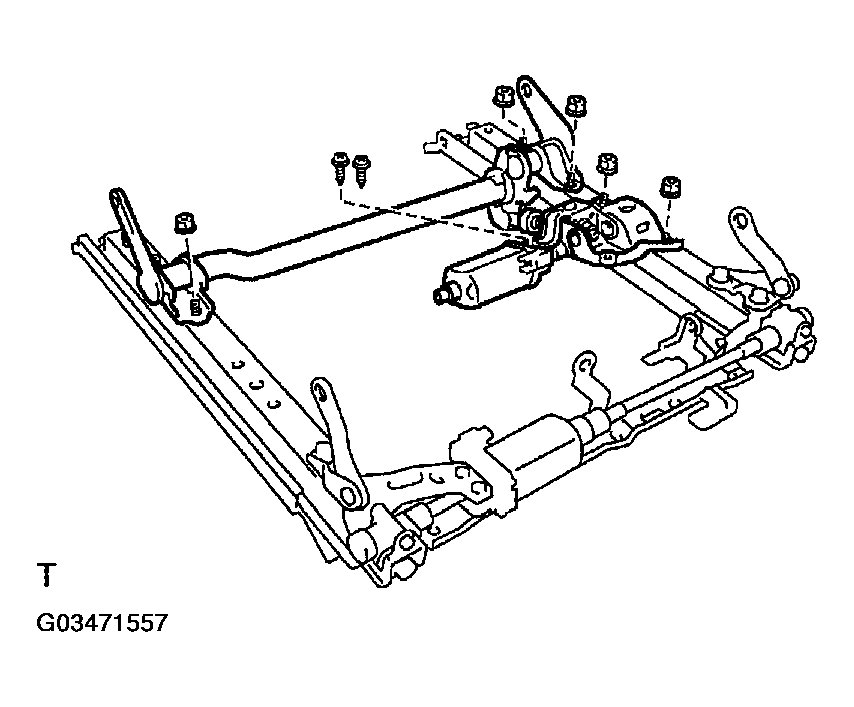

Fig 4: Installing Front Vertical Motor With Screws

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the shaft.
2. Install the reclining motor with the 2 screws.

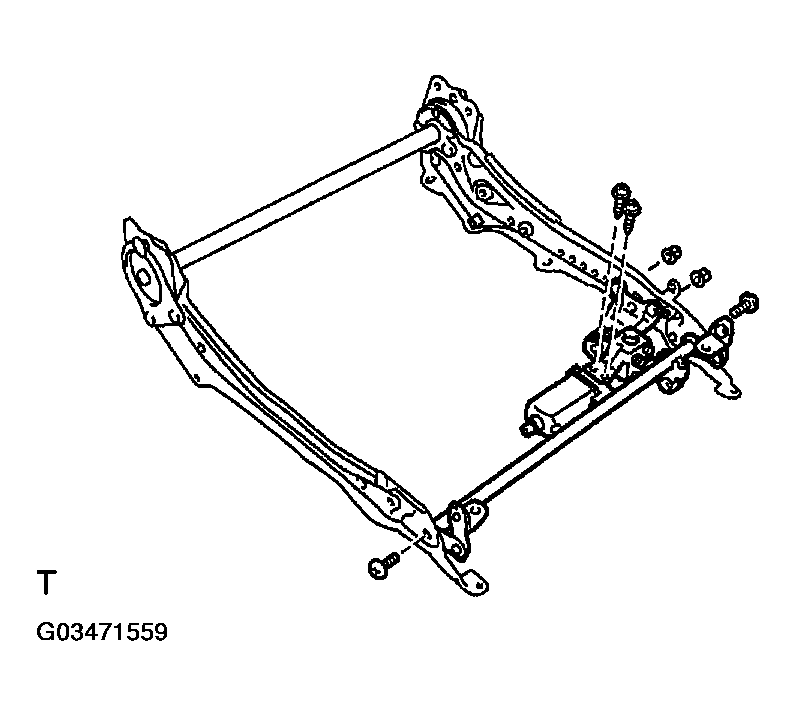

   Fig 5: Installing Reclining Motor With Screws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using a Torx socket wrench, install the reclining seat adjuster assembly with No. 2 vertical seat link sub-assembly with the 4 bolts.

   Torque: 20 N.m (200 kgf.cm, 14 ft.lbf)

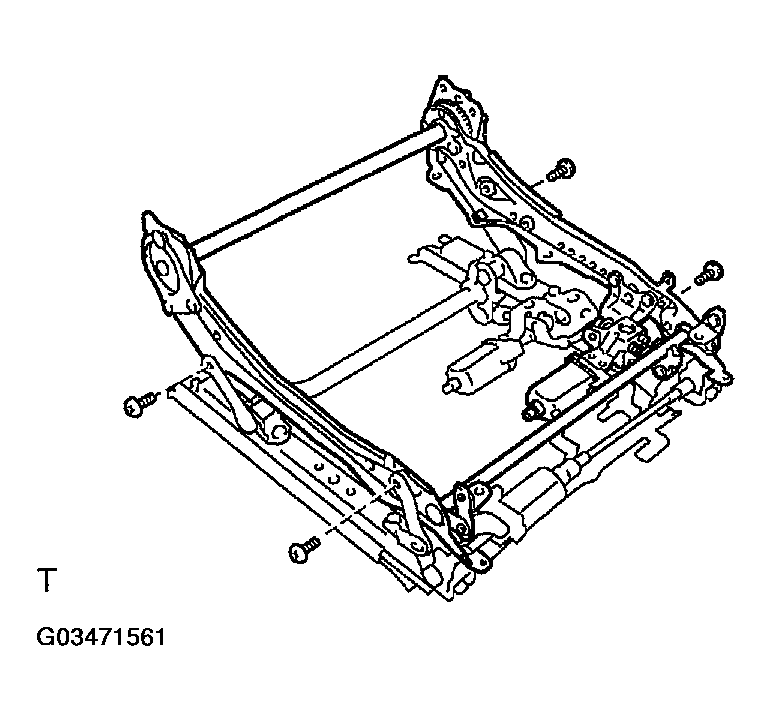

Fig 6: Installing Reclining Seat Adjuster Assembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the belt anchor bracket with the 2 nuts.

   Torque: 26 N.m (270 kgf.cm, 20 ft.lbf)

2. Install the 2 seat track covers.

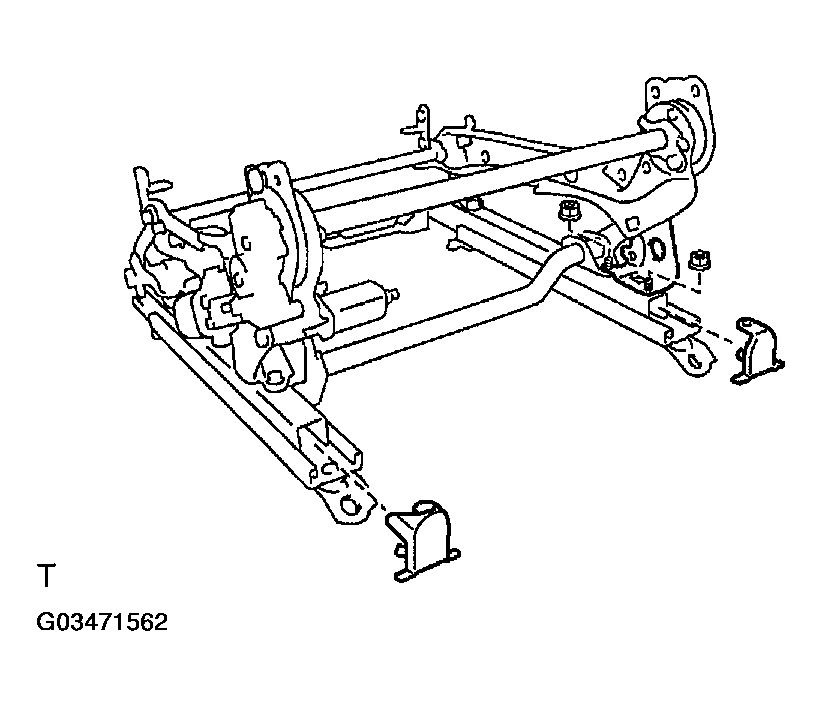

Fig 7: Installing Belt Anchor Bracket With Nuts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

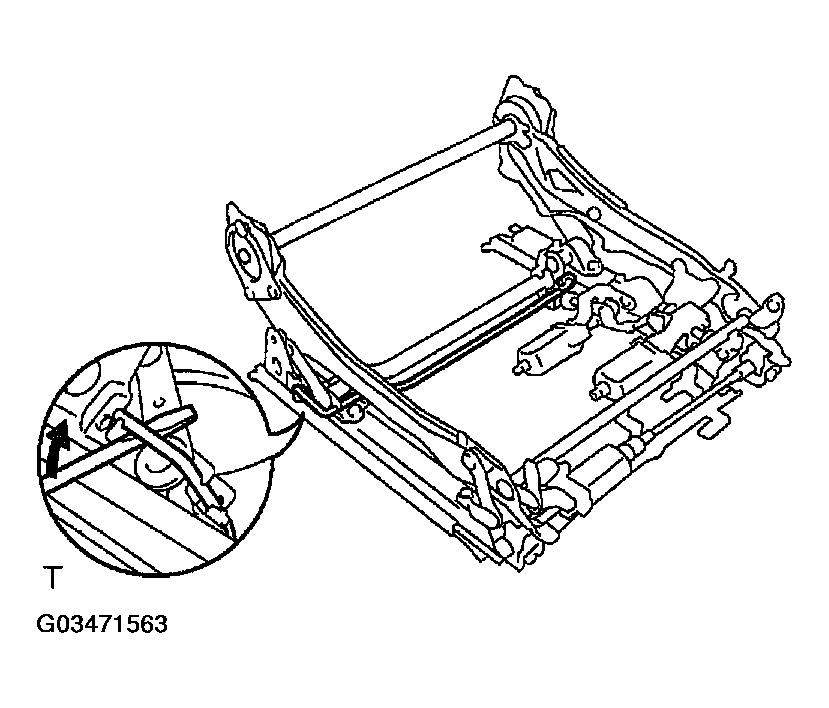

Using a screwdriver, install the torsion bar.

Install the seat position control relay with the 2 nuts.

Connect the connectors, then install the wire harness to the seat adjuster.

Install the power seat switch with the 2 screws.

1. Install the seatback cover with new hog rings to the seatback pad.
2. Install the lumber support assembly with the 2 bolts to the seatback frame.
3. Install the seatback cover with pad to the seatback frame with the 2 bolts and new hog rings.

   HINT:

   When installing hog rings, take care to prevent wrinkles as least as possible.

4. Install the headrest supports.

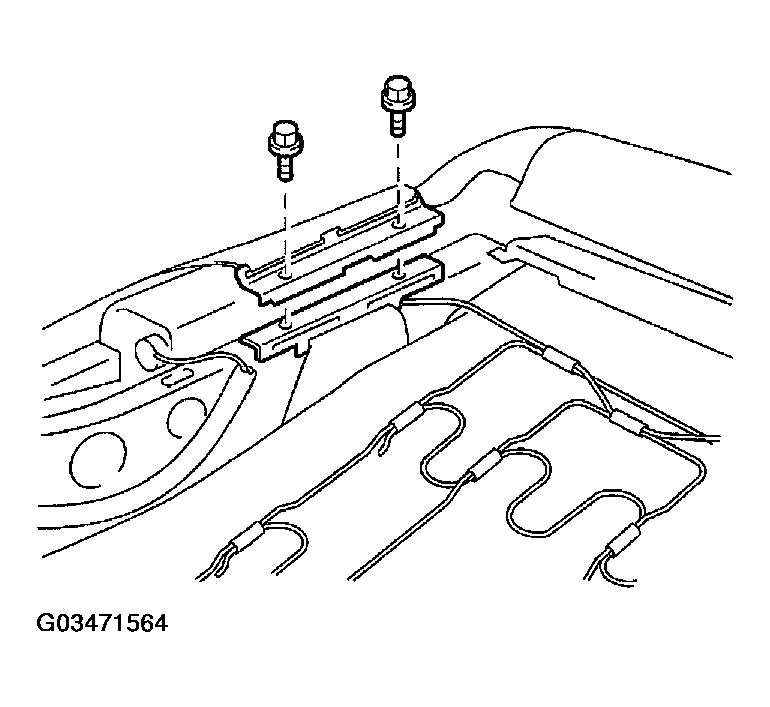

   Fig 8: Installing Headrest Supports

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Install the seat cover hook and retainer to the seatback frame with the 2 bolts.
6. Install new hog rings.

   HINT:

   When installing hog rings, take care to prevent wrinkles as least as possible.

Fig 9: Installing Seat Cover Hook And Retainer To Seatback Frame

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the covers to the outer and inner seat tracks.
2. Install the wire harness to the seat cushion inside covers as shown in the illustration.
   NOTE: Be careful not to damage the wire harness.
3. Install the seat cushion inside covers with the 4 screws.
4. Install the seatback assembly with the 4 bolts.

   Torque: 61 N.m (622 kgf.cm, 45 ft.lbf)

5. Install new hog rings.

   HINT:

   When installing hog rings, take care to prevent wrinkles as least as possible.

6. Install the seatback board with the 2 screws to the seatback assembly.

1. Install the seat cushion cover with new hog rings to the seat cushion pad.
2. Install the seat cushion cover with pad to the seat cushion frame with new hog rings.

HINT:

When installing hog rings, take care to prevent wrinkles as least as possible.

Fig 10: Installing Seat Cushion Cover With New Hog Rings To Seat Cushion Pad

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the seat cushion assembly with the 4 bolts to the seat adjuster.

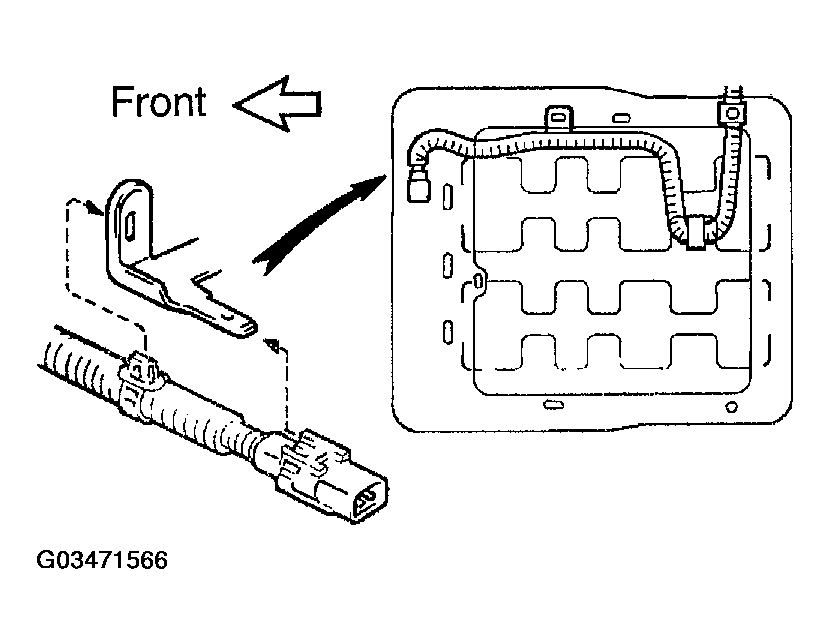

2. Install the wire harness to the seat cushion, as shown in the illustration.

   Torque: 19 N.m (194 kgf.cm, 14 ft.lbf)

Install the bolt and front seat inner belt.

Torque: 42 N.m (430 kgf.cm, 31 ft.lbf)
