Inspection Procedure

PREPARATION:

Remove Power Seat Position ECU with connectors still connected.

CHECK:

Measure voltage between terminals +B and GND of Power Seat Position ECU connector.

OK:

Voltage: 10-14 V

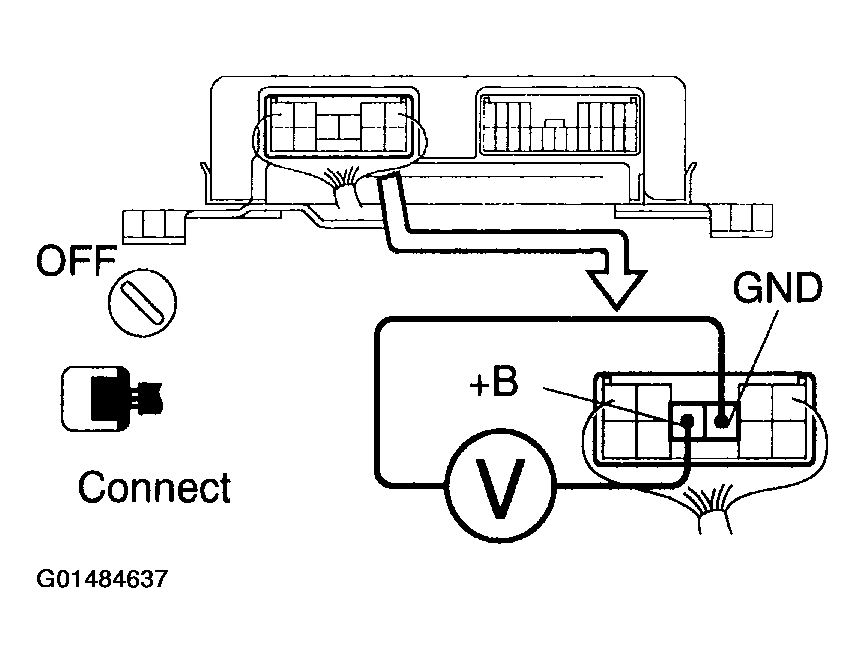

Fig 1: Checking Voltage Between Terminals +B And GND Of Power Seat Position ECU Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. OK: Proceed to next circuit Inspection shown in problem symptoms table (See  PROBLEM SYMPTOMS TABLE  ).
2. NG: Go to next step.

CHECK:

Measure resistance between terminal GND of Power Seat Position ECU and body ground.

OK:

Resistance: Continuity (below 1 Ω)

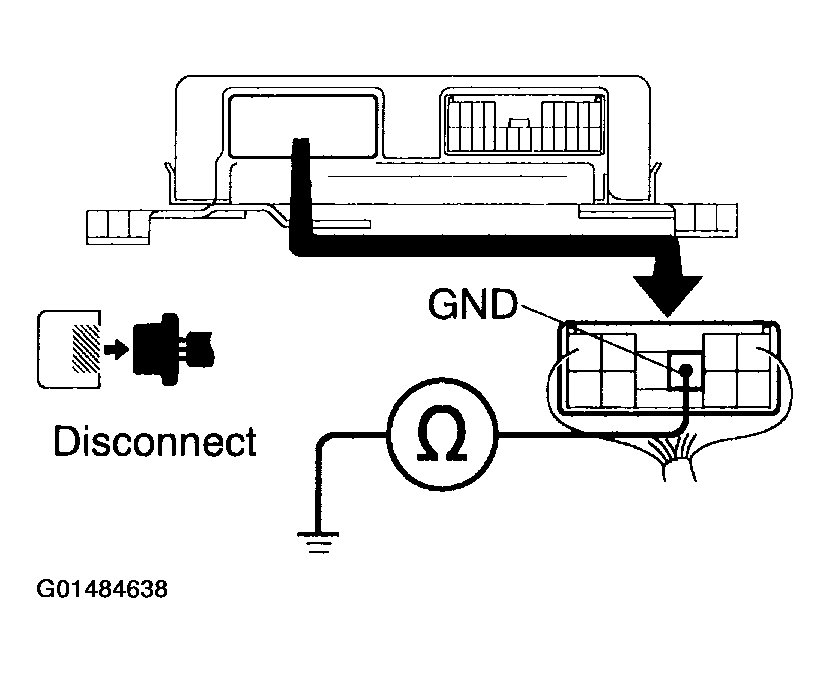

Fig 2: Checking Continuity Between Terminal GND Of Power Seat Position ECU Connector And Body Ground

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. NG: Repair or replace harness or connector.
2. OK: Go to next step.

PREPARATION:

Remove Power Seat Position ECU with connectors still connected.

CHECK:

Measure voltage between terminals SYSB and SGND of Power Seat Position ECU connector.

OK:

Voltage: 10-14 V

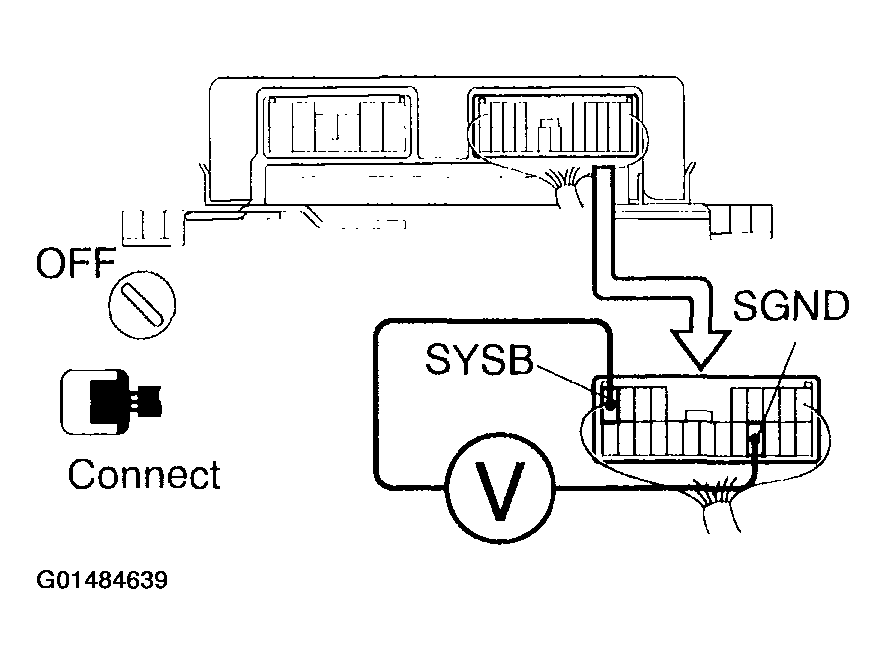

Fig 3: Checking Voltage Between Terminals SYSB And SGND Of Power Seat Position ECU Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. OK: Proceed to next circuit inspection shown in problem symptoms table (See  PROBLEM SYMPTOMS TABLE  ).
2. NG: Go to next step.

CHECK:

Measure resistance between terminals SGND of Power Seat Position ECU and body ground.

OK:

Resistance: Continuity (below 1 Ω)

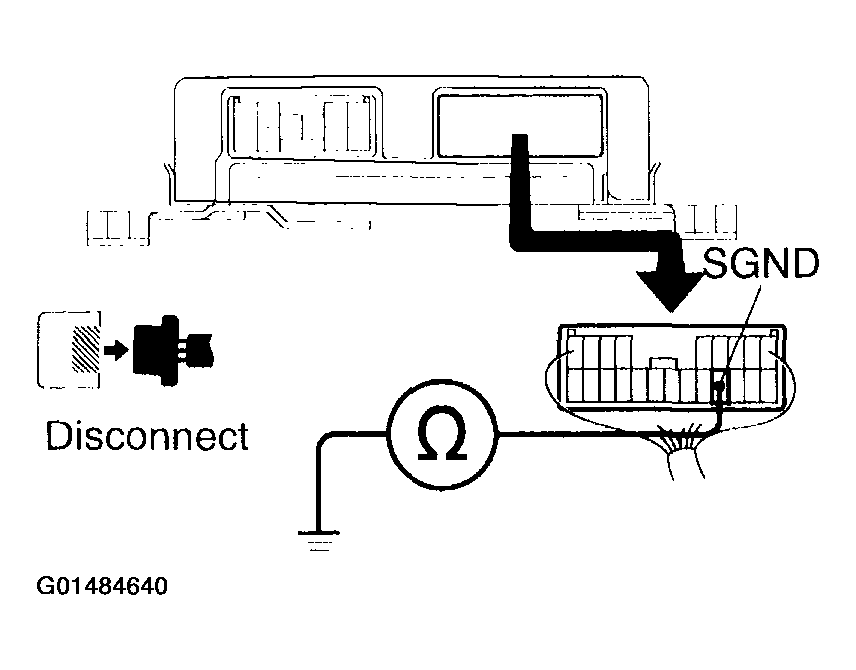

Fig 4: Checking Continuity Between Terminal SGND Of Power Seat Position ECU Connector And Body Ground

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. NG: Repair or replace harness or connector.
2. OK: Go to next step.

1. NG: Check for short in all the harness and components connected to SEAT-FR and DOME fuse, and repair them (See attached  WIRING DIAGRAM  ).
2. OK: Go to next step.

   Check and repair connector between Power Seat Position ECU and battery.
