Height Control Sensor Sub-ASSY Rear LH: Replacement

WARNING: This page is about a different car, the 2004 Lexus GX 470. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS: COMPONENTS

REMOVE REAR DISC WHEEL

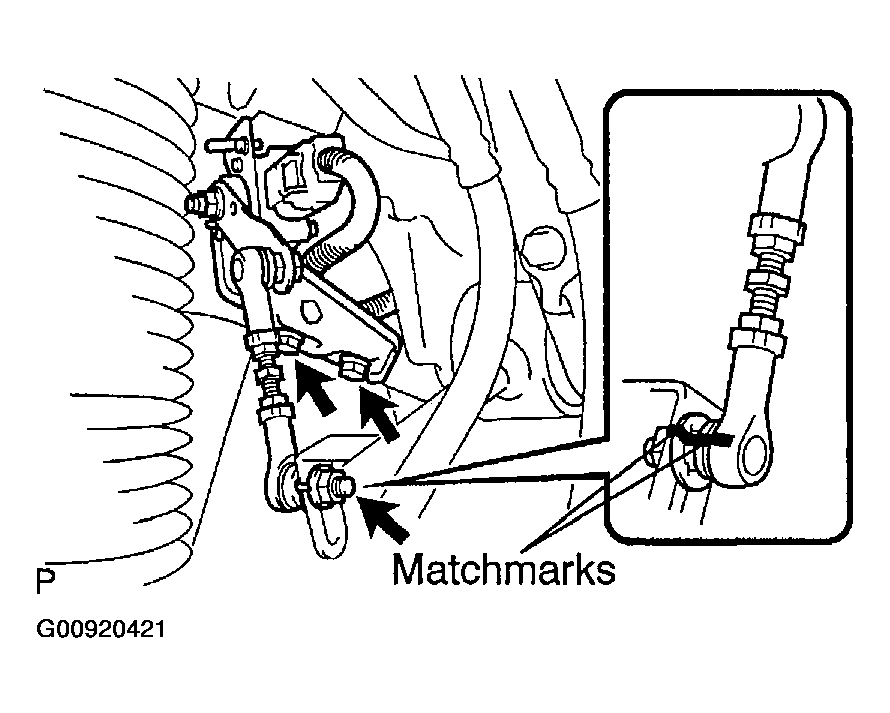

Fig 1: Removing 2 Bolts And Height Control Sensor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE HEIGHT CONTROL SENSOR SUB-ASSY REAR LH
1. Disconnect the connector from the height control sensor.
2. Place matchmarks on the link and the bracket.
3. Remove the nut and disconnect the sensor link.
4. Remove the 2 bolts and height control sensor.
INSTALL HEIGHT CONTROL SENSOR SUB-ASSY REAR LH
1. Install the height control sensor with the 2 bolts.
  1. Torque: 13 N.m (133 kgf.cm, 10 ft.Ibf)
2. Align the matchmarks on the link and the bracket.
3. Connect the sensor link with the nut.
  1. Torque: 5.4 N.m (55 kgf.cm, 48 in..Ibf)
4. Connect the connector to the height control sensor.
INSTALL REAR DISC WHEEL
1. Torque: 112 N.m (1,140 kgf.cm, 83 ft.lbf)
MEASURE VEHICLE HEIGHT (See FRONT WHEEL ALIGNMENT )
ADJUST VEHICLE HEIGHT ( SUSPENSION CONTROL SYSTEM )
