Multi-Display (CRT Display) Display Replacement

WARNING: This page is about a different car, the 2004 Lexus GX 470. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS: See LOCATION .

REMOVE CONSOLE UPPER PANEL GARNISH NO.2 (SEE REPLACEMENT )
REMOVE CONSOLE UPPER PANEL GARNISH NO.1 (SEE REPLACEMENT )
REMOVE INSTRUMENT PANEL GARNISH SUB-ASSY LH (SEE REPLACEMENT )
REMOVE INSTRUMENT PANEL GARNISH SUB-ASSY RH (SEE REPLACEMENT )
REMOVE INTEGRATION CONTROL & PANEL ASSY (SEE REPLACEMENT )
REMOVE RADIO BRACKET NO.1 (SEE RADIO RECEIVER ASSY REPLACEMENT )
REMOVE RADIO BRACKET NO.2 (SEE RADIO RECEIVER ASSY REPLACEMENT )
REMOVE MULTI-DISPLAY (CRT DISPLAY) DISPLAY
1. Release the 2 claws and remove the multi display.

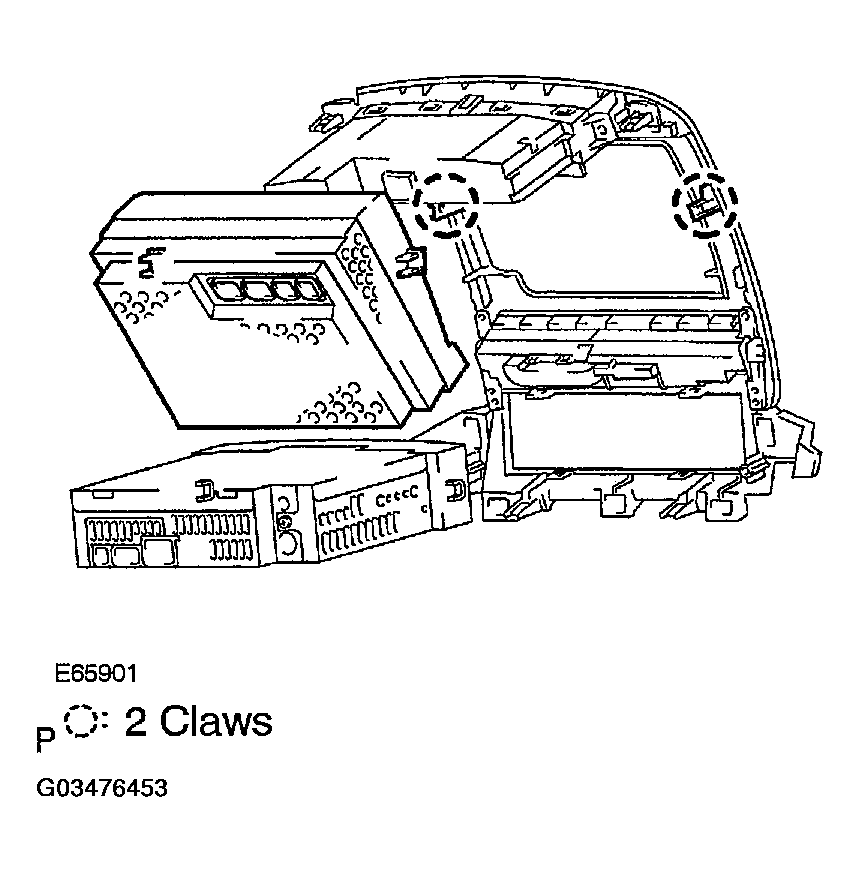

Fig 1: Identifying Multi-Display (CRT Display) Display Replacement
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
