Multi-Display Controller Sub-ASSY Replacement

WARNING: This page is about a different car, the 2004 Lexus GX 470. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS: See LOCATION .

REMOVE FRONT DOOR SCUFF PLATE RH (SEE REPLACEMENT )
REMOVE COWL SIDE TRIM BOARD RH (SEE REPLACEMENT )

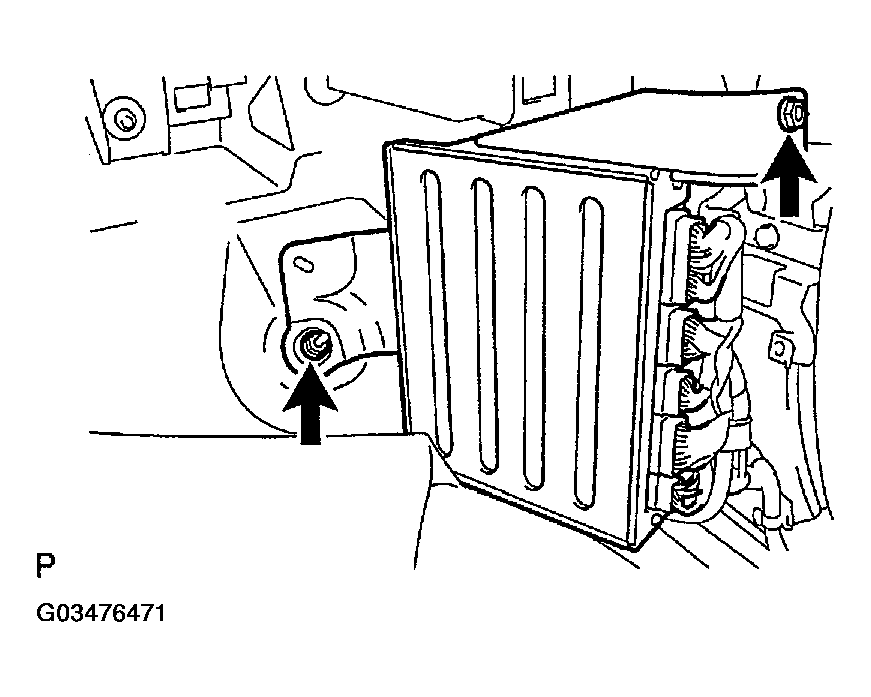

REMOVE MULTI-DISPLAY CONTROLLER W/BRACKET
1. Disconnect the connectors.
2. Remove the 2 nuts and multi-display controller w/ bracket.
Fig 1: Removing Multi-Display Controller W/Bracket
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

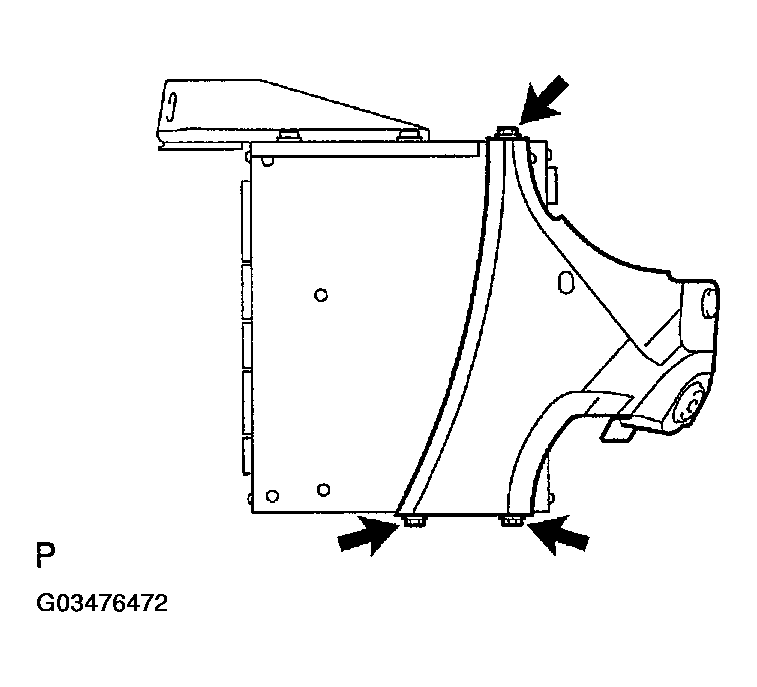

REMOVE TELEVISION DISPLAY BRACKET A
1. Remove the 3 screws and television display bracket A.
Fig 2: Removing Television Display Bracket
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

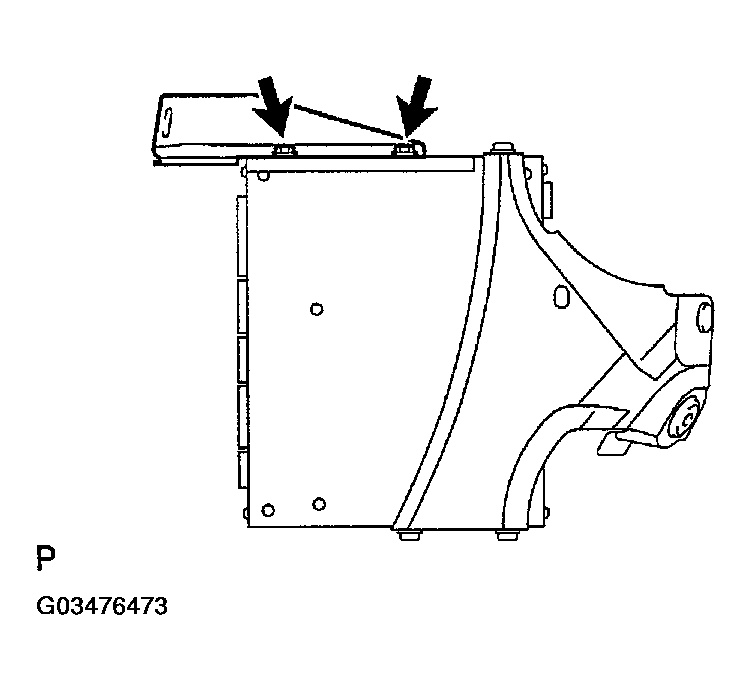

REMOVE TELEVISION DISPLAY BRACKET B
1. Remove the 2 screws and television display bracket B.
Fig 3: Removing Television Display Bracket
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
