Navigation Ecu Replacement

HINT:

COMPONENTS: See LOCATION .

1. REMOVE FRONT RH SEAT ASSY (SEE  FRONT SEAT  )
2. REMOVE DISC PLAYER BRACKET
   1. Remove the bolt and screw.
   2. Remove the disc player bracket.

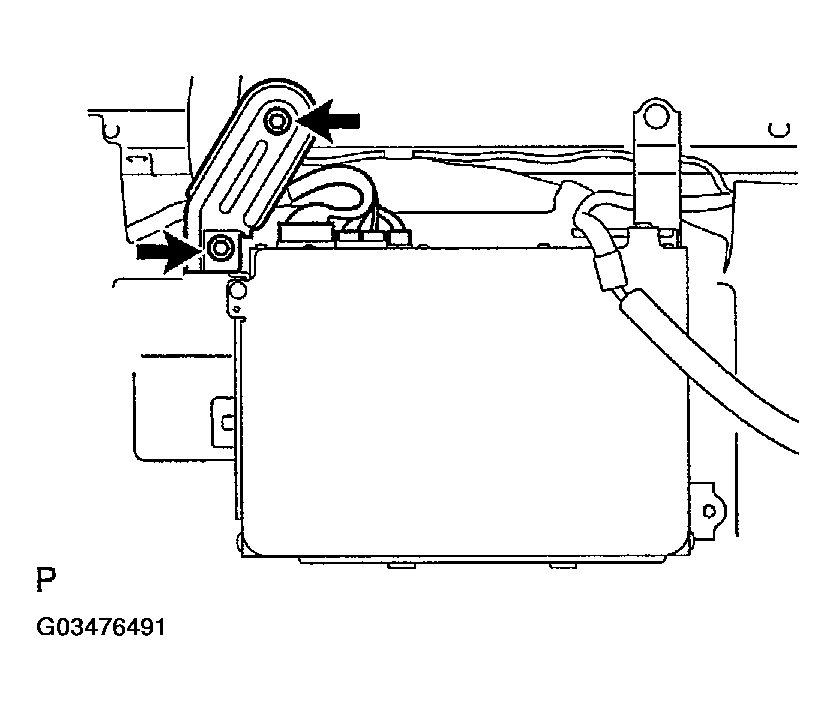

   Fig 1: Removing Disc Player Bracket

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. REMOVE NAVIGATION COMPUTER W/BRACKET
   1. Disconnect the connectors and remove the bolt and screw.
   2. Remove the navigation computer w/ bracket.

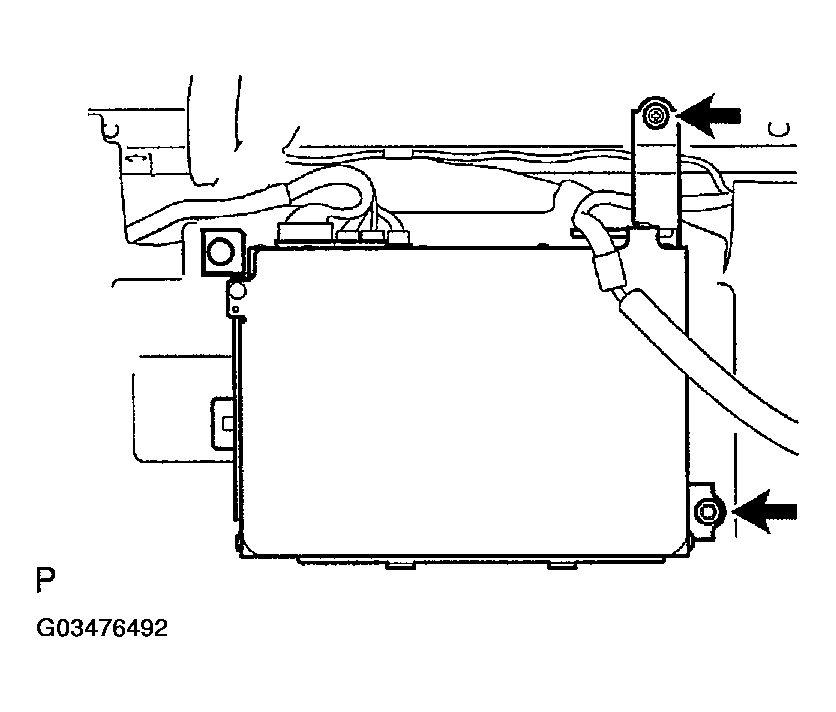

   Fig 2: Removing Navigation Computer W/ Bracket

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. REMOVE NAVIGATION ECU COVER
   1. Release the 2 claws and remove the navigation ECU cover.

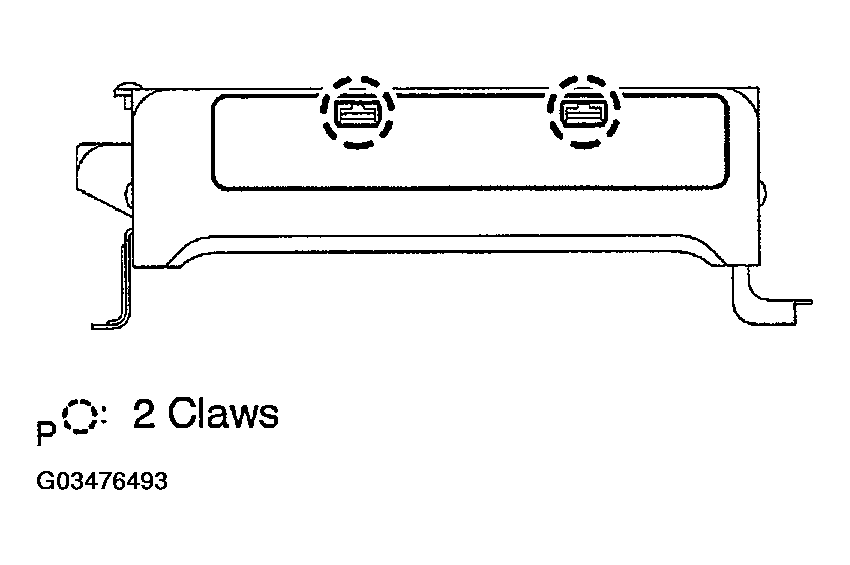

      Fig 3: Removing Navigation ECU Cover

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Remove the 4 screws and navigation ECU cover.

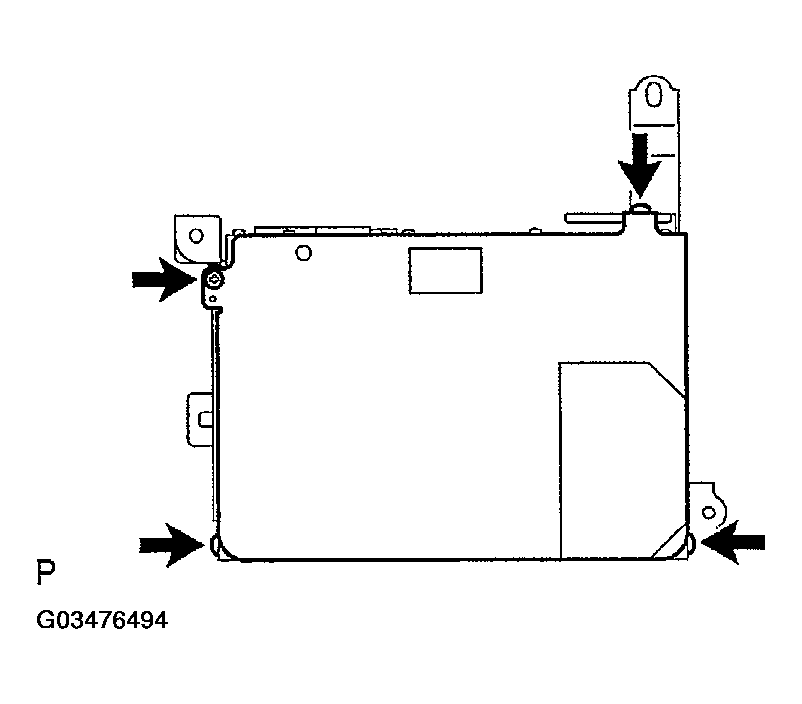

   Fig 4: Removing Screws And Navigation ECU Cover

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. REMOVE DISC PLAYER BRACKET NO.2
   1. Remove the 2 screws and disc player bracket No.2.

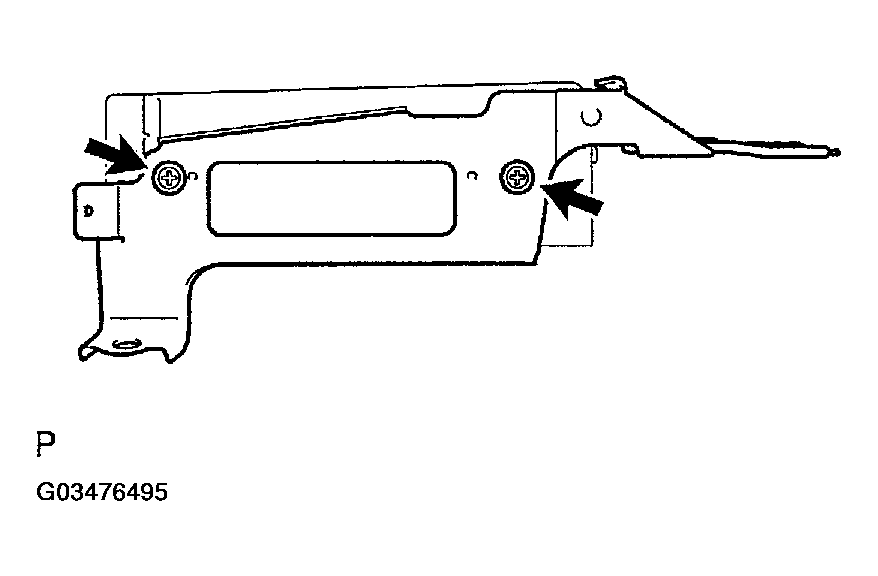

   Fig 5: Removing Disc Player Bracket

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. REMOVE DISC PLAYER BRACKET NO.3
   1. Remove the 2 screws and disc player bracket No.3.

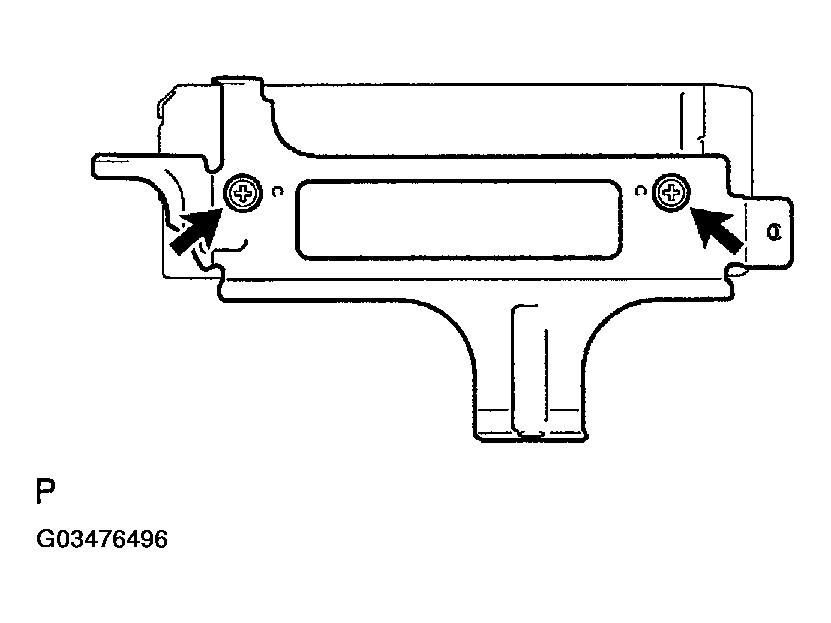

   Fig 6: Removing Disc Player Bracket

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. INSTALL FRONT RH SEAT ASSY (SEE  FRONT SEAT  )
