Power Point Socket ASSY Replacement

HINT:

COMPONENTS: See LOCATION .

1. REMOVE CONSOLE UPPER PANEL GARNISH NO.2 (SEE  REPLACEMENT  )
2. REMOVE CONSOLE UPPER PANEL GARNISH NO.1 (SEE  REPLACEMENT  )
3. REMOVE CONSOLE PANEL UPPER ASSY (SEE  REPLACEMENT  )
4. REMOVE CONSOLE UPPER PANEL GARNISH FRONT (SEE  REPLACEMENT  )
5. REMOVE POWER POINT SOCKET ASSY

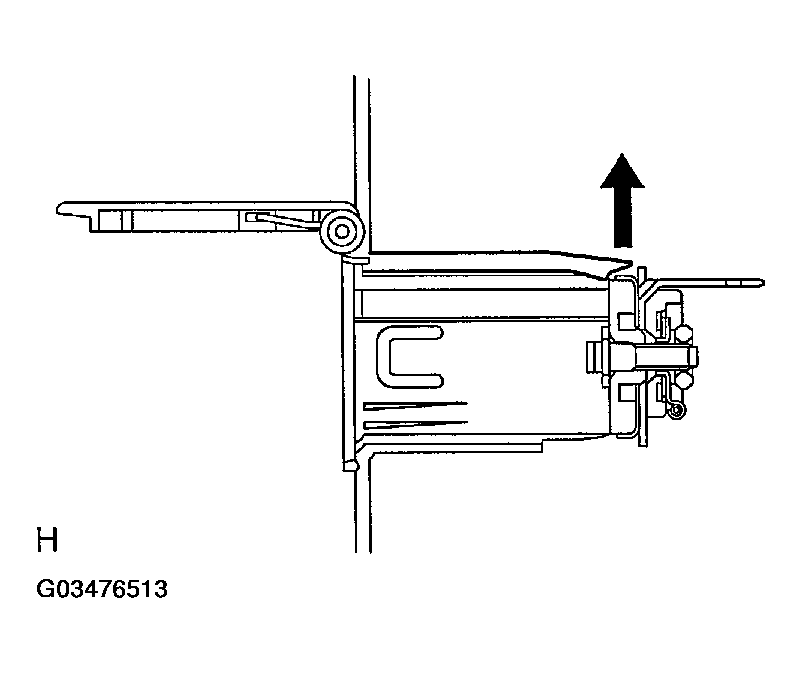

   1. Pressing the claw of the power point socket assy in the direction of the arrow, push the power point socket assy toward the room side to remove it.
   Fig 1: Identifying Power Point Socket Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. INSTALL POWER POINT SOCKET ASSY
   1. Align the claw of the power point socket assy with the cutout of the power point socket cover and fully push it to install.
