Stereo Component Controller ASSY Replacement

WARNING: This page is about a different car, the 2004 Lexus GX 470. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS: See LOCATION .

REMOVE ROOM Lamp ASSY NO.1 (SEE REPLACEMENT )
REMOVE STEREO COMPONENT CONTROLLER ASSY
1. Remove the 2 screws and stereo component controller assy.

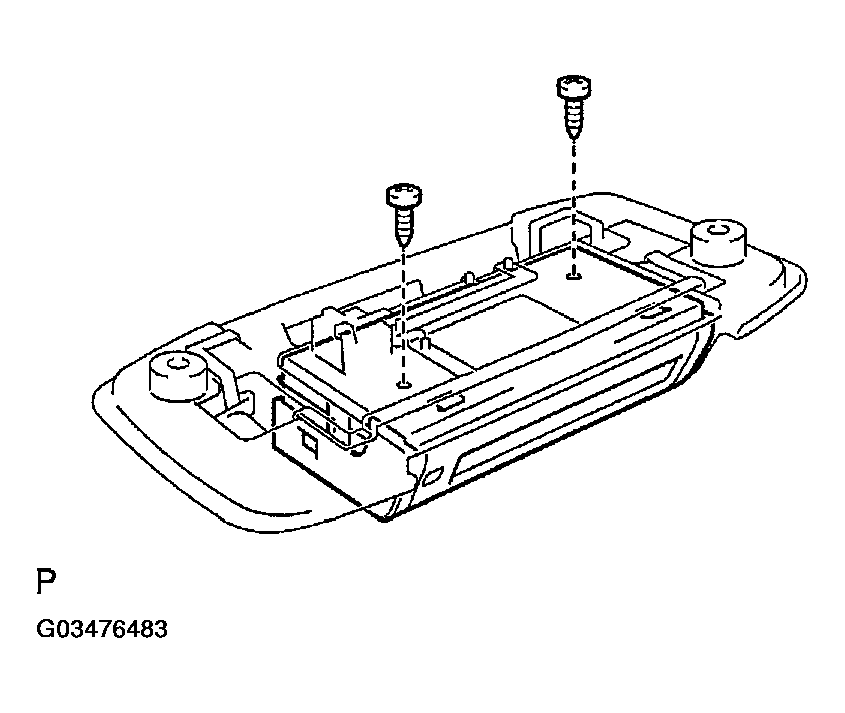

Fig 1: Removing Stereo Component Controller Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
