Inspection Procedure

Check pattern select switch.
PREPARATION:

Disconnect the pattern select switch connector.

CHECK:

Check continuity between each terminal of pattern select switch connector when the select switch is set to PWR, NORM and SNOW positions.

OK:

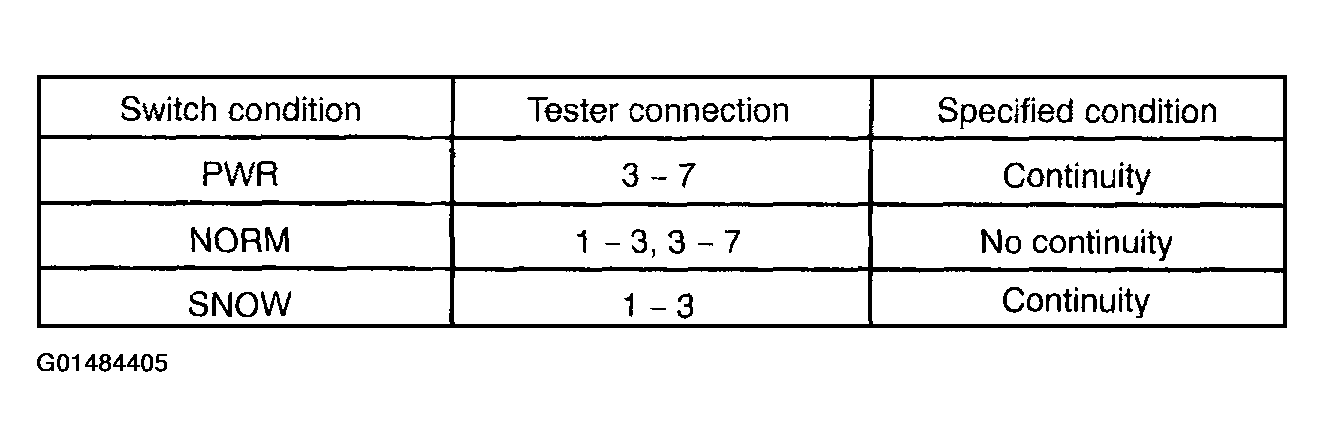

Fig 1: Continuity Condition Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

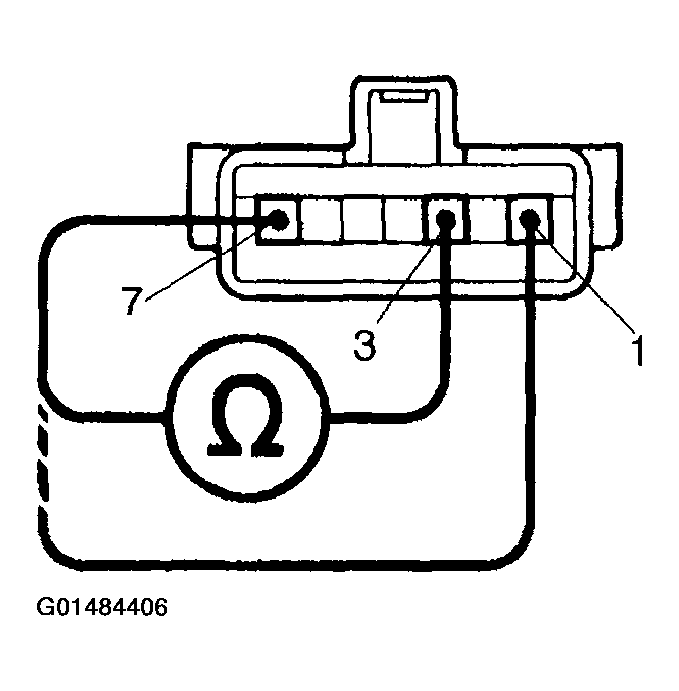

Fig 2: Checking Continuity
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the continuity is not as specified, replace the switch.
1. NG: Replace pattern select switch.
2. OK: Go to Next Step
Check harness and connector between pattern select switch and body ECU No.1, pattern select switch and body ground (See O/D DIRECT CLUTCH SPEED SENSOR ).
1. NG: Repair or replace the harness or connector.
2. OK: Go to next step.
  Proceed to next circuit inspection shown on problem symptoms table (See PROBLEM SYMPTOMS TABLE )
