Automatic Transmission - Diagnostics
>>
Problem Symptoms Table
>>
Chapter 2: On-Vehicle Repair
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Chapter 2: On-Vehicle Repair

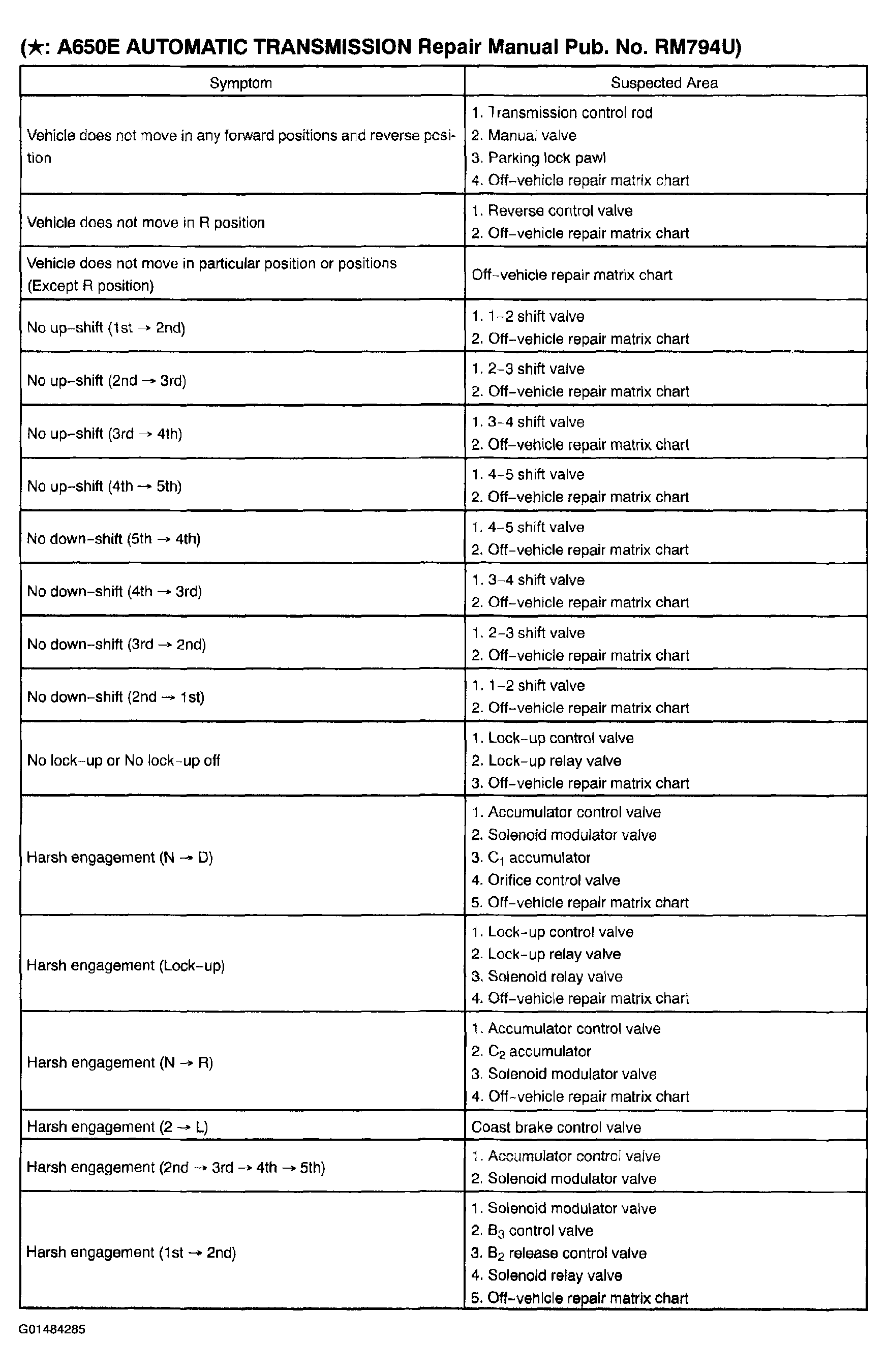

Fig 1: Chapter 2: On-Vehicle Repair (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

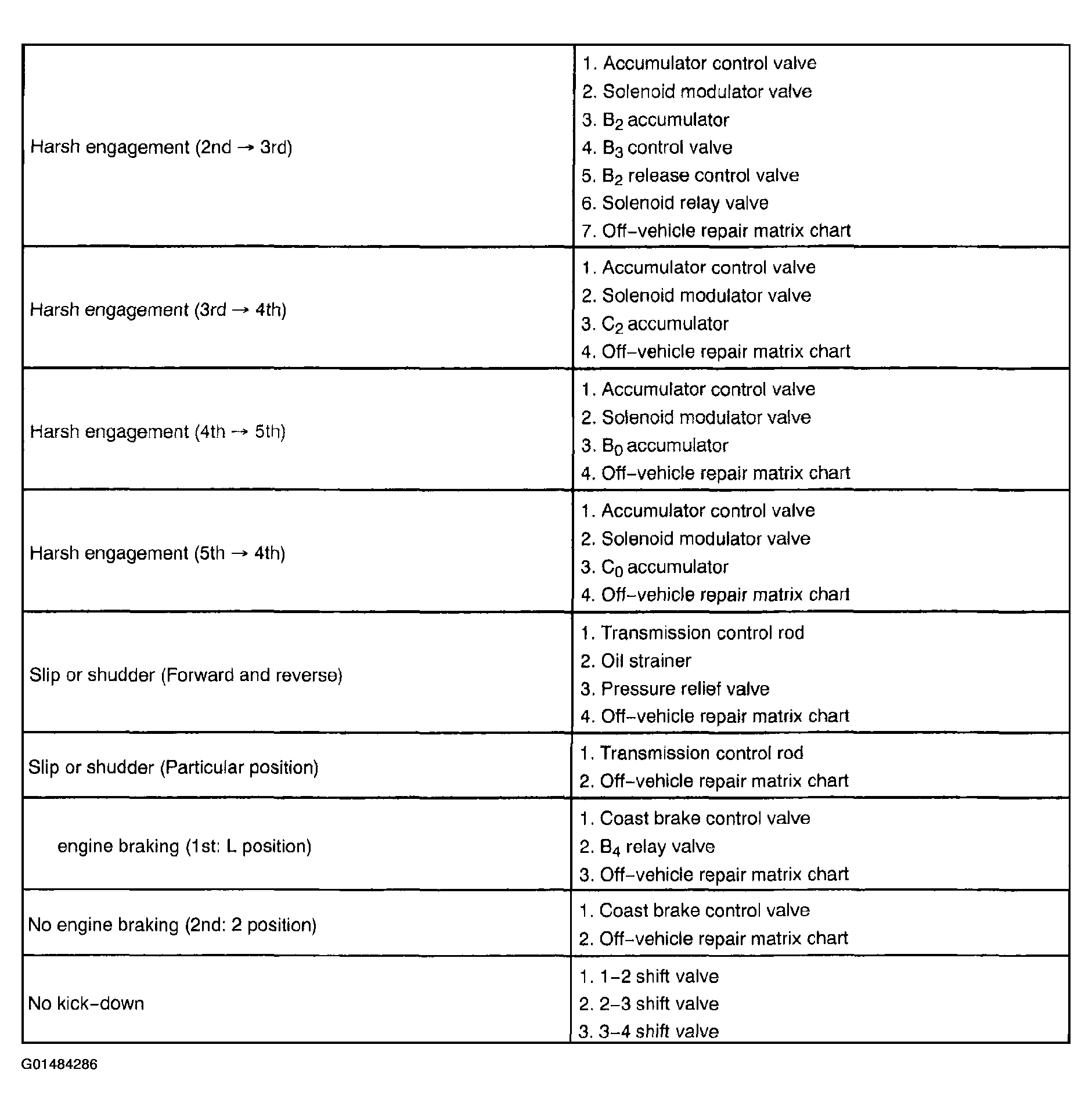

Fig 2: Chapter 2: On-Vehicle Repair (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
