Chapter 3: Off-Vehicle Repair

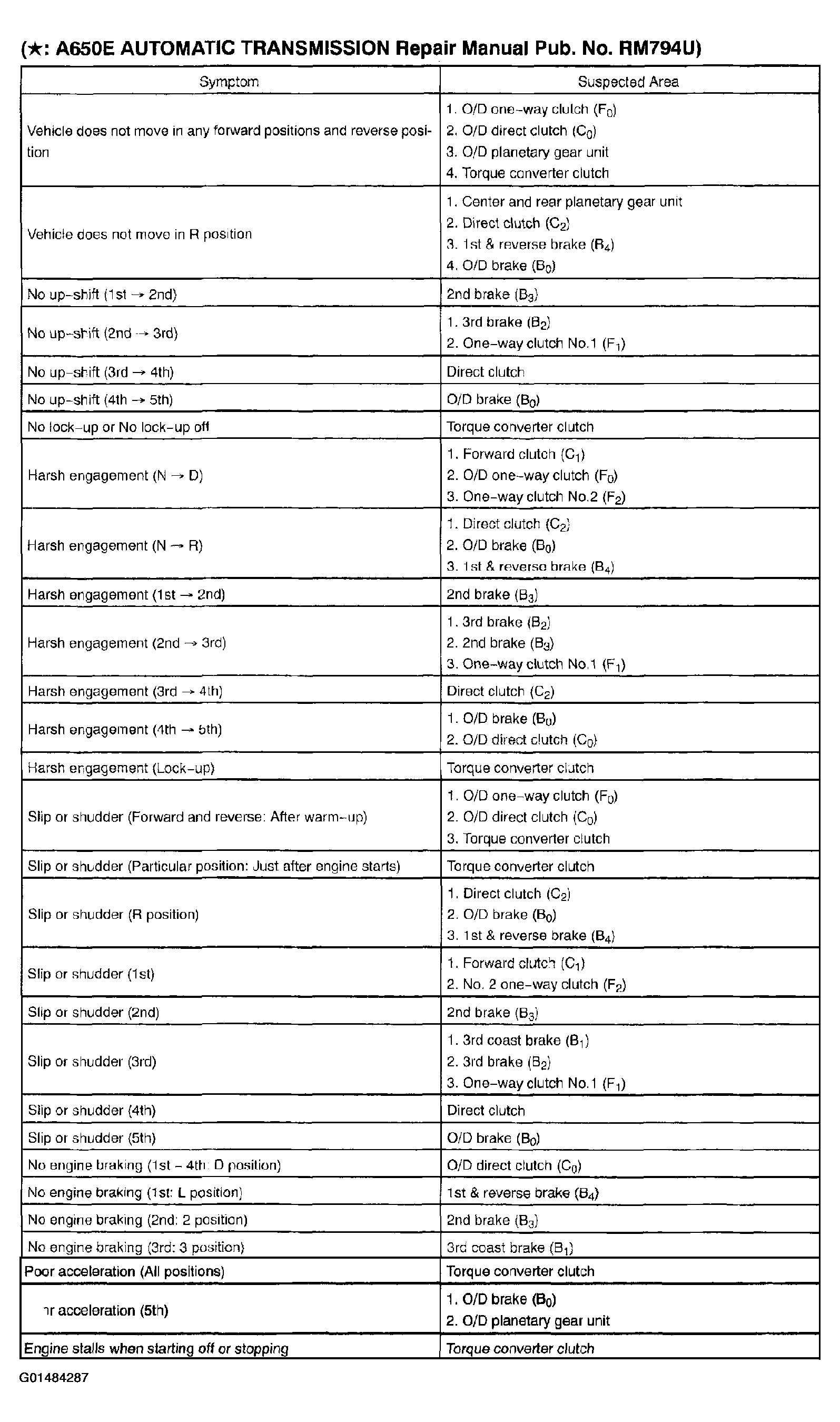

Fig 1: Chapter 3: Off-Vehicle Repair Chart
G01484287Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
