Remove & Install

  1. Remove speed sensor (SP2 and NT sensor). See Fig 1:
    1. Disconnect the connector.
    2. Remove the bolt and speed sensor.
  2. Install speed sensor (SP2 and NT sensor). See Fig 1:
    1. Coat a new "O" ring with ATF.
    2. Install the speed sensor with the bolt. Tighten bolt to specification. See TORQUE SPECIFICATIONS .
    3. Connect the connector.

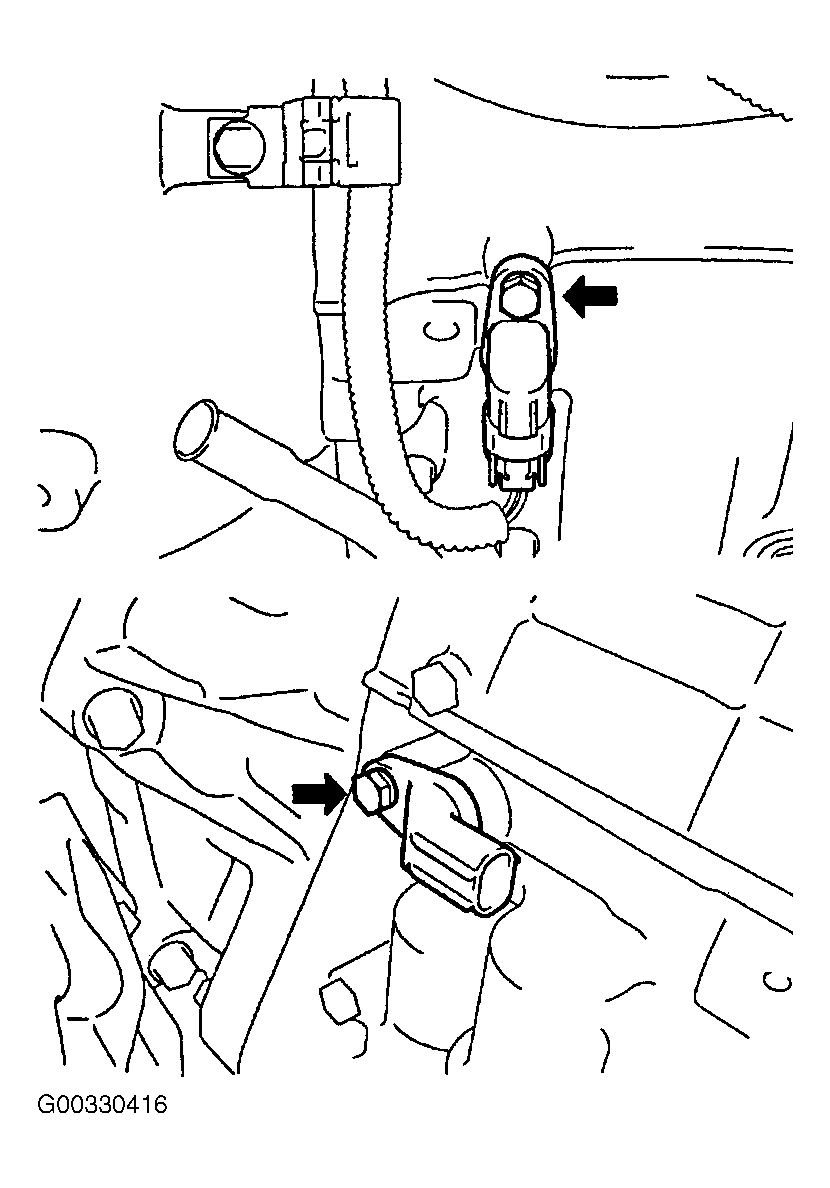

Fig 1: Locating Speed Sensor Bolt
G00330416Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
