Circuit Description

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

Refer to DTC P2195 on DTC P2195 OXYGEN (A/F) SENSOR SIGNAL STUCK LEAN (BANK 1 SENSOR 1), DTC P2196 OXYGEN (A/F) SENSOR SIGNAL STUCK RICH (BANK 1 SENSOR 1), DTC P2197 OXYGEN (A/F) SENSOR SIGNAL STUCK LEAN (BANK 2 SENSOR 1), DTC P2198 OXYGEN (A/F) SENSOR SIGNAL STUCK RICH (BANK 2 SENSOR 1) .

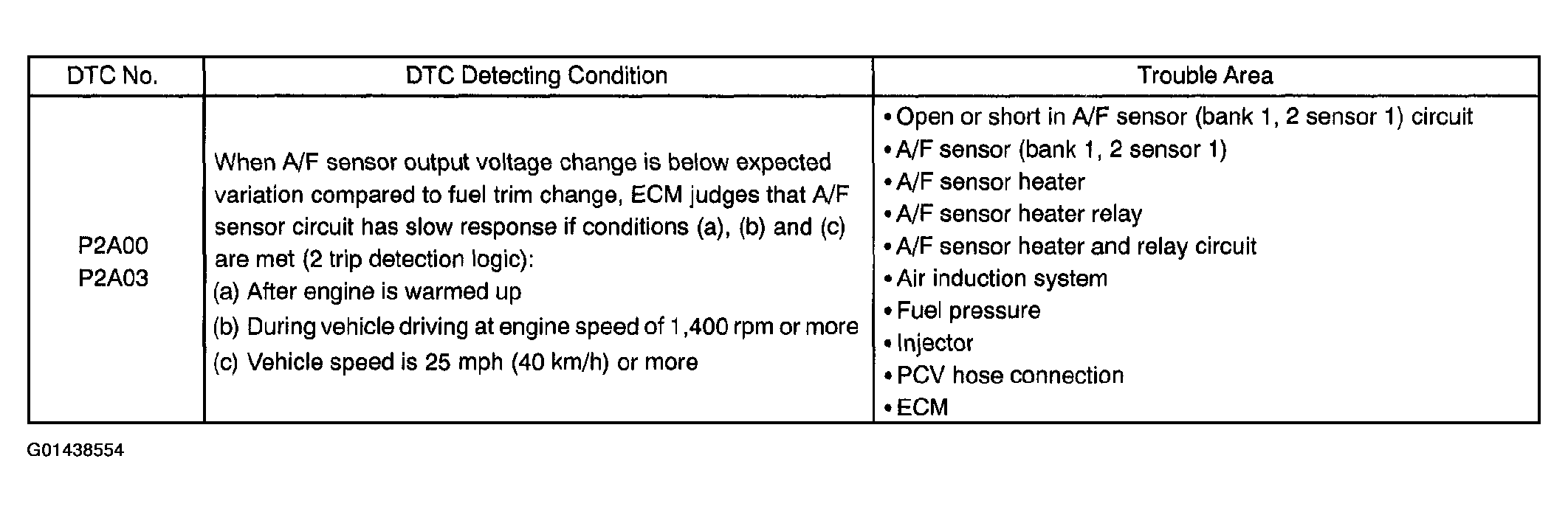

Fig 1: DTC 2A00 And P2A03 Diagnostic Chart

G01438554

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Bank 1 refers to the bank that includes cylinder No. 1.
Bank 2 refers to the bank that includes cylinder No. 2.
Sensor 1 refers to the sensor closest to the engine assembly.
