Confirmation Engine Racing Pattern
WARNING: This page is about a different car, the 2003 Lexus ES 300. However, it is still accessible from the selected car via links, so may be relevant.

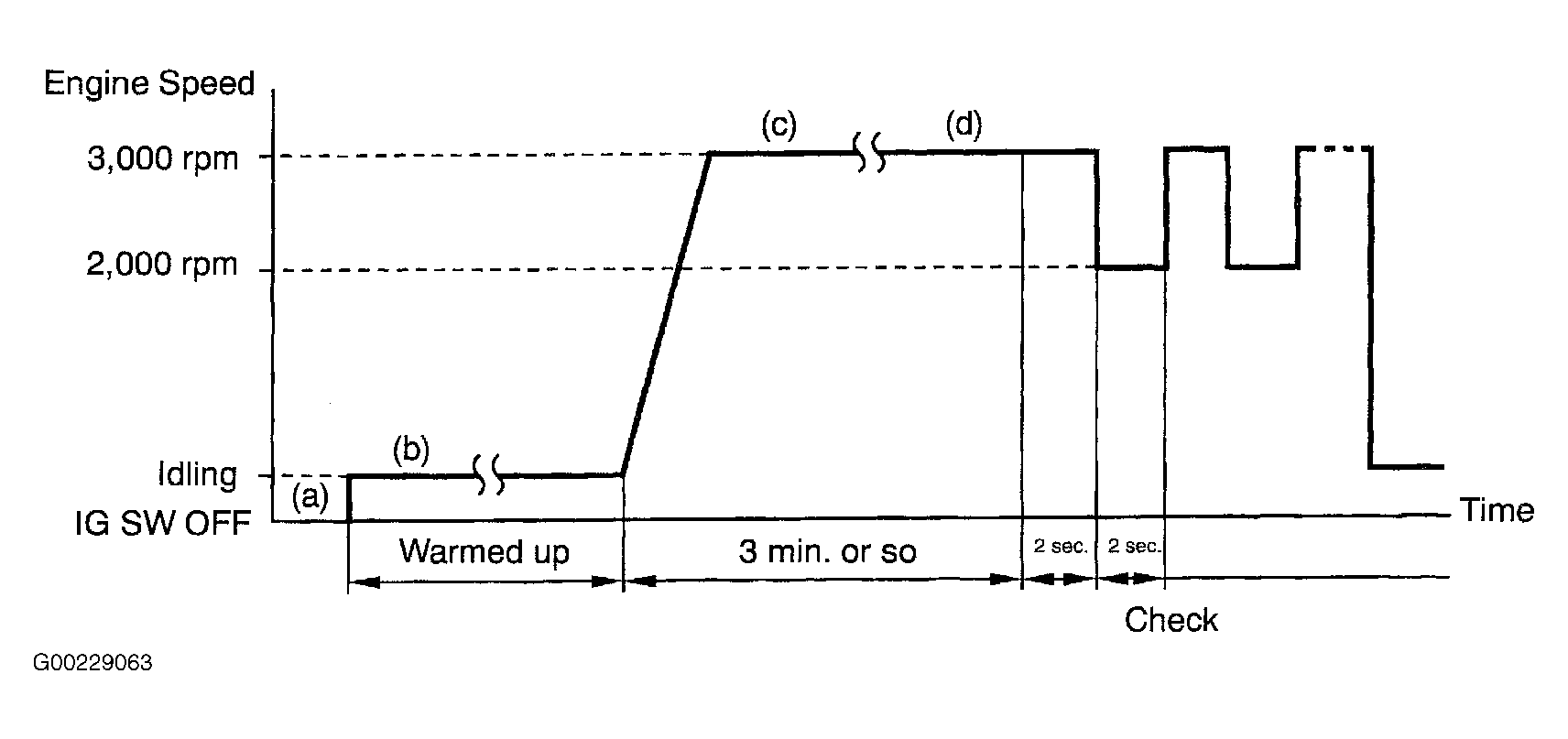

- Connect OBD-II scan tool or hand-held tester to DLC3. See Figure.
- Start engine and warm it up with all accessories switched off until water temperature becomes stable.
- Race engine at 2,500-3,000 RPM for approximately 3 minutes.
- Race engine at 3,000 RPM for 2 seconds and 2,000 RPM for 2 seconds alternately and check the waveform of the heated oxygen sensor (bank 1 sensor 2). See Fig 1.
