Diagnosis & Repair

WARNING: This page is about a different car, the 2003 Lexus ES 300. However, it is still accessible from the selected car via links, so may be relevant.

For wiring diagram, see Fig 1 and Fig 2 . For diagnosis and repair, see Fig 3-Fig 5 .

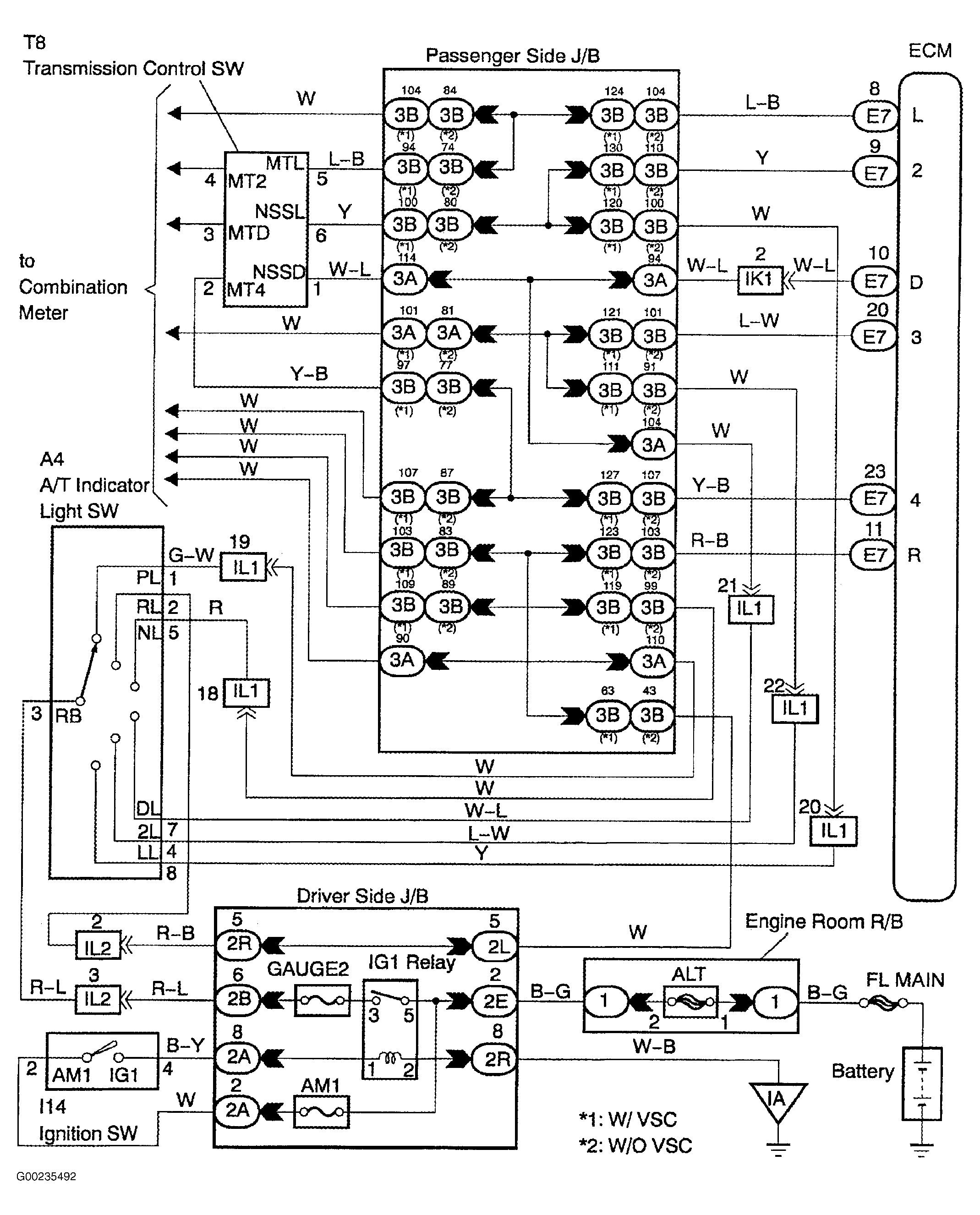

Fig 1: Transmission Range Sensor Circuit Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

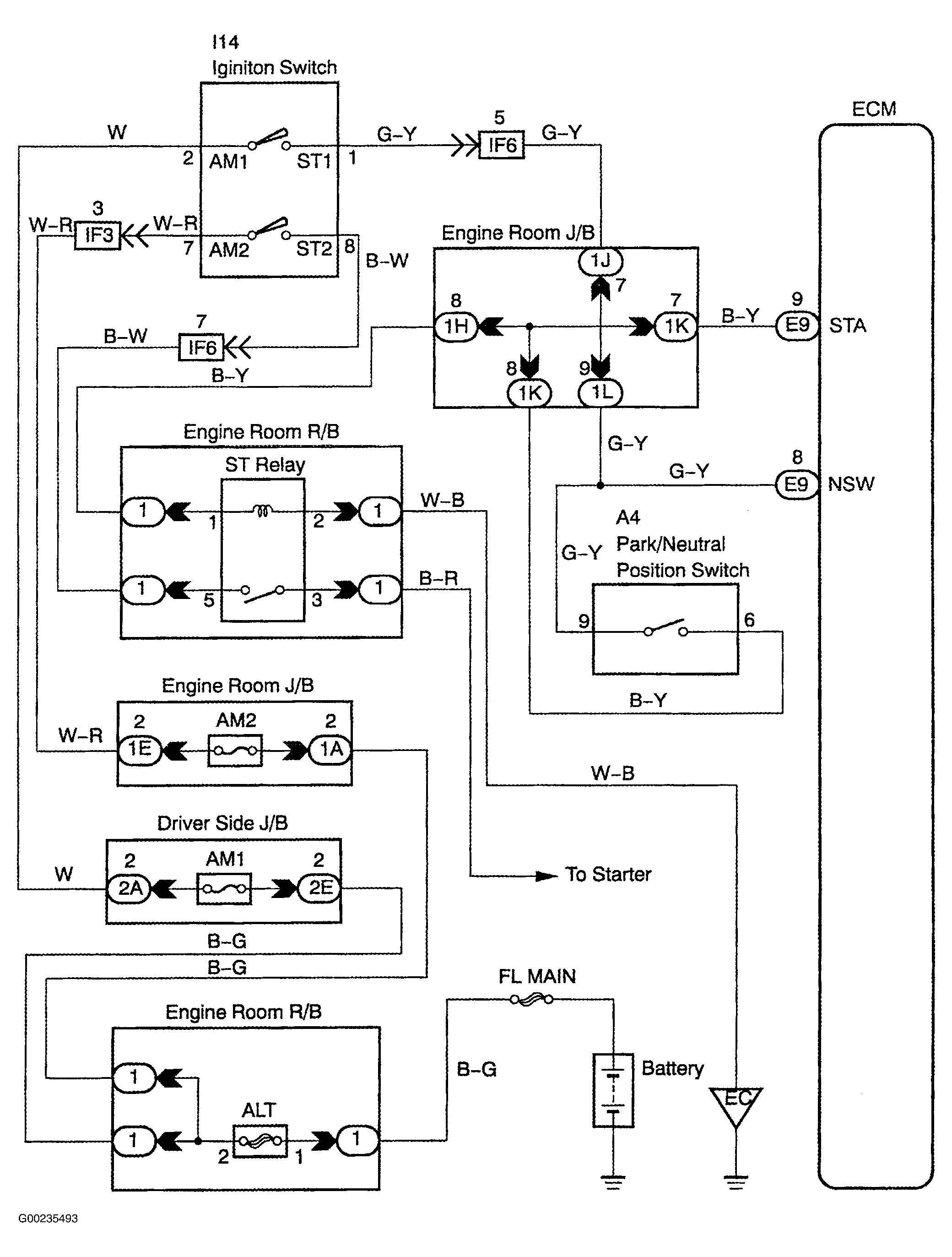

Fig 2: Park/Neutral Position Switch Circuit Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

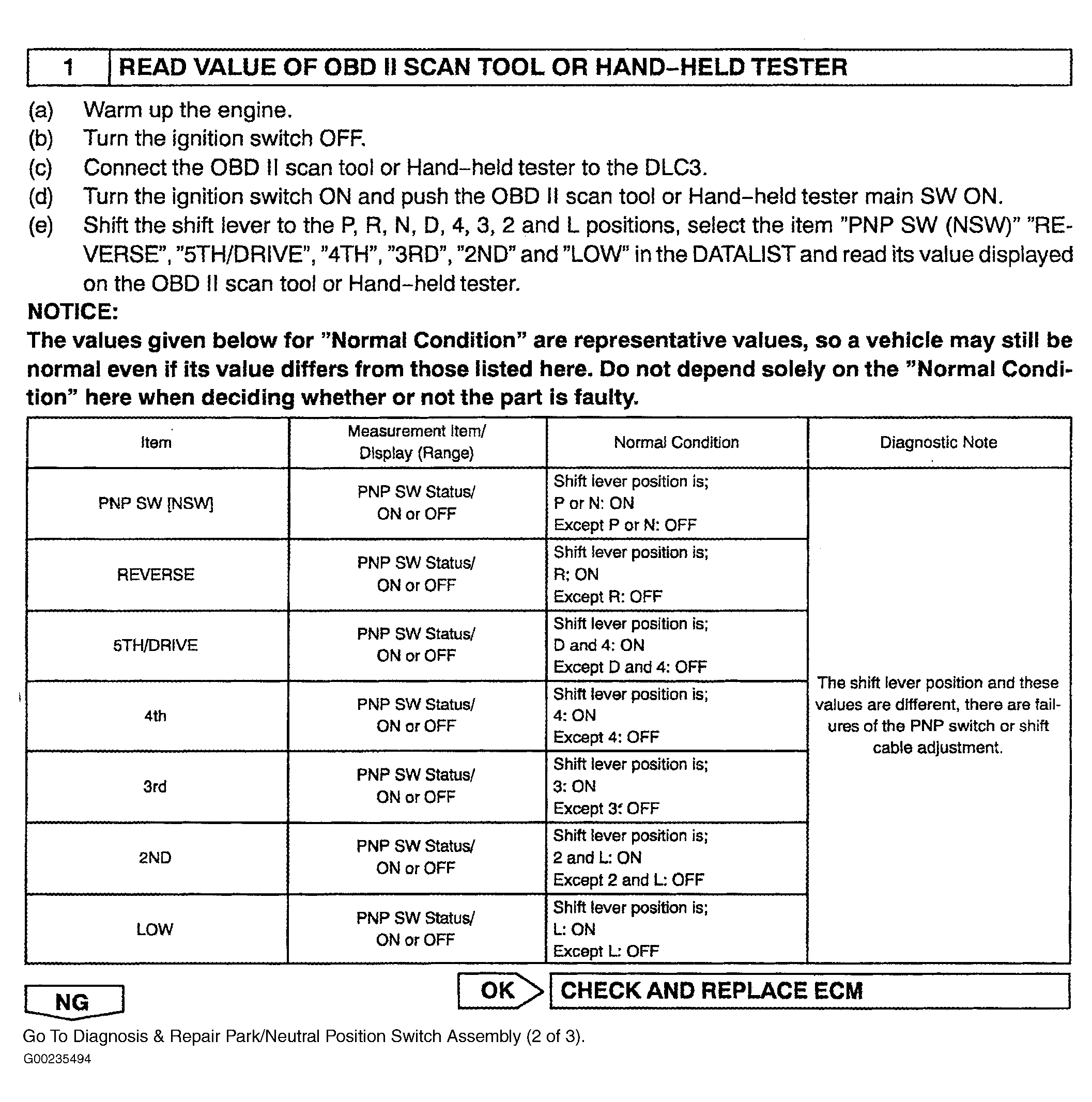

Fig 3: Diagnosis & Repair Of Park/Neutral Position Switch Assembly (1 Of 3)

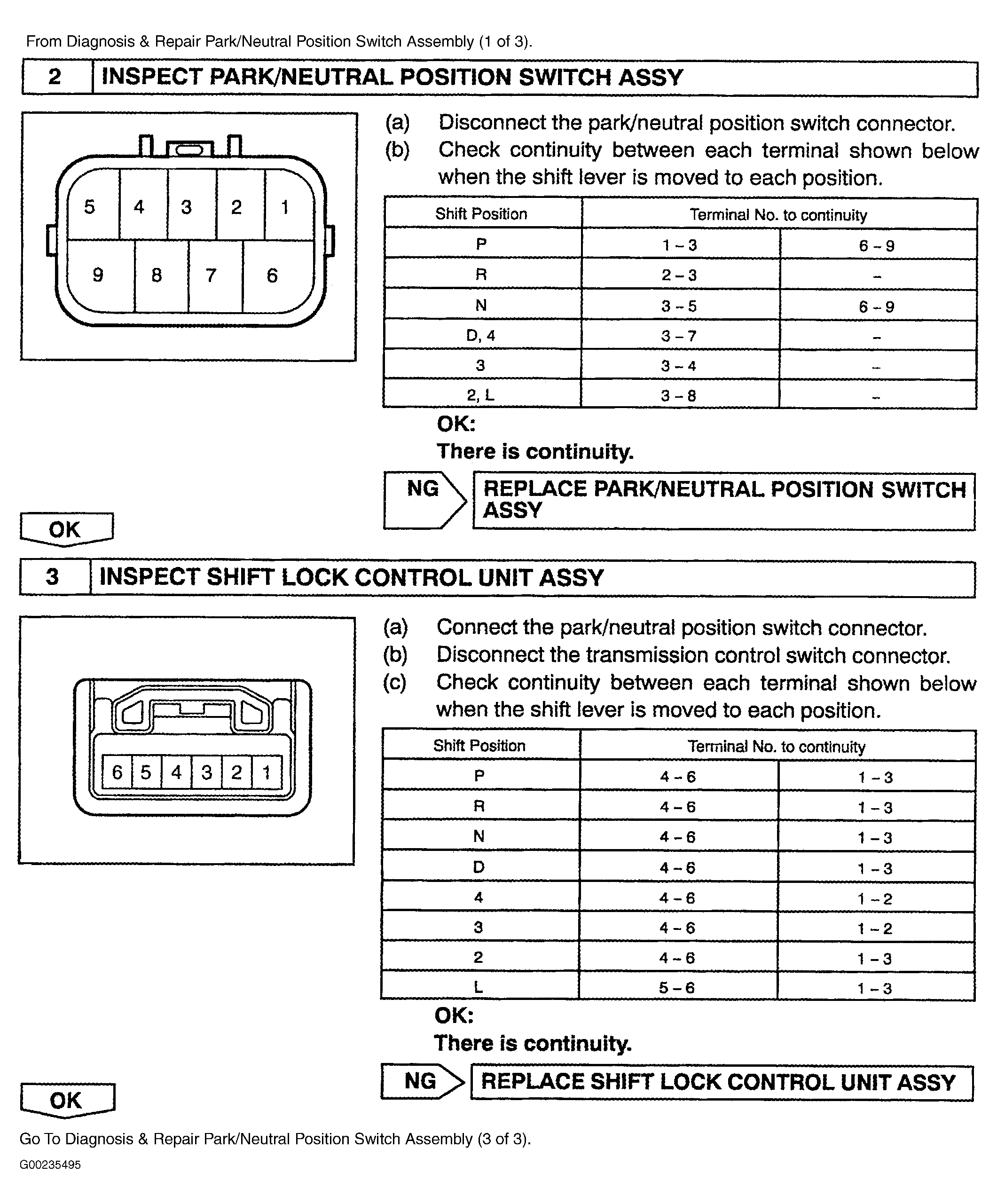

Fig 4: Diagnosis & Repair Of Park/Neutral Position Switch Assembly (2 Of 3)

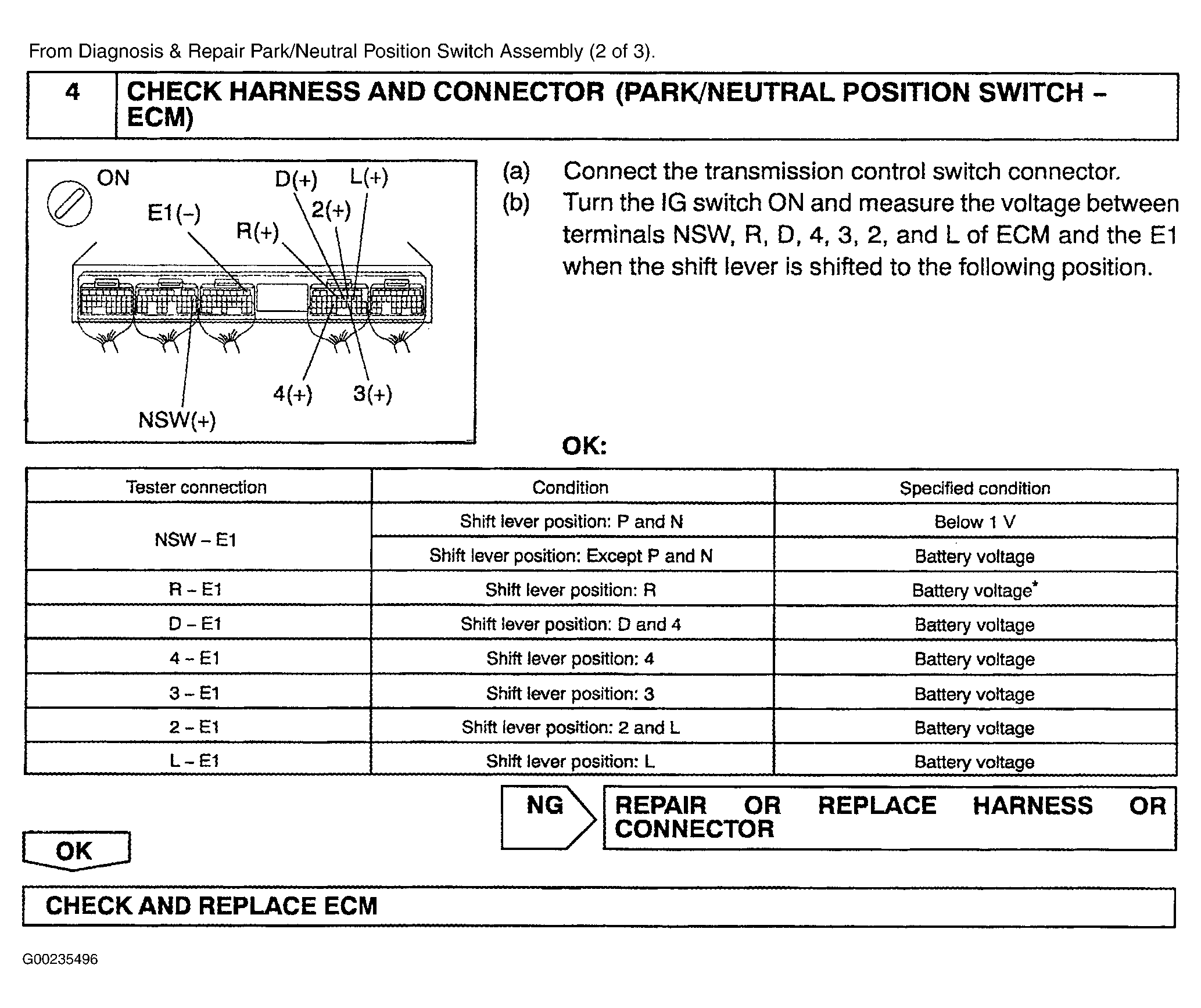

Fig 5: Diagnosis & Repair Of Park/Neutral Position Switch Assembly (3 Of 3)
