Automatic Transmission Unit: Installation

Using calipers and a straight edge, measure from the distance from the installed surface of the transmission housing to the installed surface of the torque converter clutch.

Correct distance: More than 0.1 mm (0.004 in.)

If the distance is less than the standard, check for an improper installation.

Installation is in the reverse order of removal (See  REMOVAL  ).

HINT:

After installation, check and inspect items as follows.

1. Adjust the shift lever position (See PRE-CHECK ).
2. Fill ATF and check fluid level (See PRE-CHECK ).
3. Do the road test (See PRE-CHECK ).
4. Fill with engine coolant (See REPLACEMENT ).

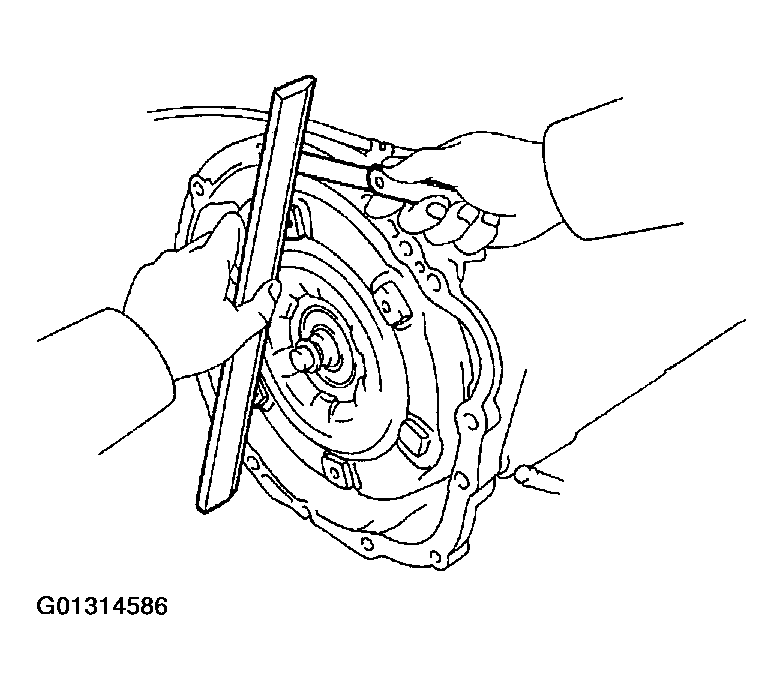

Fig 1: Measuring Distance Of Transmission Housing and Torque Converter Clutch

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
