Floor Shift Assembly: Installation

WARNING: This page is about a different variant/trim than selected.

INSTALL FLOOR SHIFT LEVER ASSEMBLY
1. Connect the 2 connectors to the floor shift lever assembly.
2. Install the floor shift lever assembly with the 4 bolts.
  Torque: 8.3 N.m (85 kgf.cm, 73 in.lbf)
INSTALL CONSOLE BOX ASSEMBLY
1. Install the console box assembly.
2. Install the parking brake hole cover assembly.
3. Install the box bottom mat.
4. Install the console upper panel.

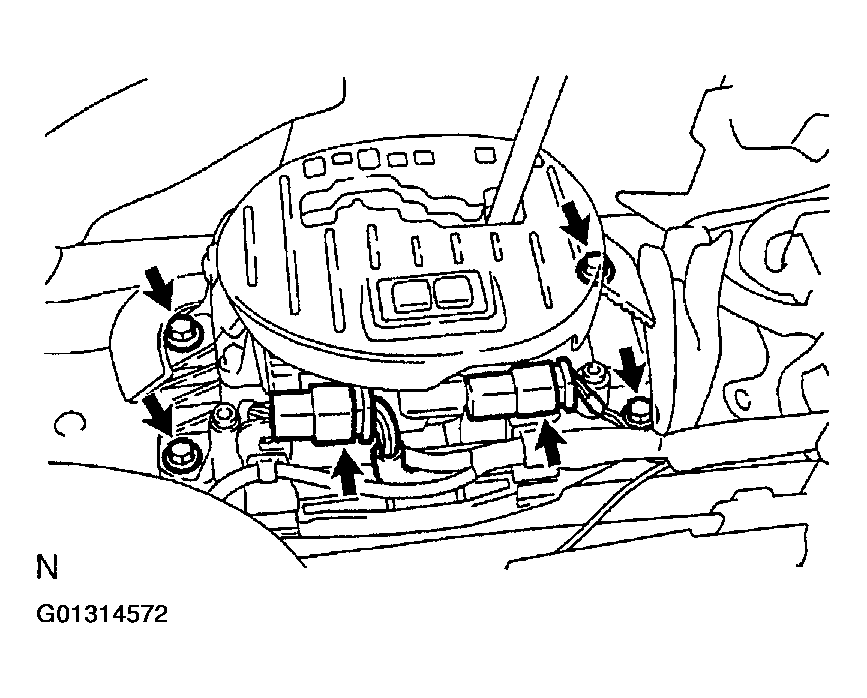

Fig 1: Installing Floor Shift Lever Assembly Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 FLOOR SHIFT GEAR SHIFTING ROD
1. Shift into the N position.
2. Connect the No. 1 floor shift gear shifting rod and connecting rod swivel with the nut.
  Torque: 13 N.m (130 kgf.cm, 9 ft.lbf)
CHECK SHIFTING LEVER POSITION (See PRE-CHECK )

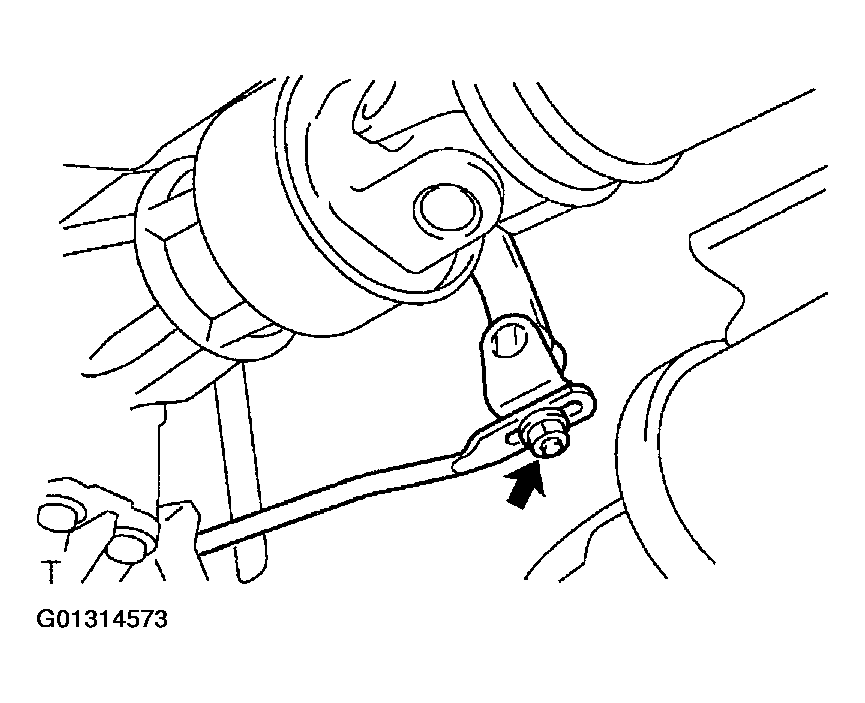

Fig 2: Installing Connecting Rod Swivel Nut
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
