Memory Positioning Switch: Testing and Inspection

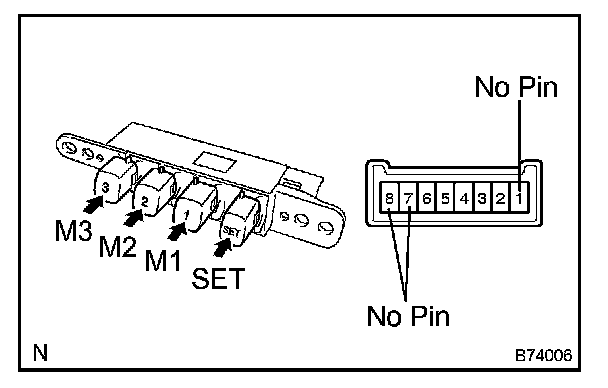

INSPECT SEAT MEMORY SWITCH

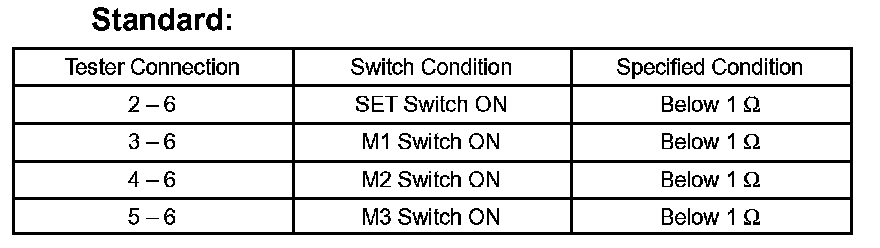

a. Measure the switch resistance.
If the result is not as specified, replace the switch assy.
