Cruise Control Switch: Service and Repair

CRUISE CONTROL MAIN SWITCH ASSY

REPLACEMENT

1. SEPARATE BATTERY NEGATIVE TERMINAL
2. REMOVE SWITCH & VOLUME CASE
3. REMOVE STEERING WHEEL COVER LOWER NO.2
4. REMOVE HORN BUTTON ASSY
5. REMOVE STEERING WHEEL ASSY




6. REMOVE CRUISE CONTROL MAIN SWITCH ASSY

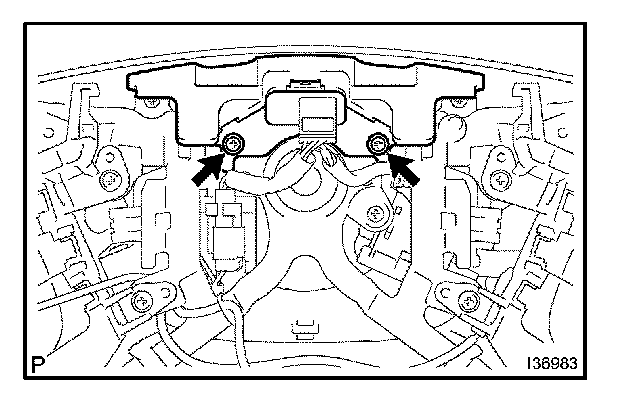

a. Remove the 2 screws and steering wheel damper.




b. Disconnect the connectors.

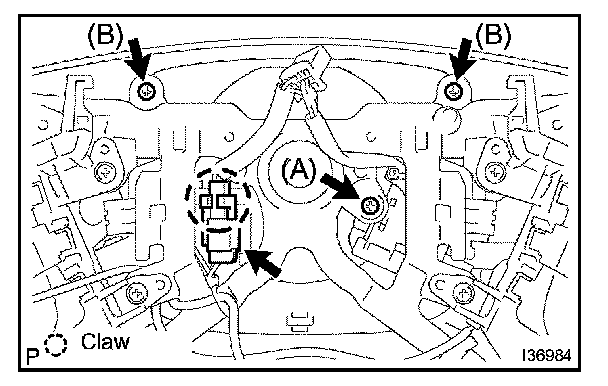

c. Remove screw (A) and disengage the claw.
d. Remove 2 screws (B) and the steering wheel LWR cover.

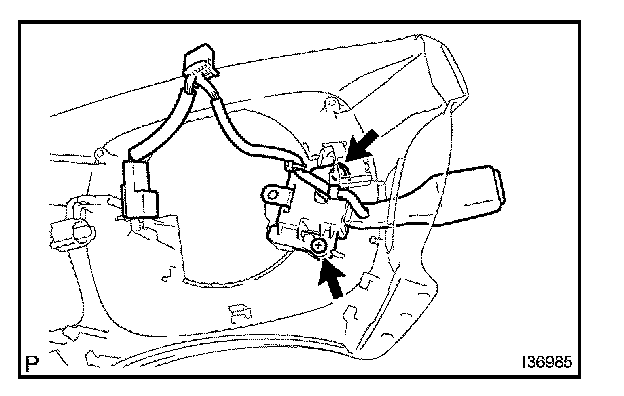

e. Remove the 2 screws and cruise control main switch assy.

7. INSPECT STEERING WHEEL CENTER POINT
8. INSTALL STEERING WHEEL ASSY
9. INSTALL HORN BUTTON ASSY
10. CONNECT BATTERY NEGATIVE TERMINAL
11. INSPECT HORN BUTTON ASSY
12. INSPECT SRS WARNING LIGHT
