Main Relay (Computer/Fuel System): Testing and Inspection

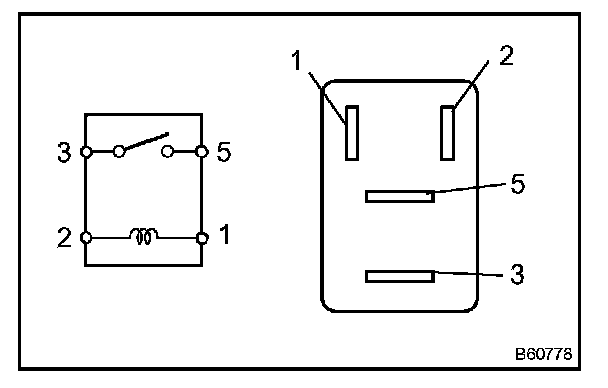

INSPECT RELAY (Marking: EFI MAIN, C/OPN)

a. Remove the EFI and C/OPN relays from the engine room R/B.

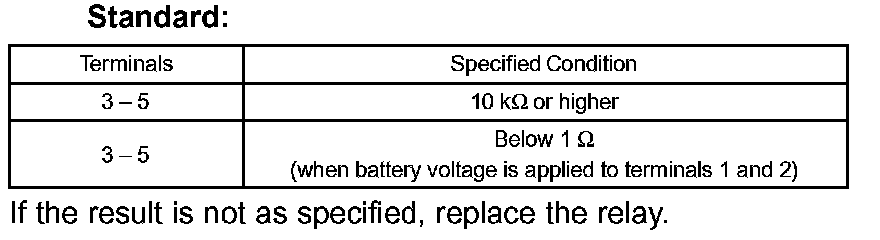

b. Measure the resistance of the relay.
