Alignment

FRONT SUSPENSION

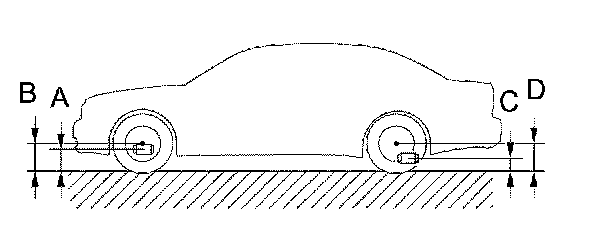

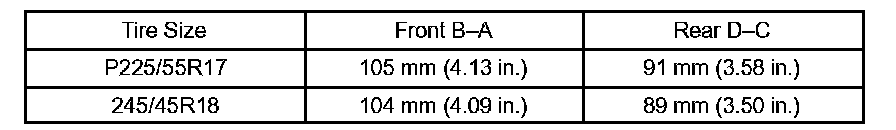

MEASURE VEHICLE HEIGHT





Except air suspension





Air suspension

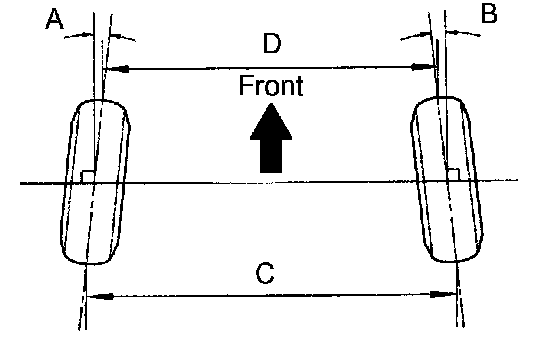

INSPECT TOE-IN





Toe-in

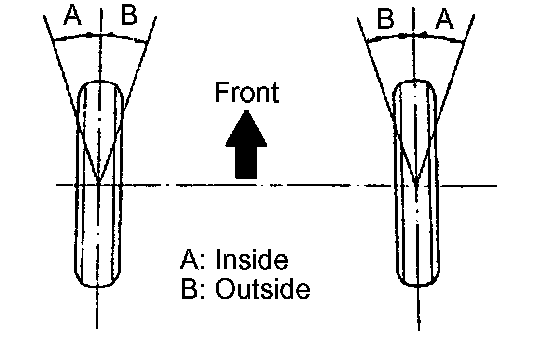

INSPECT WHEEL ANGLE
Turn the steering wheel fully left and right to measure the turning angle.

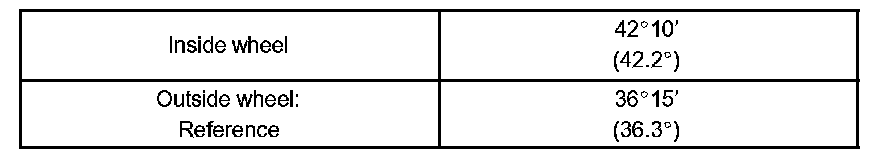

Wheel turning angle

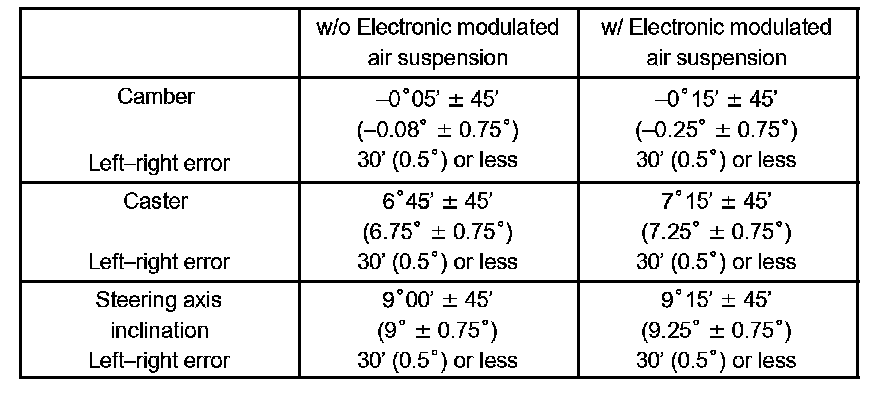

INSPECT CAMBER, CASTER AND STEERING AXIS INCLINATION

REAR SUSPENSION





ADJUST TOE-IN

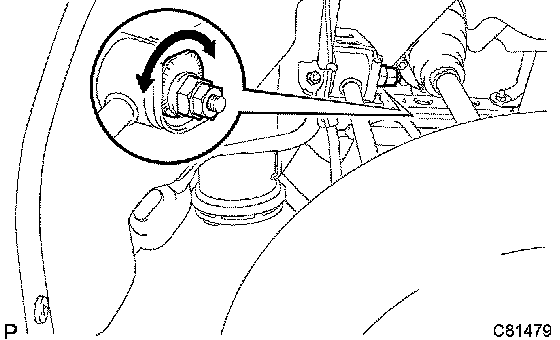

Loosen the toe adjust cam nut.
Turn the adjust cams by an equal amount to adjust toe-in.

HINT:
^ Try to adjust the toe-in to the center value.
^ The toe-in will change by the following specifications corresponding to each graduation of the cam.

Approximately 3.0 mm (0.12 inch)

Tighten the nut.
Torque: 50 Nm (510 kgf-cm, 37 ft. lbs.)

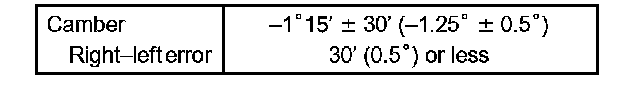

INSPECT CAMBER





Air suspension





Coil suspension
