Service Data

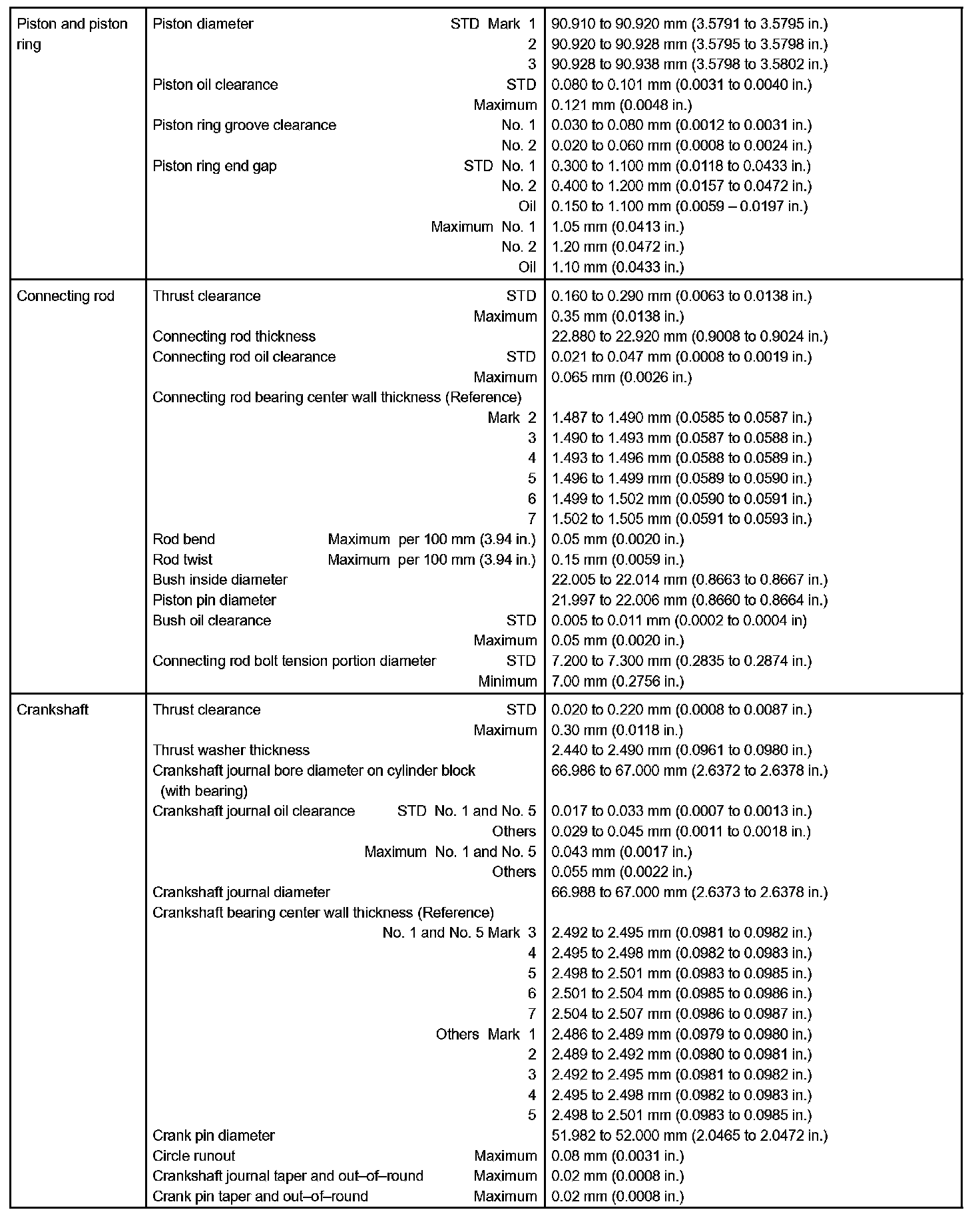

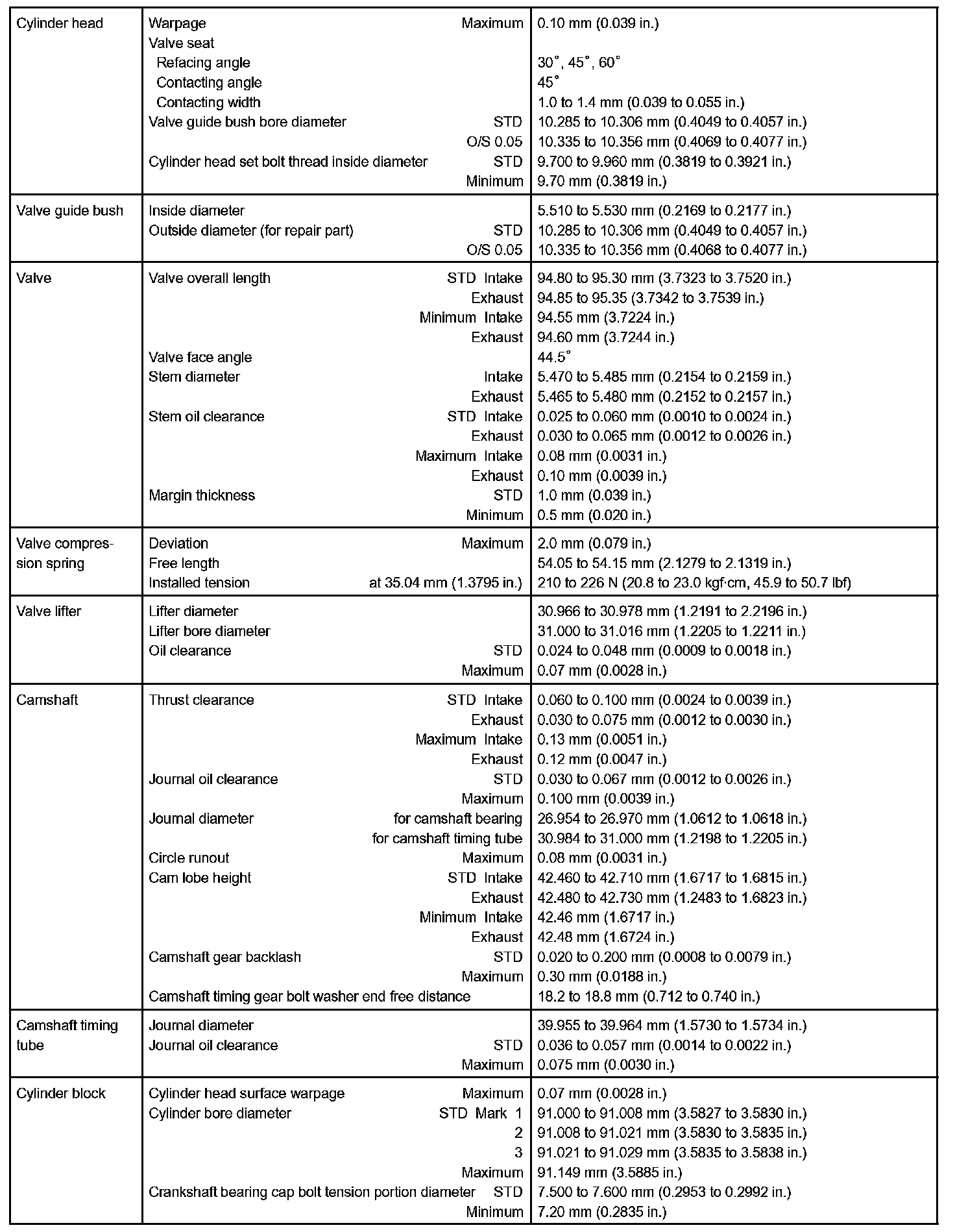

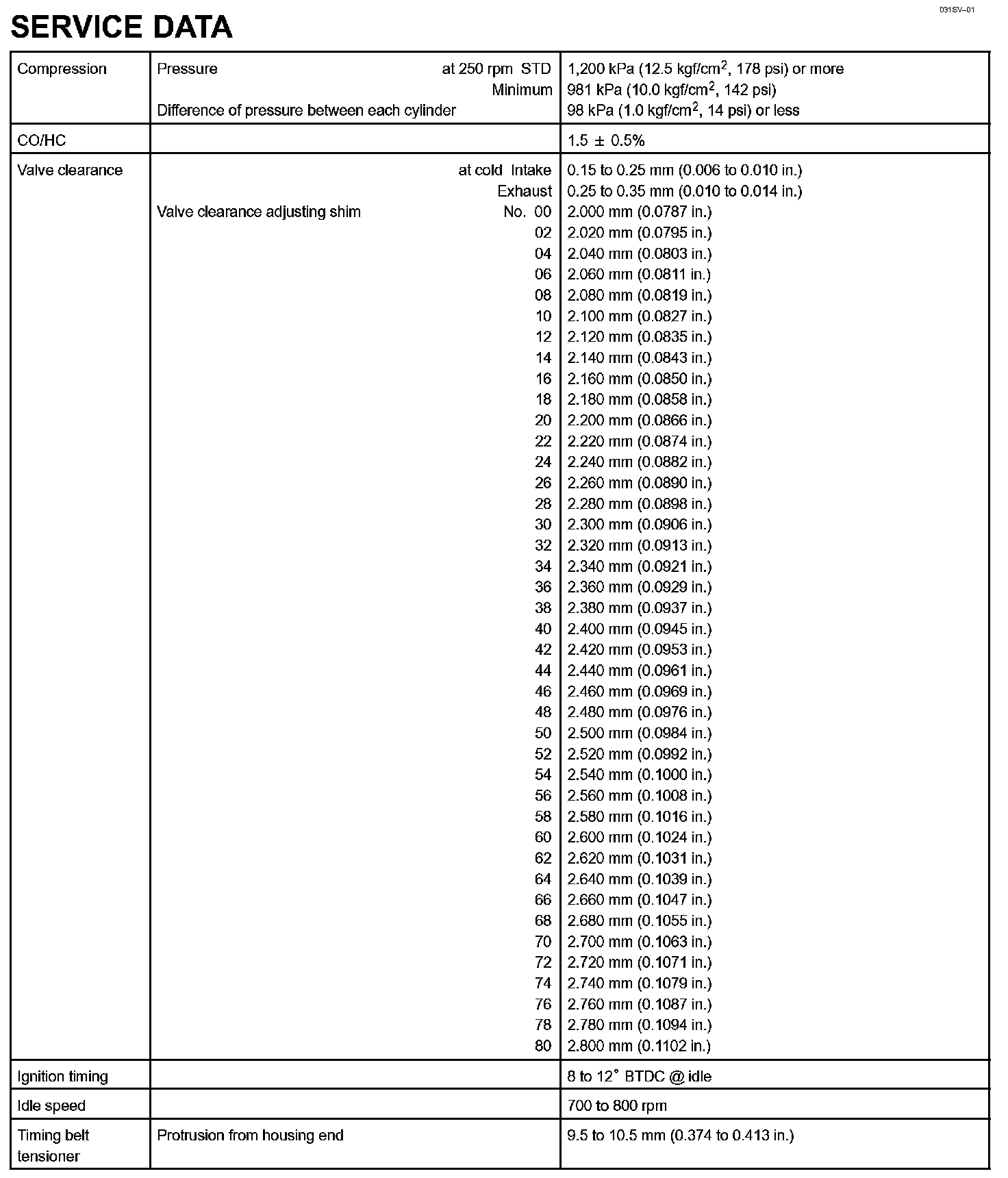

Engine Mechanical - Service Data Part 1:




Engine Mechanical - Service Data Part 2:




Engine Mechanical - Service Data Part 3:

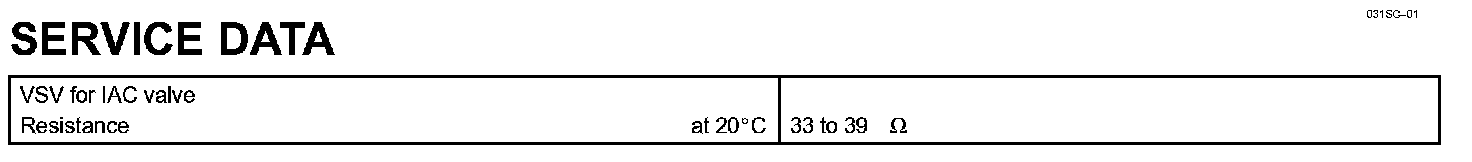

Intake - Service Data:
