Data List/Active Test

  1. DATA LIST
    1. Connect the hand-held tester to the DLC3.
    2. Turn the ignition switch to the ON position and turn the hand-held tester on.
    3. Operate the hand-held tester according to the steps on the display and select "DATA LIST".

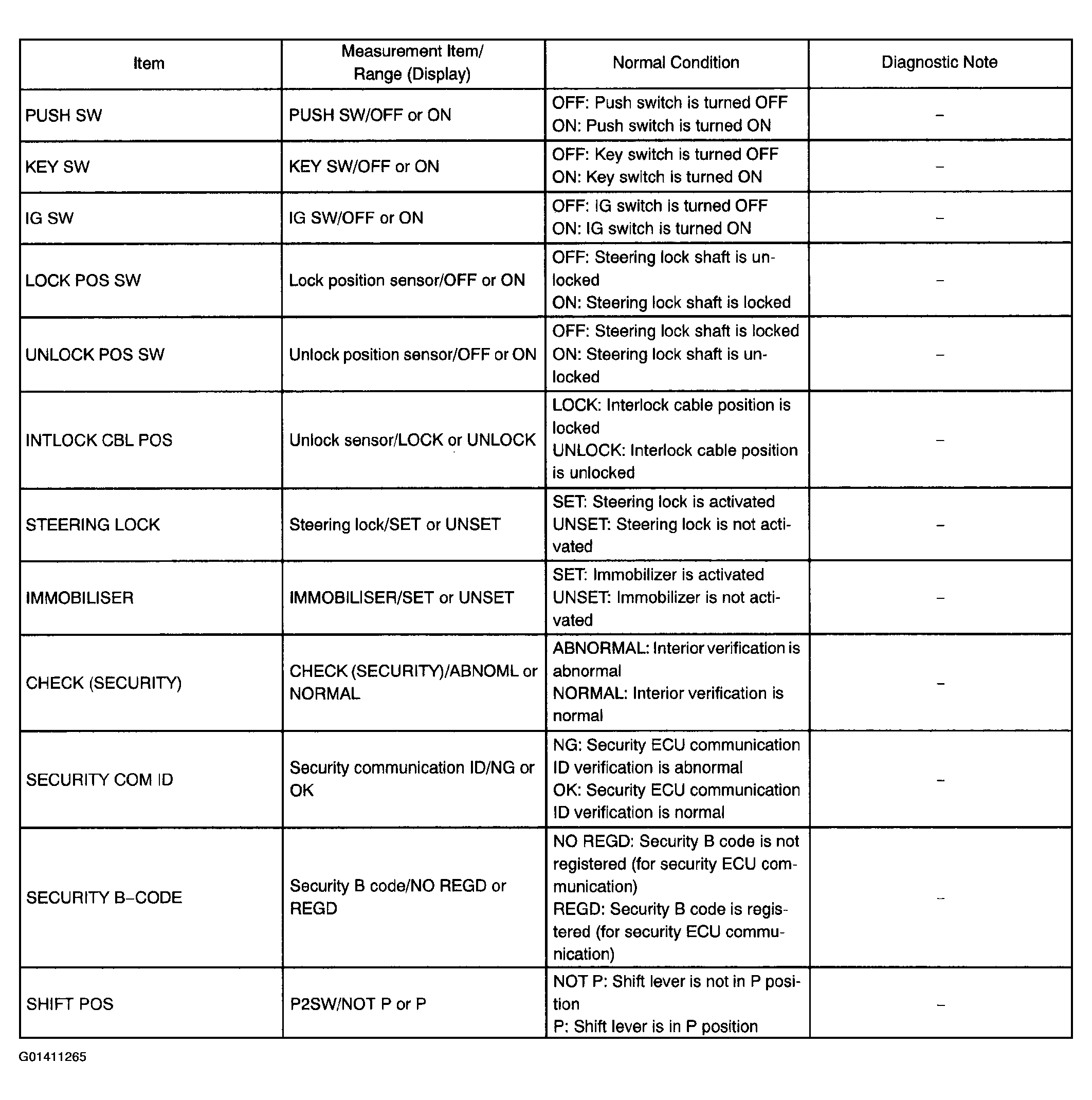

      Fig 1: Data List Table
      G01411265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. ACTIVE TEST
    1. Connect the hand-held tester to the DLC3.
    2. Turn the ignition switch to the ON position and turn the hand-held tester on.

      Following the display on the hand-held tester, perform the "ACTIVE TEST".

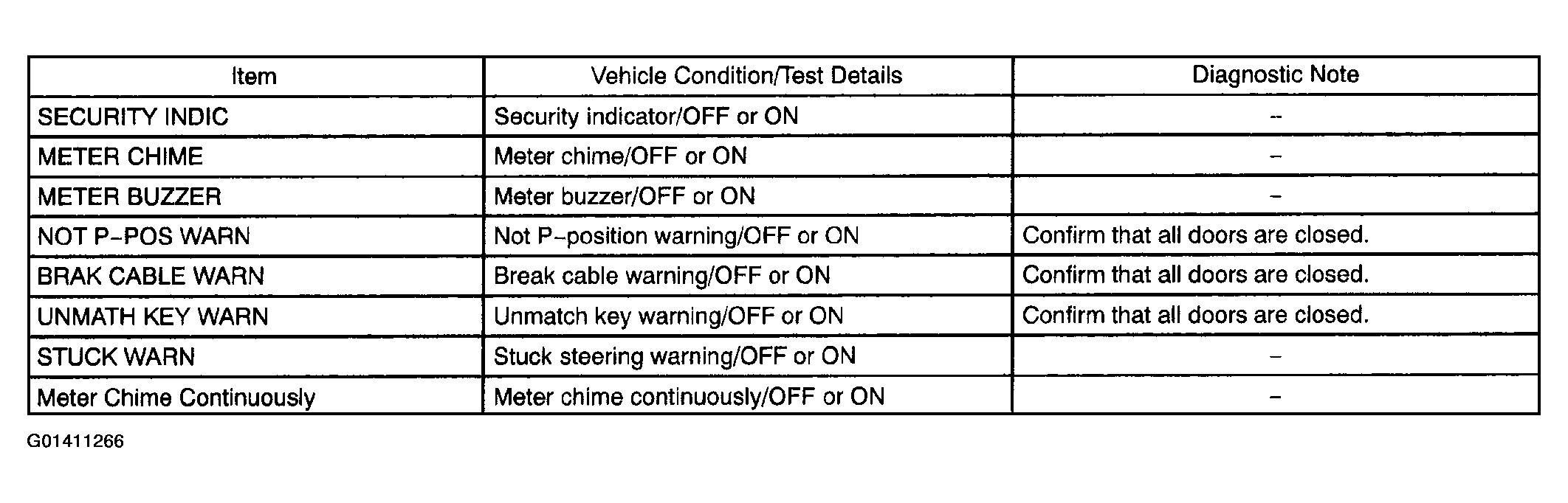

      Fig 2: Activity List Table
      G01411266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
