Inspection Procedure

1. Connect the hand-held tester to the DLC 3.
2. Turn the hand-held tester on.
3. Select the item below in the DATA LIST, and read its value displayed on the hand-held tester to check the P2 switch.

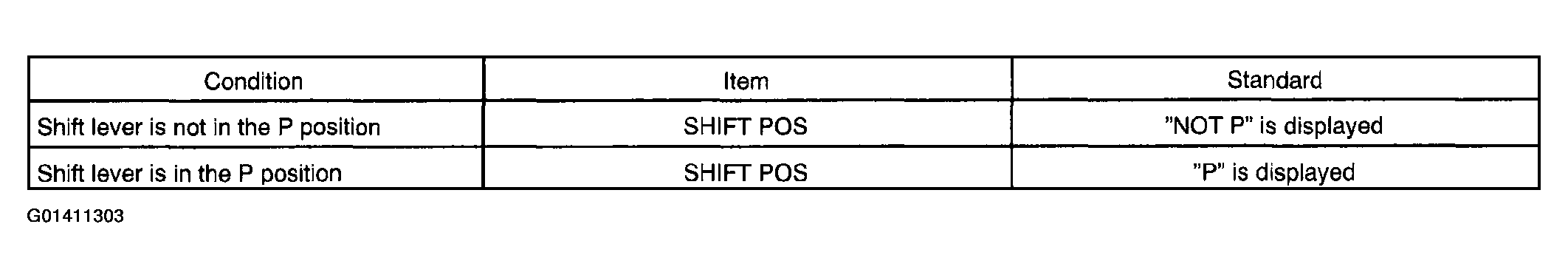

   Fig 1: Standard Condition Table

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. OK: CHECK COMBINATION METER SYSTEM (SEE  HOW TO PROCEED WITH TROUBLESHOOTING  )
2. NG: Go to next step.

1. Disconnect the S46 connector from the steering lock ECU.
2. Disconnect the S7 connector from the shift lock control ECU sub-assy.
3. Measure the resistance according to the value (s) in the figure Fig 2 below.

   Standard:

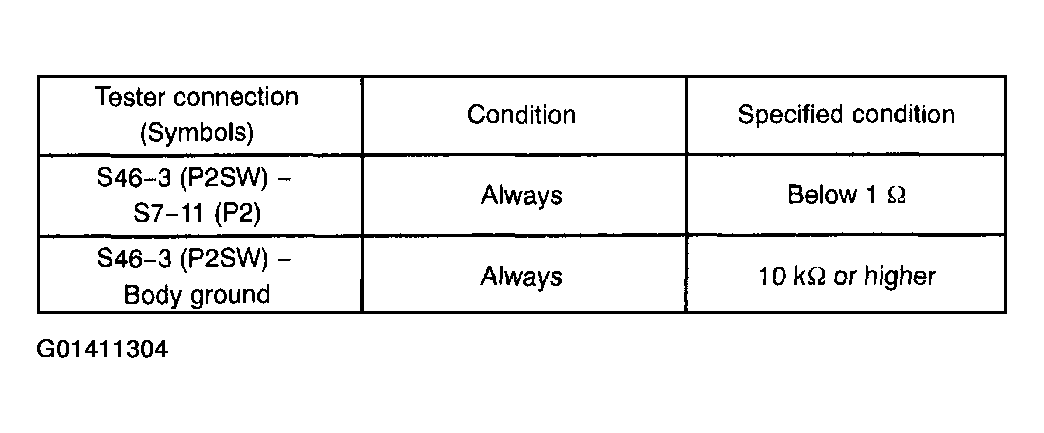

   Fig 2: Tester Connection Table

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

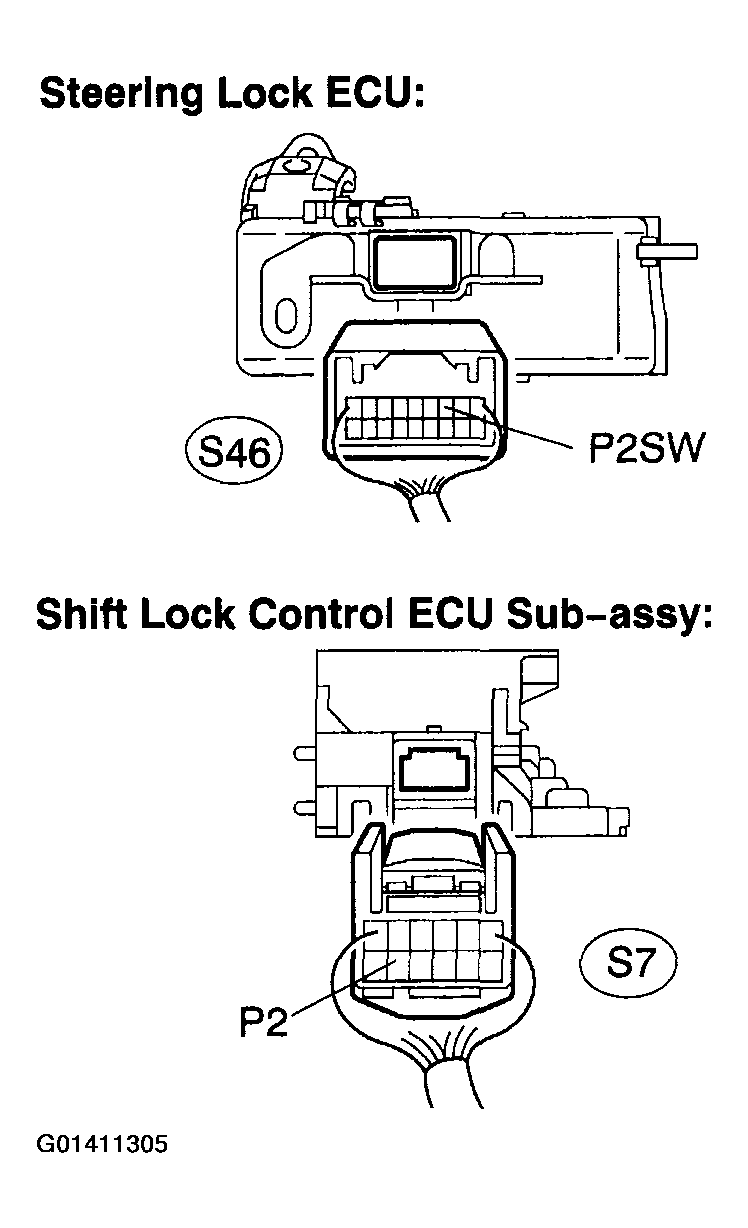

   Fig 3: Identifying Steering Lock ECU

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
2. OK: GO TO NEXT STEP.

REPLACE SHIFT LOCK CONTROL ECU SUB-ASSY (SEE  OVERHAUL  )
