Window Lock Signal Circuit: Wiring Diagram

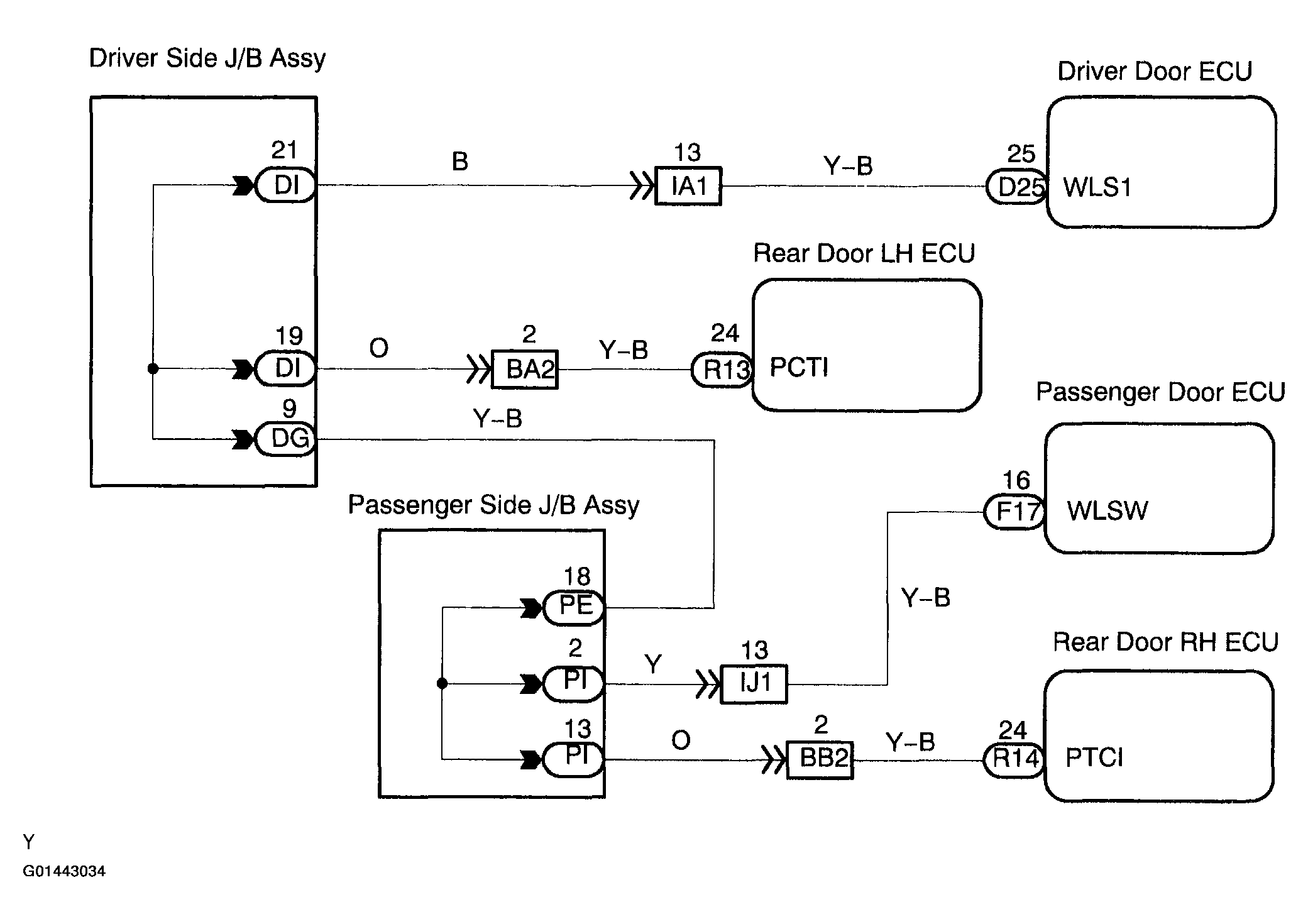

Fig 1: Window Lock Signal Circuit - Wiring Diagram
G01443034Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
