Rear Height Control Sensor: Replacement

REMOVE REAR WHEEL
REMOVE HEIGHT CONTROL SENSOR SUB-ASSY REAR LH
1. Disconnect the connector.
2. Remove the nut and disconnect the height control sensor link.

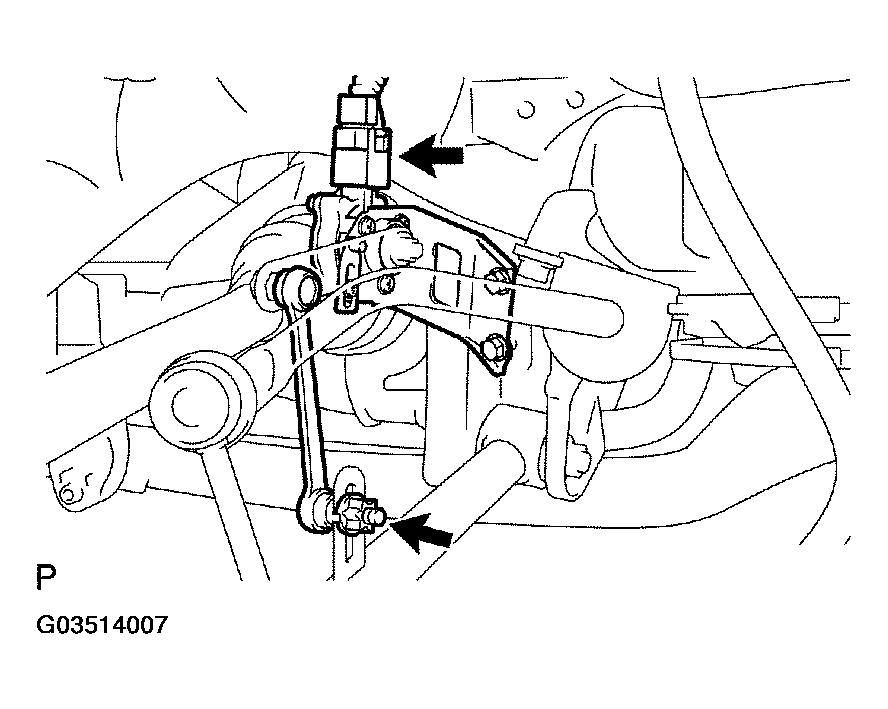

  Fig 1: Disconnecting The Height Control Sensor Link (Rear LH)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 2 nuts and the height control sensor sub-assy front LH.

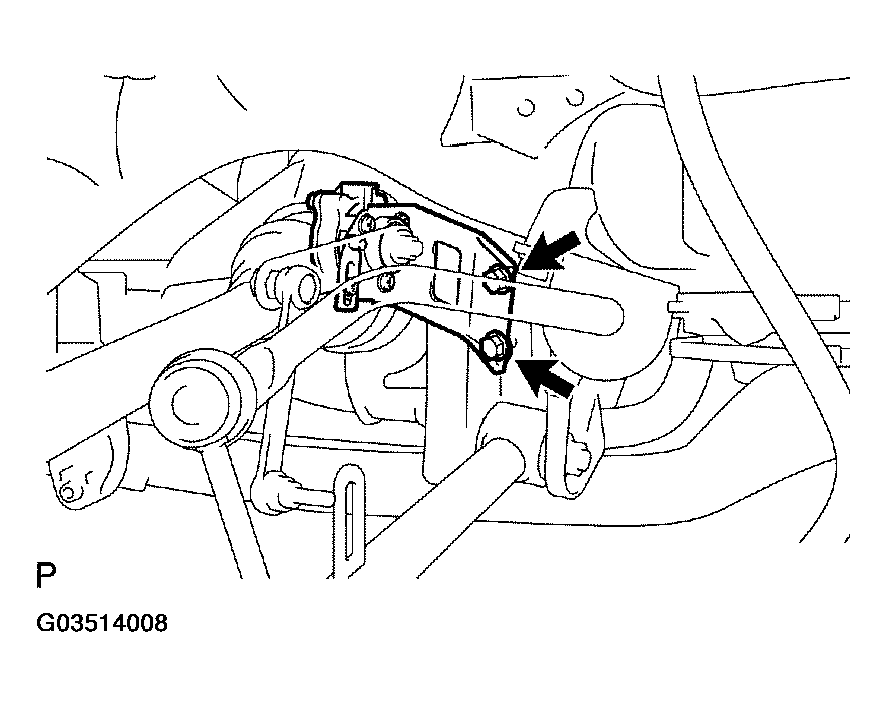

  Fig 2: Removing Height Control Sensor Sub-Assembly (Front LH)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL HEIGHT CONTROL SENSOR SUB-ASSY REAR LH
1. Install the height control sensor sub-assy rear LH with the 2 nuts.

  Fig 3: Installing Height Control Sensor Sub-Assembly (Rear LH)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the height control sensor link with the nut.
  Torque: 5.4 N.m (55 kgf.cm, 48 in. Ibf)
3. Connect the connector.

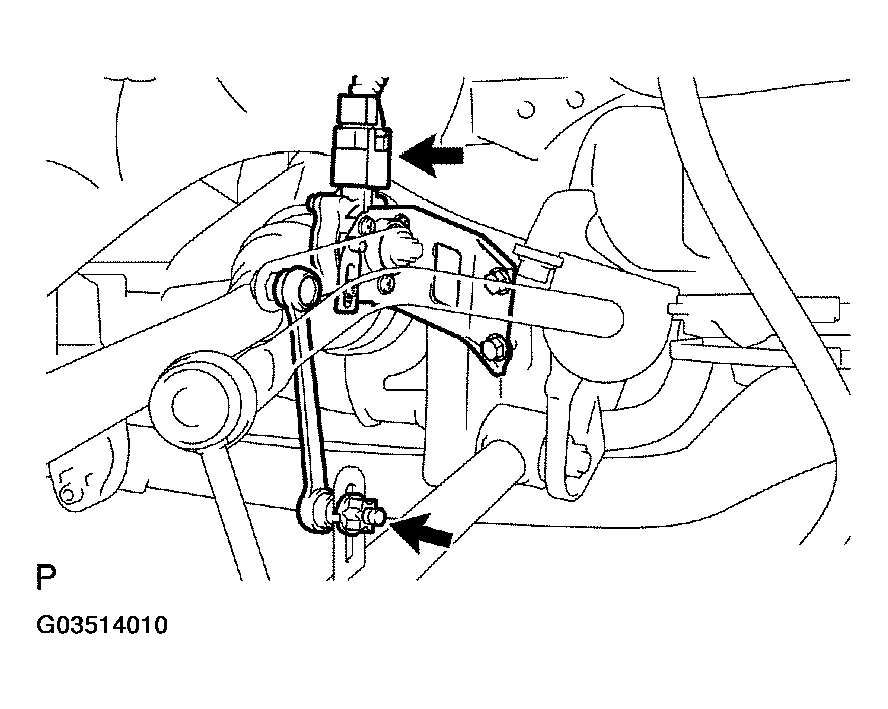

  Fig 4: Installing Height Control Sensor Link
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT WHEEL
Torque: 103 N.m (1,050 kgf.cm, 76 ft.Ibf)
HEADLIGHT AIM ONLY (SEE ADJUSTMENT )
