Remove & Install

CAUTION: A large amount of material debris including steel (magnetic) and non magnetic (brass, aluminum or clutch fiber particles) may indicate excessive transmission wear or damage. Check magnets in oil pan for steel particles which indicate bearing, plate or hardware damage.
CAUTION: When removing transmission oil pan, filter and valve body components, note bolt size, location and length for reassembly reference.
CAUTION: When working with FIPG material, perform the following:
  • Using a razor blade and gasket scraper, remove all the old, FIPG material from the gasket surfaces.
  • Thoroughly clean all components to remove any loose material.
  • Clean both sealing surfaces with a non-residue solvent.
  • Apply FIPG in continuous line width approximately 0.04 in. (1 mm) wide along the sealing surface.
  • Parts must be assembled within 10 minutes of application. Otherwise, the FIPG material must be removed and reapplied.
  1. Disconnect battery negative terminal.
  2. Drain automatic transmission fluid:
    1. Remove the drain plug, gasket and drain the ATF.
    2. Install a new gasket and the drain plug. Tighten drain plug to specification. See TORQUE SPECIFICATIONS .
  3. NOTE: Some fluid will remain in oil pan.
  4. Remove automatic transmission oil pan sub-assy:

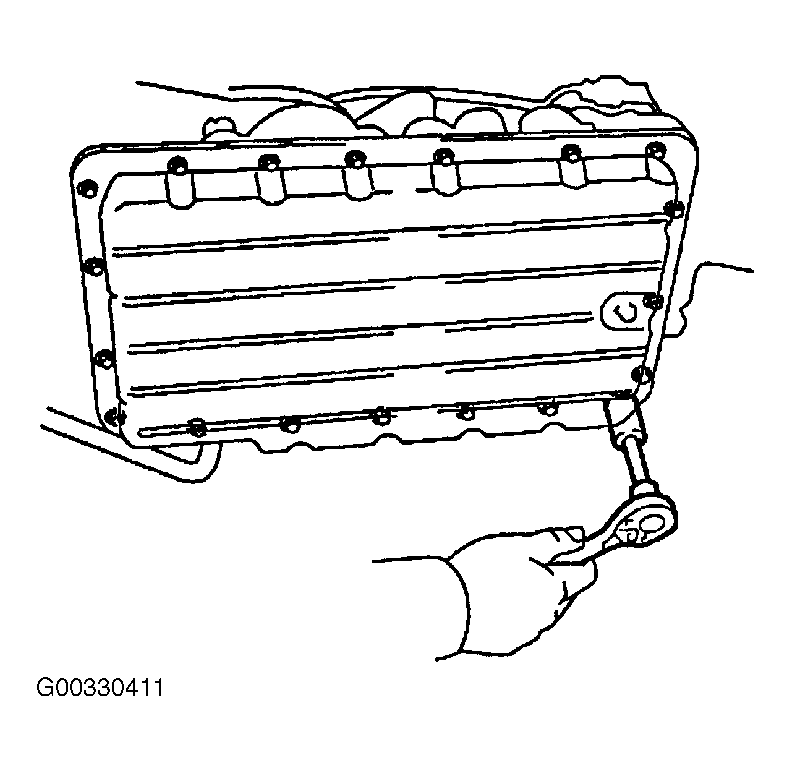

    1. Remove the 20 bolts, oil pan and gasket. See Figure.

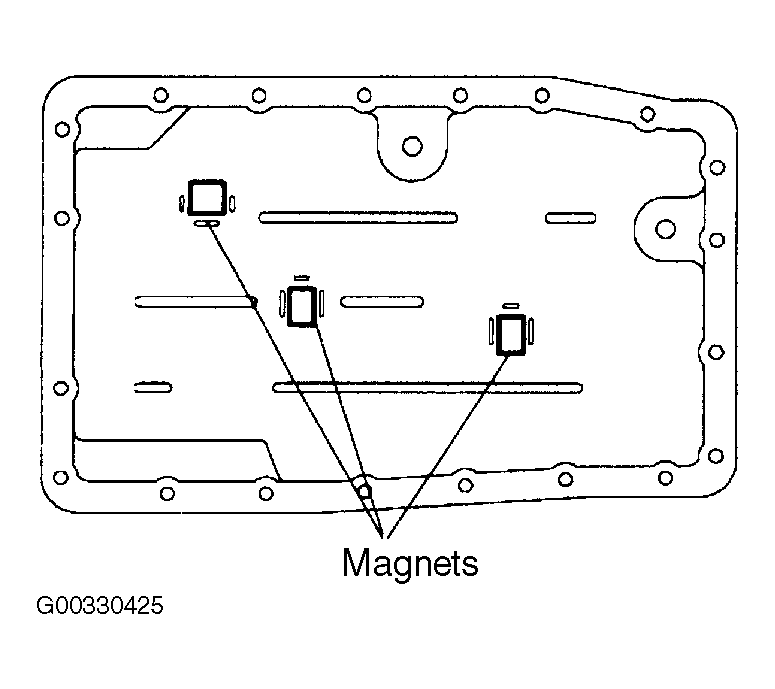

    2. Remove the 3 magnets from the oil pan. See Figure.
    3. NOTE: Collect any steel chips with the removed magnets. Carefully look at the foreign objects and particles in the pan and on the magnets to guess at the type of wear which might be found in the transmission. Steel (magnetic) ... bearing, gear and clutch plate wear Brass (non-magnetic) ... bushing wear
    4. Examine particles in pan.
  5. WARNING: Be careful as some fluid will come out of the oil strainer.
  6. Remove valve body oil strainer assy:

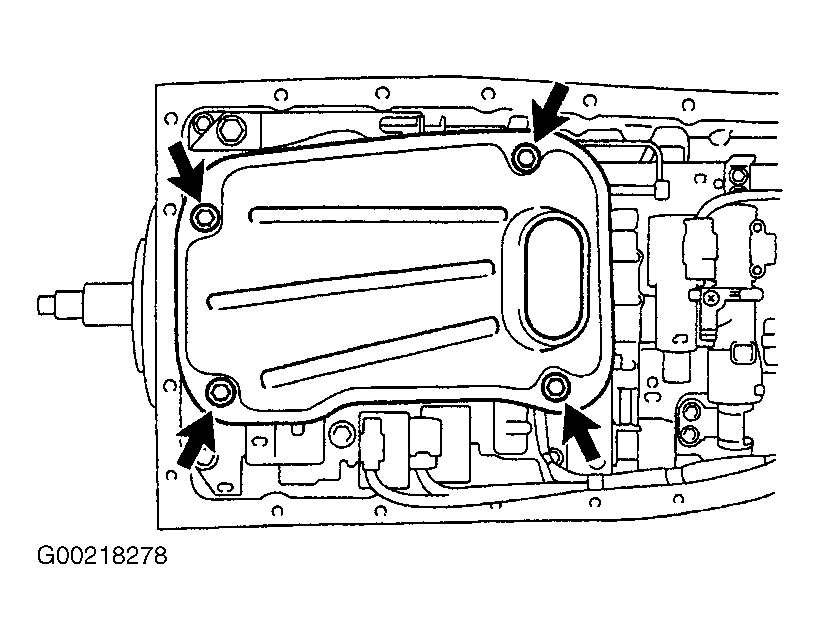

    1. Remove the 4 bolts and oil strainer. See Figure.

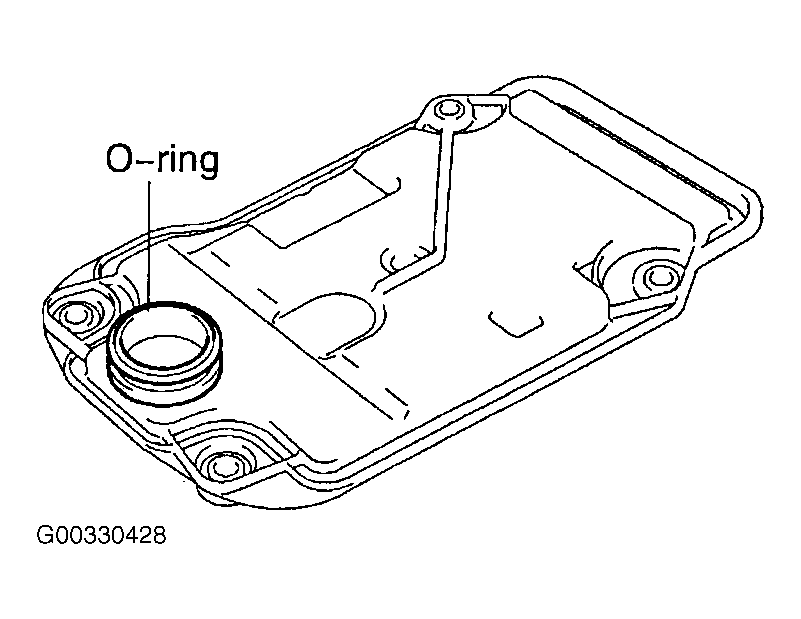

    2. Remove the "O" ring from the oil strainer. See Figure.

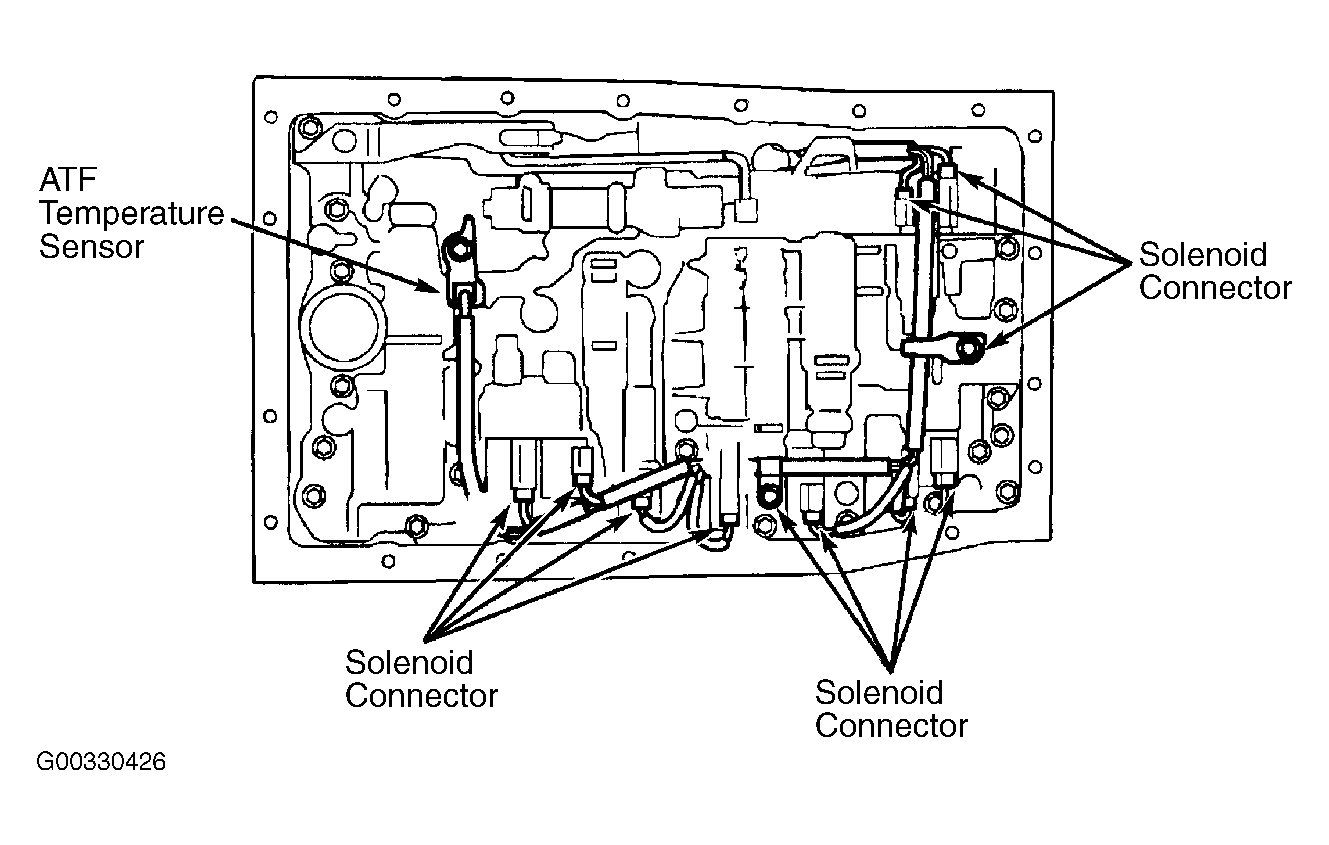

  7. Disconnect transmission wire. See Figure:
    1. Remove the bolt and lock plate, and separate the ATF temperature sensor.
    2. Remove the 2 bolts and 2 clamps.
    3. Separate the 9 connectors from the solenoid valves.
  8. Remove transmission valve body assy. See Fig 1:
    1. Remove the 20 bolts and valve body.
    2. CAUTION: Do not drop the check ball body and spring.
    3. Remove the check ball body and spring. See Fig 2.
    4. Remove the bolt, lock plate and lock up control solenoid (SLU) and clutch control solenoid (SL2). See Fig 3.
    5. Remove the bolt and automatic transmission 3-way solenoid assy (S3).
    6. Remove the bolt and automatic transmission 3-way solenoid (S2) and automatic transmission 3-way solenoid (S4).
    7. Remove the bolt and automatic transmission 3-way solenoid (S1).
    8. Remove the bolt and automatic transmission 3-way sole- noid (SR).
    9. Remove the bolt, lock plate and clutch control solenoid No.1 (SL1) and line pressure control solenoid (SLT).
  9. Install transmission valve body assy. See Fig 1:
    1. Install the clutch control solenoid No.1 (SL1) and line pressure control solenoid (SLT) with the lock plate and bolt. See Fig 3. Tighten bolt to specification. See TORQUE SPECIFICATIONS .
    2. Install the automatic transmission 3-way solenoid (SR) with the bolt. Tighten bolt to specification. See TORQUE SPECIFICATIONS .
    3. Install the automatic transmission 3-way solenoid (S1) with the bolt. Tighten bolt to specification. See TORQUE SPECIFICATIONS .
    4. Install the automatic transmission 3-way solenoid (S2) and automatic transmission 3-way solenoid (S4) with the bolt. Tighten bolt to specification. See TORQUE SPECIFICATIONS .
    5. Install the automatic transmission 3-way solenoid (S3) with the bolt. Tighten bolt to specification. See TORQUE SPECIFICATIONS .
    6. Install the lock up control solenoid (SLU) and clutch control solenoid (SL2) with the lock plate and bolt. Tighten bolt to specification. See TORQUE SPECIFICATIONS .
    7. CAUTION: Do not drop the check ball body and spring.
    8. Install the check ball body and spring. See Fig 2.
    9. Align the groove of the manual valve with the pin of the lever. See Fig 4.
    10. Install the 20 bolts. See Fig 1.
  10. Install transmission wire. See Figure:
    1. Coat a new "O" ring of the ATF temperature sensor with ATF.
    2. Install the 2 clamps with the 2 bolts. Tighten bolts to specification. See TORQUE SPECIFICATIONS .
    3. Connect the 9 connectors to the solenoid valves.
    4. Install the ATF temperature sensor and lock plate with the bolt. Tighten bolt to specification. See TORQUE SPECIFICATIONS .
  11. Install valve body oil strainer assy:
    1. Coat a new "O" ring with ATF.
    2. Install the "O" ring.
    3. Install the oil strainer with the 4 bolts. See Figure.
  12. Install automatic transmission oil pan sub-assy:
    1. Install the 3 magnets in the oil pan. See Figure.
    2. Using a new gasket, Install the oil pan with the 20 bolts to the transmission case. See Figure. Tighten bolts to specification. See TORQUE SPECIFICATIONS .
  13. Connect battery negative terminal.
  14. NOTE: Fluid type: ATF WS
  15. Add automatic transmission fluid. See FLUID CAPACITIES .
  16. Reset memory. See COMPUTER RELEARN PROCEDURES article in GENERAL INFORMATION.
  17. Perform initialization. See COMPUTER RELEARN PROCEDURES article in GENERAL INFORMATION.
Fig 1: Identifying Valve Body Bolt Locations
G00330429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Locating Check Valve Body & Spring
G95A20370Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Shift Solenoid Locations
G00330430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

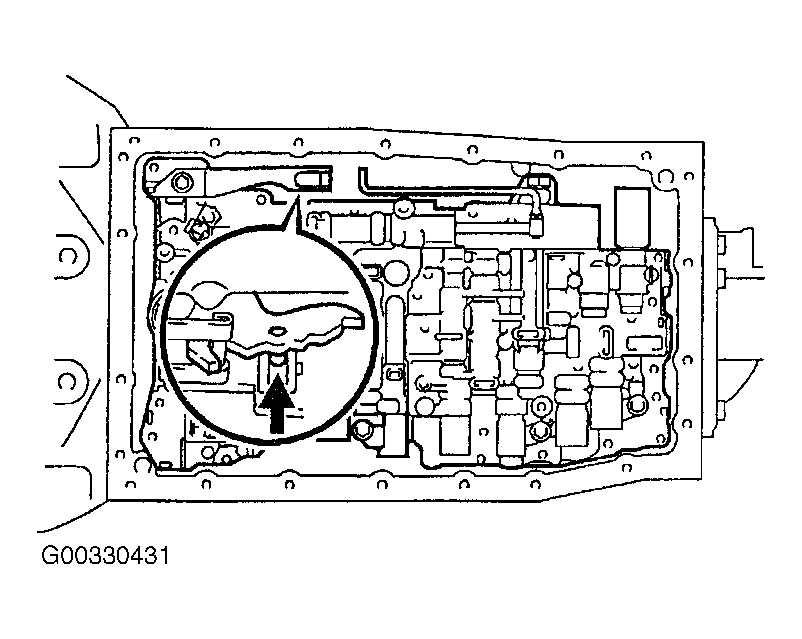

Fig 4: Aligning Manual Valve Groove & Lever Pin
G00330431Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
