Light Control
HINT:
Sensitivity adjustment can hardly be confirmed. Please check by customer's actual driving.
LIGHT CONTROL SPECIFICATIONS
| DISPLAY(ITEM) | DEFAULT | CONTENTS | SETTING |
|---|---|---|---|
| DISP EX ON SEN (#) (Display Extinction Luminous Intensity) | NORMAL | To change the brightness of lowering the lights such as the indicator light of the combination meter, A/C indicator light, clock. Refer to *1 illustration. | DARK2 / DARK1 / NORMAL / LIGHT1 / LIGHT2 |
| DISP EX OFF SEN (#) (Display Extinction Release Luminous Intensity) | NORMAL | To change the brightness of canceling the lowering the lights such as the indicator light of the combination meter, A/C indicator light, clock. Refer to *2 illustration. | DARK2 / DARK1 / NORMAL / LIGHT1 / LIGHT2 |
| SENSITIVITY (Turn ON luminous intensity) | NORMAL | To adjust the sensitivity of the lighting illumination. Refer to the *3 illustration. | DARK2 / DARK1 / NORMAL / LIGHT1 / LIGHT2 |
| LIGHT OFF DELAY (Light Auto OFF Delay) | 30 s | Function to keep on lighting the headlight for a certain period of time after closing all the doors with the ignition switch turned OFF from ON under the condition that the light control switch is at HEAD or AUTO with the headlight ON. | OFF / 30 s / 60 s / 90 s |
| DRL FUNCTION (#) (DRL function) ( USA ONLY) | ON | ON / OFF of the DRL function. | ON / OFF |

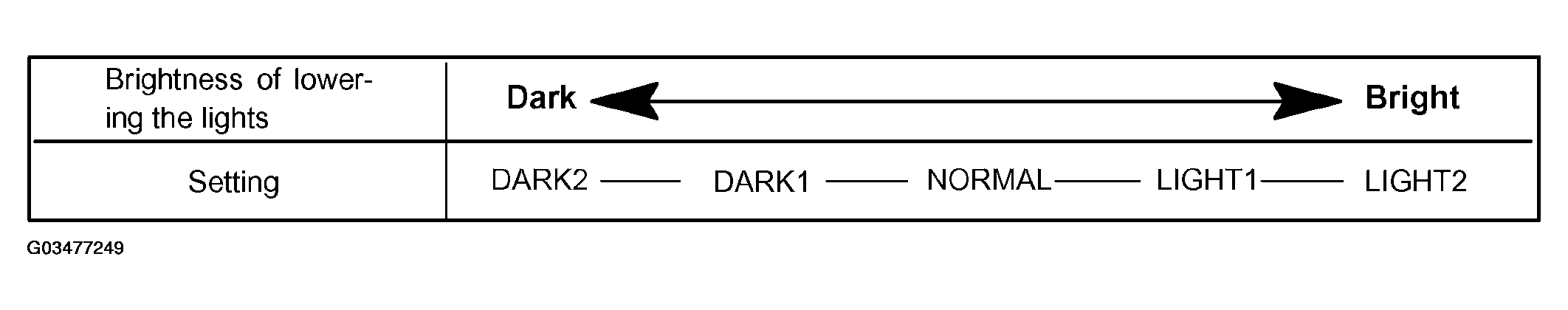

Illustration of *1

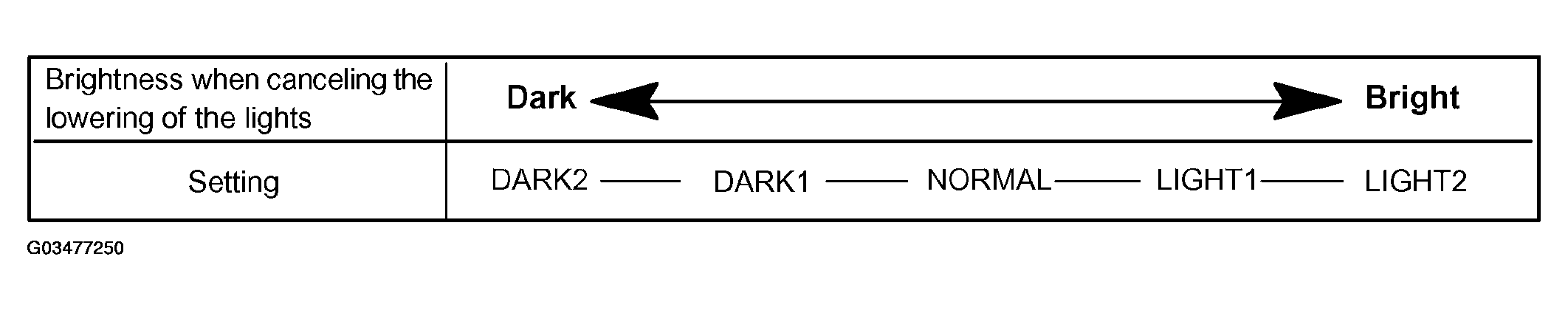

Illustration of *2

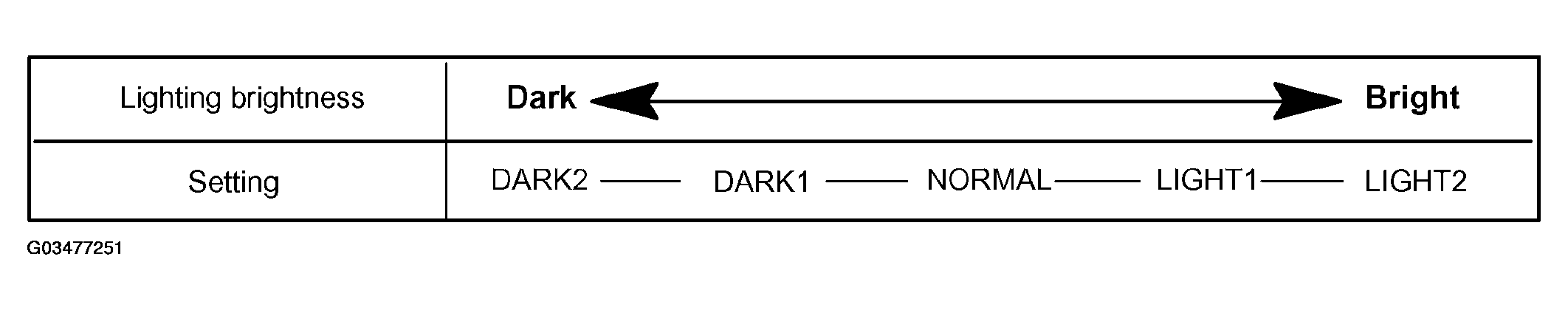

Illustration of *3
