Inspect Fuel Tank And Line

Check the fuel lines from cracks or leakage, and all connections for deformation.
Check the fuel tank vapor vent system hoses and all connections for looseness, sharp bends or damage.
Check the fuel tank for deformation, cracks, fuel leakage or tank band looseness.
Check the filler neck for damage or fuel leakage.

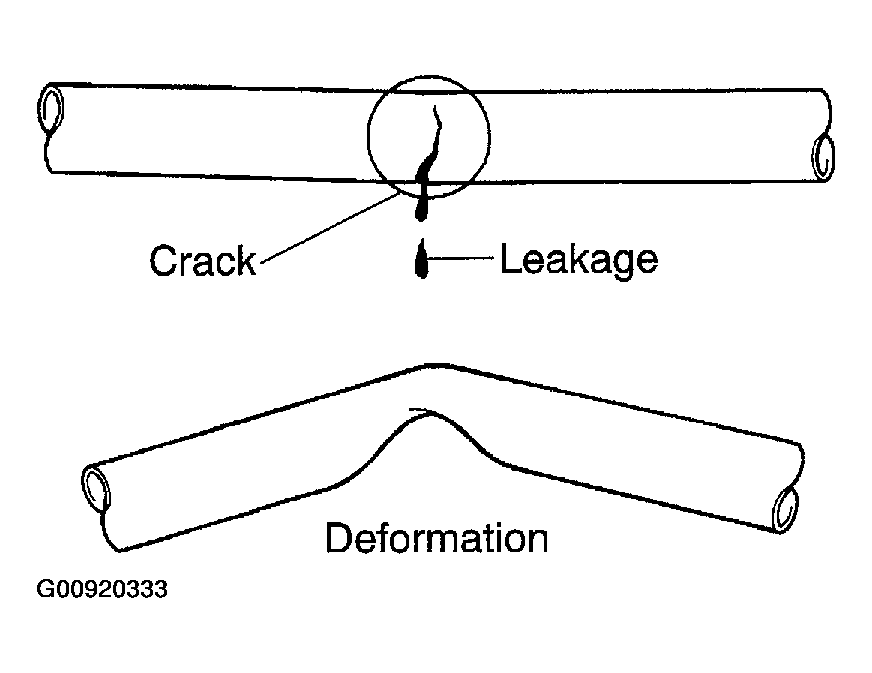

Fig 1: Identifying Fuel Line Condition

G00920333

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Hose and pipe connections are as shown in Fig 3 .
If a problem is found, repair or replace the parts as necessary.

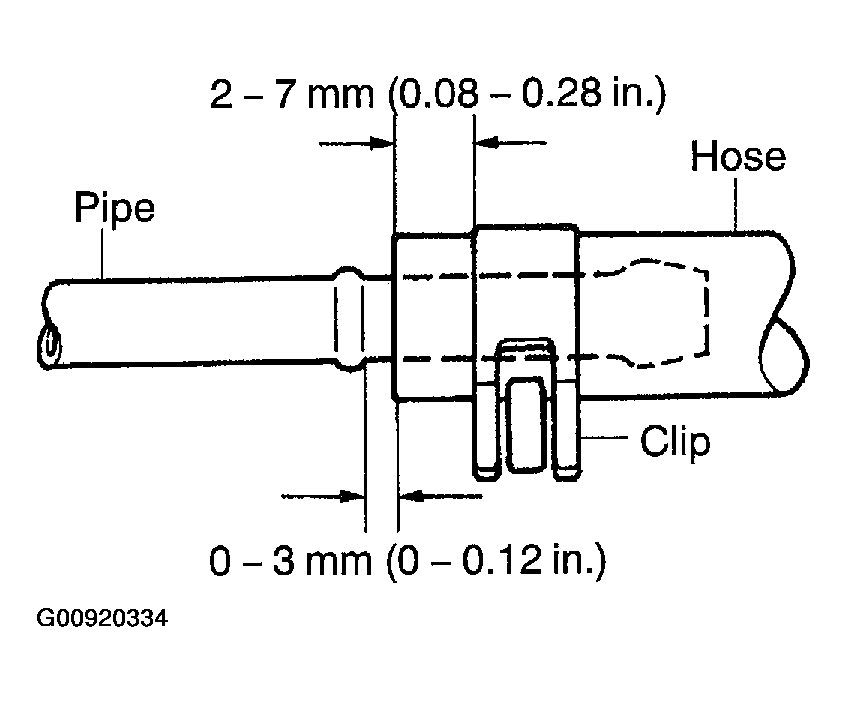

Fig 2: Measuring Clamp Position On Hose
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

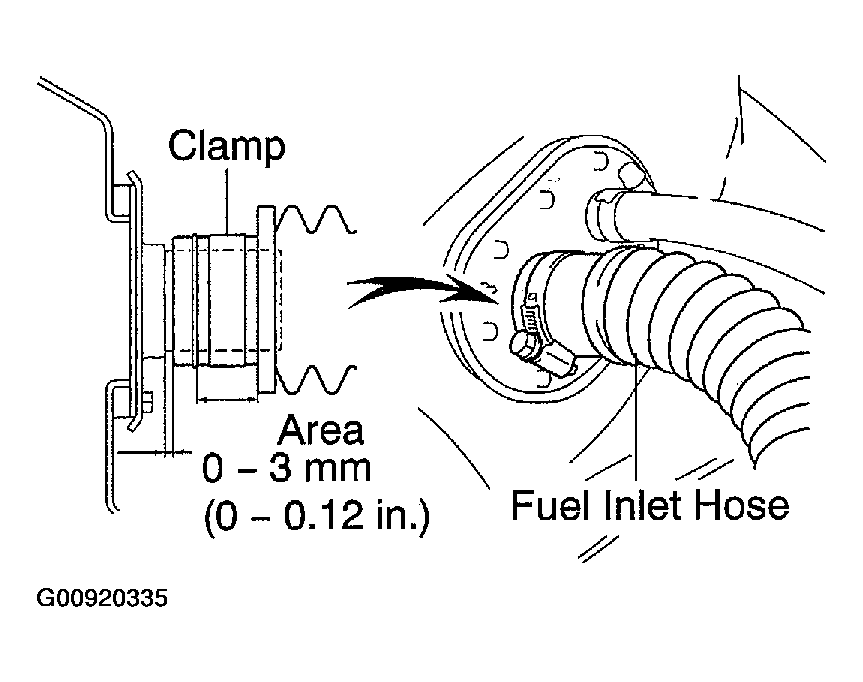

Fig 3: Identifying Clamp Area
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
