Control Valve Assembly: Components

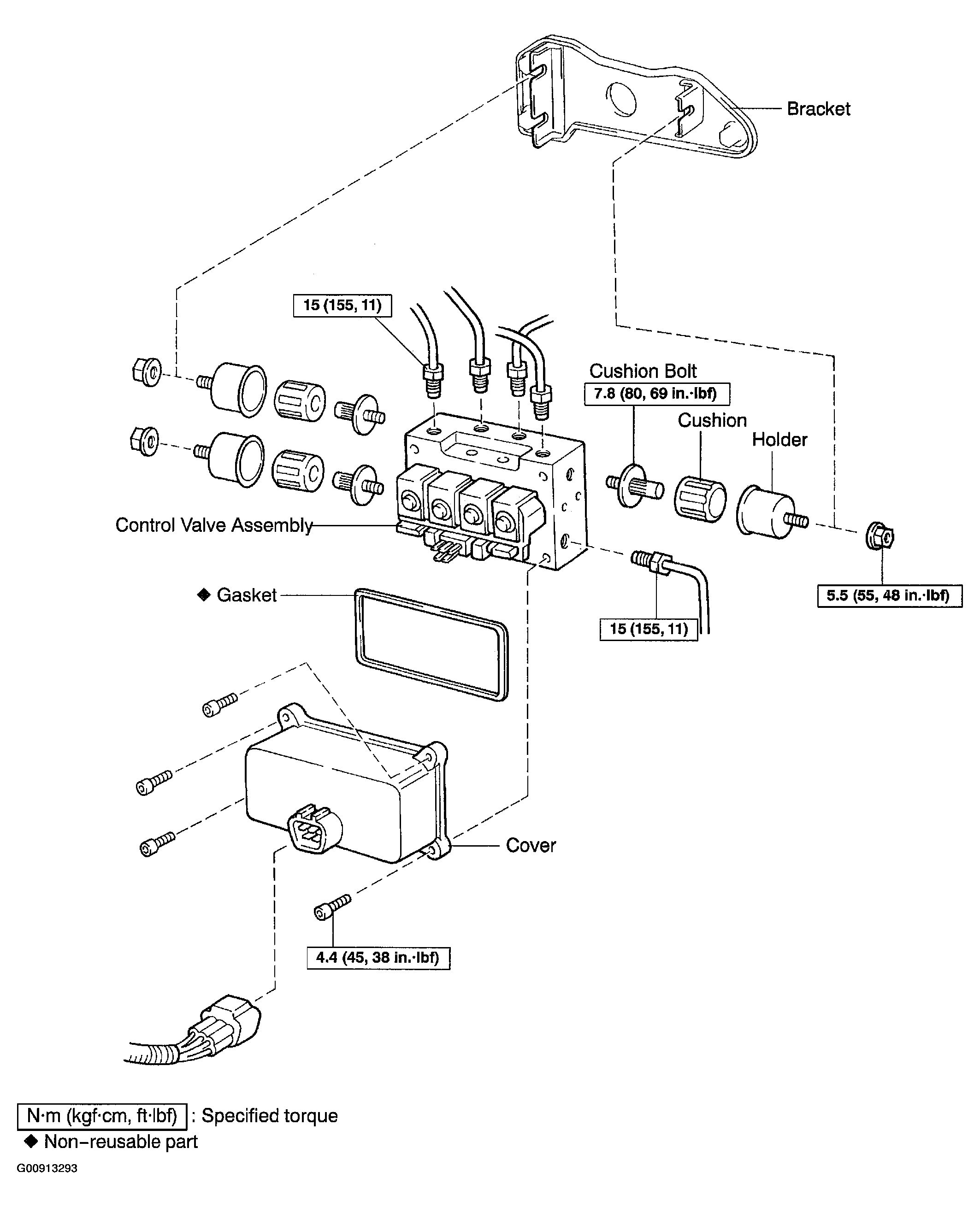

Fig 1: Identifying Control Valve Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
