Automatic Transmission System: Operation

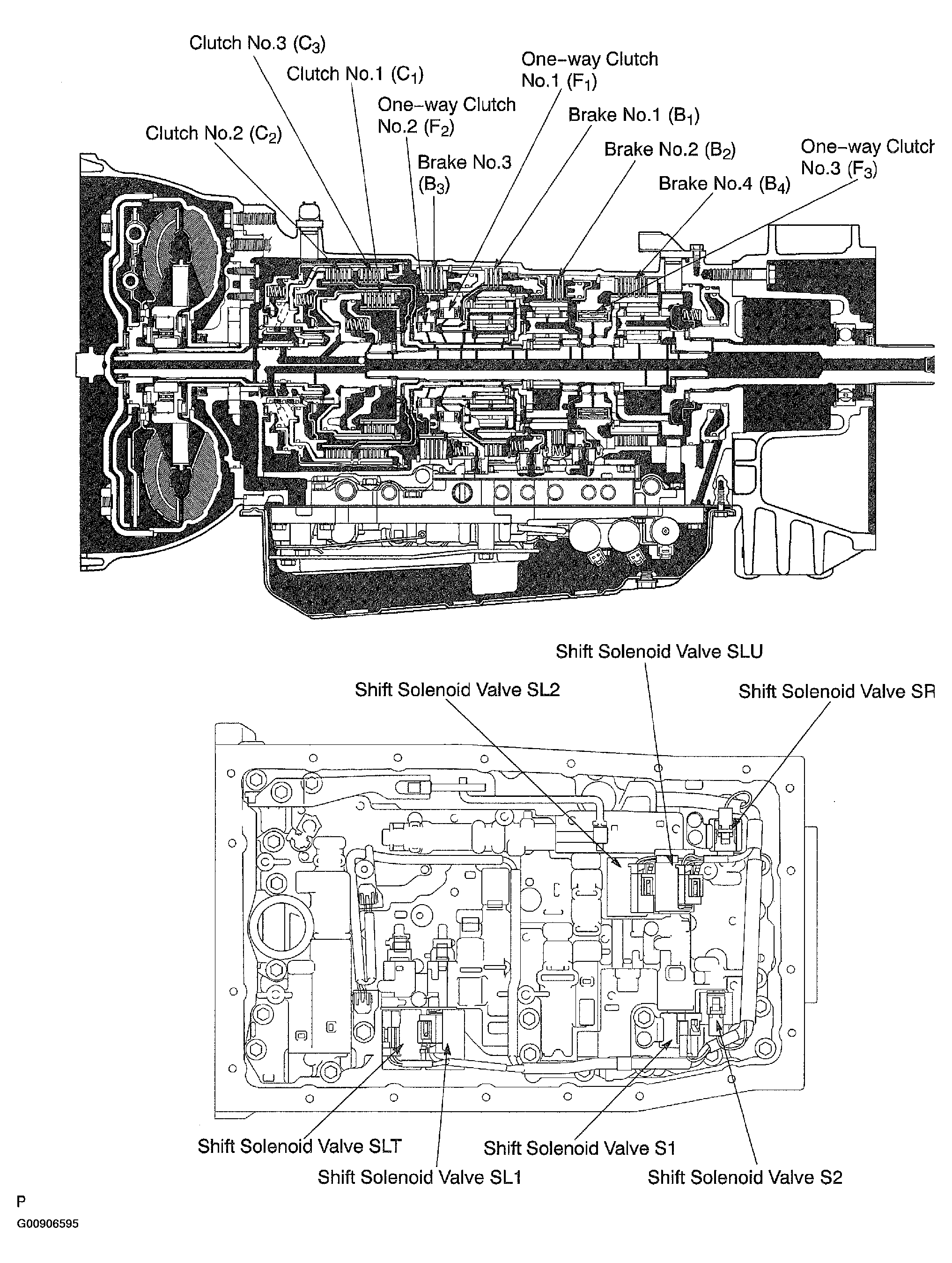

Fig 1: Cut-Away View Of Automatic Transmission Components
G00906595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

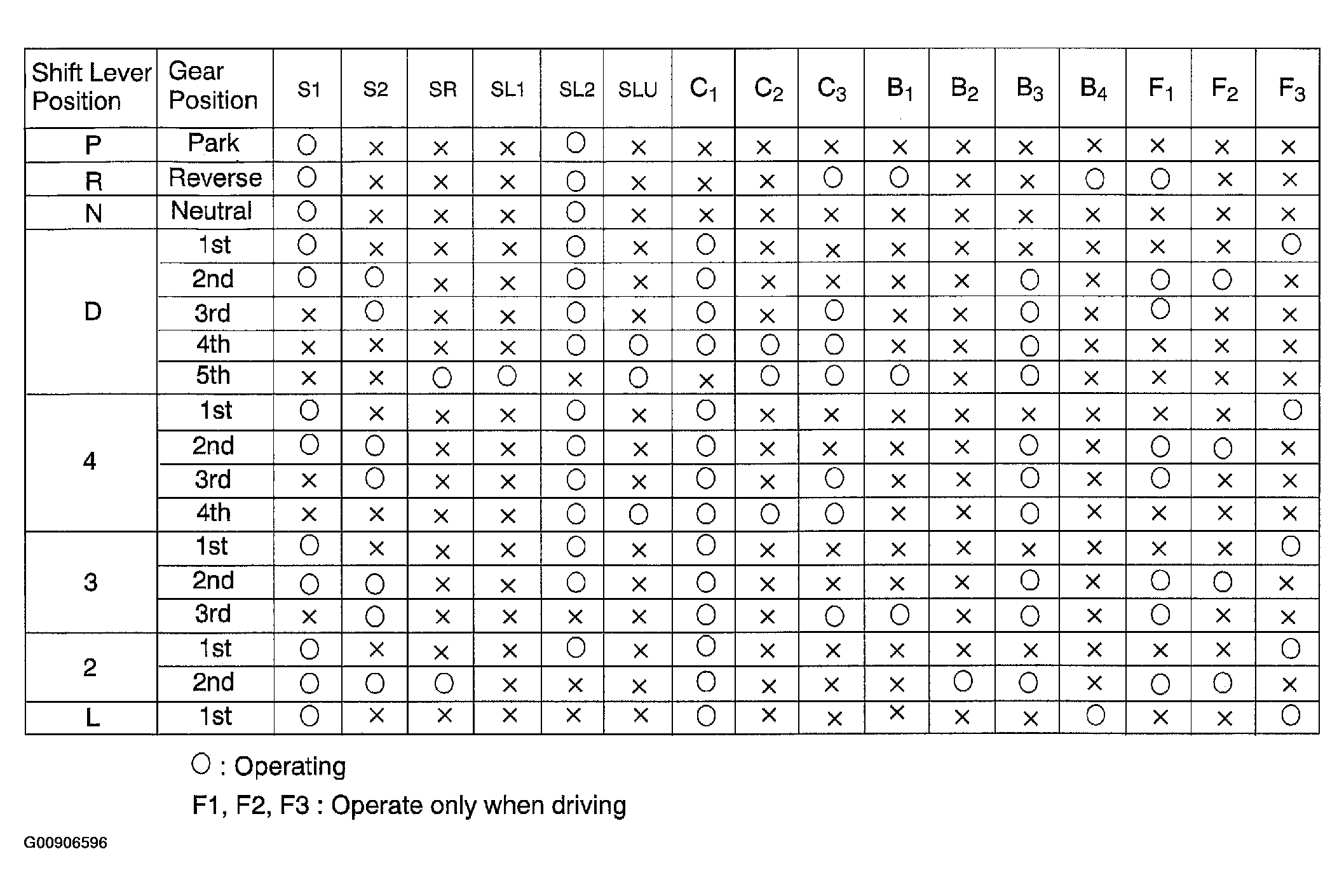

Fig 2: Clutch, Band & Solenoid Application Table
G00906596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
