Floor Shift Assembly: Components

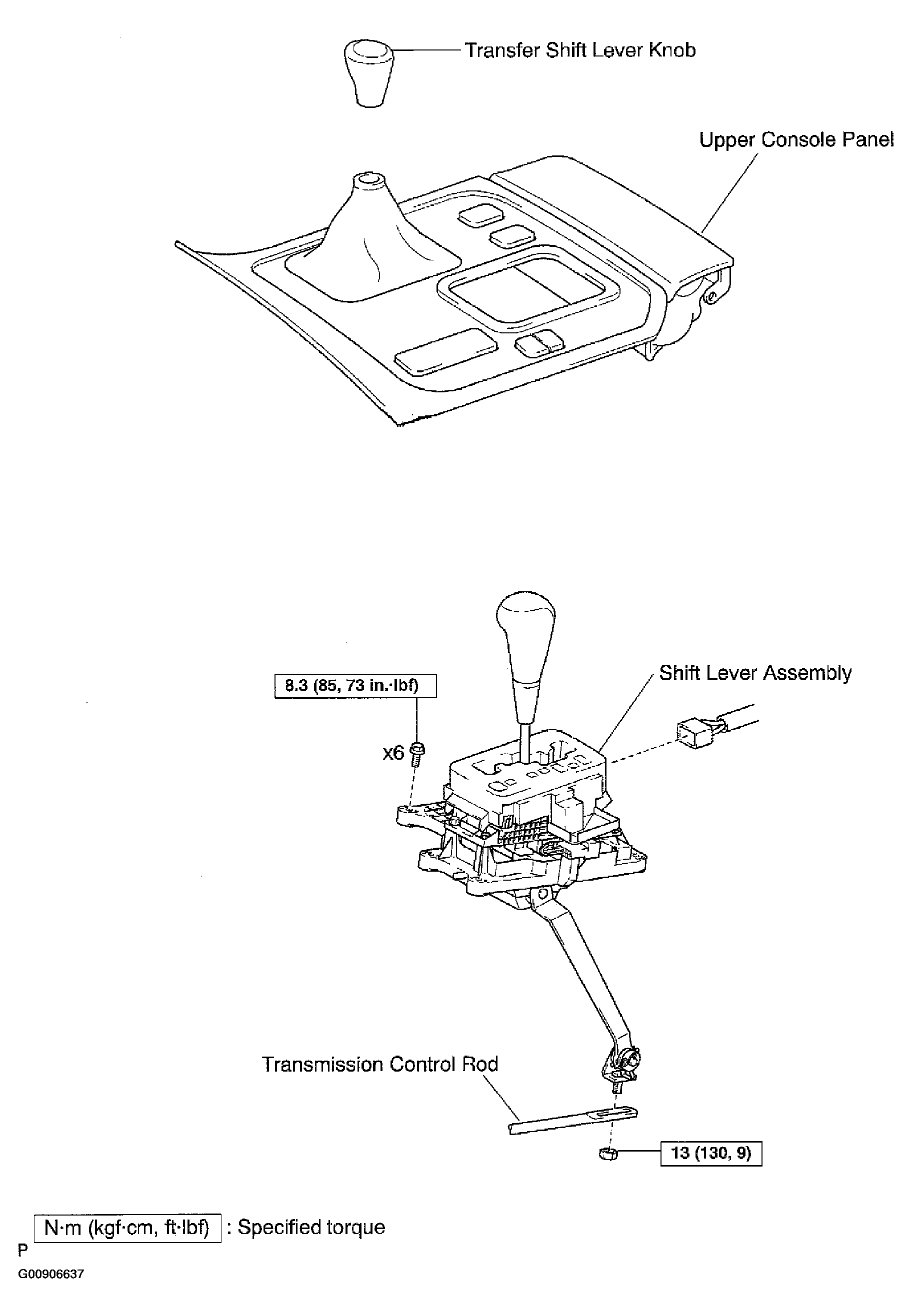

Fig 1: Identifying Components Floor Shift Assembly (1 Of 2)
G00906637Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

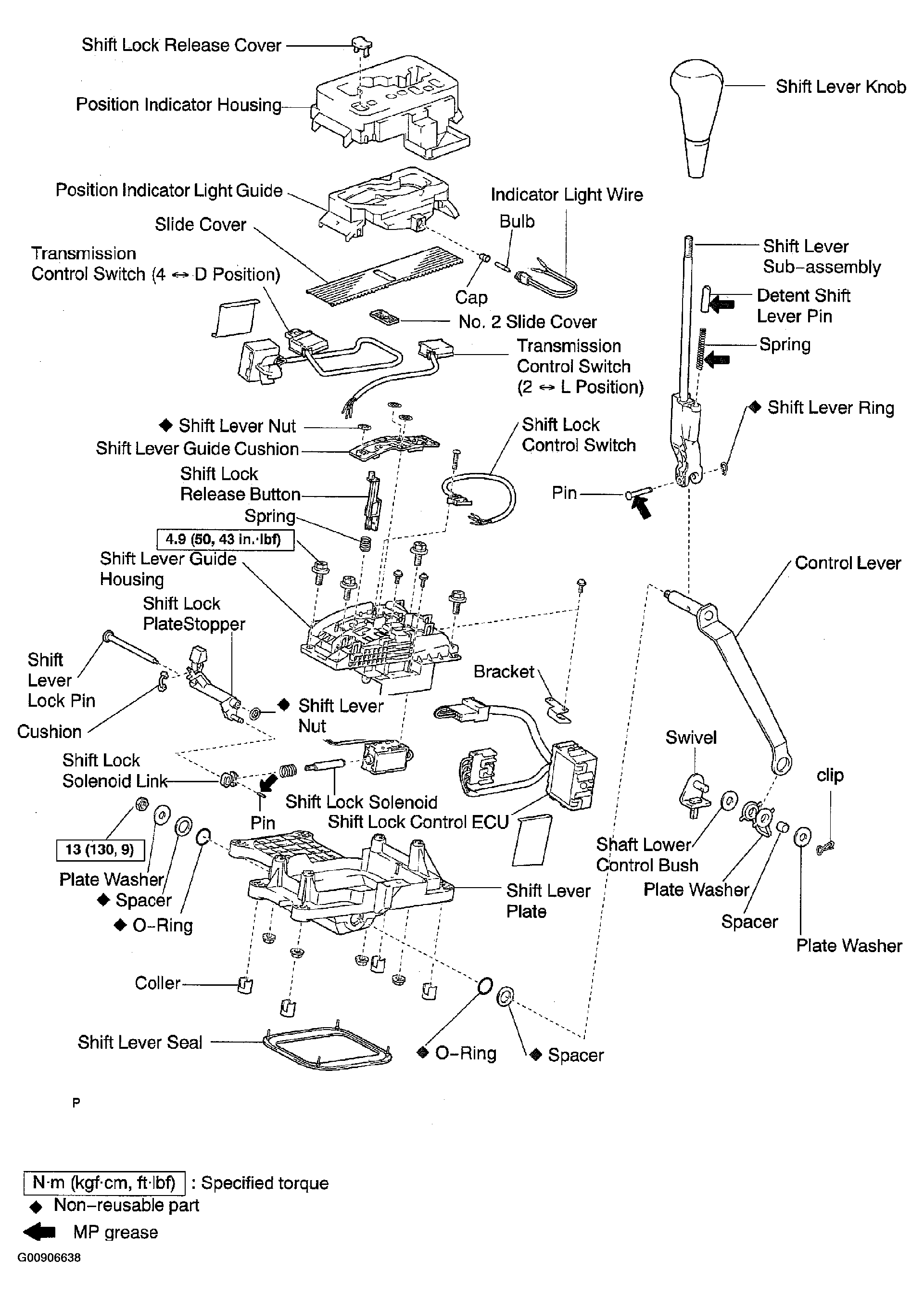

Fig 2: Identifying Components Floor Shift Assembly (2 Of 2)
G00906638Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
