Shift Lock System: Inspection

INSPECT SHIFT LOCK CONTROL ECU
Using a voltmeter, measure the voltage at each terminal.

HINT:

Do not disconnect the ECU connector.

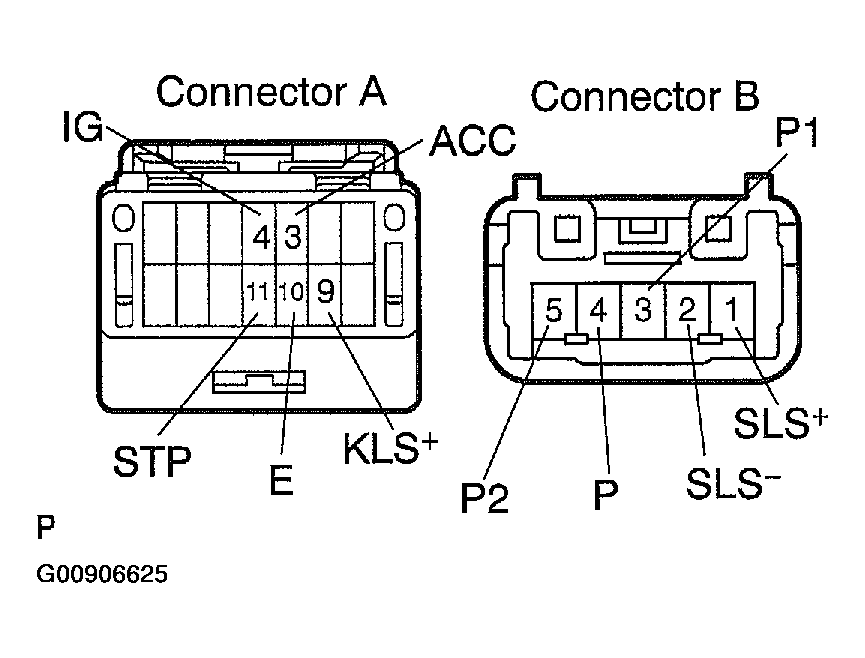

Fig 1: Identifying Shift Lock Control ECU Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

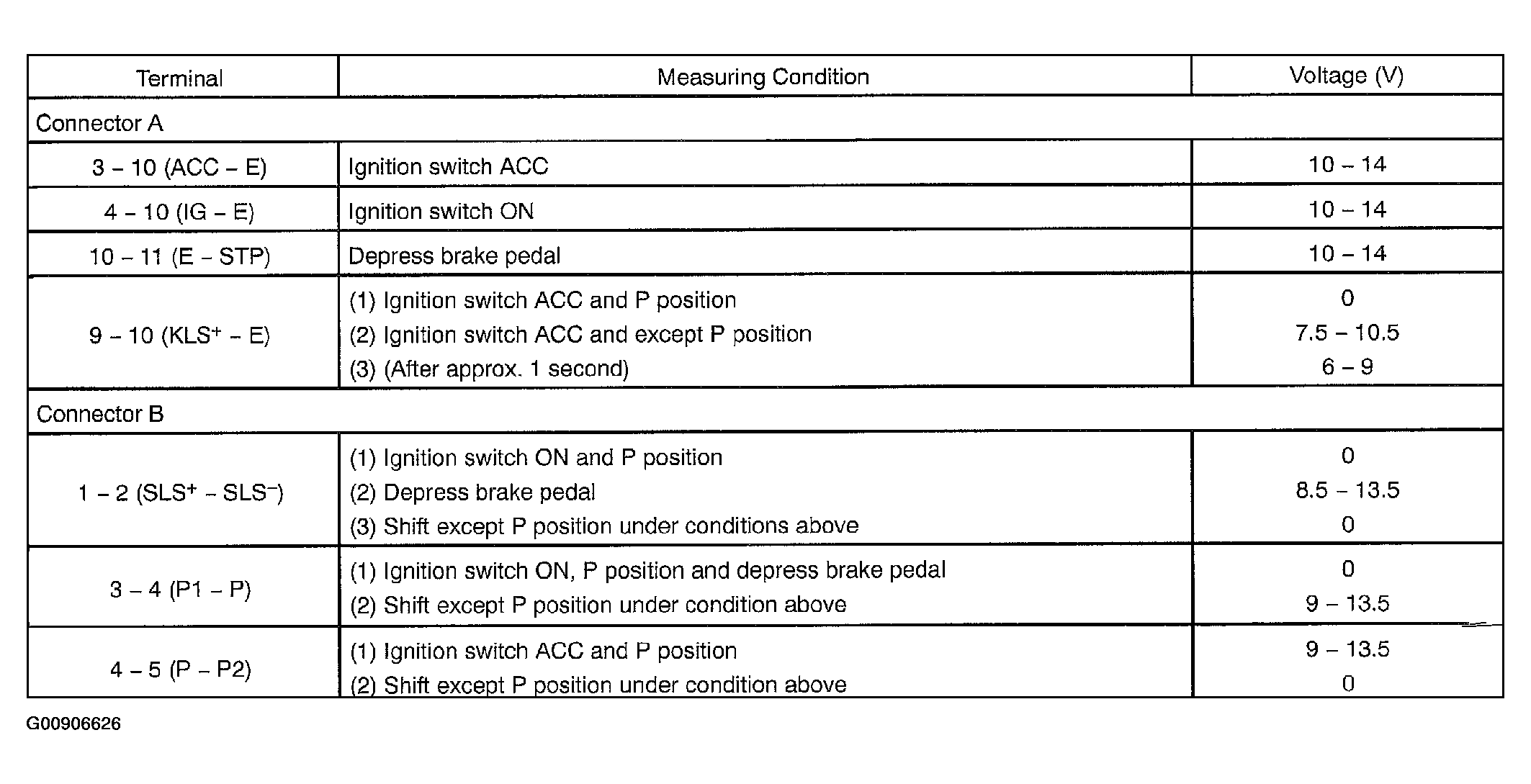

Fig 2: Voltage Condition Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT SHIFT LOCK SOLENOID
1. Disconnect the solenoid connector.
2. Using an ohmmeter, measure the resistance between terminal 1 and 2.
  1. Standard resistance: 21 - 27 Ω
  If the resistance value is not as specified, replace the solenoid.
3. Apply the battery positive voltage between terminals. Check that the operation noise can be heard from the solenoid.
If the solenoid does not operate, replace the solenoid.

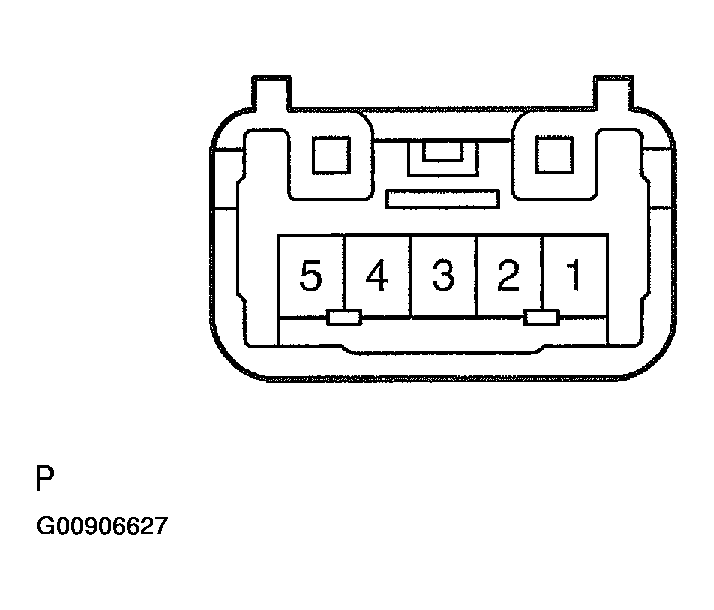

Fig 3: Identifying Shift Lock Solenoid Connector Terminal

G00906627

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT SHIFT LOCK CONTROL SWITCH
Inspect that continuity exists between each terminal.

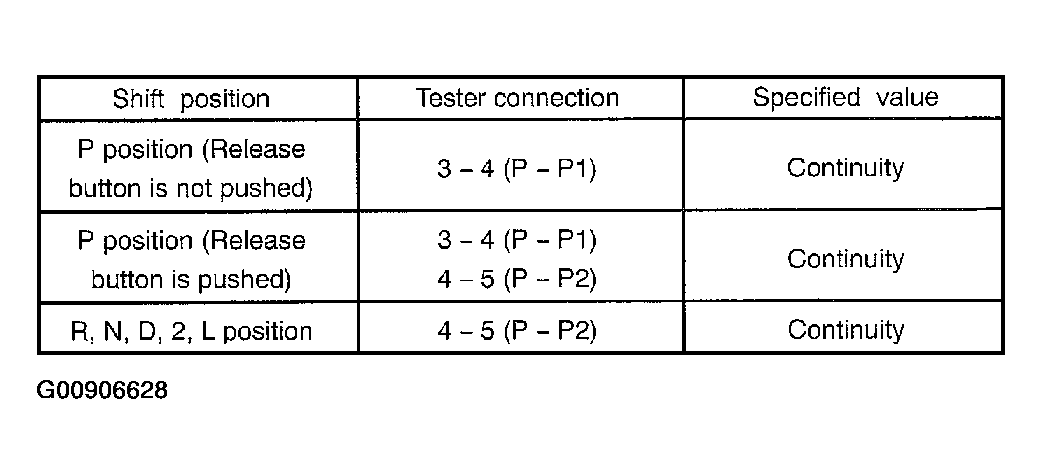

Fig 4: Continuity Condition Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If continuity is not as specified, replace the switch.
INSPECT KEY INTERLOCK SOLENOID
1. Disconnect the solenoid connector.
2. Using an ohmmeter, measure the resistance between terminal 1 and 2.
  1. Standard resistance: 12 - 17 Ω
  If resistance value is not as specified, replace the solenoid.
3. Apply the battery positive voltage between terminals 1 and 2. Check that an operation noise can be heard from the solenoid.
If the solenoid does not operate, replace the solenoid.

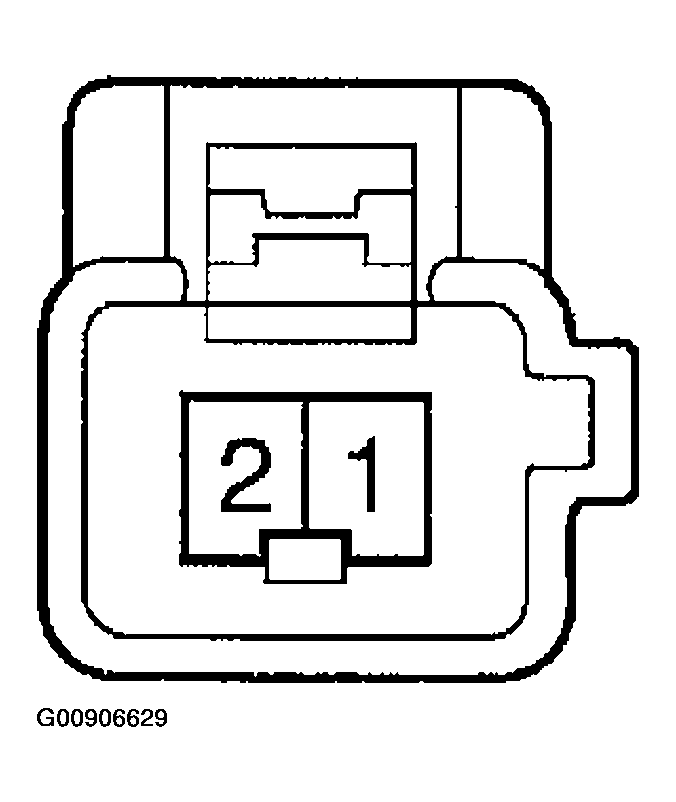

Fig 5: Measuring Resistance Between Terminal 1 & 2

G00906629

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
