Central Control Module: Service and Repair

Instrument Panel/Meter:

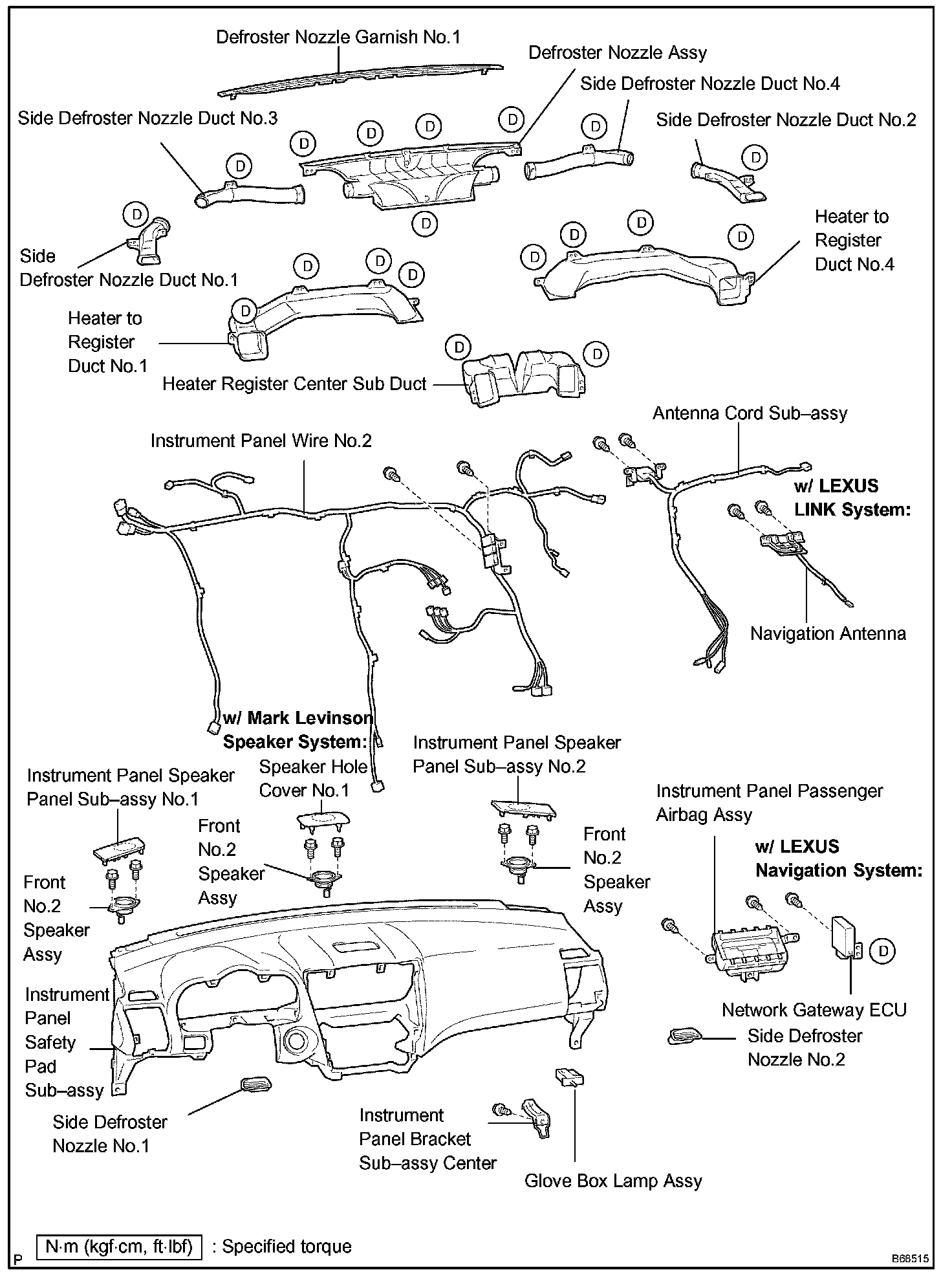

NETWORK GATEWAY ECU

REPLACEMENT
1. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSY NO.2
2. REMOVE GLOVE COMPARTMENT DOOR ASSY

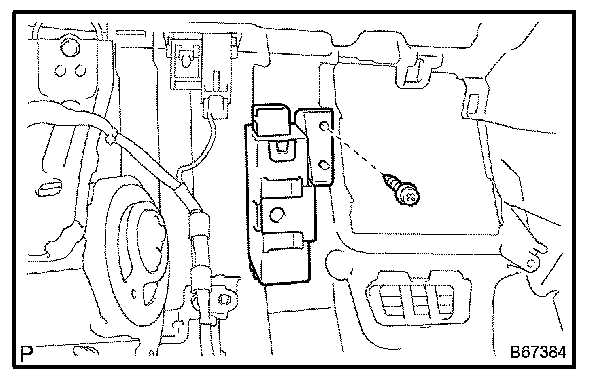

3. REMOVE NETWORK GATEWAY ECU
a. Disconnect the connector.
b. Remove the screw and the network gateway ECU.
