Navigation Module: Testing and Inspection

TERMINALS OF ECU

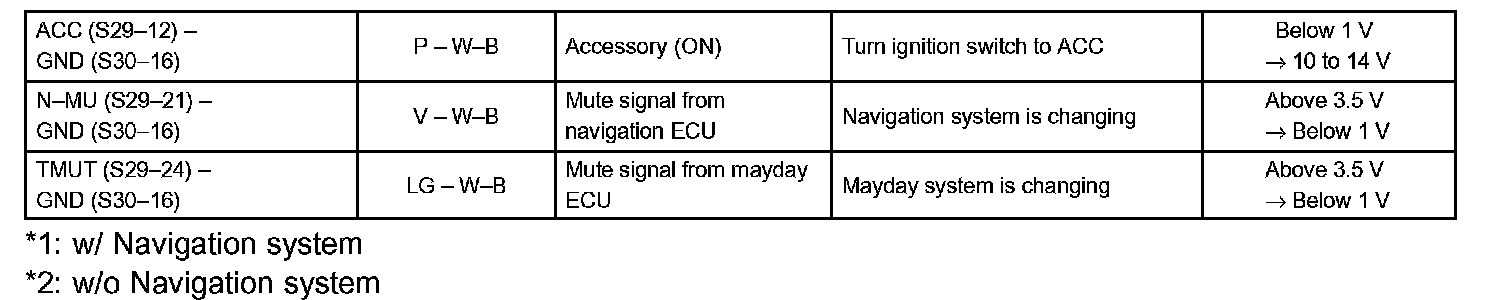

Terminals Of ECU/Pinouts - Multi-Display Assy Part 1:

Terminals Of ECU/Pinouts - Multi-Display Assy Part 2:

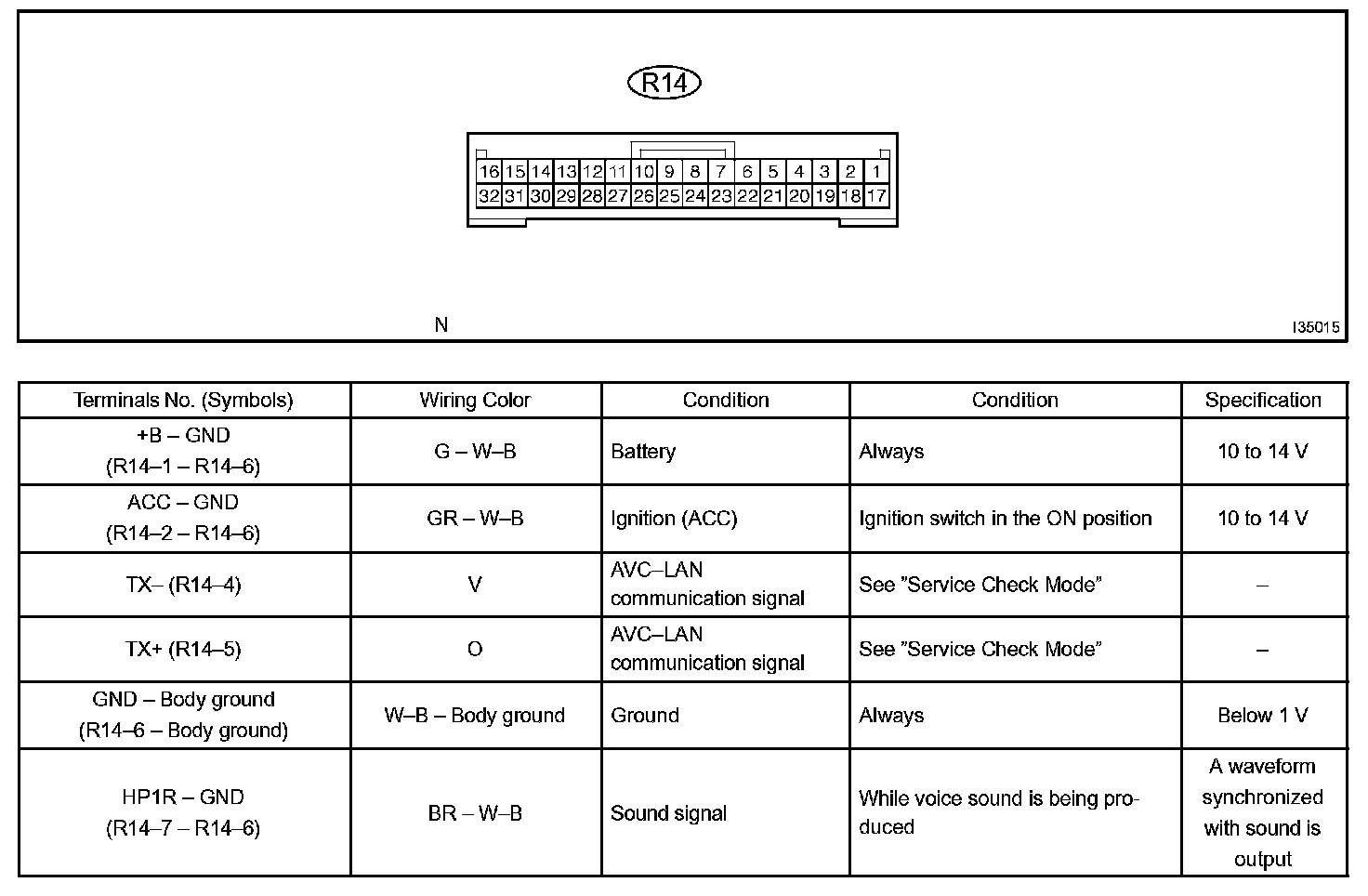

1. MULTI DISPLAY ASSY

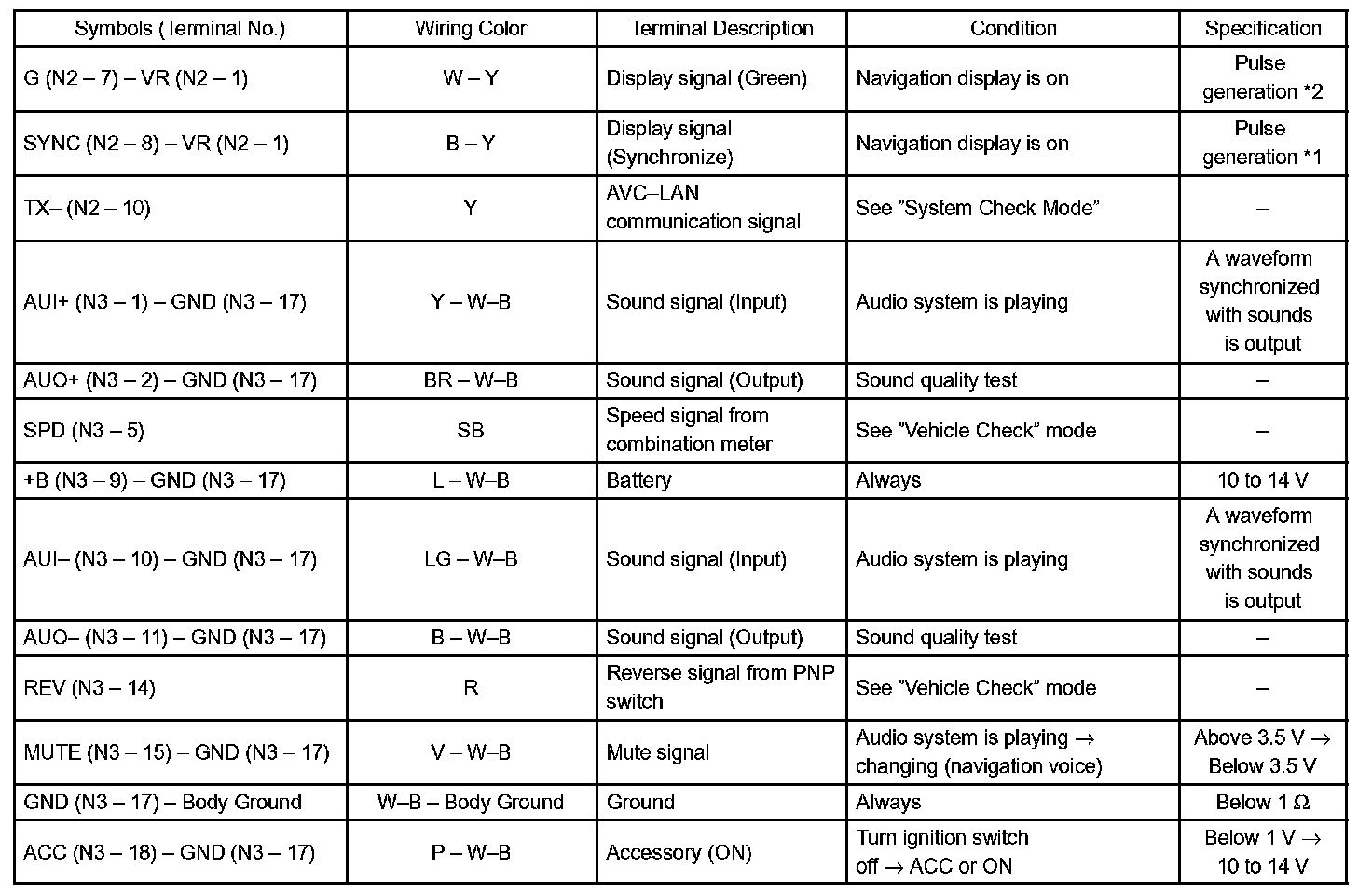

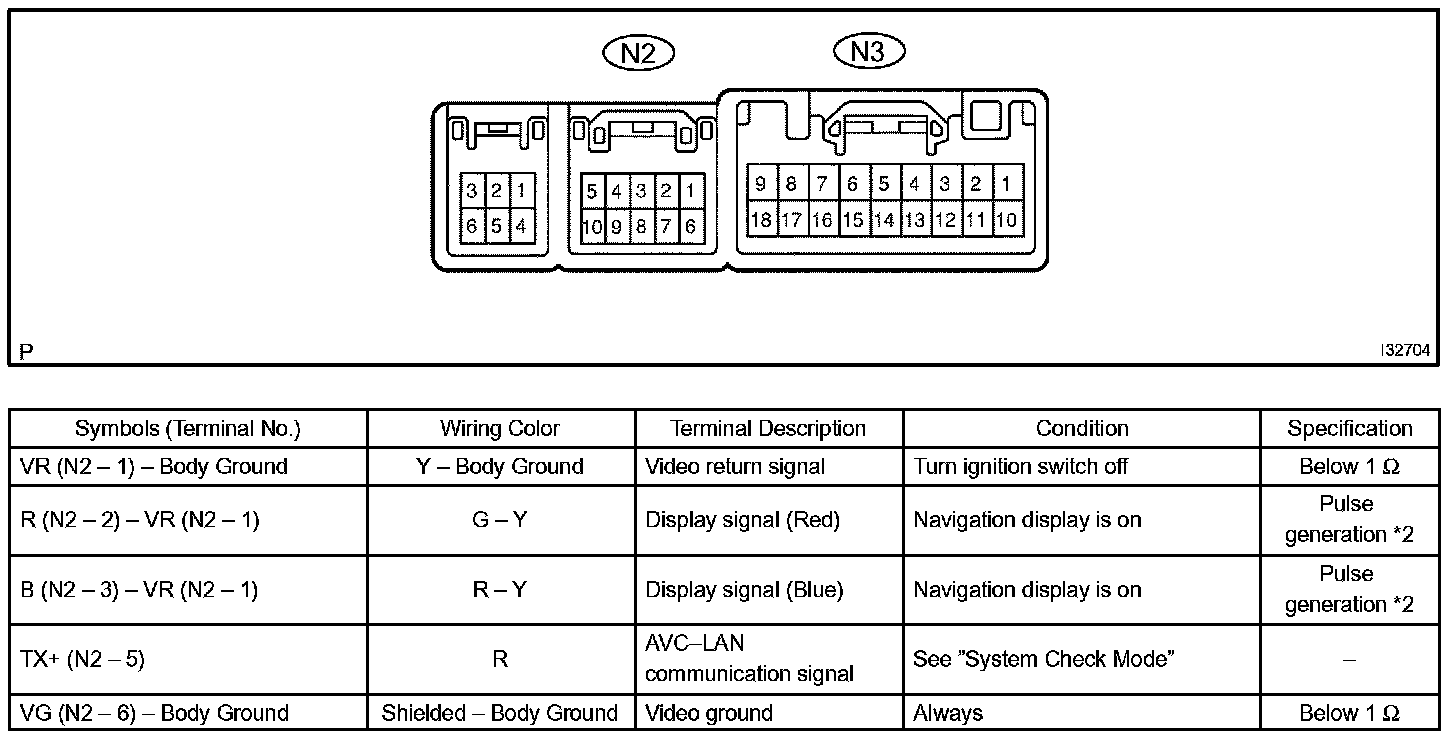

Terminals Of ECU/Pinouts - Navigation ECU Part 1:

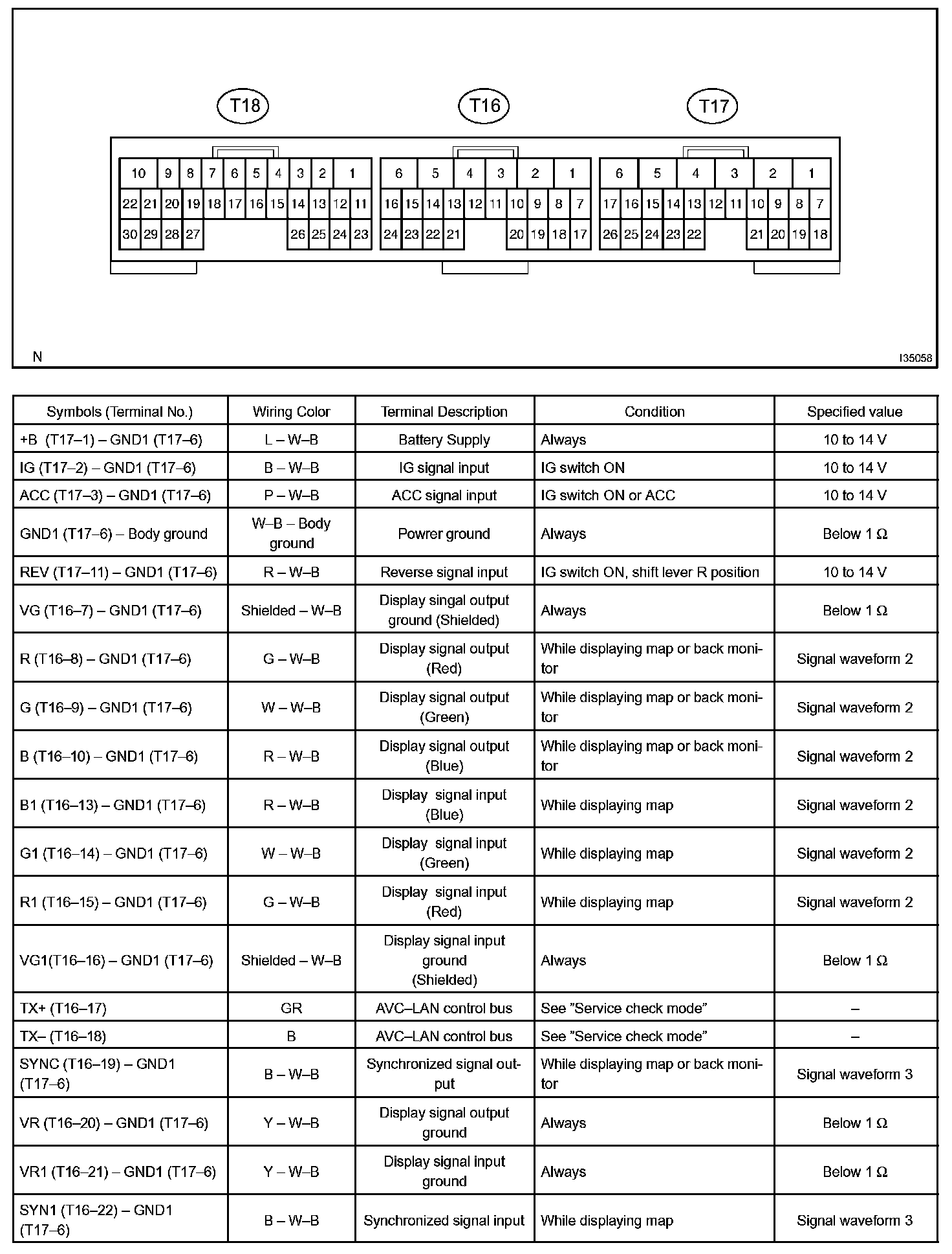

Terminals Of ECU/Pinouts - Navigation ECU Part 2:

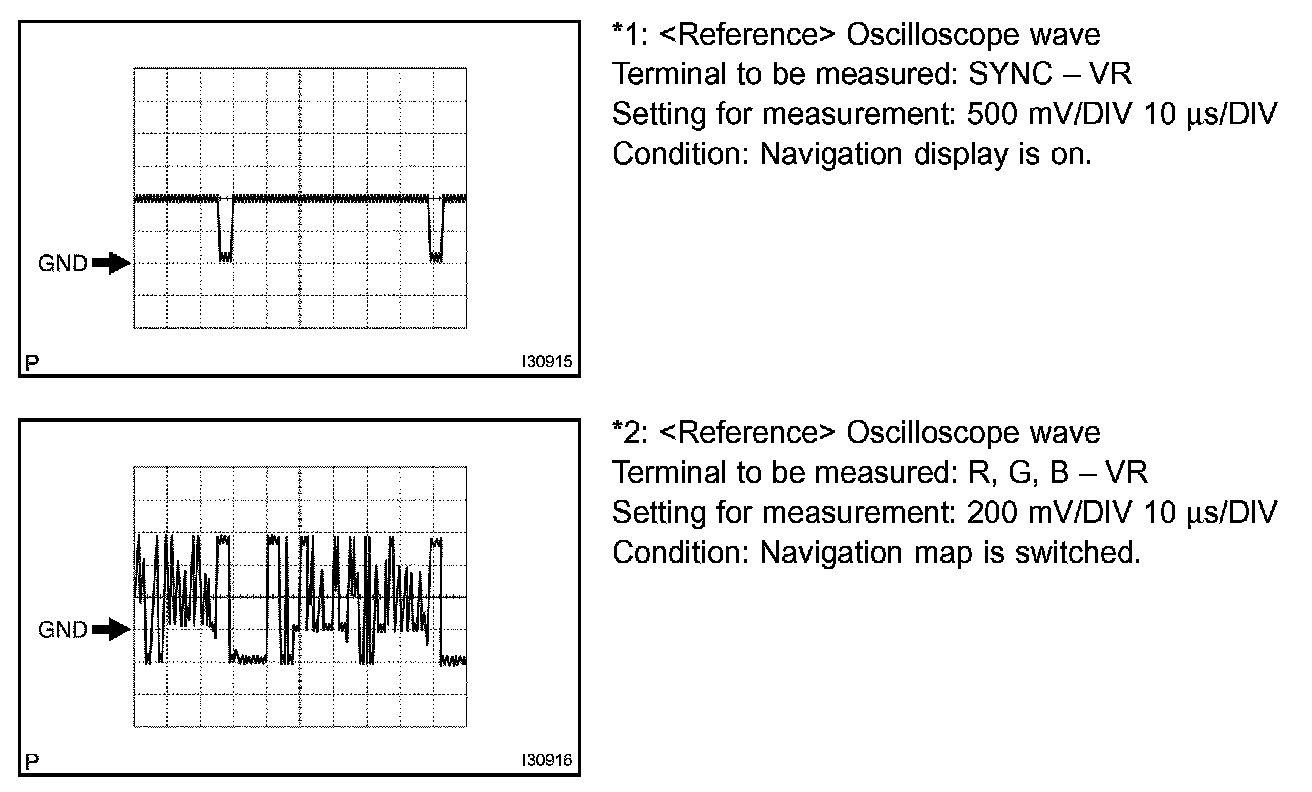

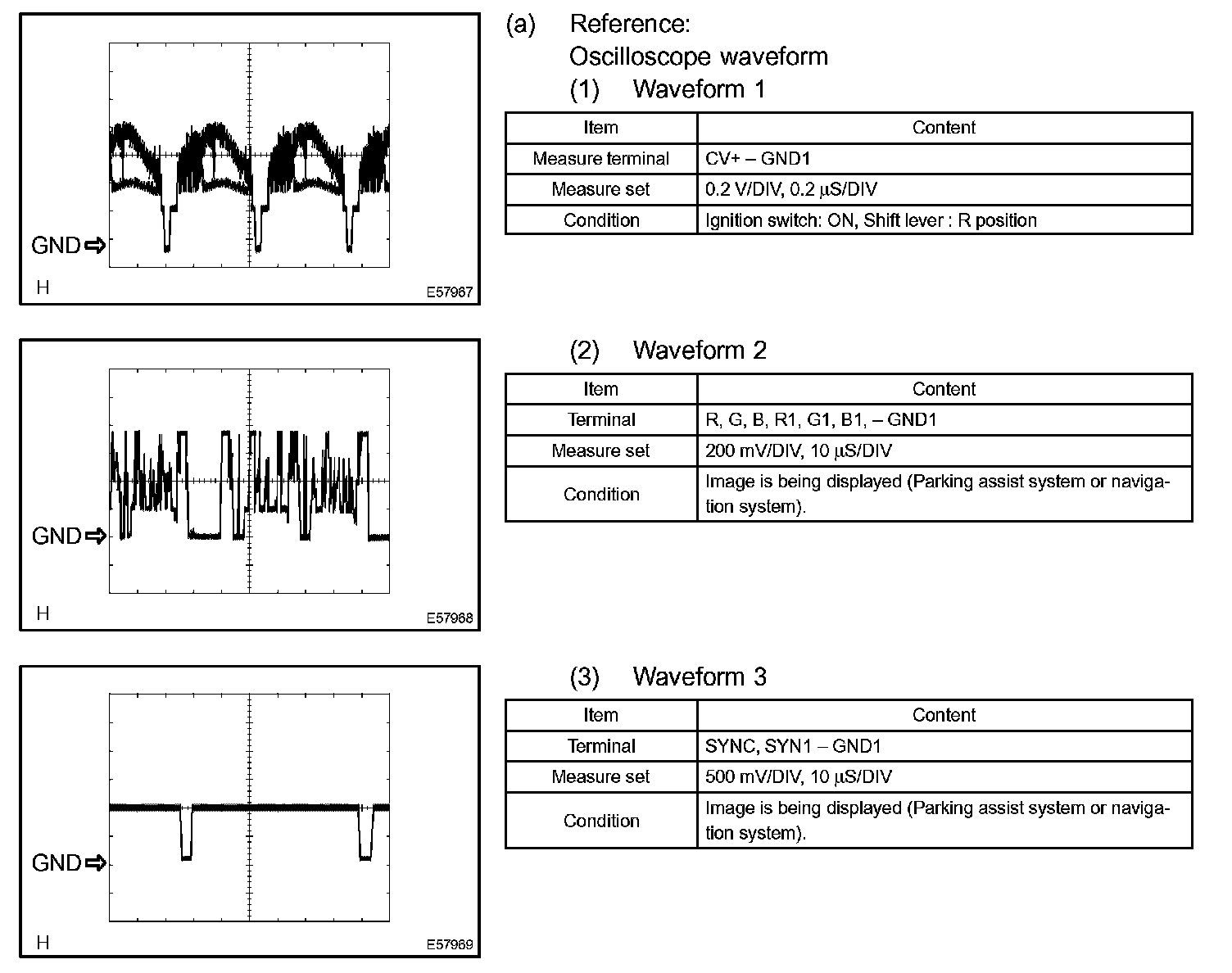

Oscilloscope Waveforms:

2. NAVIGATION ECU

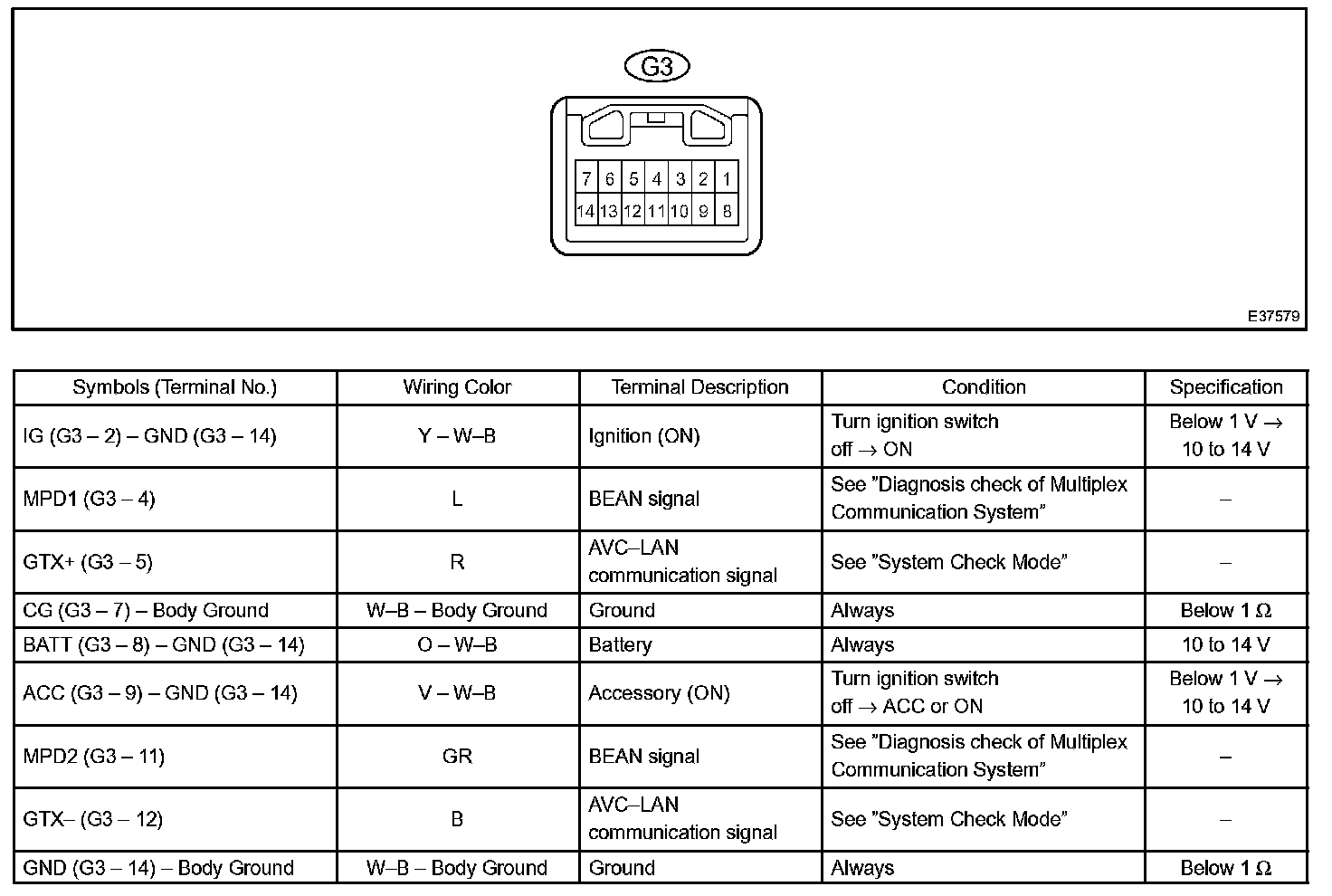

Terminals Of ECU/Pinouts - Network Gateway ECU:

3. NETWORK GATEWAY ECU

HINT: When trouble occurs in the network gateway ECU, the following symptoms are also admitted simultaneously.

- "Outside temperature" is not indicated on the multi display assy.
- "Vehicle information " is not indicated on the multi display assy.
- Unable to operate the air conditioner system.

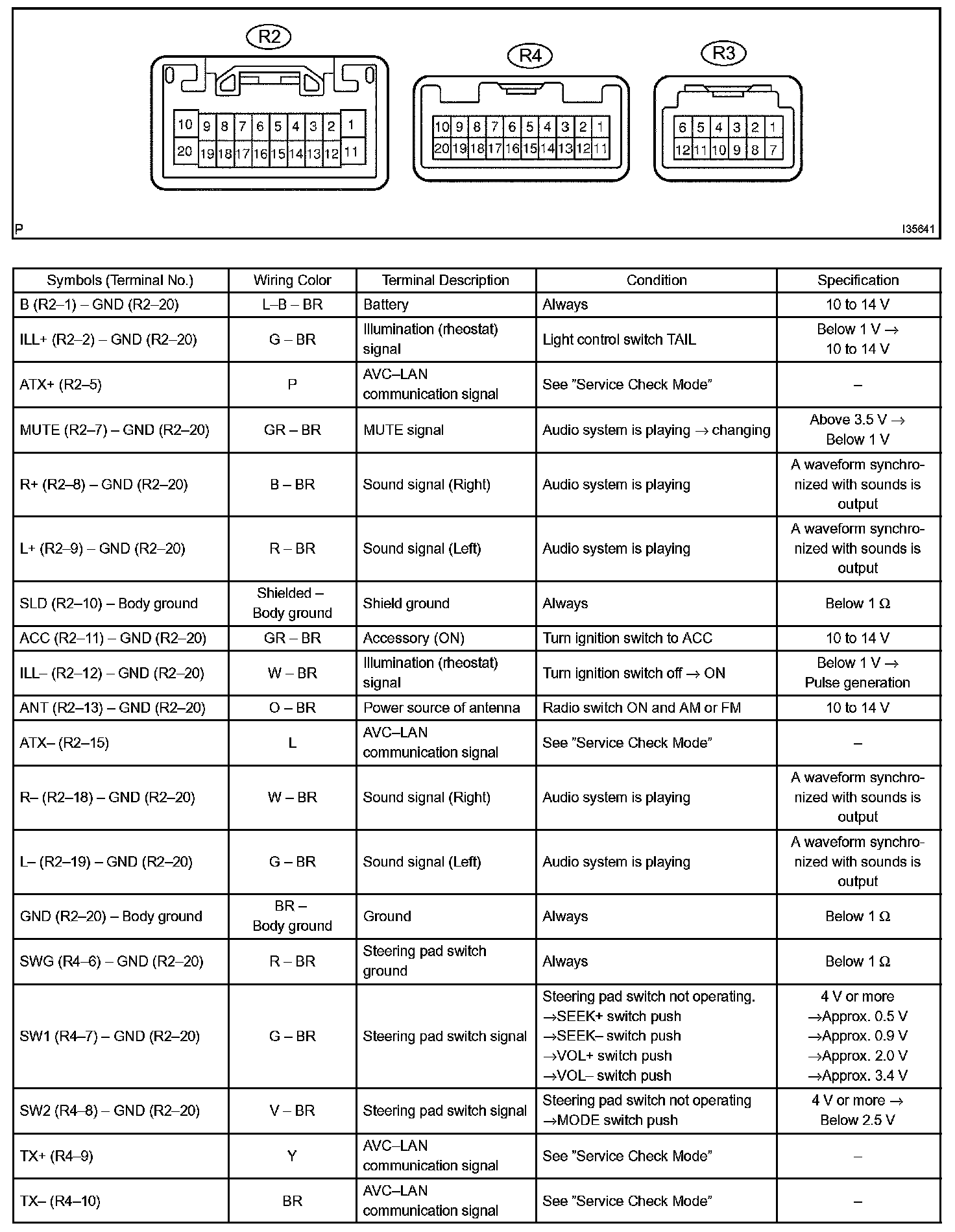

Terminals Of ECU/pinouts - Radio Receiver Assy Part 1:

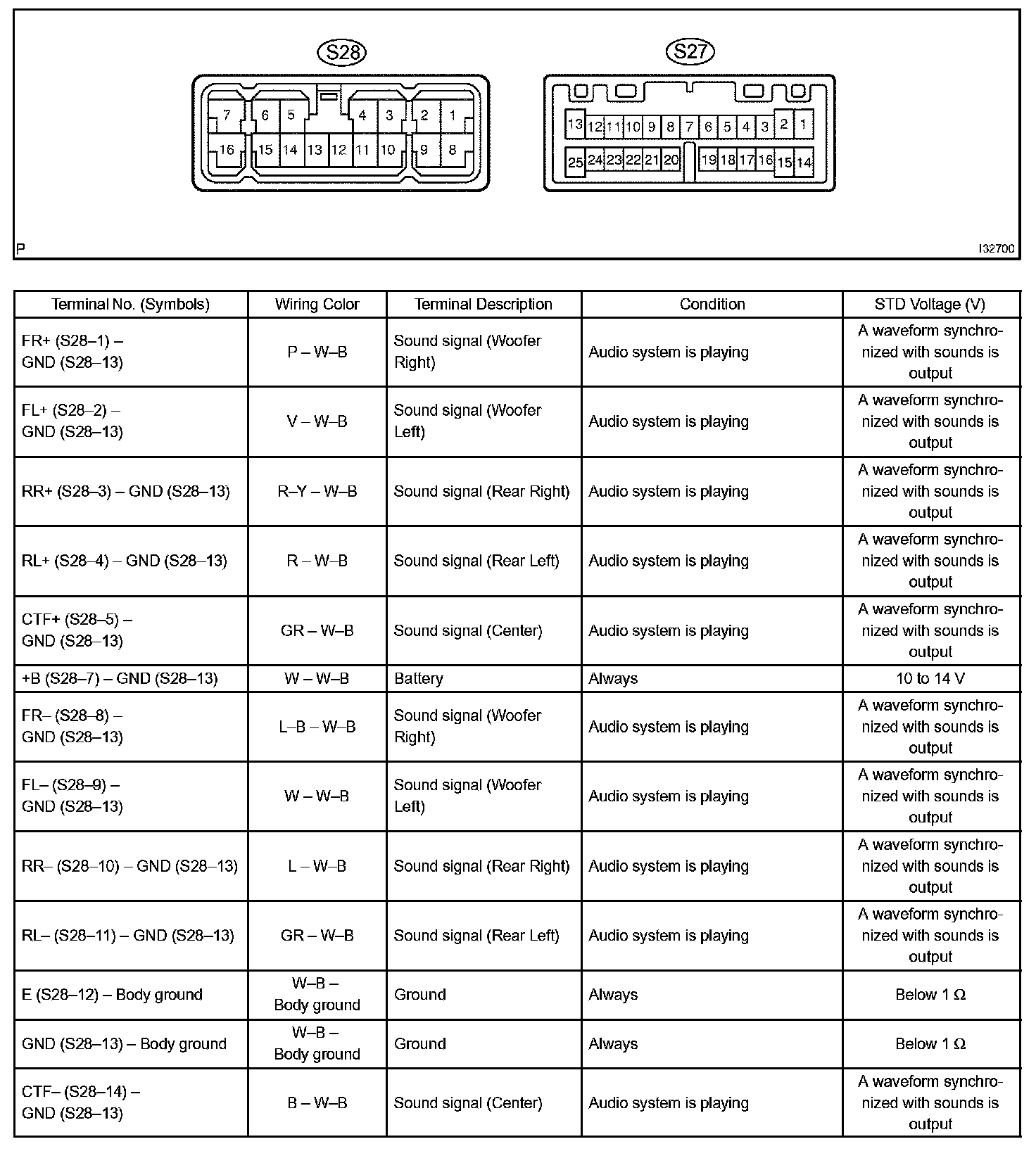

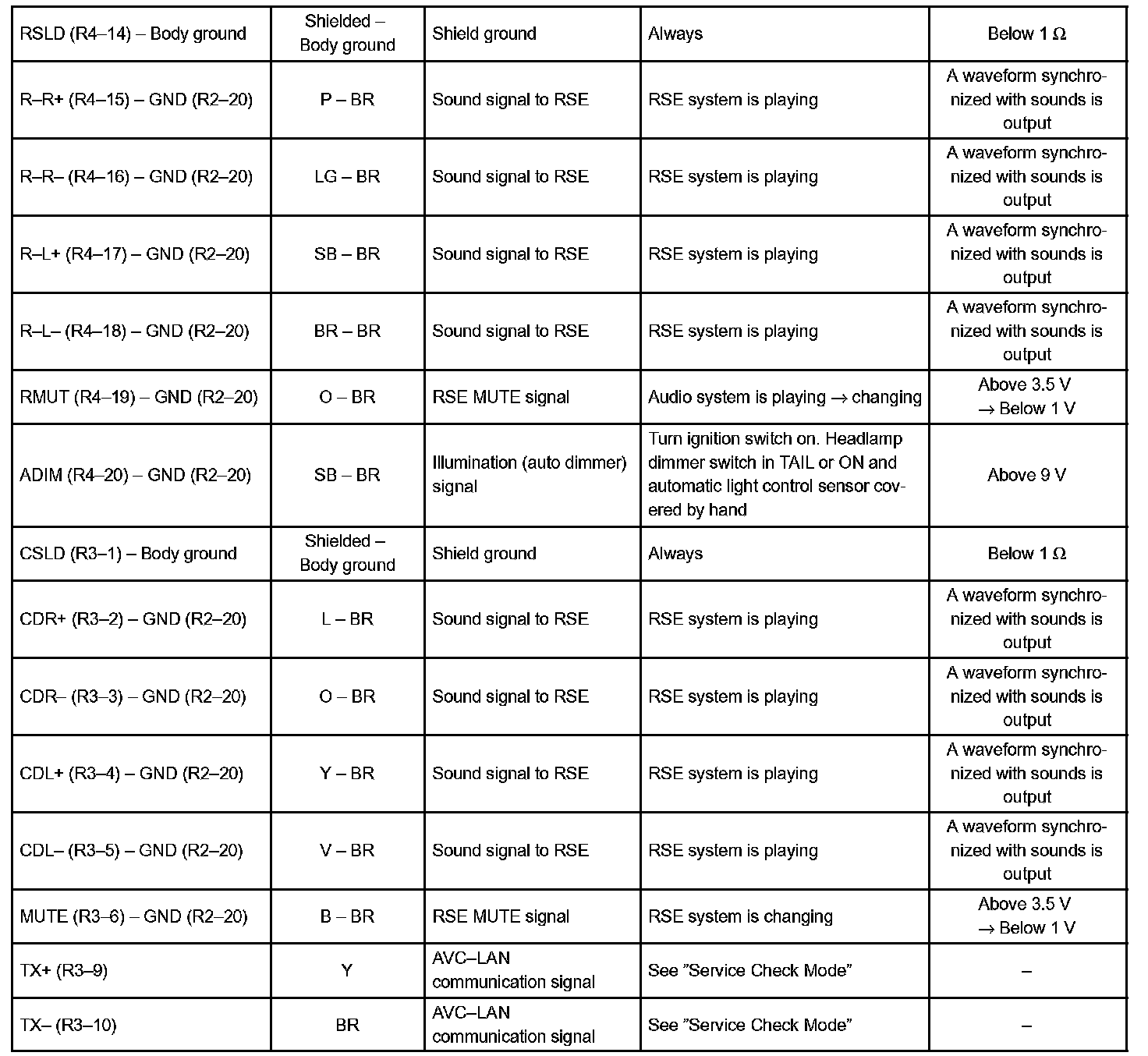

Terminals Of ECU/pinouts - Radio Receiver Assy Part 2:

4. RADIO RECEIVER ASSY

Terminals Of ECU/pinouts - Stereo Component Amplifier Assy (standard System) Part 1:

Terminals Of ECU/pinouts - Stereo Component Amplifier Assy (standard System) Part 2:

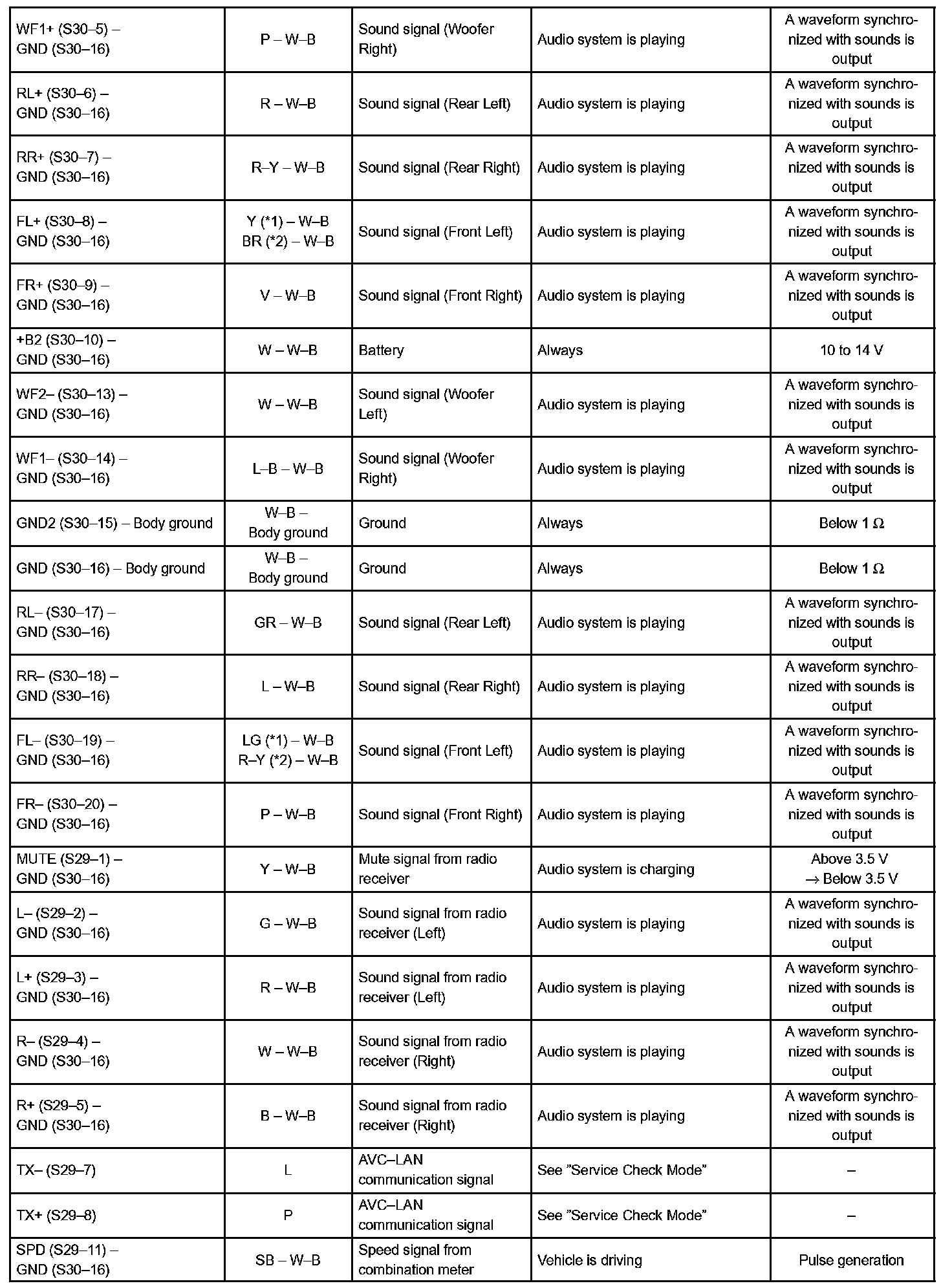

Terminals Of ECU/pinouts - Stereo Component Amplifier Assy (standard System) Part 3:

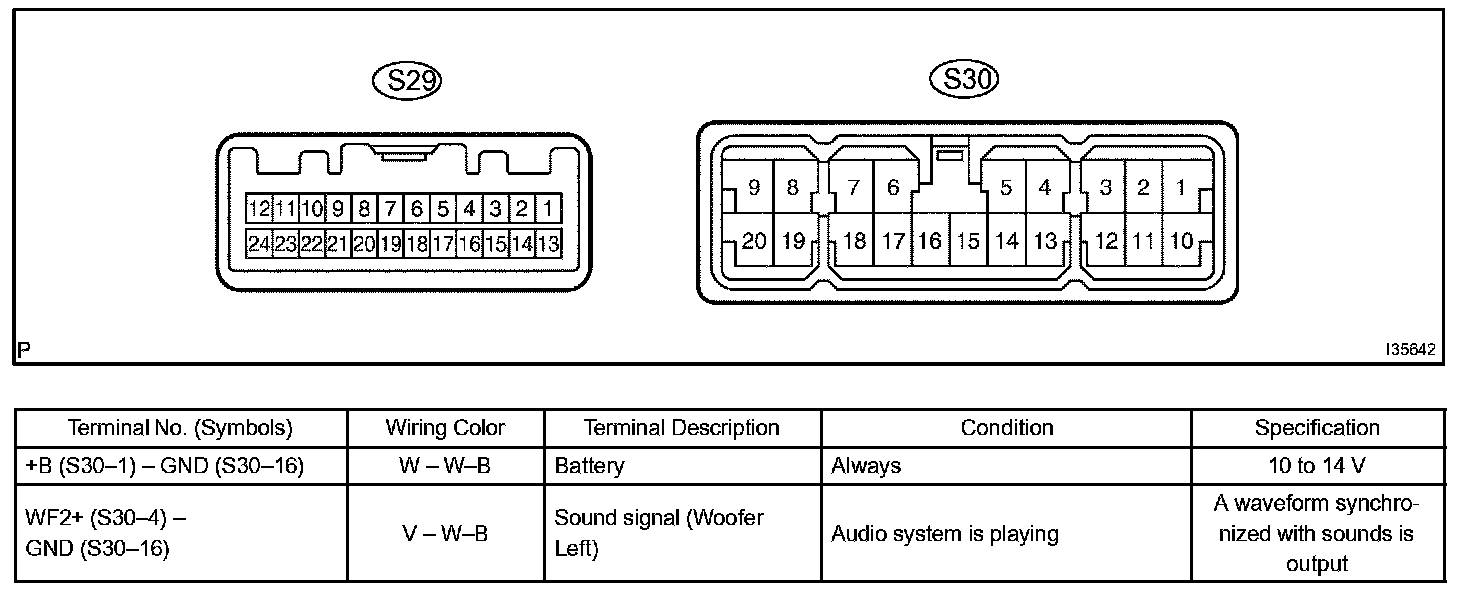

Terminals Of ECU/pinouts - Stereo Component Amplifier Assy (Mark Levinson System) Part 1:

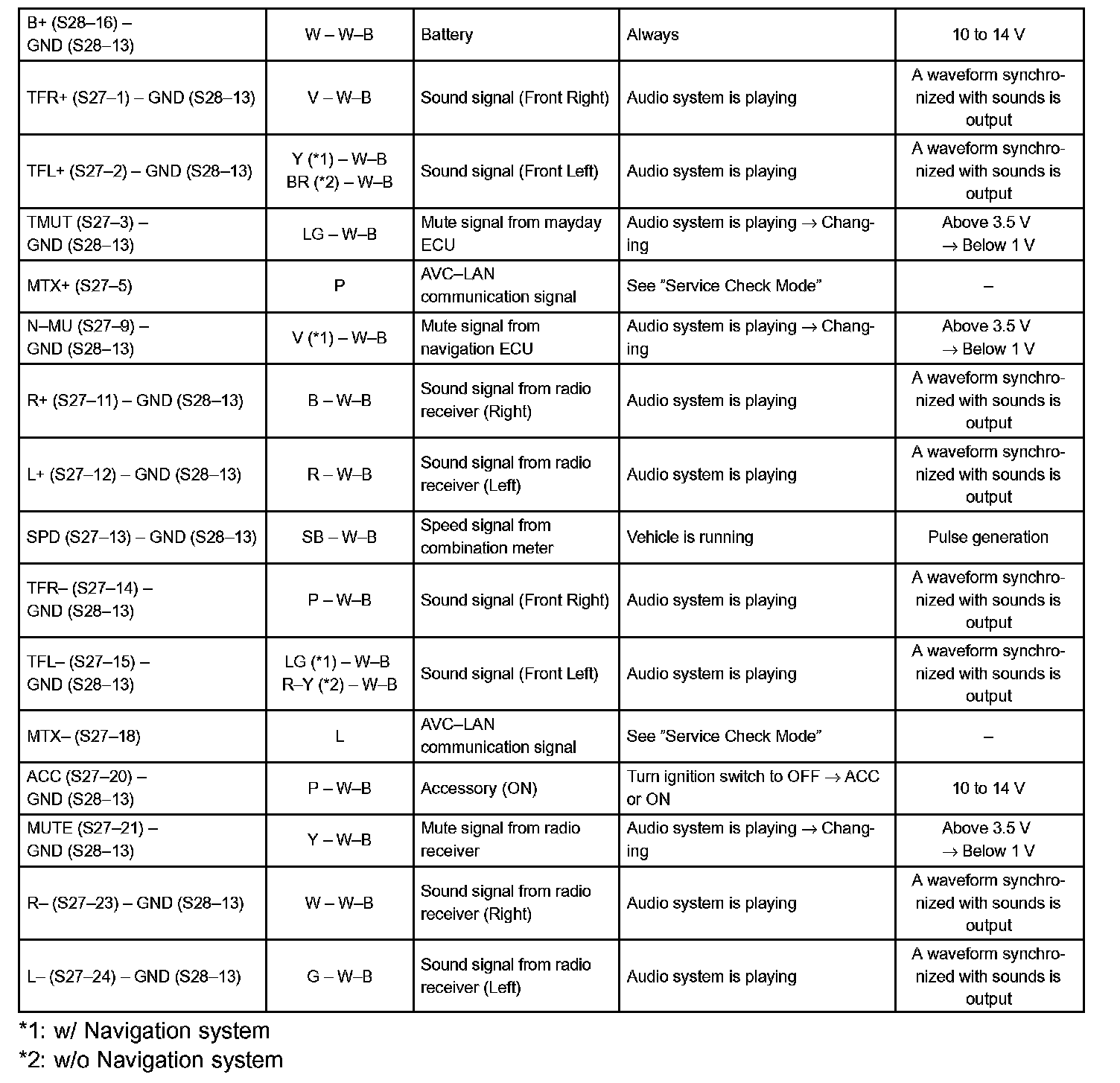

Terminals Of ECU/pinouts - Stereo Component Amplifier Assy (Mark Levinson System) Part 2:

5. STEREO COMPONENT AMPLIFIER ASSY

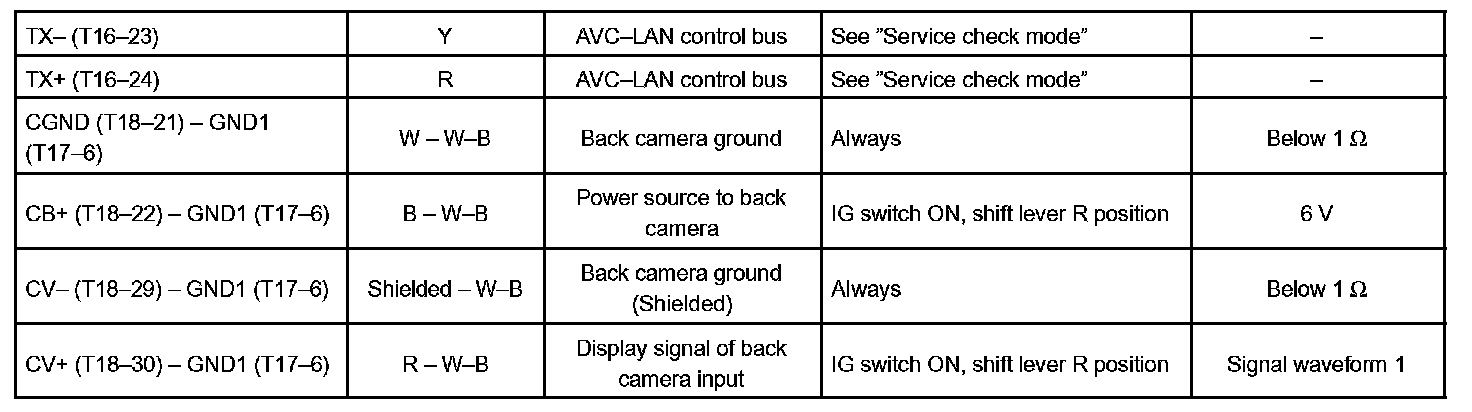

Terminals Of ECU/Pinouts - Television Camera ECU Part 1:

Terminals Of ECU/Pinouts - Television Camera ECU Part 2:

Oscilloscope Waveforms:

6. TELEVISION CAMERA ECU

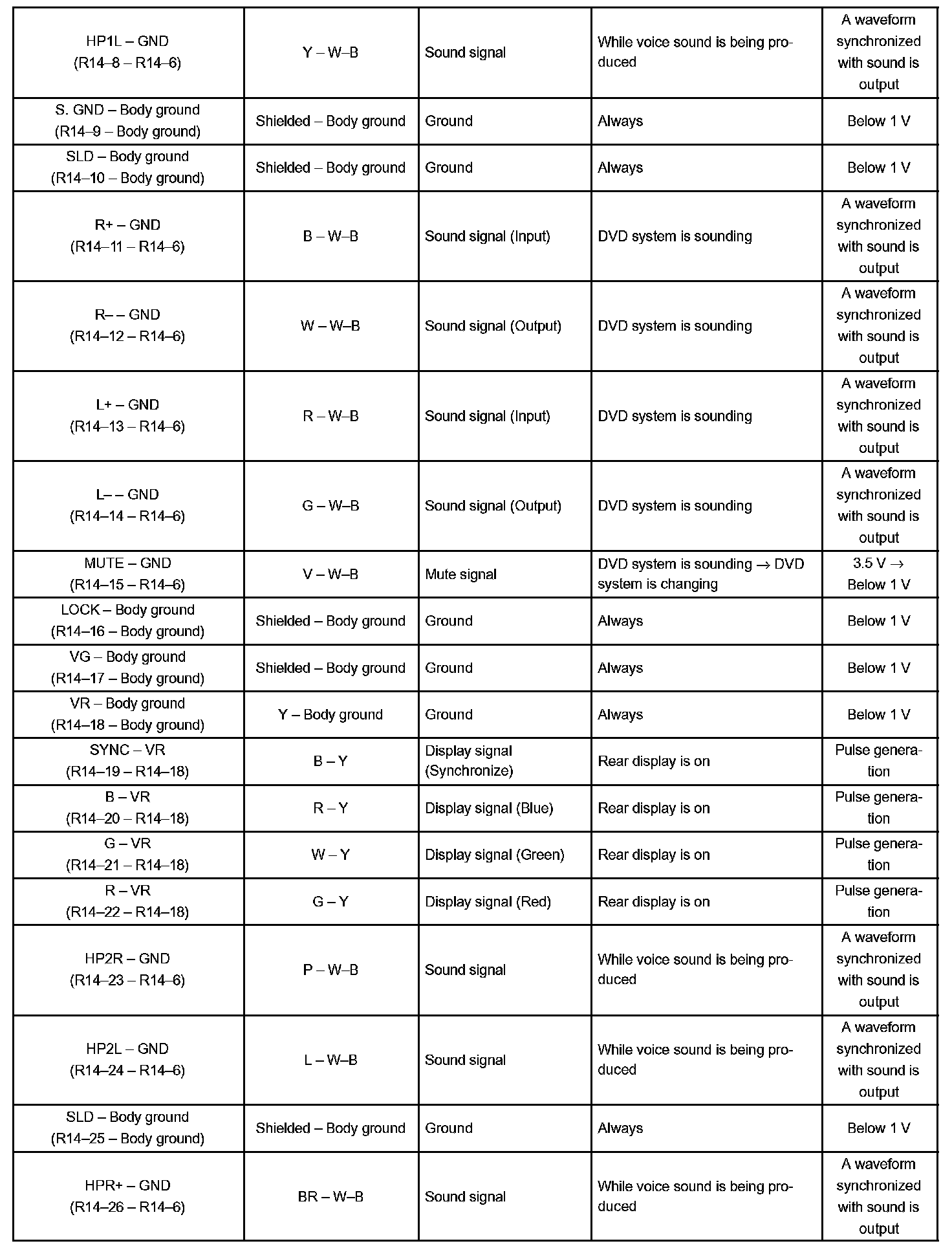

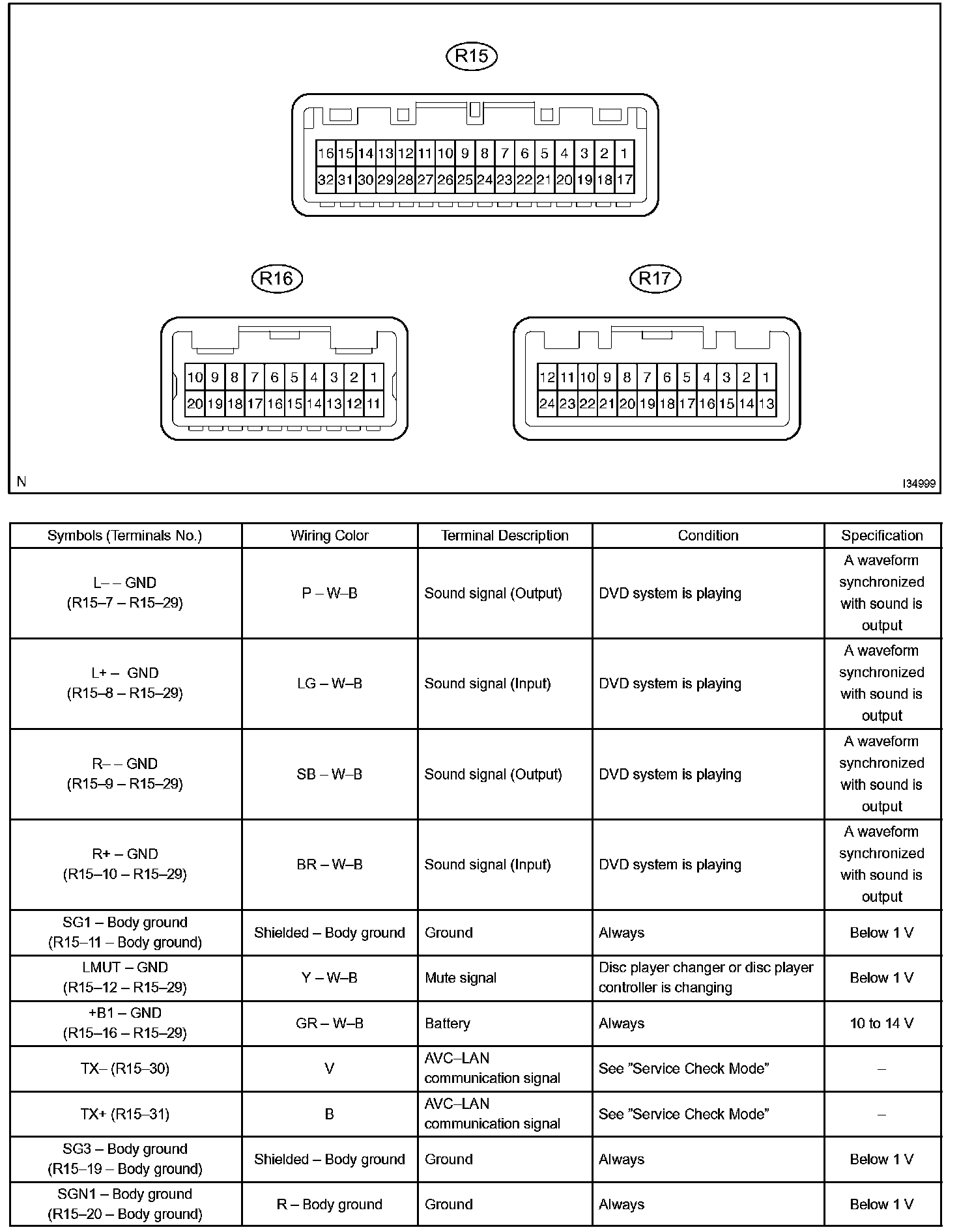

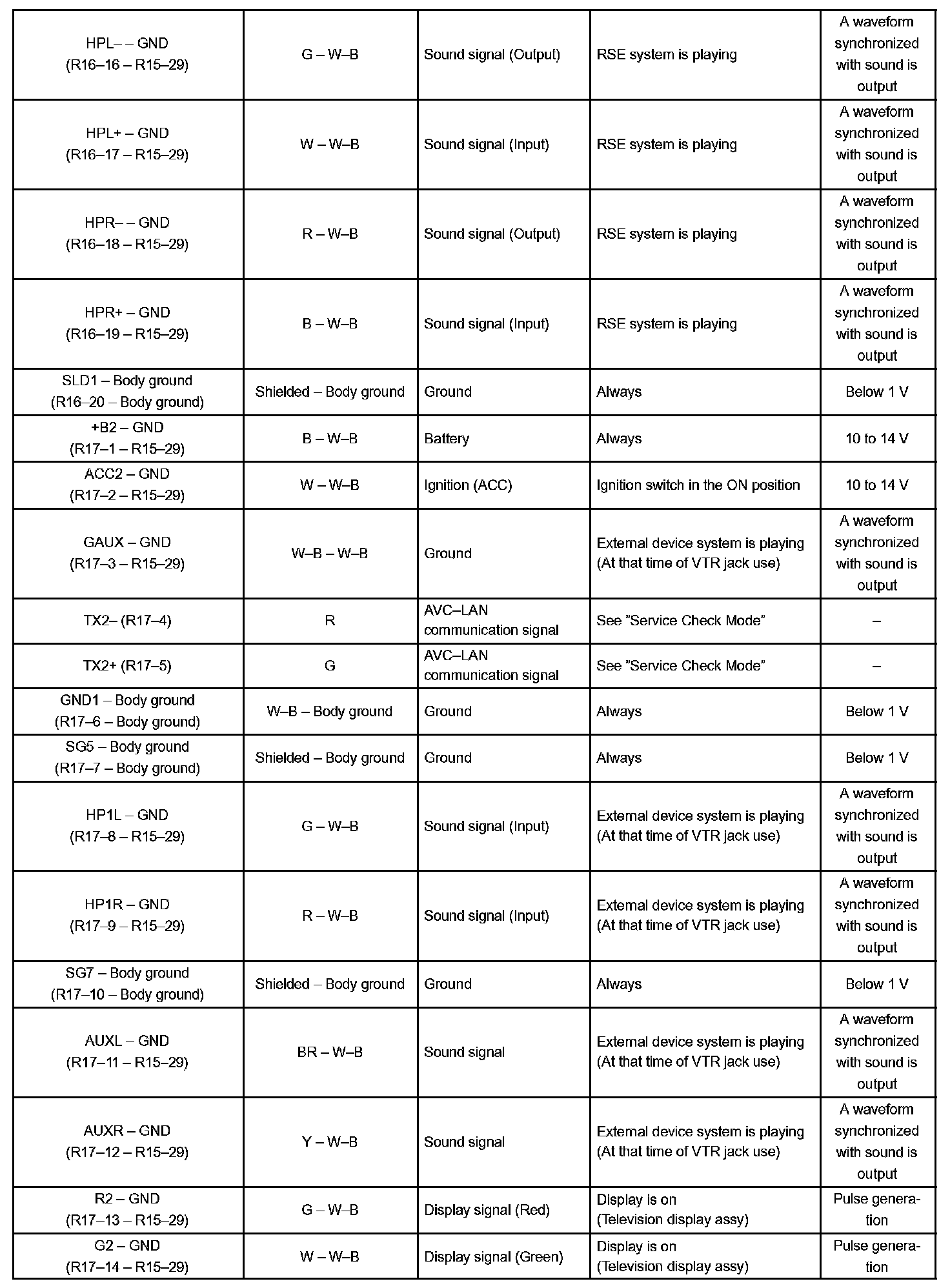

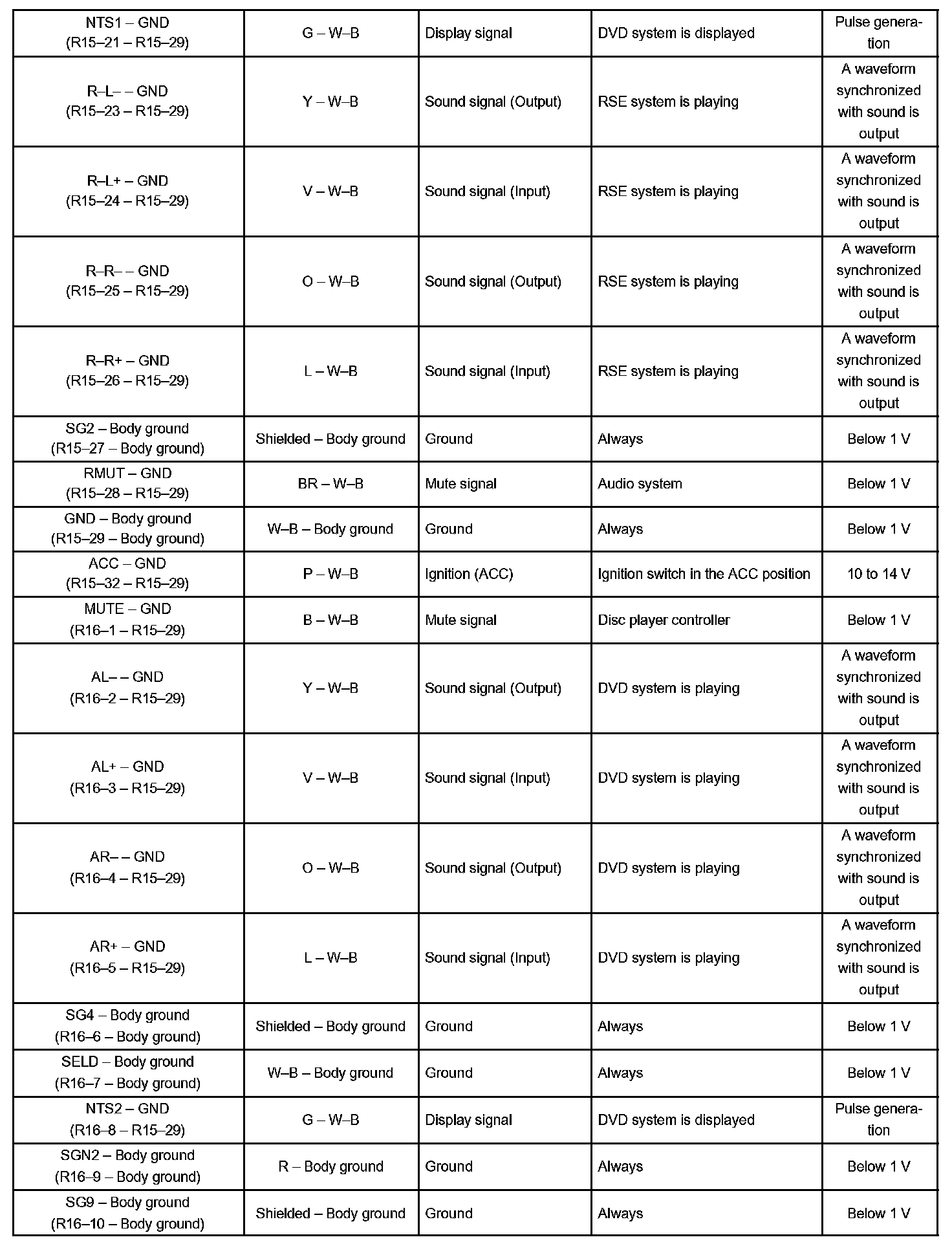

Terminals Of ECU/Pinouts - Multi-Display Controller Sub-Assy Part 1:

Terminals Of ECU/Pinouts - Multi-Display Controller Sub-Assy Part 2:

Terminals Of ECU/Pinouts - Multi-Display Controller Sub-Assy Part 3:

Terminals Of ECU/Pinouts - Multi-Display Controller Sub-Assy Part 4:

7. MULTI-DISPLAY CONTROLLER SUB-ASSY

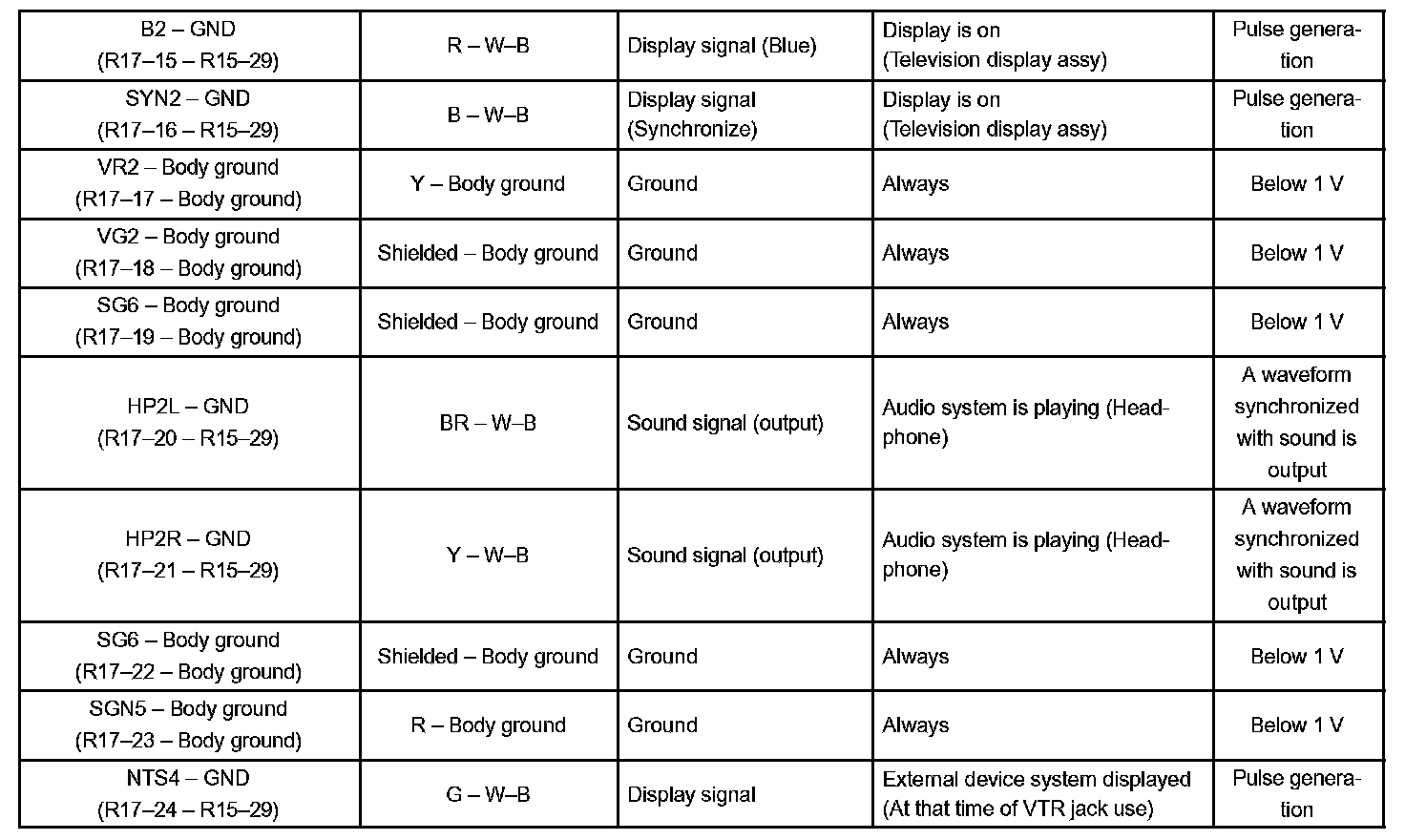

Terminals Of ECU/Pinouts - Television Display Assy Part 1:

Terminals Of ECU/Pinouts - Television Display Assy Part 2:

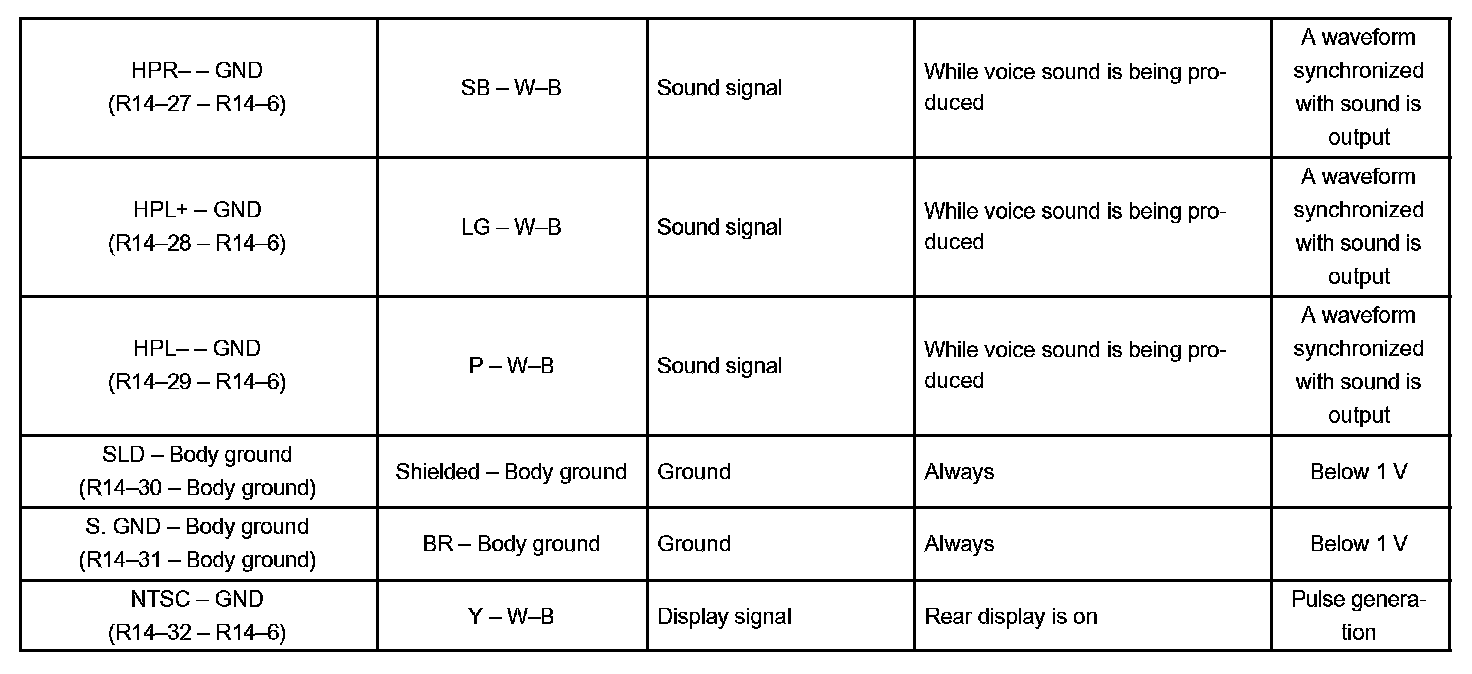

Terminals Of ECU/Pinouts - Television Display Assy Part 3:

8. TELEVISION DISPLAY ASSY

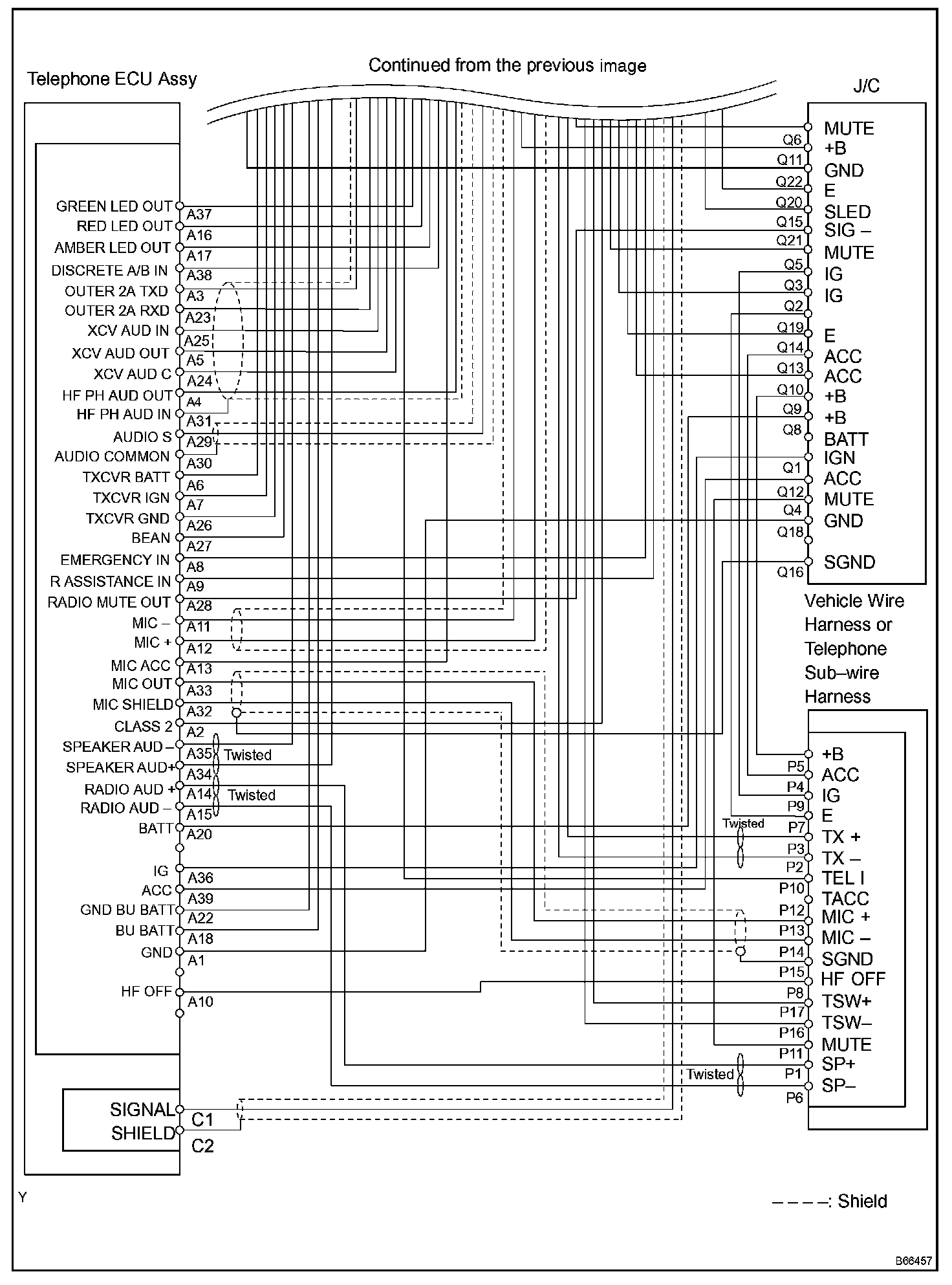

9. TELEPHONE ECU ASSY (MAYDAY ECU)

Terminals Of ECU/Pinouts - Connectors Part 1:

Terminals Of ECU/Pinouts - Connectors Part 2:

1. CONNECTORS

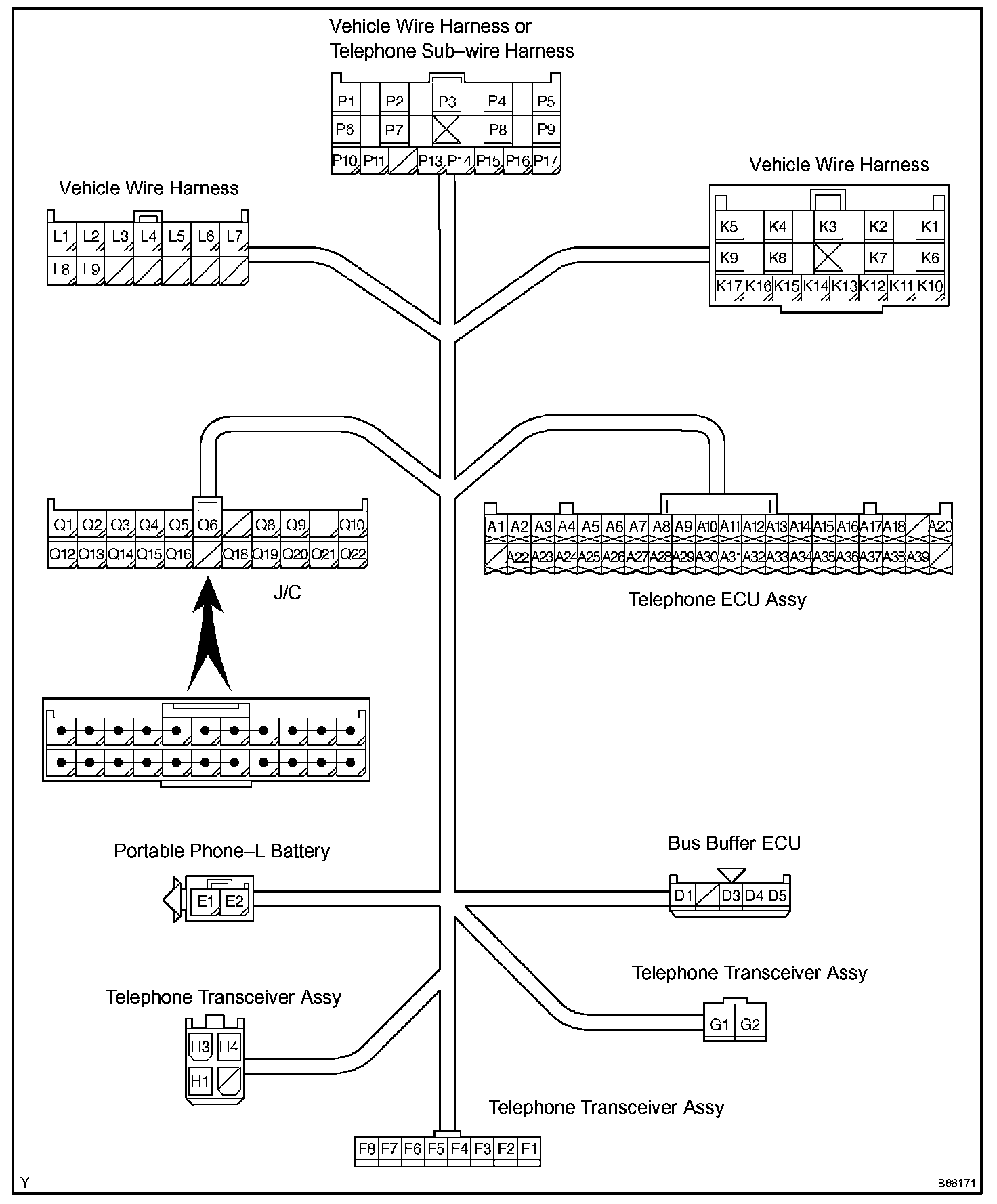

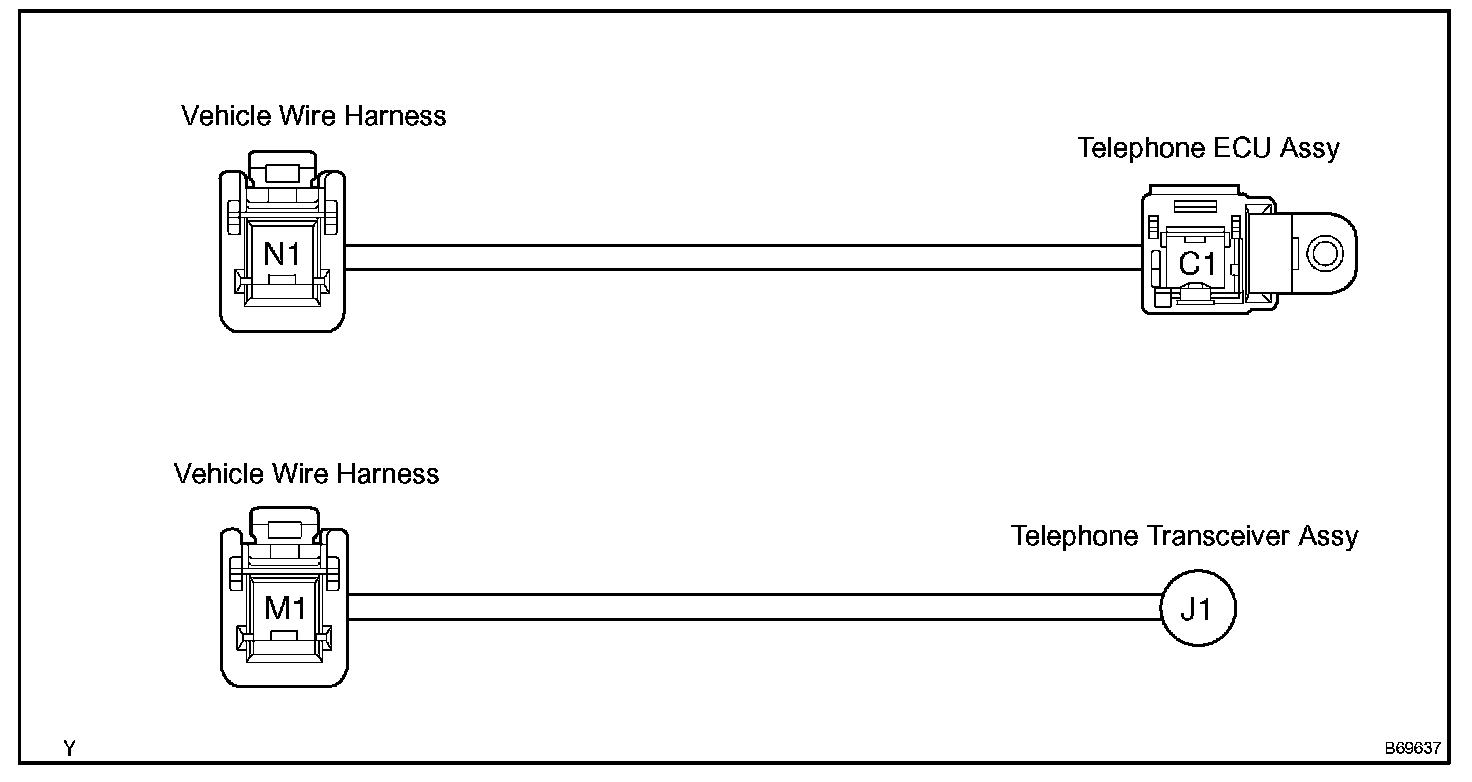

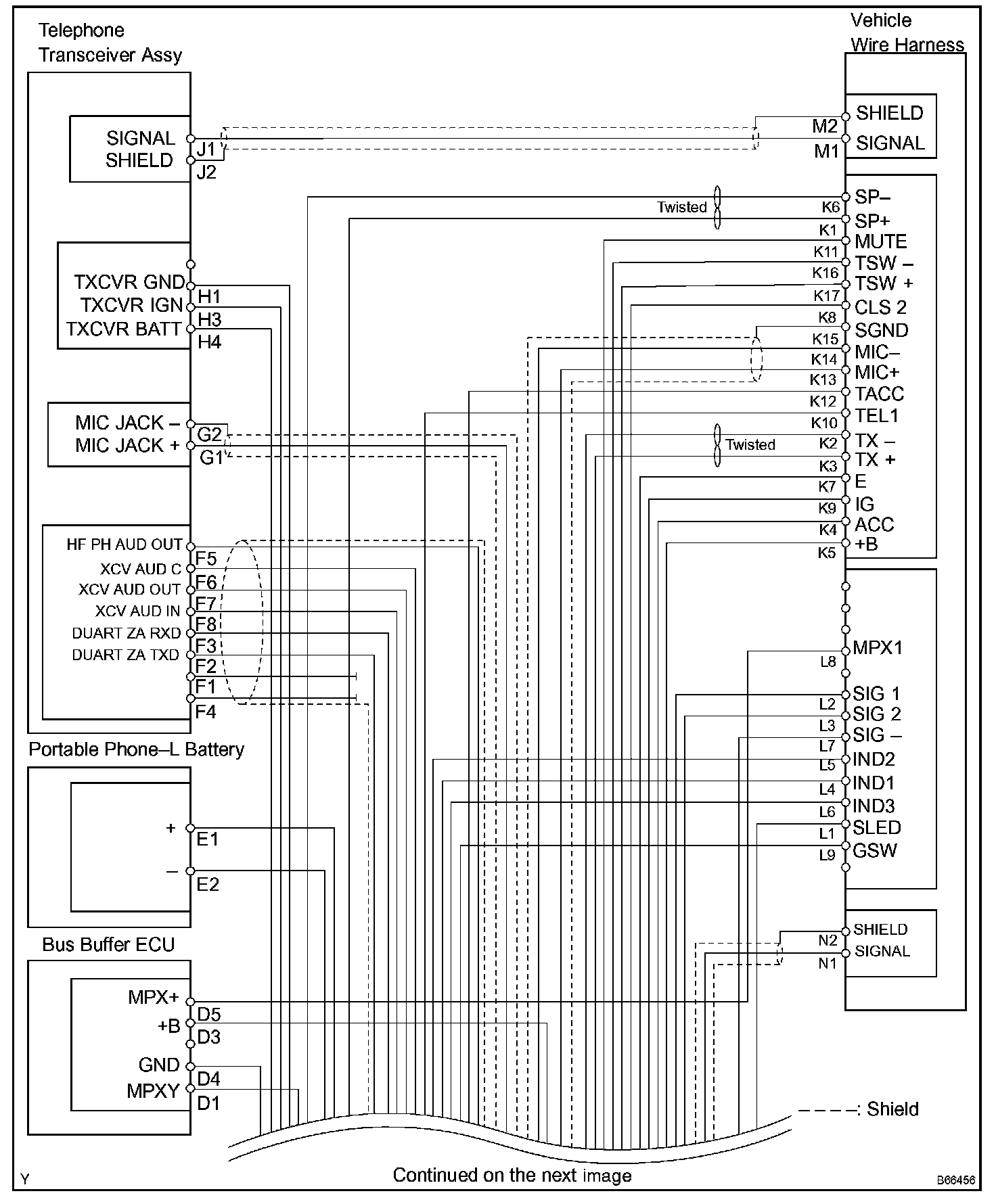

2. WIRING DIAGRAMS
